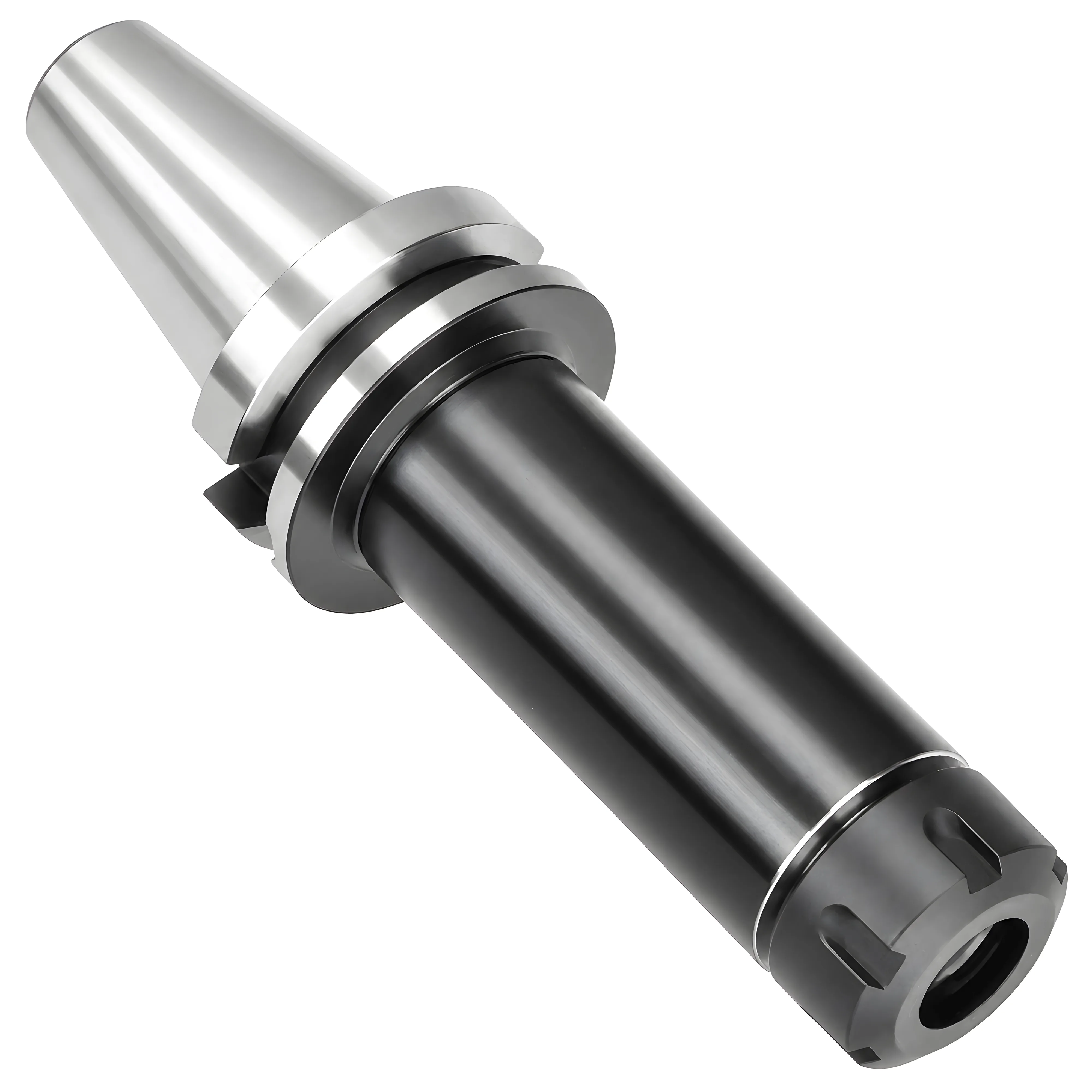

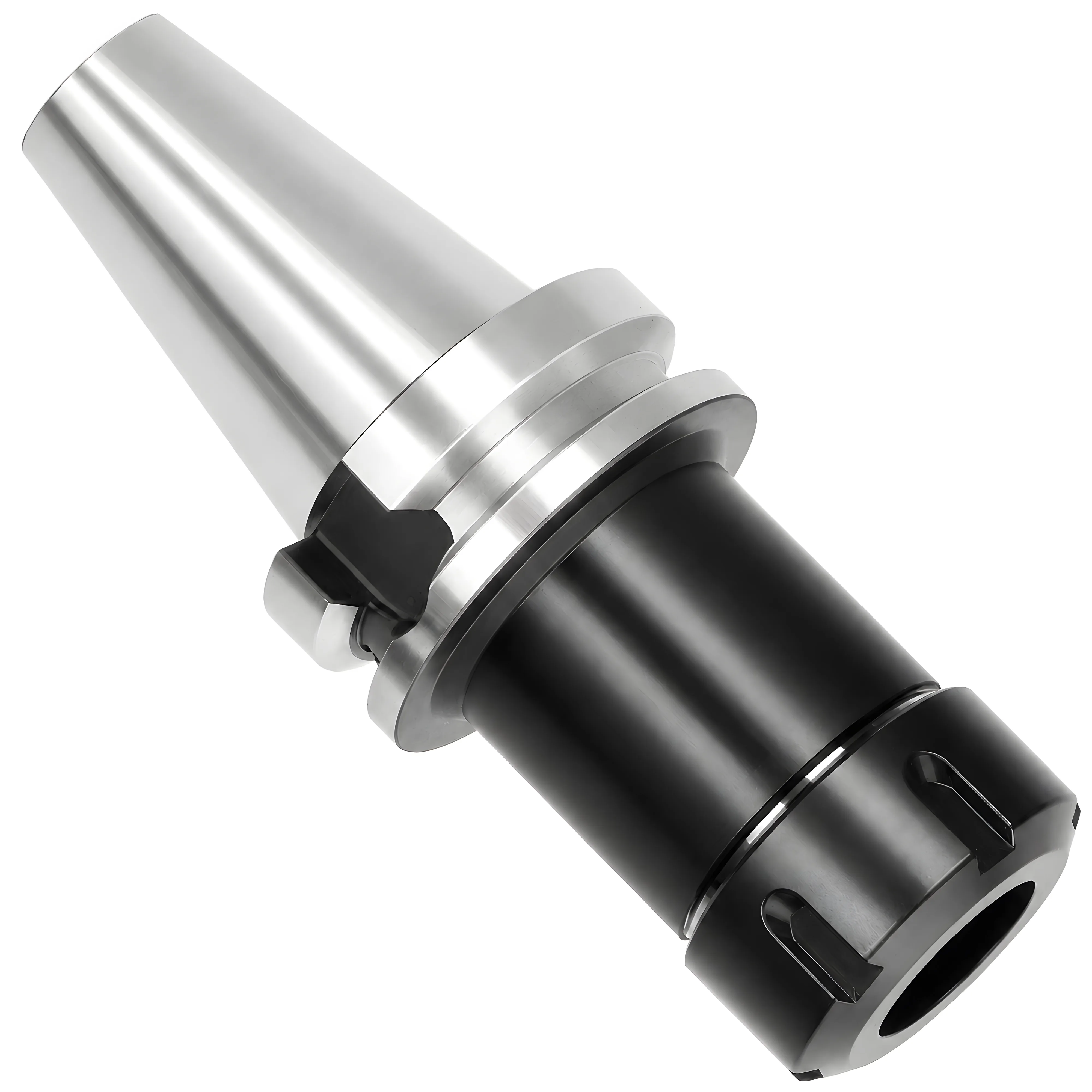

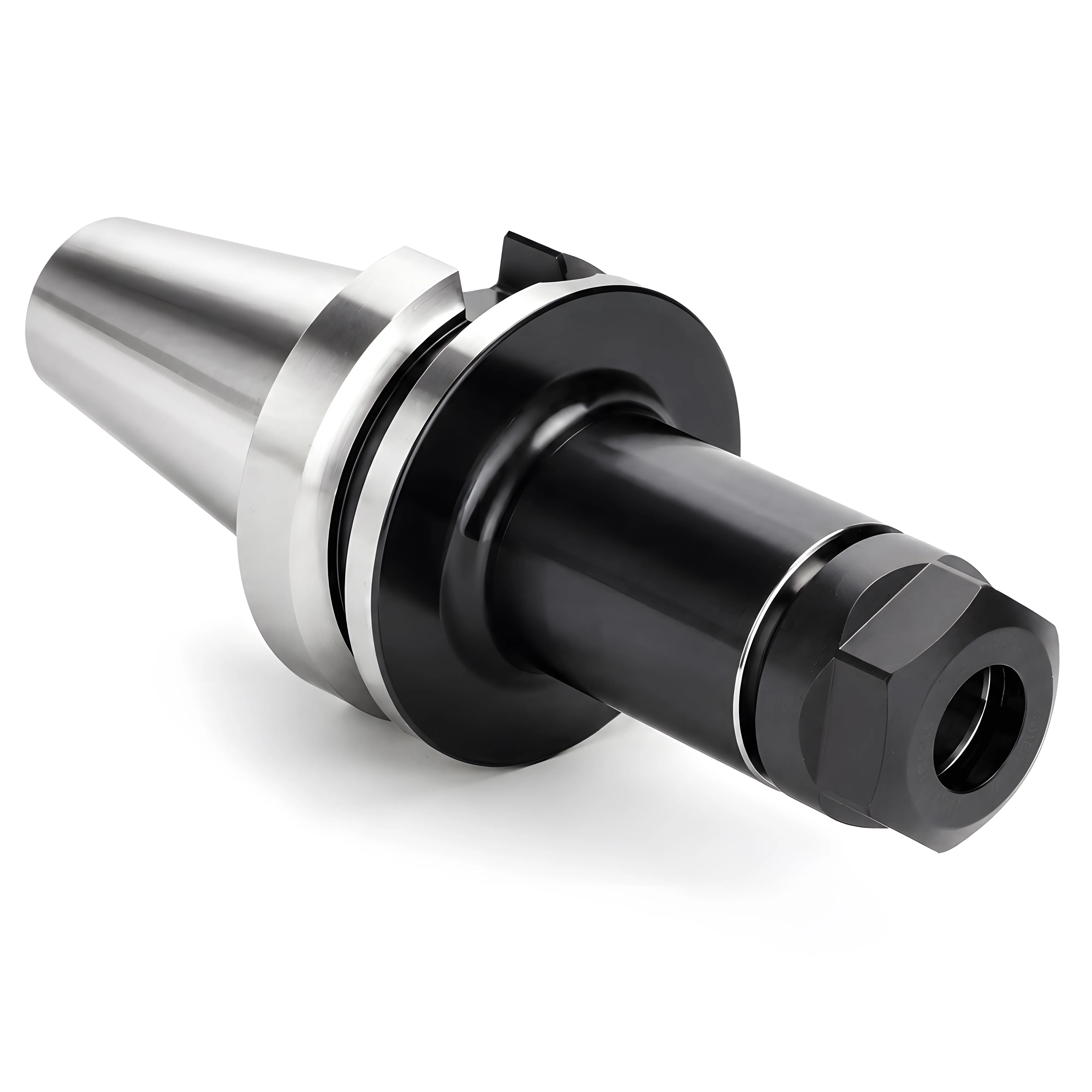

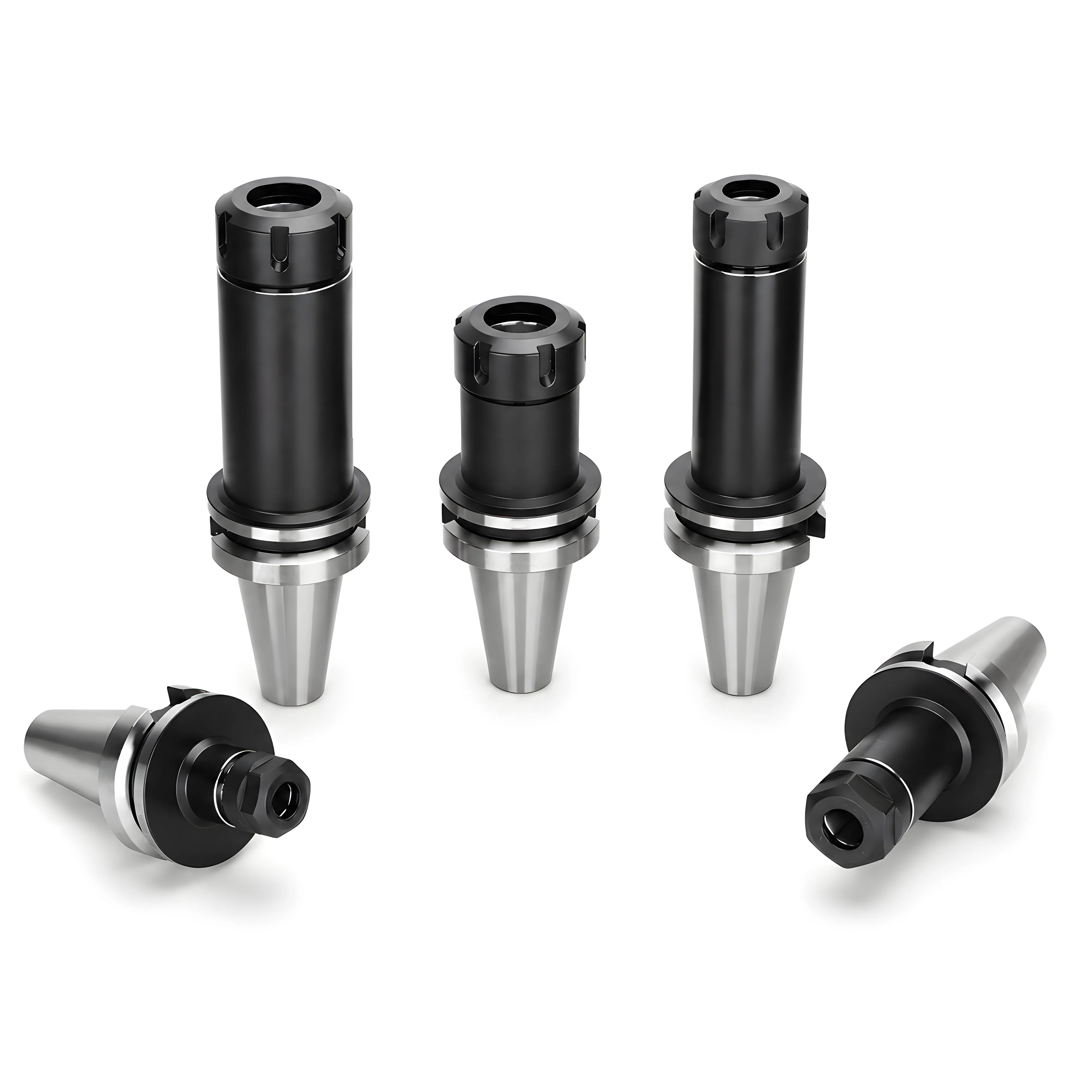

BT-ER コレットチャックホルダー

Name: BT-ER コレットチャックホルダー
Brand: MACHALLY
Availability: OutOfStock

BT テーパーシャンクにERコレットシステムを搭載した工具ホルダー。エンドミル、ドリルビット、タップなど各種切削工具の把持に対応。JIS MAS 403 BT規格準拠によりスピンドルとの正確な嵌合を実現。クランプ口での振れ精度8 µm、3D位置で12 µm。 ※スパナ、プルスタッド、コレットは別売

SKUを選択

数量

単価：

15.00 USD

中国倉庫から出荷

数量割引

注文金額

1000 + USD

割引

3% オフ

注文金額

3000 + USD

割引

5% オフ

注文金額

8000 + USD

割引

8% オフ

注文金額

15000 + USD

割引

12% オフ

注文金額

30000 + USD

割引

15% オフ

注文金額

50000 + USD

割引

18% オフ

割引はチェックアウト時に注文金額に基づいて自動適用されます。

出荷倉庫

🇨🇳

中国工場

在庫・生産対応可能

お支払い方法

Visa

MasterCard

American Express

Discover

Apple Pay

Google Pay

PayPal

Bank Transfer (TT)

仕様

SKU	Price	Total	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	D (mm)	d1 (mm)	d2 (mm)	d3 (mm)	Range (mm)	FIG
BT30-ER11M-60	$15	$0	108.4	60	38	22	46	16	11	16	1-7	Fig.1
BT30-ER11M-100	$16	$0	148.4	100	78	22	46	16	11	16	1-7	Fig.1
BT30-ER16-60	$15	$0	108.4	60	38	22	46	28	16	28	1-10	Fig.1
BT30-ER16-100	$16	$0	148.4	100	78	22	46	28	16	28	1-10	Fig.1
BT30-ER20-60	$15	$0	108.4	60	38	22	46	34	20	34	1-13	Fig.1
BT30-ER20-100	$16	$0	148.4	100	78	22	46	34	20	34	1-13	Fig.1
BT30-ER20-150	$17	$0	198.4	150	128	22	46	34	20	34	1-13	Fig.1
BT30-ER25-60	$15	$0	108.4	60	38	22	46	42	25	42	1-16	Fig.1
BT30-ER25-100	$16	$0	148.4	100	78	22	46	42	25	42	1-16	Fig.1
BT30-ER25-150	$17	$0	198.4	150	128	22	46	42	25	42	1-16	Fig.1
BT30-ER32-60	$15	$0	108.4	60	38	22	46	50	32	50	2-20	Fig.1
BT30-ER32-100	$16	$0	148.4	100	78	22	46	50	32	50	2-20	Fig.1
BT30-ER32-150	$17	$0	198.4	150	128	22	46	50	32	50	2-20	Fig.1
BT30-ER40-80	$16	$0	128.4	80	58	22	46	63	40	63	2-26	Fig.1
BT40-ER11M-70	$20	$0	135.4	70	43	27	63	16	11	16	1-7	Fig.1
BT40-ER11M-100	$20	$0	165.4	100	73	27	63	16	11	16	1-7	Fig.1
BT40-ER11M-150	$31	$0	215.4	150	123	27	63	16	11	16	1-7	Fig.1
BT40-ER16-70	$20	$0	135.4	70	43	27	63	28	16	28	1-10	Fig.1
BT40-ER16-100	$20	$0	165.4	100	73	27	63	28	16	28	1-10	Fig.1
BT40-ER16-150	$31	$0	215.4	150	123	27	63	28	16	28	1-10	Fig.1
BT40-ER16-200	$43	$0	265.4	200	173	27	63	28	16	28	1-10	Fig.1
BT40-ER16-250	$54	$0	315.4	250	223	27	63	28	16	28	1-10	Fig.1
BT40-ER16-300	$65	$0	365.4	300	273	27	63	28	16	28	1-10	Fig.1
BT40-ER20-70	$20	$0	135.4	70	43	27	63	34	20	34	1-13	Fig.1
BT40-ER20-100	$20	$0	165.4	100	73	27	63	34	20	34	1-13	Fig.1
BT40-ER20-150	$31	$0	215.4	150	123	27	63	34	20	34	1-13	Fig.1
BT40-ER20-200	$43	$0	265.4	200	173	27	63	34	20	34	1-13	Fig.1
BT40-ER20-250	$57	$0	315.4	250	223	27	63	34	20	34	1-13	Fig.1
BT40-ER20-300	$71	$0	365.4	300	273	27	63	34	20	34	1-13	Fig.1
BT40-ER25-70	$20	$0	135.4	70	43	27	63	42	25	42	1-16	Fig.1
BT40-ER25-100	$20	$0	165.4	100	73	27	63	42	25	42	1-16	Fig.1
BT40-ER25-150	$31	$0	215.4	150	123	27	63	42	25	42	1-16	Fig.1
BT40-ER25-200	$43	$0	265.4	200	173	27	63	42	25	42	1-16	Fig.1
BT40-ER25-250	$57	$0	315.4	250	223	27	63	42	25	42	1-16	Fig.1
BT40-ER25-300	$71	$0	365.4	300	273	27	63	42	25	42	1-16	Fig.1
BT40-ER32-70	$20	$0	135.4	70	43	27	63	50	32	50	2-20	Fig.1
BT40-ER32-100	$20	$0	165.4	100	73	27	63	50	32	50	2-20	Fig.1
BT40-ER32-150	$31	$0	215.4	150	123	27	63	50	32	50	2-20	Fig.1
BT40-ER32-200	$43	$0	265.4	200	173	27	63	50	32	50	2-20	Fig.1
BT40-ER32-250	$57	$0	315.4	250	223	27	63	50	32	50	2-20	Fig.1
BT40-ER32-300	$71	$0	365.4	300	273	27	63	50	32	50	2-20	Fig.1
BT40-ER40-80	$22	$0	145.4	80	53	27	63	63	40	63	2-26	Fig.1
BT40-ER40-100	$23	$0	165.4	100	73	27	63	63	40	63	2-26	Fig.1
BT40-ER40-150	$33	$0	215.4	150	123	27	63	63	40	63	2-26	Fig.1
BT40-ER40-200	$43	$0	265.4	200	173	27	63	63	40	63	2-26	Fig.1
BT40-ER40-250	$57	$0	315.4	250	223	27	63	63	40	63	2-26	Fig.1
BT40-ER40-300	$71	$0	365.4	300	273	27	63	63	40	63	2-26	Fig.1
BT40-ER50-100	$43	$0	165.4	100	43	27	63	78	50	78	6-34	Fig.1
BT50-ER16-80	$43	$0	171.8	80	42	38	100	28	16	28	1-10	Fig.2
BT50-ER16-100	$43	$0	201.8	100	62	38	100	28	16	28	1-10	Fig.2
BT50-ER16-150	$54	$0	251.8	150	112	38	100	28	16	28	1-10	Fig.2
BT50-ER16-200	$68	$0	301.8	200	162	38	100	28	16	28	1-10	Fig.2
BT50-ER16-250	$96	$0	351.8	250	212	38	100	28	16	31	1-10	Fig.3
BT50-ER16-300	$124	$0	401.8	300	262	38	100	28	16	33	1-10	Fig.3
BT50-ER16-350	$153	$0	451.8	350	312	38	100	28	16	35	1-10	Fig.3
BT50-ER20-80	$43	$0	181.8	80	42	38	100	34	20	34	1-13	Fig.2
BT50-ER20-100	$43	$0	201.8	100	62	38	100	34	20	34	1-13	Fig.2
BT50-ER20-150	$54	$0	251.8	150	112	38	100	34	20	34	1-13	Fig.2
BT50-ER20-200	$68	$0	301.8	200	162	38	100	34	20	34	1-13	Fig.2
BT50-ER20-250	$96	$0	351.8	250	212	38	100	34	20	37	1-13	Fig.3
BT50-ER20-300	$113	$0	401.8	300	262	38	100	34	20	39	1-13	Fig.3
BT50-ER20-350	$124	$0	451.8	350	312	38	100	34	20	41	1-13	Fig.3
BT50-ER20-400	$153	$0	501.8	400	362	38	100	34	20	43	1-13	Fig.3
BT50-ER25-80	$43	$0	181.8	80	42	38	100	42	25	42	1-16	Fig.2
BT50-ER25-100	$43	$0	201.8	100	62	38	100	42	25	42	1-16	Fig.2
BT50-ER25-150	$54	$0	251.8	150	112	38	100	42	25	42	1-16	Fig.2
BT50-ER25-200	$68	$0	301.8	200	162	38	100	42	25	42	1-16	Fig.2
BT50-ER25-250	$96	$0	351.8	250	212	38	100	42	25	45	1-16	Fig.3
BT50-ER25-300	$113	$0	401.8	300	262	38	100	42	25	47	1-16	Fig.3
BT50-ER25-350	$124	$0	451.8	350	312	38	100	42	25	49	1-16	Fig.3
BT50-ER25-400	$153	$0	501.8	400	362	38	100	42	25	51	1-16	Fig.3
BT50-ER32-80	$43	$0	181.8	80	42	38	100	50	32	50	2-20	Fig.2
BT50-ER32-100	$43	$0	201.8	100	62	38	100	50	32	50	2-20	Fig.2
BT50-ER32-150	$54	$0	251.8	150	112	38	100	50	32	50	2-20	Fig.2
BT50-ER32-200	$68	$0	301.8	200	162	38	100	50	32	50	2-20	Fig.2
BT50-ER32-250	$96	$0	351.8	250	212	38	100	50	32	50	2-20	Fig.2
BT50-ER32-300	$113	$0	401.8	300	262	38	100	50	32	53	2-20	Fig.3
BT50-ER32-350	$124	$0	451.8	350	312	38	100	50	32	54	2-20	Fig.3
BT50-ER32-400	$153	$0	501.8	400	362	38	100	50	32	56	2-20	Fig.3
BT50-ER32-450	$181	$0	551.8	450	412	38	100	50	32	58	2-20	Fig.3
BT50-ER32-500	$203	$0	601.8	500	462	38	100	50	32	60	2-20	Fig.3
BT50-ER32-550	$220	$0	651.8	550	512	38	100	50	32	65	2-20	Fig.3
BT50-ER32-600	$243	$0	701.8	600	562	38	100	50	32	68	2-20	Fig.3
BT50-ER40-80	$43	$0	186.8	80	42	38	100	63	40	63	2-26	Fig.2
BT50-ER40-100	$44	$0	201.8	100	62	38	100	63	40	63	2-26	Fig.2
BT50-ER40-150	$54	$0	251.8	150	112	38	100	63	40	63	2-26	Fig.2
BT50-ER40-200	$71	$0	301.8	200	162	38	100	63	40	63	2-26	Fig.2
BT50-ER40-250	$99	$0	351.8	250	212	38	100	63	40	63	2-26	Fig.2
BT50-ER40-300	$116	$0	401.8	300	262	38	100	63	40	66	2-26	Fig.3
BT50-ER40-350	$127	$0	451.8	350	312	38	100	63	40	67	2-26	Fig.3
BT50-ER40-400	$153	$0	501.8	400	362	38	100	63	40	70	2-26	Fig.3
BT50-ER40-450	$181	$0	551.8	450	412	38	100	63	40	72	2-26	Fig.3
BT50-ER40-500	$203	$0	601.8	500	462	38	100	63	40	73	2-26	Fig.3
BT50-ER40-550	$220	$0	651.8	550	512	38	100	63	40	75	2-26	Fig.3
BT50-ER40-600	$243	$0	701.8	600	562	38	100	63	40	78	2-26	Fig.3
BT50-ER50-100	$62	$0	201.8	100	62	38	100	78	50	78	6-34	Fig.2
BT50-ER50-150	$74	$0	251.8	150	112	38	100	78	50	78	6-34	Fig.2
BT50-ER50-200	$102	$0	301.8	200	162	38	100	78	50	78	6-34	Fig.2

選択した商品0 × $0

小計$0

合計金額$0

選択: 0点

特長

この製品の主な特長と仕様をご紹介します。

JIS MAS 403 BT スピンドルテーパー規格準拠

ERコレットによりエンドミル・ドリル・タップに対応

コレットをナットに装着後、工具を挿入する手順

指定レンチの使用により工具損傷を防止

スパナ、プルスタッド、コレットは別売

クランプ口振れ精度: 8 µm、3D位置: 12 µm

技術図面

プロフェッショナル向けの詳細な技術仕様と寸法図。

Fig.1

Fig.2

Fig.3

Fig.1

Fig.2

Fig.3
