Porte-outil HSK à pince ER

Name: Porte-outil HSK à pince ER
Brand: MACHALLY
Availability: OutOfStock

Porte-outil HSK avec mandrin à pince ER et écrou équilibré dynamiquement. Conception avec trou traversant facilitant le passage du liquide de coupe et la résistance aux vibrations. Compatible norme de broche ISO 12164 HSK. Lors du montage, insérer la pince dans l'écrou, puis l'outil, et enfin verrouiller dans le corps. L'outil doit dépasser la longueur de serrage effective de la pince.

Choisir une variante

Quantité

Prix unitaire :

58.00 USD

Expédié depuis l'entrepôt en Chine

Remise sur volume

Valeur de commande

1000 + USD

Remise

3% de réduction

Valeur de commande

3000 + USD

Remise

5% de réduction

Valeur de commande

8000 + USD

Remise

8% de réduction

Valeur de commande

15000 + USD

Remise

12% de réduction

Valeur de commande

30000 + USD

Remise

15% de réduction

Valeur de commande

50000 + USD

Remise

18% de réduction

Les remises sont automatiquement appliquées lors du paiement en fonction de la valeur de la commande.

Entrepôts disponibles

🇨🇳

Fabriqué en Chine

Stock & production disponibles

Paiements acceptés

Visa

MasterCard

American Express

Discover

Apple Pay

Google Pay

PayPal

Bank Transfer (TT)

Spécifications

SKU	Price	Total	L	L1	L2	D	d1	d2	d3	T	Collet	Range	α	FIG
HSK50A-ER16-80	$58	$0	105	80	54	50	28	16	28	M10*1.0P	ER16	1-10	-	Fig.1
HSK50A-ER16-100	$62	$0	125	100	74	50	28	16	28	M10*1.0P	ER16	1-10	-	Fig.1
HSK50A-ER20-80	$58	$0	105	80	54	50	34	20	34	M13*1.0P	ER20	1-13	-	Fig.1
HSK50A-ER20-100	$62	$0	125	100	74	50	34	20	34	M13*1.0P	ER20	1-13	-	Fig.1
HSK50A-ER25-80	$58	$0	105	80	54	50	42	25	42	M18*1.5P	ER25	2-16	-	Fig.1
HSK50A-ER25-100	$62	$0	125	100	74	50	42	25	42	M18*1.5P	ER25	2-16	-	Fig.1
HSK50A-ER32-80	$58	$0	105	80	54	50	50	32	50	M22*1.5P	ER32	2-20	-	Fig.1
HSK50A-ER32-100	$62	$0	125	100	74	50	50	32	50	M22*1.5P	ER32	2-20	-	Fig.1
HSK63A-ER16-75	$56	$0	107	75	49	63	28	16	28	M10*1.0P	ER16	1-10	-	Fig.2
HSK63A-ER16-100	$58	$0	132	100	74	63	28	16	28	M10*1.0P	ER16	1-10	-	Fig.2
HSK63A-ER16-125	$65	$0	157	125	99	63	28	16	28	M10*1.0P	ER16	1-10	-	Fig.2
HSK63A-ER16-160	$71	$0	192	160	134	63	28	16	35	M10*1.0P	ER16	1-10	-	Fig.2
HSK63A-ER16-200	$91	$0	232	200	174	63	28	16	35	M10*1.0P	ER16	1-10	-	Fig.2
HSK63A-ER16-250	$118	$0	282	250	224	63	28	16	35	M10*1.0P	ER16	1-10	1°	Fig.3
HSK63A-ER20-75	$56	$0	107	75	49	63	34	20	34	M13*1.0P	ER20	1-13	-	Fig.2
HSK63A-ER20-100	$58	$0	132	100	74	63	34	20	34	M13*1.0P	ER20	1-13	-	Fig.2
HSK63A-ER20-125	$65	$0	157	125	99	63	34	20	34	M13*1.0P	ER20	1-13	-	Fig.2
HSK63A-ER20-160	$71	$0	192	160	134	63	34	20	41	M13*1.0P	ER20	1-13	-	Fig.2
HSK63A-ER20-200	$91	$0	232	200	174	63	34	20	41	M13*1.0P	ER20	1-13	-	Fig.2
HSK63A-ER20-250	$118	$0	282	250	224	63	34	20	41	M13*1.0P	ER20	1-13	1°	Fig.3
HSK63A-ER25-75	$56	$0	107	75	49	63	42	25	42	M18*1.5P	ER25	2-16	-	Fig.2
HSK63A-ER25-100	$58	$0	132	100	74	63	42	25	42	M18*1.5P	ER25	2-16	-	Fig.2
HSK63A-ER25-125	$65	$0	157	125	99	63	42	25	42	M18*1.5P	ER25	2-16	-	Fig.2
HSK63A-ER25-160	$71	$0	192	160	134	63	42	25	49	M18*1.5P	ER25	2-16	-	Fig.2
HSK63A-ER25-200	$91	$0	232	200	174	63	42	25	49	M18*1.5P	ER25	2-16	-	Fig.2
HSK63A-ER25-250	$118	$0	282	250	224	63	42	25	49	M18*1.5P	ER25	2-16	1°	Fig.3
HSK63A-ER25-350	$178	$0	382	332	224	63	42	25	49	M18*1.5P	ER25	2-16	1°	Fig.3
HSK63A-ER25-300	$144	$0	332	282	224	63	42	25	49	M18*1.5P	ER25	2-16	1°	Fig.3
HSK63A-ER32-75	$58	$0	107	75	49	63	50	32	50	M22*1.5P	ER32	2-20	-	Fig.2
HSK63A-ER32-100	$58	$0	132	100	74	63	50	32	50	M22*1.5P	ER32	2-20	-	Fig.2
HSK63A-ER32-125	$65	$0	157	125	99	63	50	32	50	M22*1.5P	ER32	2-20	-	Fig.2
HSK63A-ER32-160	$71	$0	192	160	134	63	50	32	50	M22*1.5P	ER32	2-20	-	Fig.2
HSK63A-ER32-200	$91	$0	232	200	174	63	50	32	50	M22*1.5P	ER32	2-20	-	Fig.2
HSK63A-ER32-250	$118	$0	282	250	224	63	50	32	50	M22*1.5P	ER32	2-20	-	Fig.2
HSK63A-ER32-300	$144	$0	332	300	274	63	50	32	50	M22*1.5P	ER32	2-20	-	Fig.2
HSK63A-ER40-100	$62	$0	132	100	74	63	63	40	63	M28*1.5P	ER40	4-26	-	Fig.2
HSK63A-ER40-125	$69	$0	157	125	99	63	63	40	63	M28*1.5P	ER40	4-26	-	Fig.2
HSK63A-ER40-160	$76	$0	192	160	134	63	63	40	63	M28*1.5P	ER40	4-26	-	Fig.2
HSK63A-ER40-200	$93	$0	232	200	174	63	63	40	63	M28*1.5P	ER40	4-26	-	Fig.2
HSK63A-ER40-250	$119	$0	282	250	224	63	63	40	63	M28*1.5P	ER40	4-26	-	Fig.2
HSK63A-ER40-300	$148	$0	332	300	274	63	63	40	63	M28*1.5P	ER40	4-26	-	Fig.2
HSK100A-ER16-100	$114	$0	150	100	71	100	28	16	28	M10*1.0P	ER16	1-10	-	Fig.4
HSK100A-ER16-125	$120	$0	175	125	96	100	28	16	28	M10*1.0P	ER16	1-10	-	Fig.4
HSK100A-ER16-160	$127	$0	210	160	131	100	28	16	28	M10*1.0P	ER16	1-10	-	Fig.4
HSK100A-ER16-200	$151	$0	250	200	171	100	28	16	28	M10*1.0P	ER16	1-10	-	Fig.4
HSK100A-ER16-250	$198	$0	300	250	221	100	28	16	35	M10*1.0P	ER16	1-10	1°	Fig.5
HSK100A-ER16-300	$227	$0	350	300	271	100	28	16	37	M10*1.0P	ER16	1-10	1°	Fig.5
HSK100A-ER20-100	$114	$0	150	100	71	100	34	20	34	M13*1.0P	ER20	1-13	-	Fig.4
HSK100A-ER20-125	$120	$0	175	125	96	100	34	20	34	M13*1.0P	ER20	1-13	-	Fig.4
HSK100A-ER20-160	$127	$0	210	160	131	100	34	20	34	M13*1.0P	ER20	1-13	-	Fig.4
HSK100A-ER20-200	$151	$0	250	200	171	100	34	20	34	M13*1.0P	ER20	1-13	-	Fig.4
HSK100A-ER20-250	$198	$0	300	250	221	100	34	20	41	M13*1.0P	ER20	1-13	1°	Fig.5
HSK100A-ER20-300	$227	$0	350	300	271	100	34	20	43	M13*1.0P	ER20	1-13	1°	Fig.5
HSK100A-ER25-100	$114	$0	150	100	71	100	42	25	42	M18*1.5P	ER25	2-16	-	Fig.4
HSK100A-ER25-125	$120	$0	175	125	96	100	42	25	42	M18*1.5P	ER25	2-16	-	Fig.4
HSK100A-ER25-160	$127	$0	210	160	131	100	42	25	42	M18*1.5P	ER25	2-16	-	Fig.4
HSK100A-ER25-200	$151	$0	250	200	171	100	42	25	42	M18*1.5P	ER25	2-16	-	Fig.4
HSK100A-ER25-250	$198	$0	300	250	221	100	42	25	49	M18*1.5P	ER25	2-16	1°	Fig.5
HSK100A-ER25-300	$227	$0	350	300	271	100	42	25	51	M18*1.5P	ER25	2-16	1°	Fig.5
HSK100A-ER25-350	$279	$0	400	350	321	100	42	25	53	M18*1.5P	ER25	2-16	1°	Fig.5
HSK100A-ER32-100	$114	$0	150	100	71	100	50	32	50	M22*1.5P	ER32	2-20	-	Fig.4
HSK100A-ER32-125	$120	$0	175	125	96	100	50	32	50	M22*1.5P	ER32	2-20	-	Fig.4
HSK100A-ER32-160	$127	$0	210	160	131	100	50	32	50	M22*1.5P	ER32	2-20	-	Fig.4
HSK100A-ER32-200	$151	$0	250	200	171	100	50	32	50	M22*1.5P	ER32	2-20	-	Fig.4
HSK100A-ER32-250	$198	$0	300	250	221	100	50	32	50	M22*1.5P	ER32	2-20	1°	Fig.5
HSK100A-ER32-300	$227	$0	350	300	271	100	50	32	57	M22*1.5P	ER32	2-20	1°	Fig.5
HSK100A-ER32-350	$279	$0	400	350	321	100	50	32	59	M22*1.5P	ER32	2-20	1°	Fig.5
HSK100A-ER32-400	$320	$0	450	400	371	100	50	32	61	M22*1.5P	ER32	2-20	1°	Fig.5
HSK100A-ER40-100	$120	$0	150	100	71	100	63	40	63	M28*1.5P	ER40	4-26	-	Fig.4
HSK100A-ER40-125	$128	$0	175	125	96	100	63	40	63	M28*1.5P	ER40	4-26	-	Fig.4
HSK100A-ER40-160	$137	$0	210	160	131	100	63	40	63	M28*1.5P	ER40	4-26	-	Fig.4
HSK100A-ER40-200	$157	$0	250	200	171	100	63	40	63	M28*1.5P	ER40	4-26	-	Fig.4
HSK100A-ER40-250	$201	$0	300	250	221	100	63	40	63	M28*1.5P	ER40	4-26	1°	Fig.5
HSK100A-ER40-300	$244	$0	350	300	271	100	63	40	70	M28*1.5P	ER40	4-26	1°	Fig.5
HSK100A-ER40-350	$288	$0	400	350	321	100	63	40	72	M28*1.5P	ER40	4-26	1°	Fig.5
HSK100A-ER40-400	$331	$0	450	400	371	100	63	40	74	M28*1.5P	ER40	4-26	1°	Fig.5
HSK100A-ER50-100	$123	$0	150	100	71	100	78	50	78	M36*1.5P	ER50	6-34	-	Fig.4
HSK100A-ER50-125	$131	$0	175	125	96	100	78	50	78	M36*1.5P	ER50	6-34	-	Fig.4
HSK100A-ER50-160	$140	$0	210	160	131	100	78	50	78	M36*1.5P	ER50	6-34	-	Fig.4
HSK100A-ER50-200	$161	$0	250	200	171	100	78	50	78	M36*1.5P	ER50	6-34	-	Fig.4

Articles sélectionnés0 × $0

Sous-total$0

Total$0

Sélectionnés : 0 articles

Caractéristiques

Caractéristiques et spécifications clés de ce produit.

Écrou équilibré dynamiquement pour la précision

Trou traversant pour liquide de coupe et résistance aux vibrations

Compatible norme de broche ISO 12164 HSK

Séquence de montage : pince → outil → verrouillage dans le corps

Dessin technique

Spécifications techniques détaillées et dimensions pour référence professionnelle.

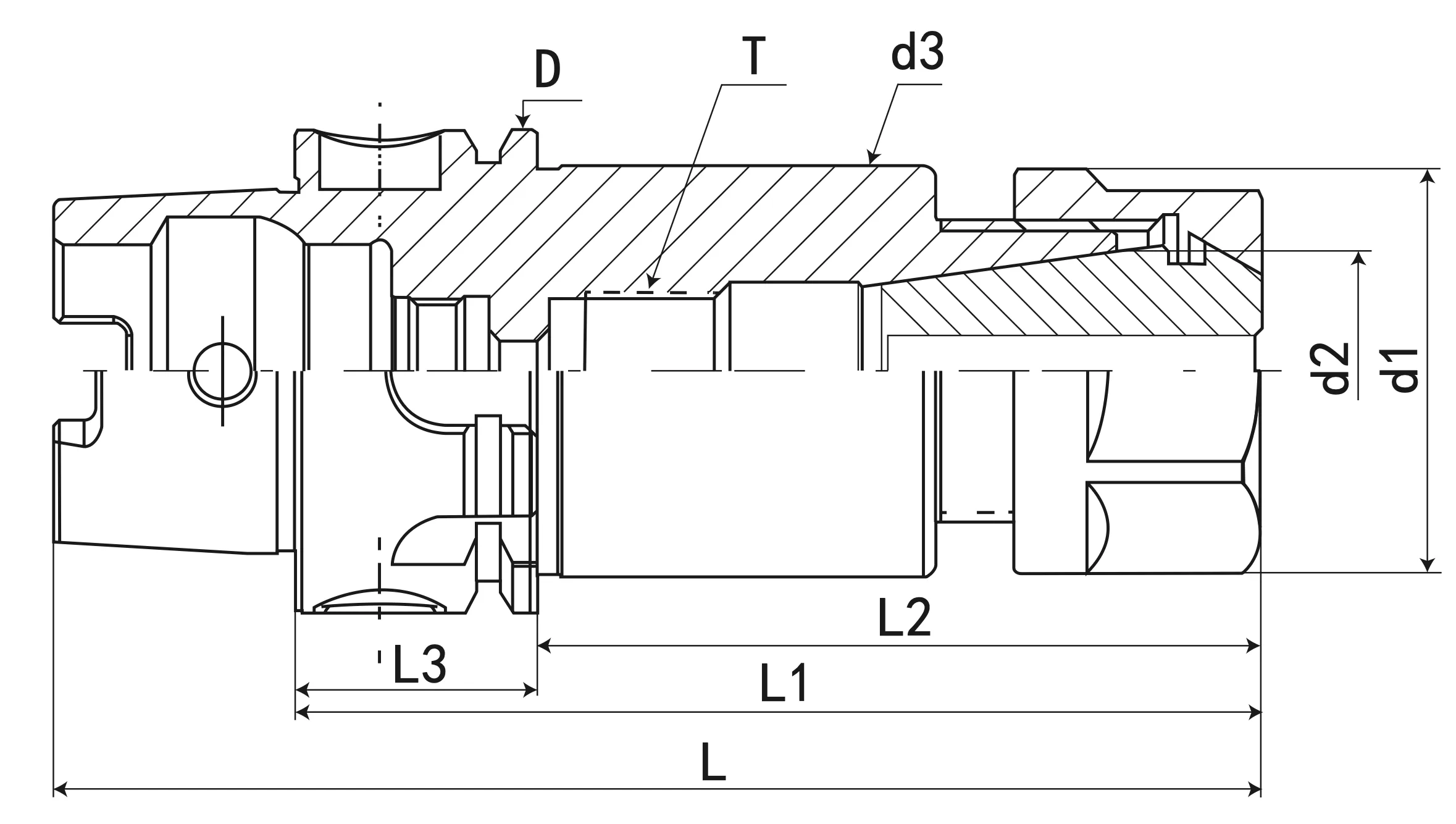

Fig.1

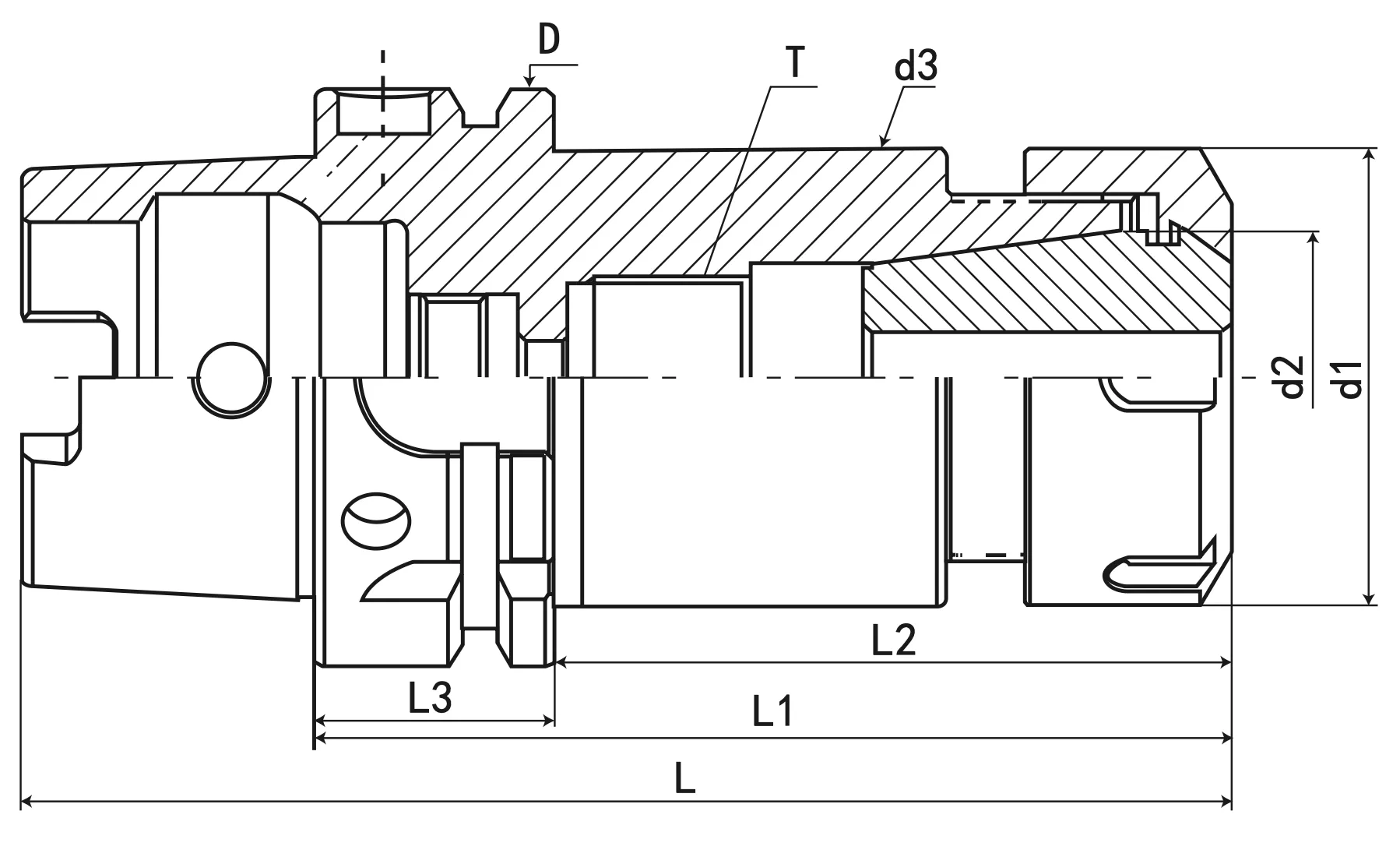

Fig.2

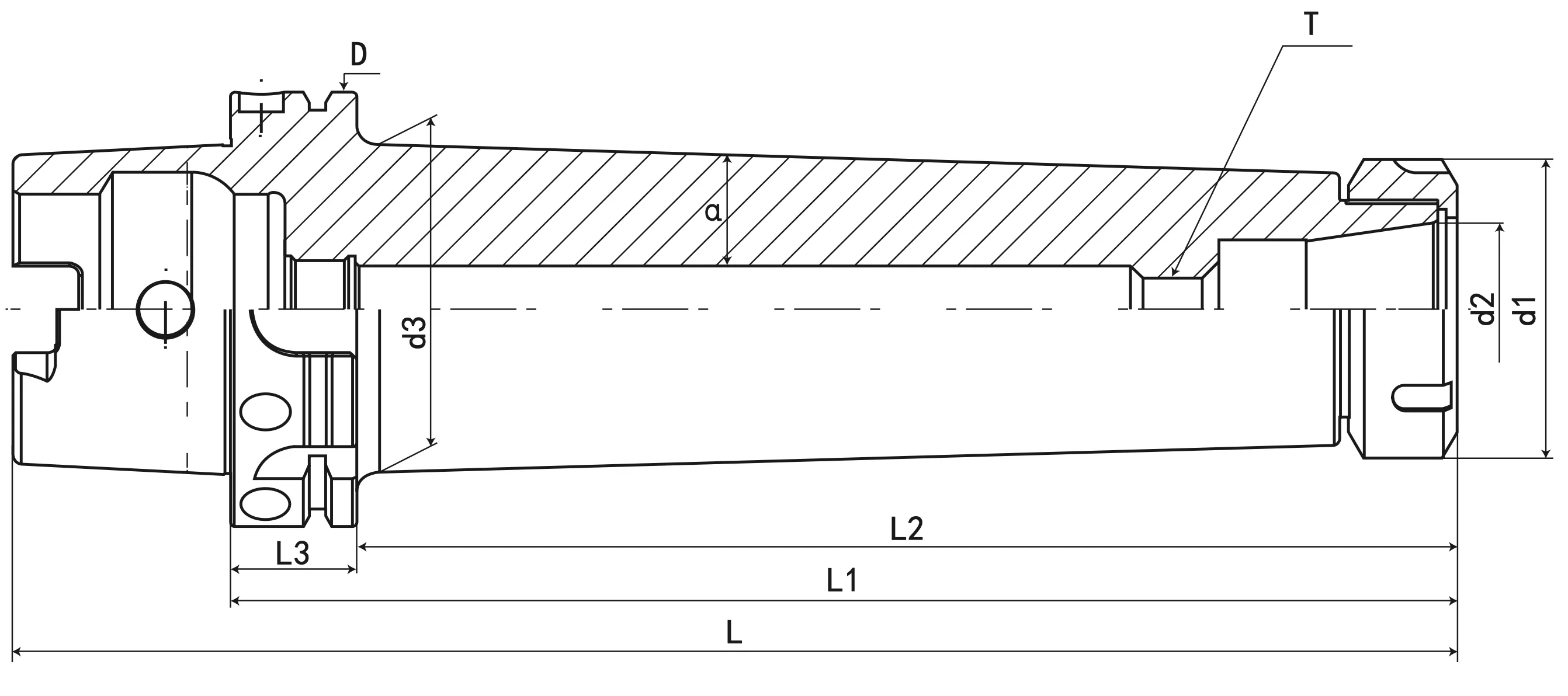

Fig.3

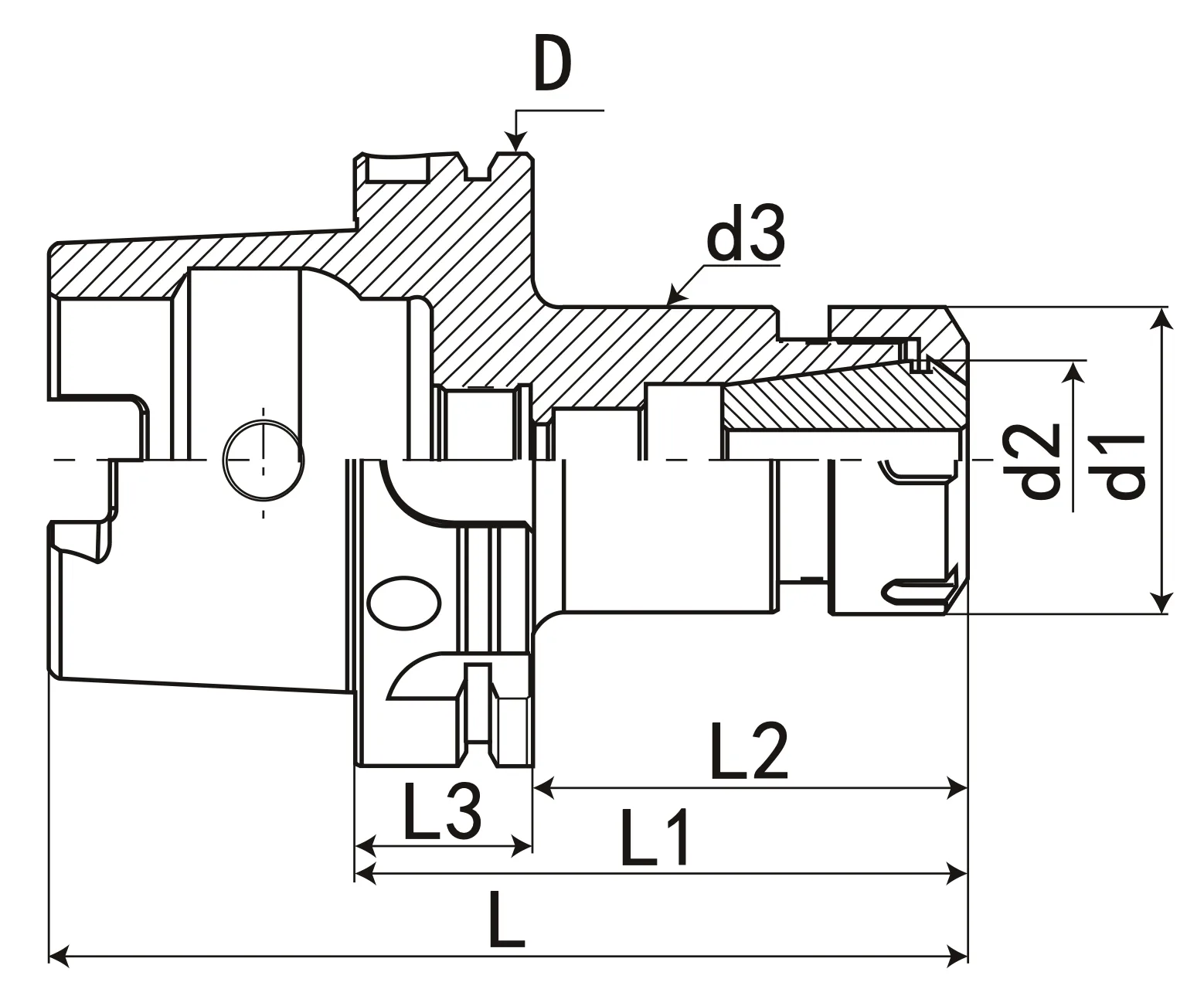

Fig.4

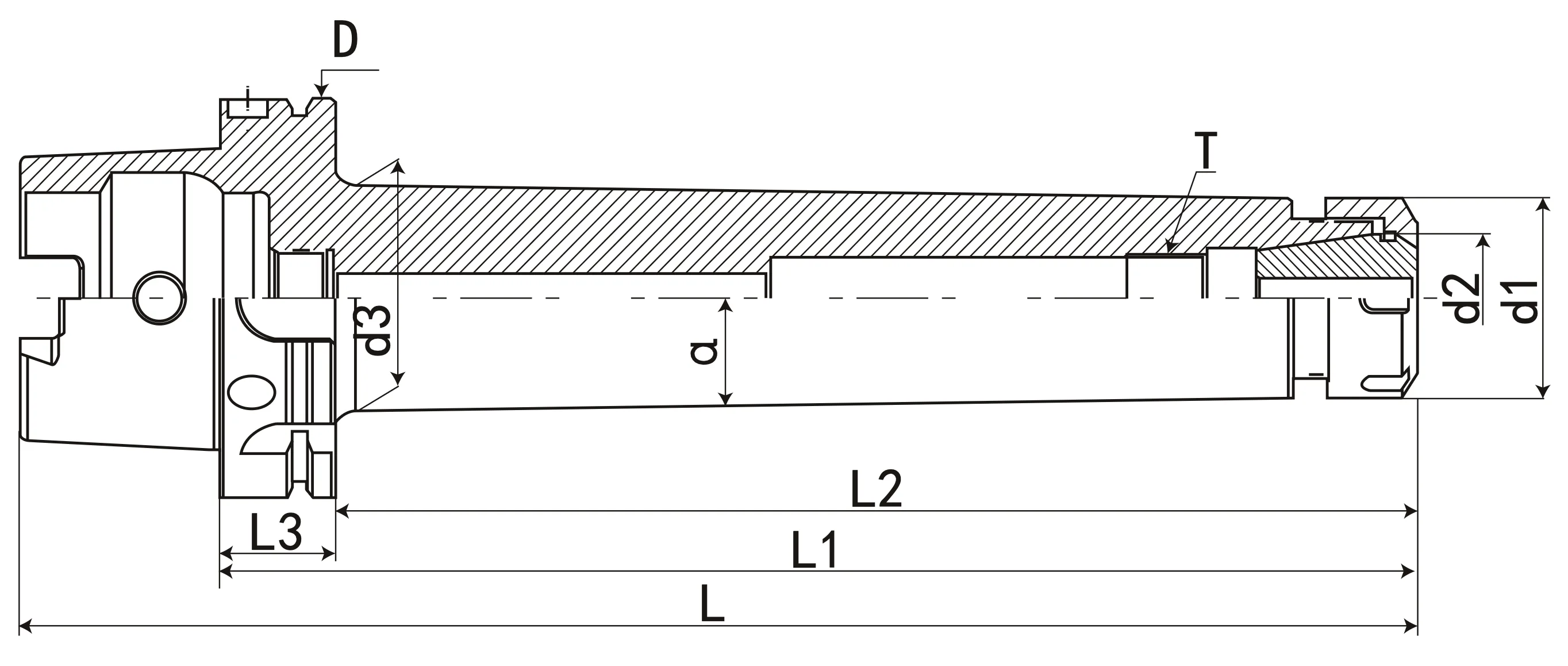

Fig.5

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5
