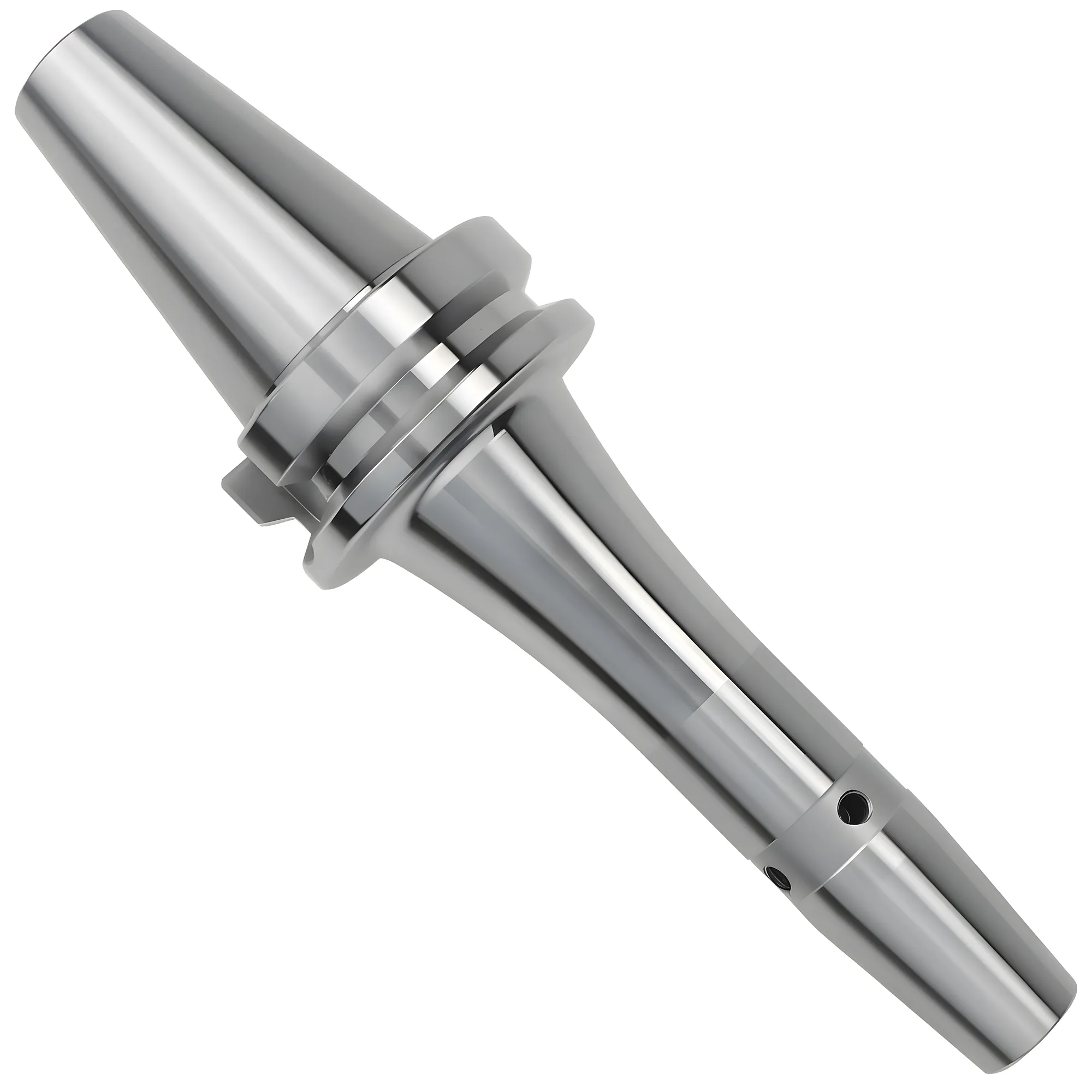

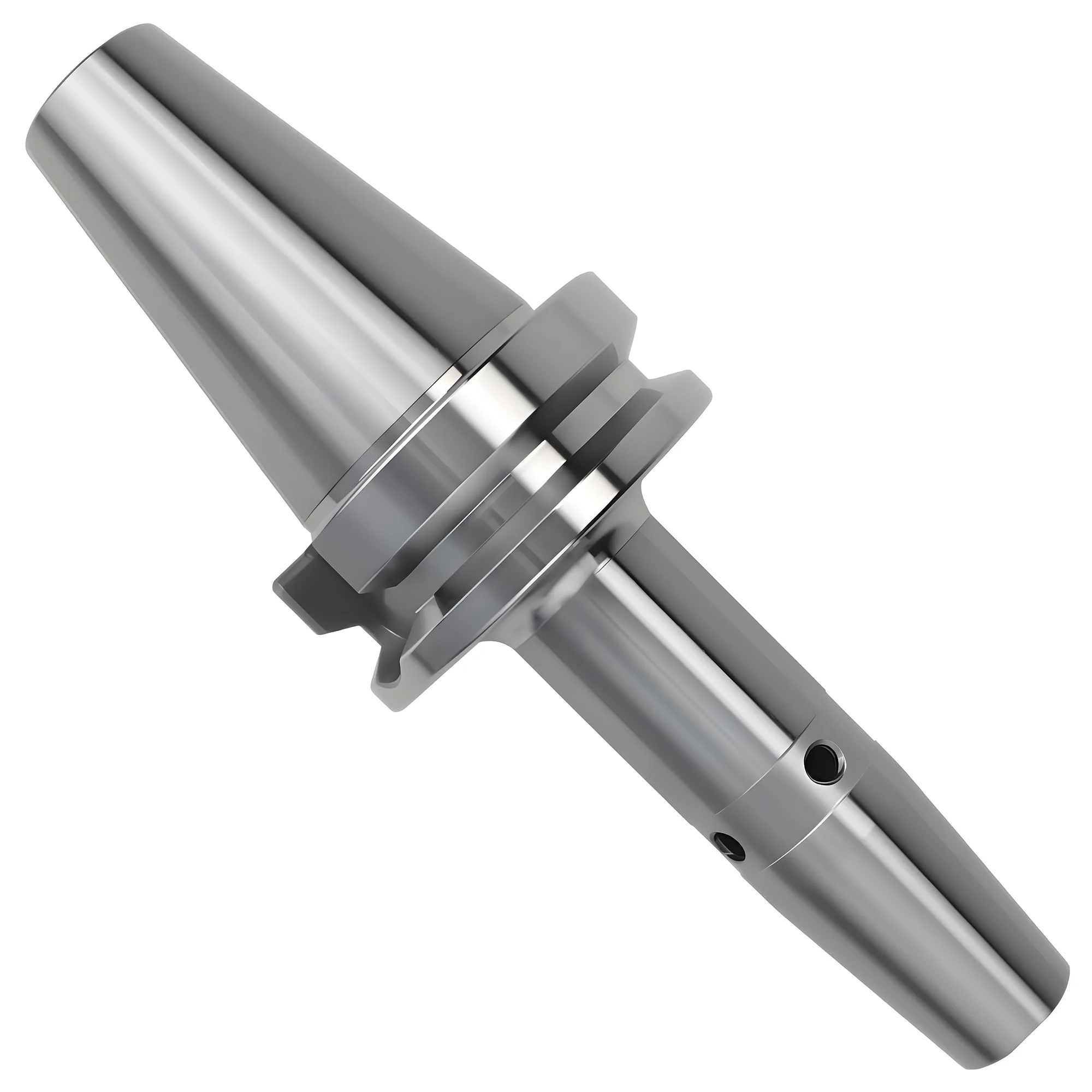

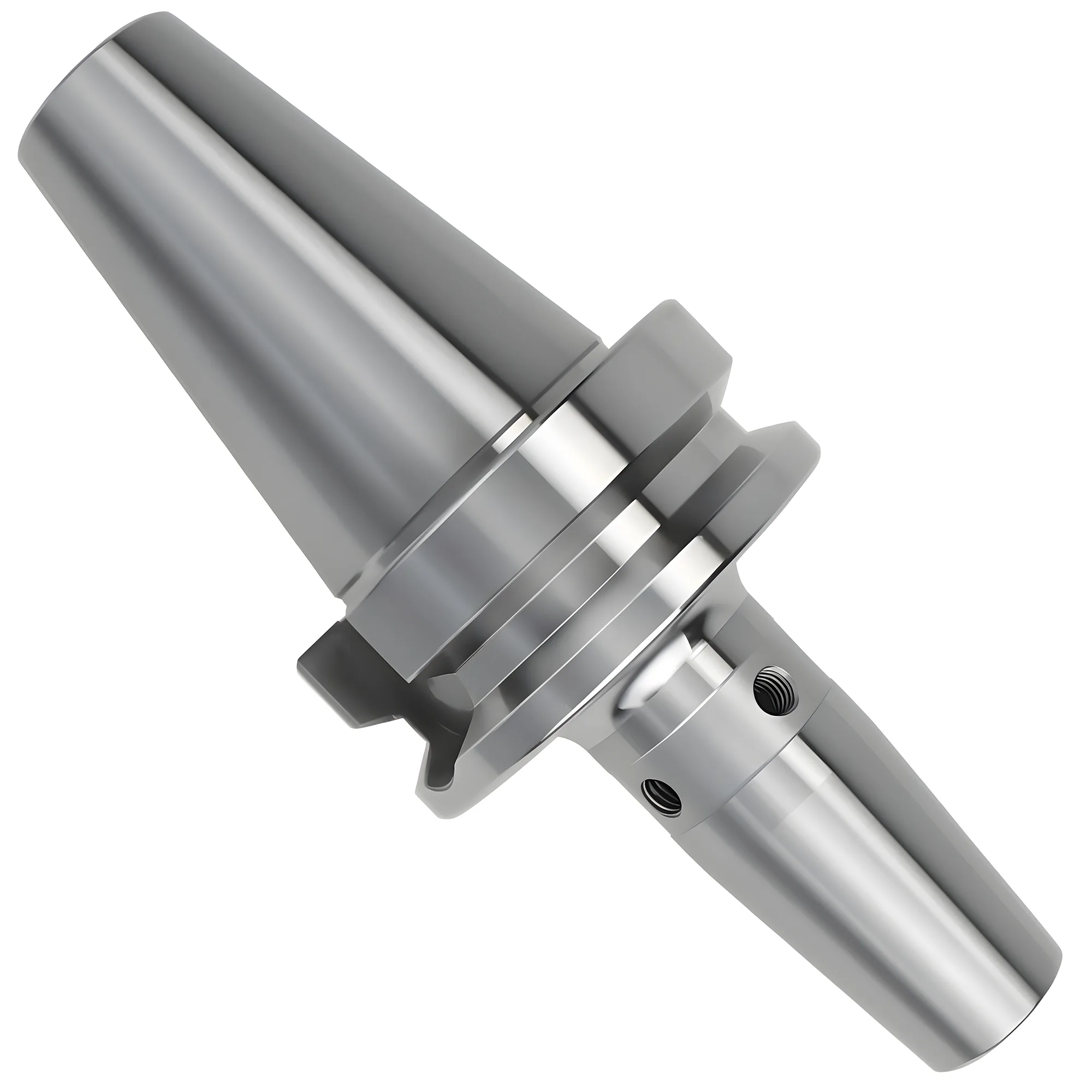

BT 焼きばめホルダー

Name: BT 焼きばめホルダー
Brand: MACHALLY
Availability: OutOfStock

BT テーパーシャンクの焼きばめ式工具ホルダー。360°均一把持力による極めて高い把持トルクを実現。動バランス精度G2.5@25,000 RPM。短チャンファー設計とスリムトップ形状により工具干渉を低減。焼きばめ装置使用で工具交換時間5秒。JIS MAS 403 BT規格準拠。 ※クールジェットオプション対応可

SKUを選択

数量

単価：

72.00 USD

中国倉庫から出荷

数量割引

注文金額

1000 + USD

割引

3% オフ

注文金額

3000 + USD

割引

5% オフ

注文金額

8000 + USD

割引

8% オフ

注文金額

15000 + USD

割引

12% オフ

注文金額

30000 + USD

割引

15% オフ

注文金額

50000 + USD

割引

18% オフ

割引はチェックアウト時に注文金額に基づいて自動適用されます。

出荷倉庫

🇨🇳

中国工場

在庫・生産対応可能

お支払い方法

Visa

MasterCard

American Express

Discover

Apple Pay

Google Pay

PayPal

Bank Transfer (TT)

仕様

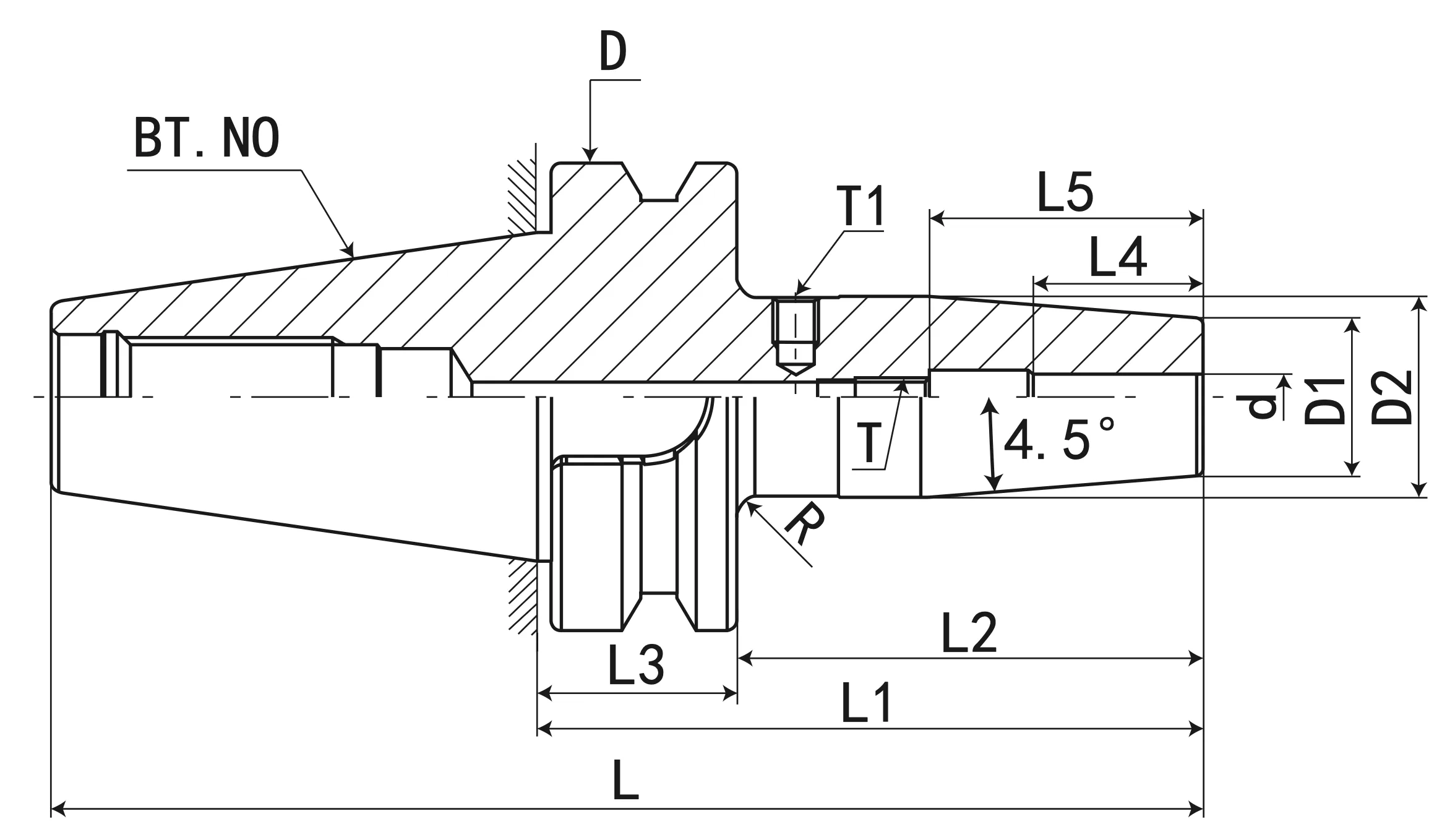

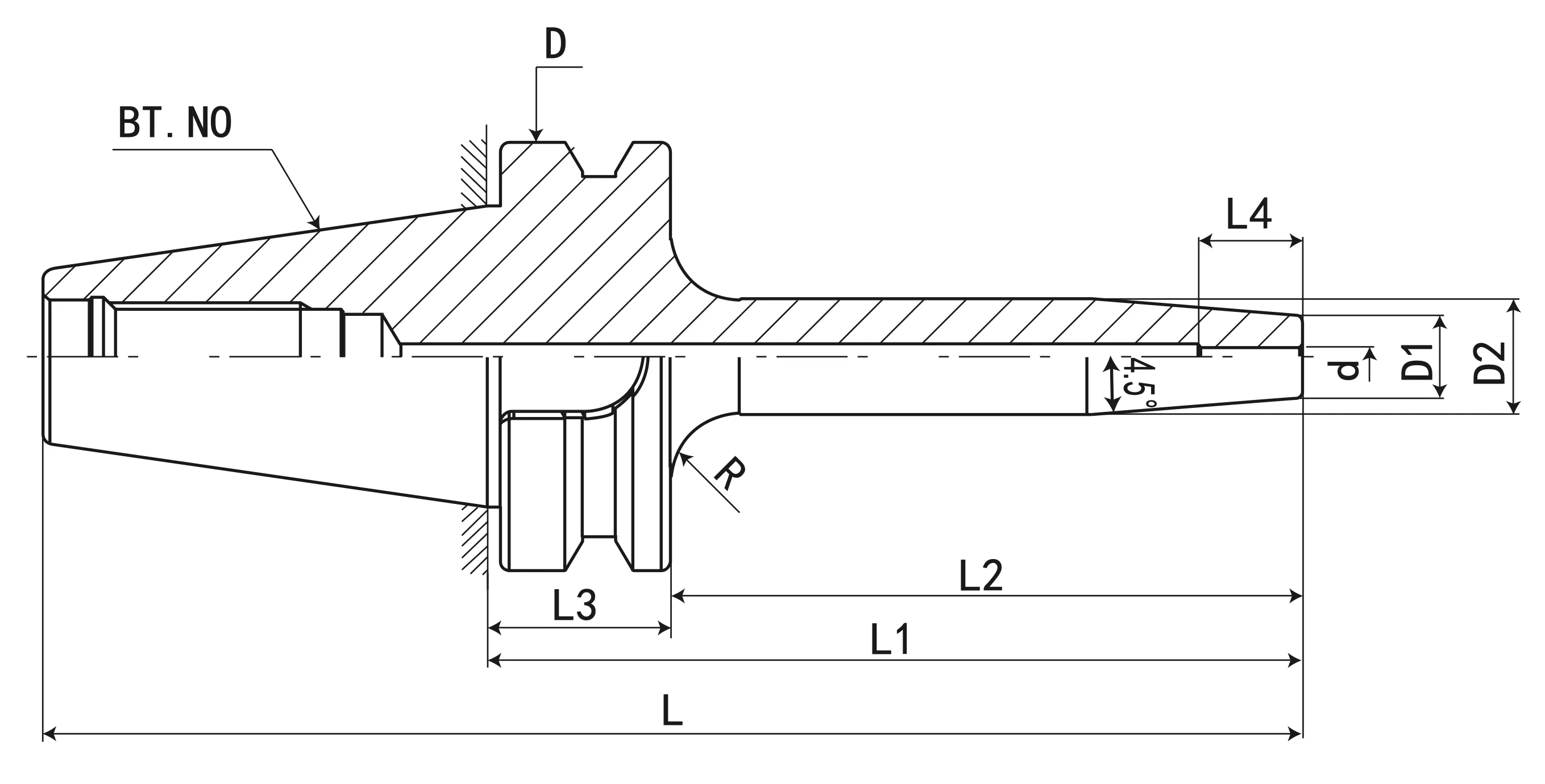

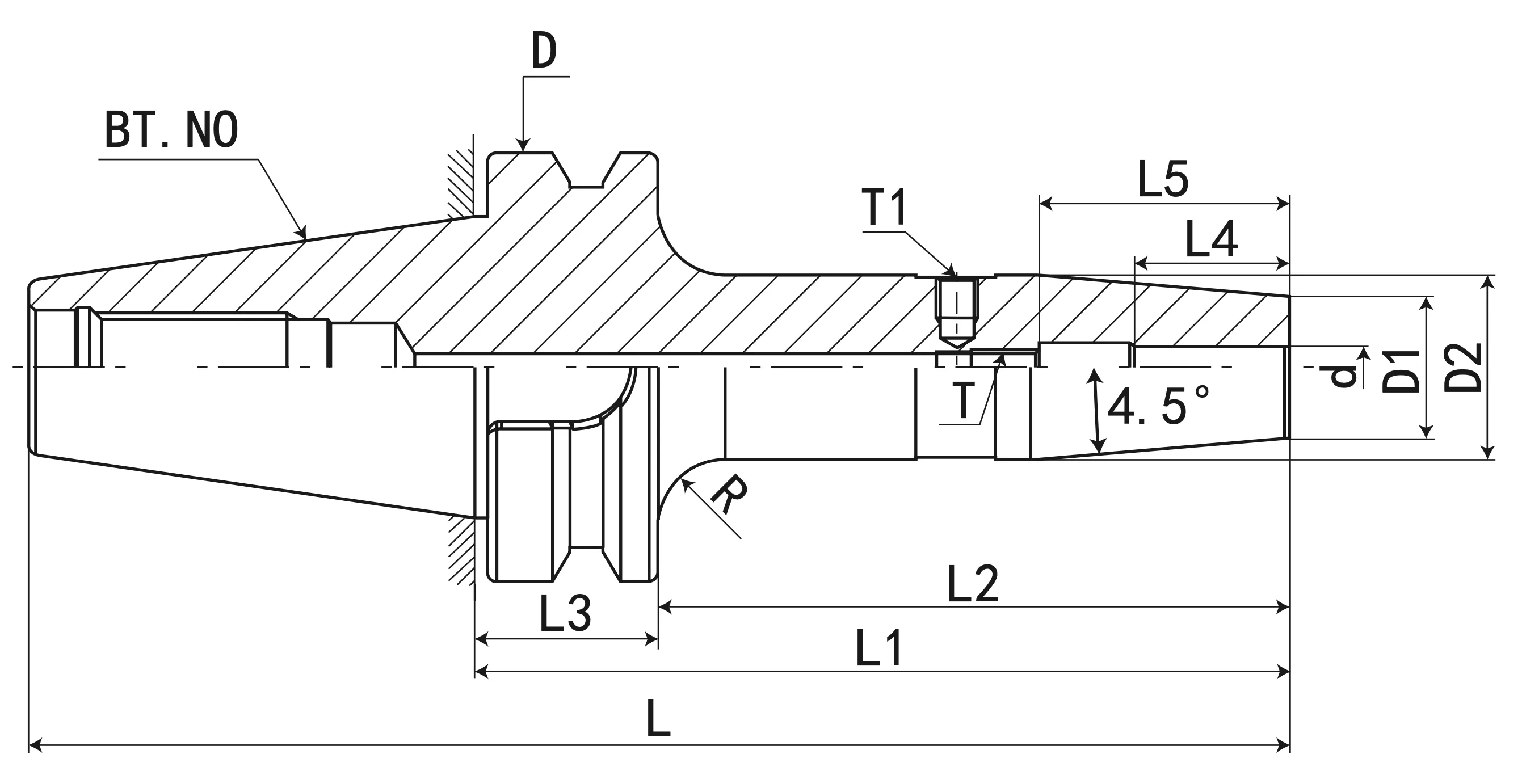

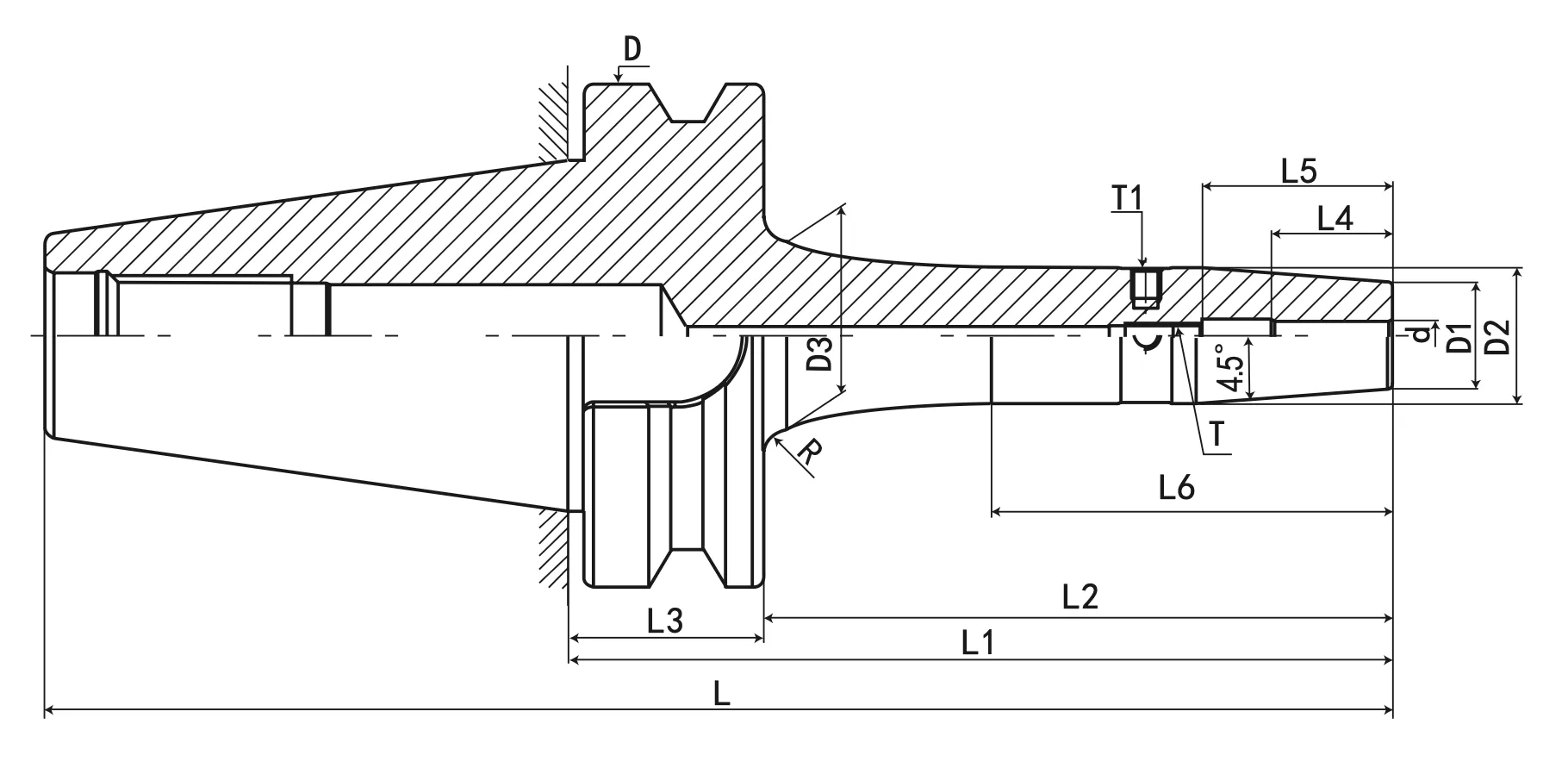

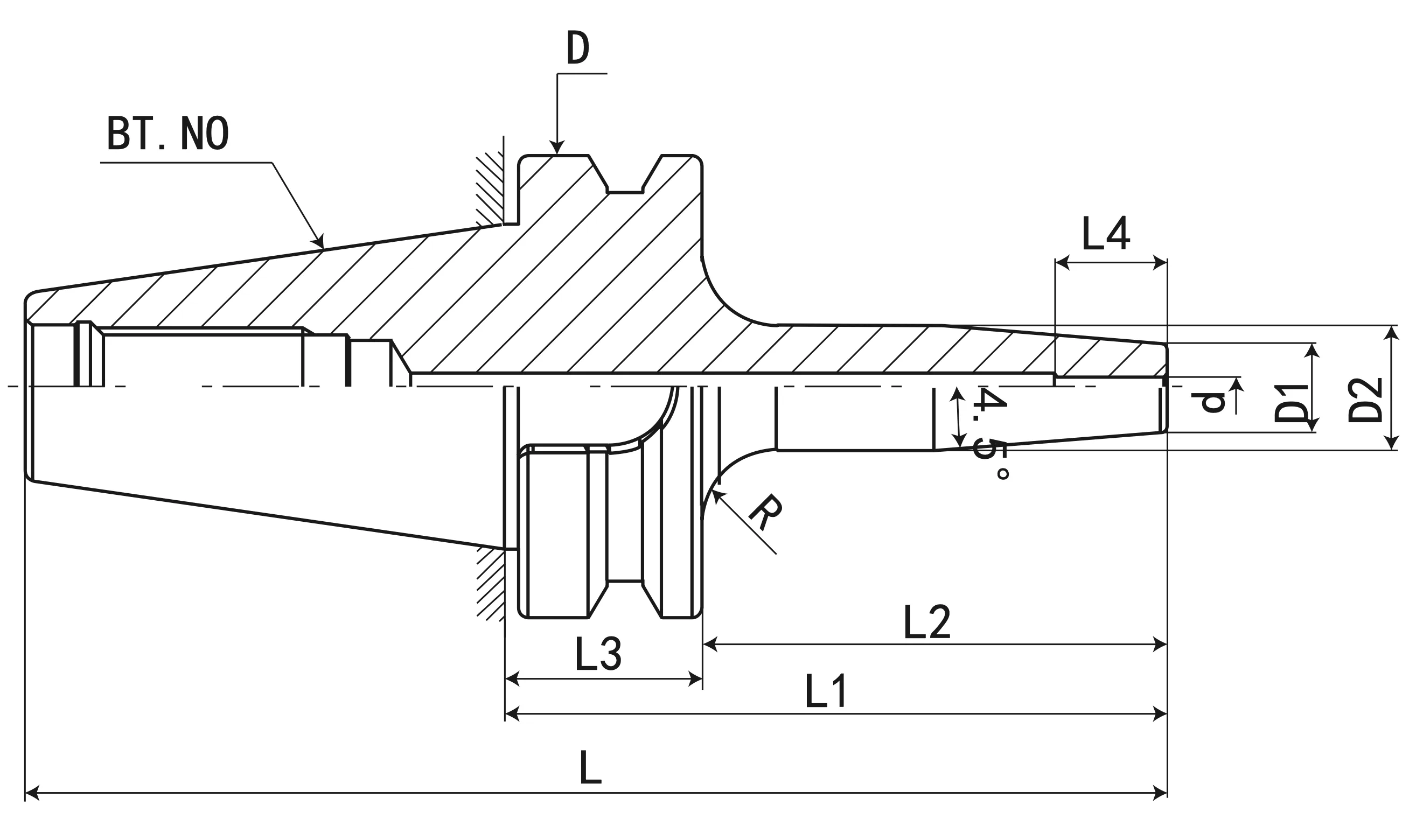

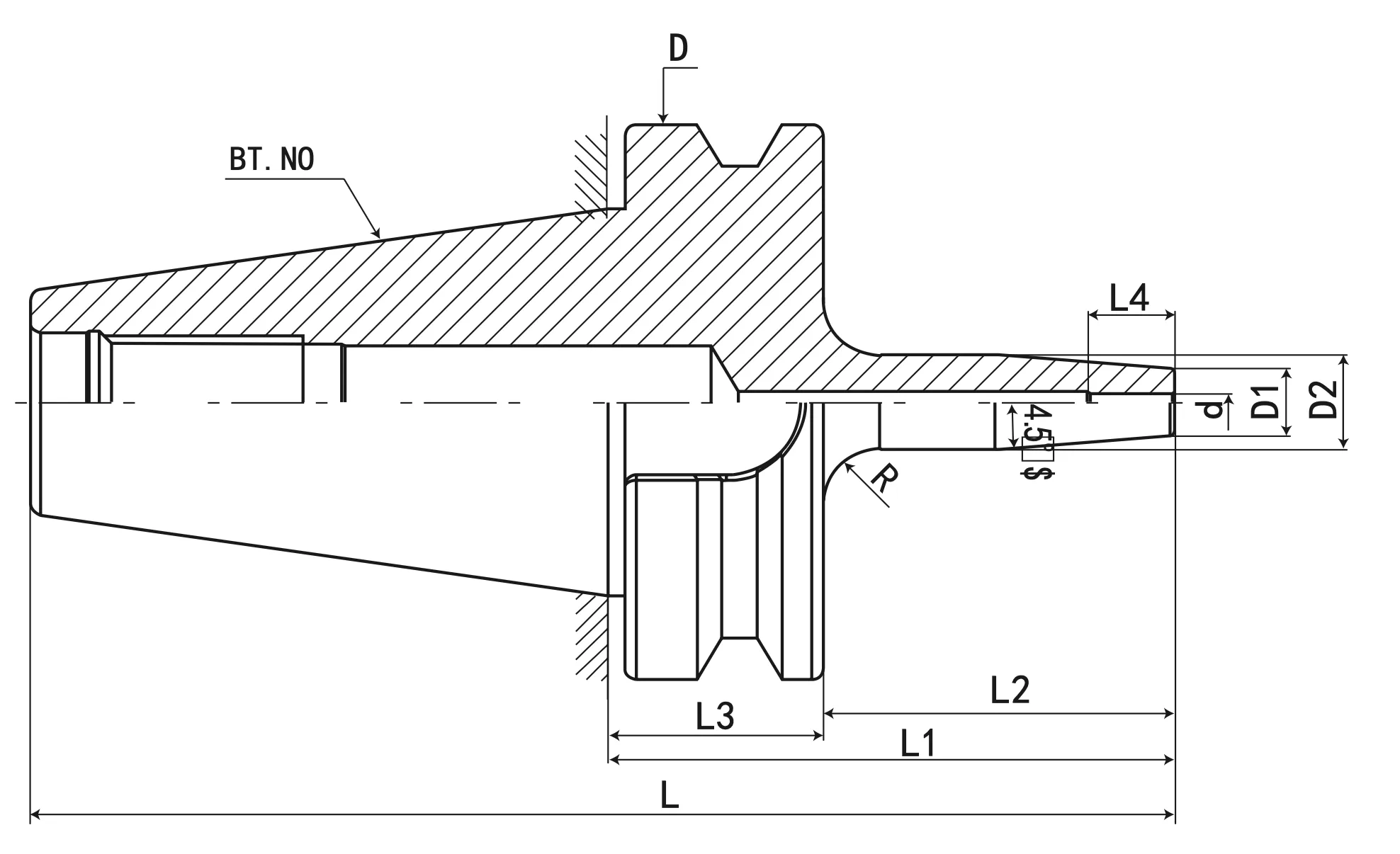

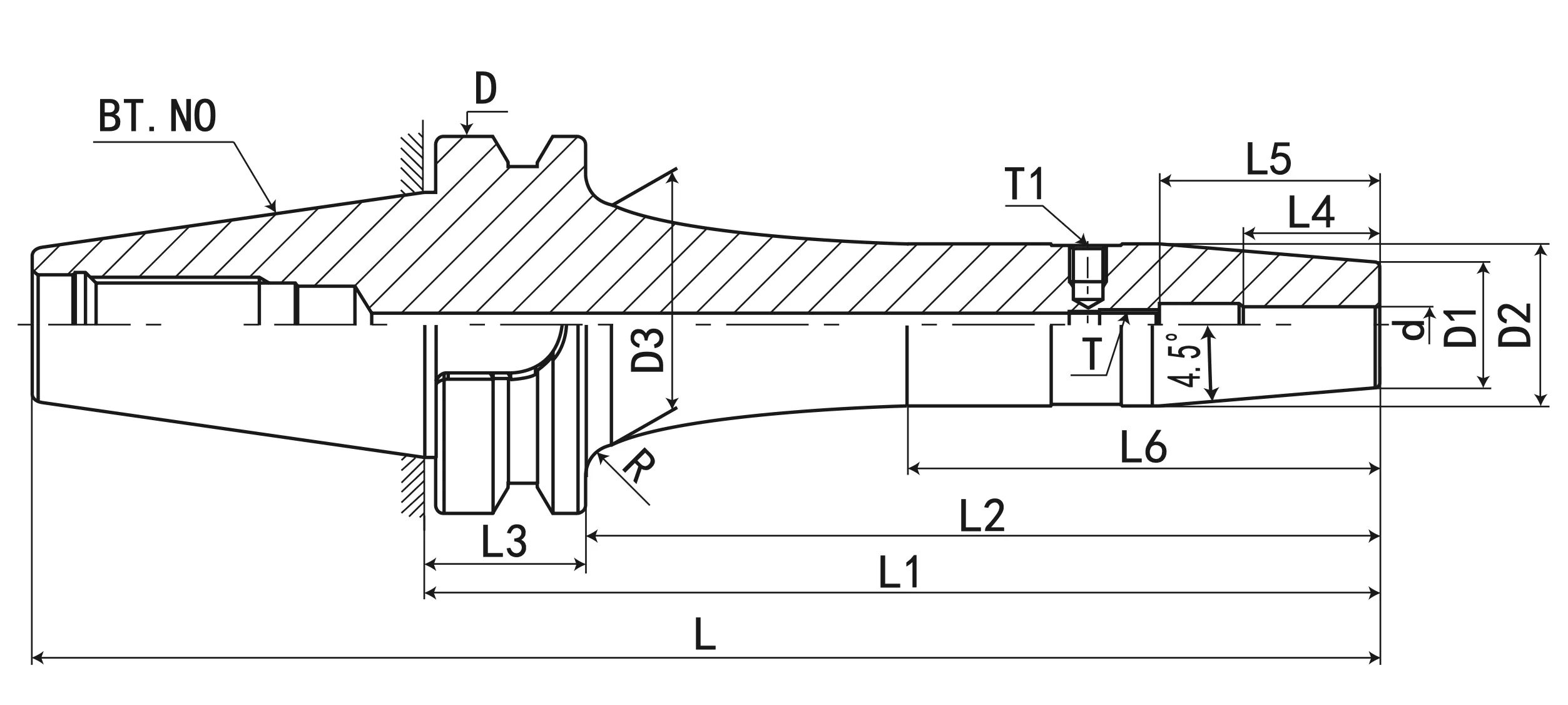

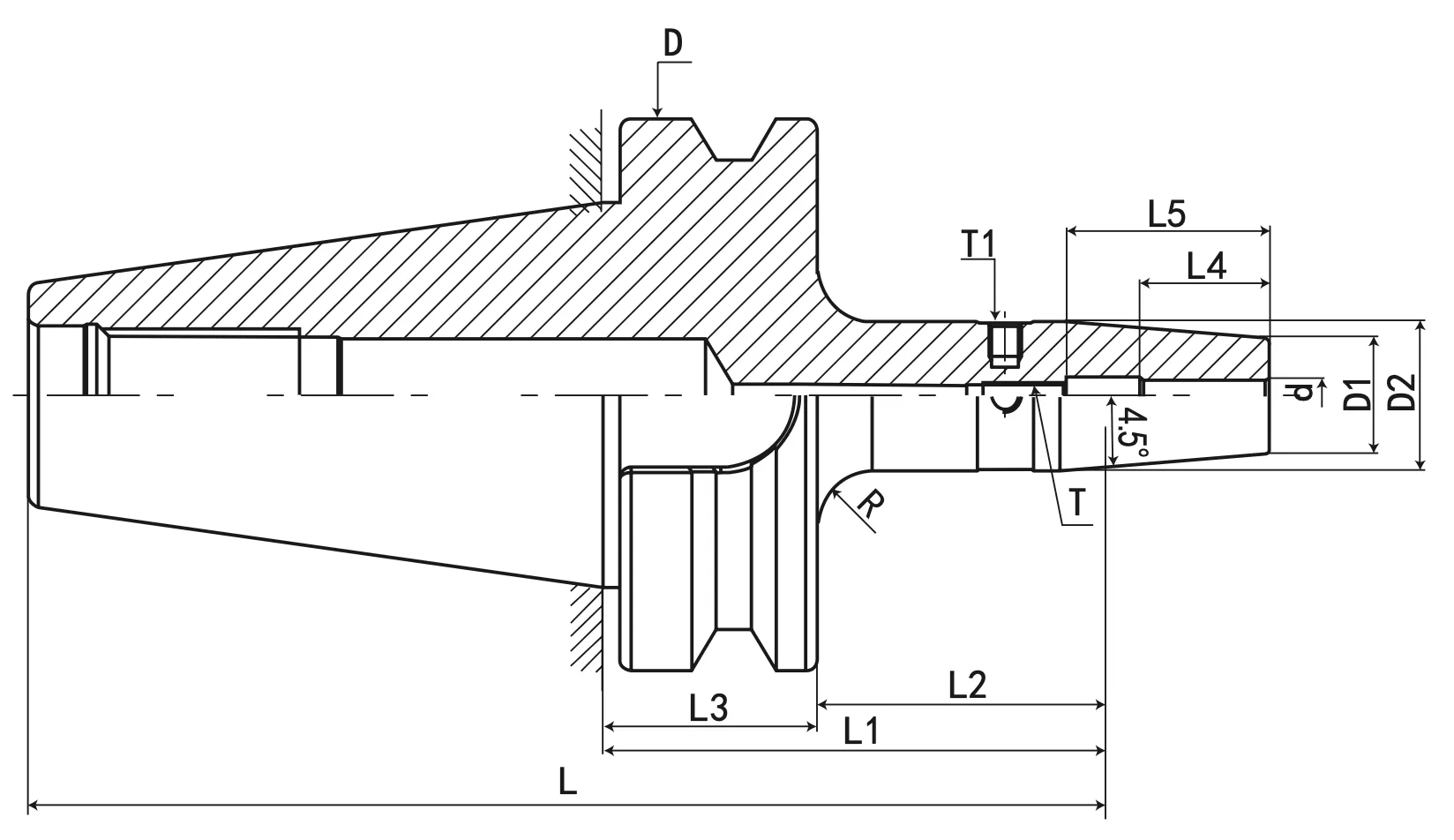

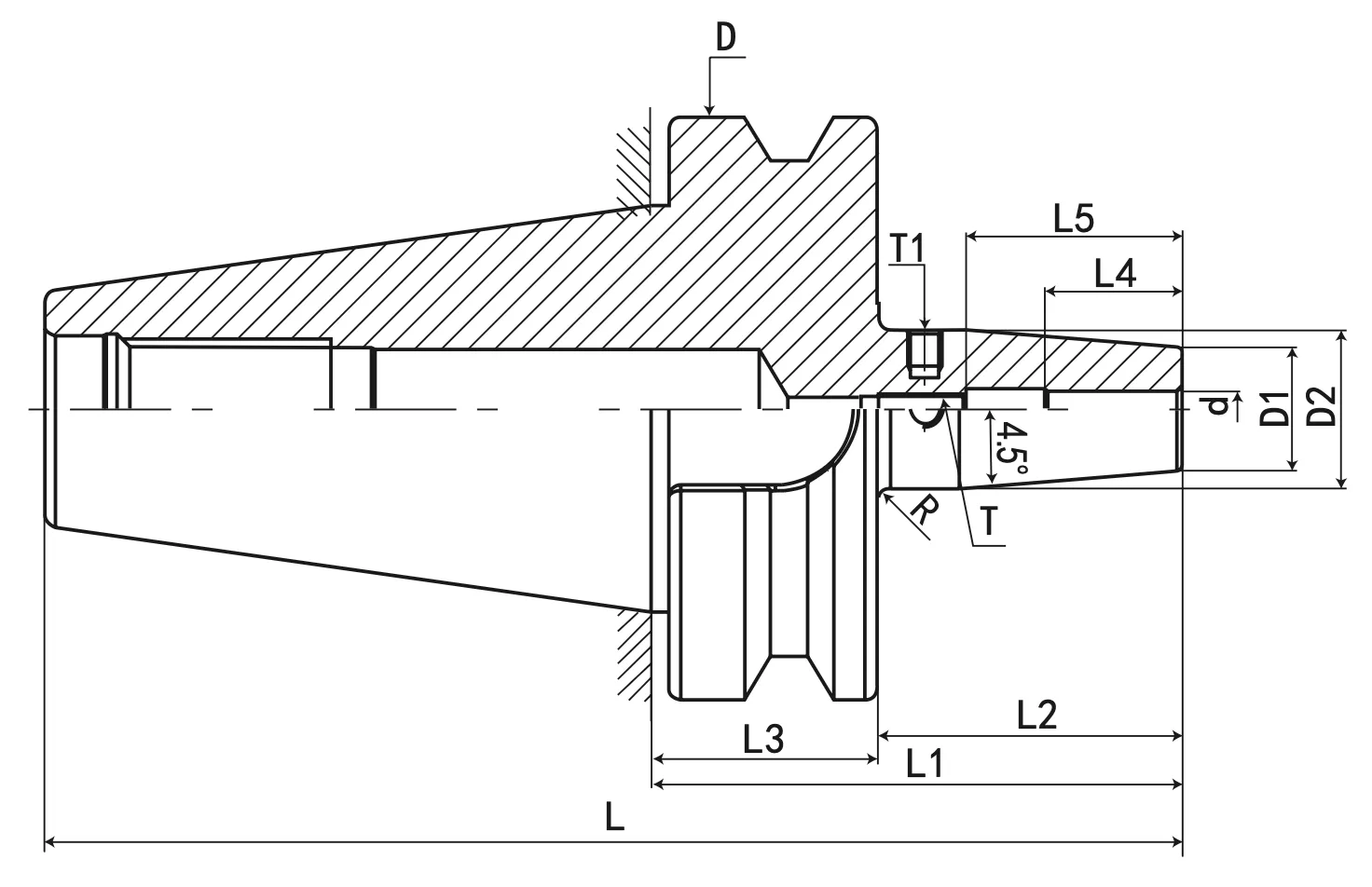

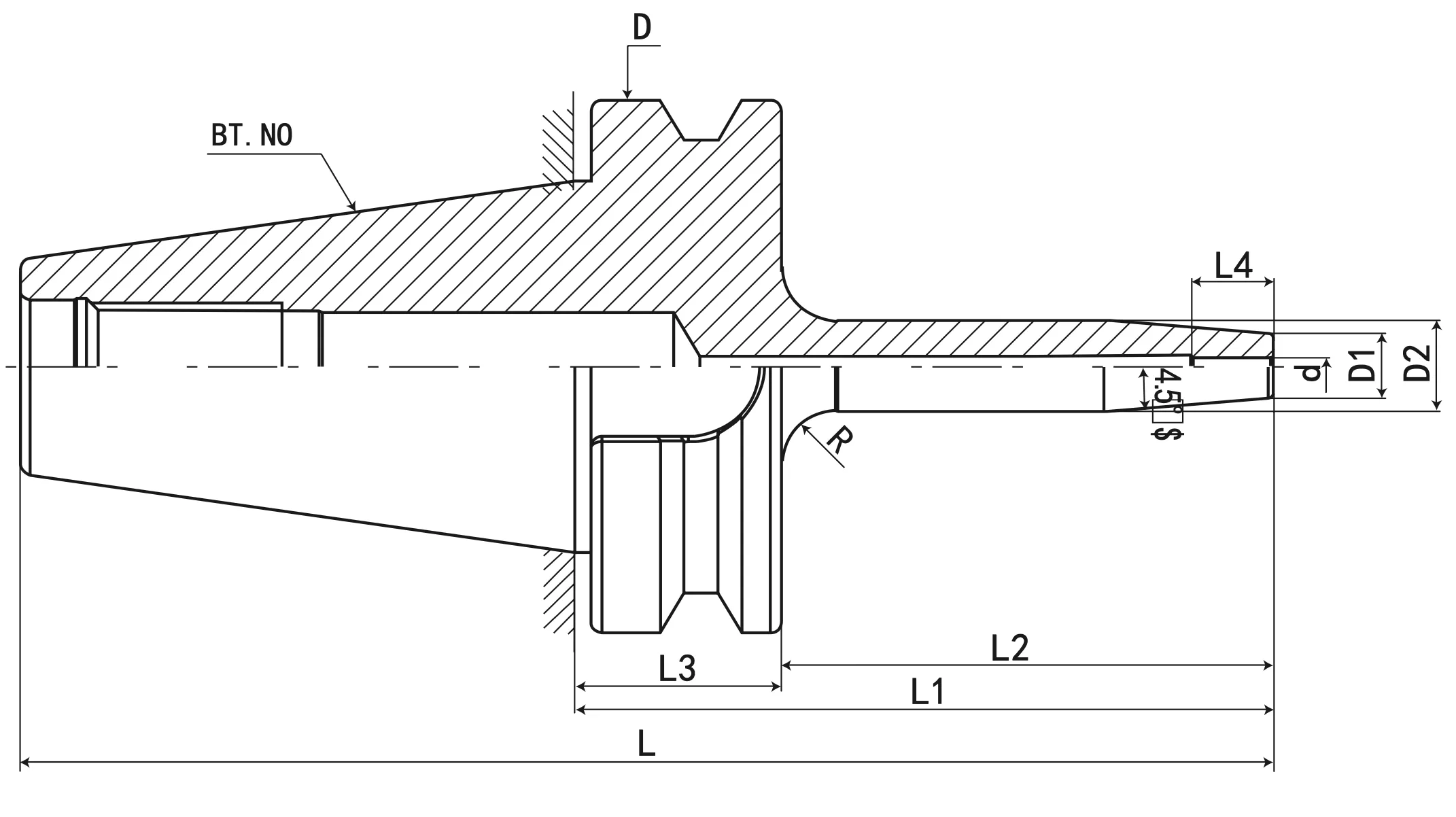

SKU	Price	Total	L	L1	L2	L3	L4	D	D1	D2	d	R	T	L5	T1	D3	L6	FIG
BT30-SF03-80	$72	$0	128.4	80	58	22	12	46	15	20	3	5	-	-	-	-	-	Fig.1
BT30-SF04-80	$72	$0	128.4	80	58	22	16	46	15	20	4	5	-	-	-	-	-	Fig.1
BT30-SF04-120	$87	$0	168.4	120	98	22	16	46	15	20	4	5	-	-	-	-	-	Fig.2
BT30-SF05-80	$72	$0	128.4	80	58	22	18	46	15	20	5	5	-	-	-	-	-	Fig.1
BT30-SF05-120	$87	$0	168.4	120	98	22	18	46	15	20	5	5	-	-	-	-	-	Fig.2
BT30-SF06-80	$72	$0	128.4	80	58	22	26	46	21	27	6	1	M5*0.8P	36	M6*1.0P	-	-	Fig.3
BT30-SF06-120	$87	$0	168.4	120	98	22	26	46	21	27	6	5	M5*0.8P	36	M6*1.0P	-	-	Fig.4
BT30-SF08-80	$72	$0	128.4	80	58	22	26	46	21	27	8	1	M6*1.0P	36	M6*1.0P	-	-	Fig.3
BT30-SF08-120	$87	$0	168.4	120	98	22	26	46	21	27	8	5	M6*1.0P	36	M6*1.0P	-	-	Fig.4
BT30-SF10-80	$72	$0	128.4	80	58	22	32	46	24	32	10	1	M8*1.0P	42	M6*1.0P	-	-	Fig.3
BT30-SF10-120	$87	$0	168.4	120	98	22	32	46	24	32	10	5	M8*1.0P	42	M6*1.0P	-	-	Fig.4
BT30-SF12-80	$72	$0	128.4	80	58	22	37	46	24	32	12	1	M10*1.0P	47	M6*1.0P	-	-	Fig.3
BT30-SF12-120	$87	$0	168.4	120	98	22	37	46	24	32	12	5	M10*1.0P	47	M6*1.0P	-	-	Fig.4
BT30-SF14-80	$72	$0	128.4	80	58	22	37	46	27	34	14	1	M10*1.0P	47	M6*1.0P	-	-	Fig.3
BT30-SF14-120	$87	$0	168.4	120	98	22	37	46	27	34	14	3	M10*1.0P	47	M6*1.0P	-	-	Fig.4
BT30-SF16-90	$76	$0	138.4	90	68	22	40	46	27	34	16	1	M12*1.0P	50	M6*1.0P	-	-	Fig.3
BT30-SF16-120	$87	$0	168.4	120	98	22	40	46	27	34	16	3	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT30-SF18-90	$76	$0	138.4	90	68	22	40	46	33	42	18	1	M12*1.0P	50	M6*1.0P	-	-	Fig.3
BT30-SF18-120	$87	$0	168.4	120	98	22	40	46	33	42	18	1	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT30-SF20-90	$76	$0	138.4	90	68	22	42	46	33	42	20	1	M16*1.0P	52	M6*1.0P	-	-	Fig.3
BT30-SF20-120	$87	$0	168.4	120	98	22	42	46	33	42	20	1	M16*1.0P	52	M6*1.0P	-	-	Fig.4
BT40-SF03-90	$101	$0	155.4	90	63	27	12	63	15	20	3	5	-	-	-	-	-	Fig.1
BT40-SF03-120	$115	$0	185.4	120	93	27	12	63	15	20	3	5	-	-	-	-	-	Fig.2
BT40-SF03-160	$135	$0	225.4	160	133	27	12	63	15	25	3	5	-	-	-	-	-	Fig.2
BT40-SF04-90	$101	$0	155.4	90	63	27	16	63	15	20	4	5	-	-	-	-	-	Fig.1
BT40-SF04-120	$115	$0	185.4	120	93	27	16	63	15	20	4	5	-	-	-	-	-	Fig.2
BT40-SF04-160	$135	$0	225.4	160	133	27	16	63	15	25	4	5	-	-	-	-	-	Fig.2
BT40-SF05-90	$101	$0	155.4	90	63	27	18	63	15	20	5	5	-	-	-	-	-	Fig.1
BT40-SF05-120	$115	$0	185.4	120	93	27	18	63	15	20	5	5	-	-	-	-	-	Fig.2
BT40-SF05-160	$135	$0	225.4	160	133	27	18	63	15	25	5	5	-	-	-	-	-	Fig.2
BT40-SF06-90	$101	$0	155.4	90	63	27	26	63	21	27	6	5	M5*0.8P	36	M6*1.0P	-	-	Fig.3
BT40-SF06-120	$115	$0	185.4	120	93	27	26	63	21	27	6	5	M5*0.8P	36	M6*1.0P	-	-	Fig.4
BT40-SF06-160	$135	$0	225.4	160	133	27	26	63	21	27	6	6	M5*0.8P	36	M6*1.0P	40	79	Fig.5
BT40-SF06-200	$180	$0	265.4	200	173	27	26	63	21	27	6	6	M5*0.8P	36	M6*1.0P	40	119	Fig.5
BT40-SF06-250	$267	$0	315.4	250	223	27	26	63	21	27	6	6	M5*0.8P	36	M6*1.0P	40	169	Fig.5
BT40-SF06-300	$292	$0	365.4	300	273	27	26	63	21	27	6	6	M5*0.8P	36	M6*1.0P	40	219	Fig.5
BT40-SF08-90	$101	$0	155.4	90	63	27	26	63	21	27	8	5	M6*1.0P	36	M6*1.0P	-	-	Fig.3
BT40-SF08-120	$115	$0	185.4	120	93	27	26	63	21	27	8	5	M6*1.0P	36	M6*1.0P	-	-	Fig.4
BT40-SF08-160	$135	$0	225.4	160	133	27	26	63	21	27	8	6	M6*1.0P	36	M6*1.0P	40	79	Fig.5
BT40-SF08-200	$180	$0	265.4	200	173	27	26	63	21	27	8	6	M6*1.0P	36	M6*1.0P	40	119	Fig.5
BT40-SF08-250	$267	$0	315.4	250	223	27	26	63	21	27	8	6	M6*1.0P	36	M6*1.0P	40	169	Fig.5
BT40-SF08-300	$292	$0	365.4	300	273	27	26	63	21	27	8	6	M6*1.0P	36	M6*1.0P	40	219	Fig.5
BT40-SF10-90	$101	$0	155.4	90	63	27	32	63	24	32	10	3	M8*1.0P	42	M6*1.0P	-	-	Fig.3
BT40-SF10-120	$115	$0	185.4	120	93	27	32	63	24	32	10	10	M8*1.0P	42	M6*1.0P	-	-	Fig.4
BT40-SF10-160	$135	$0	225.4	160	133	27	32	63	24	32	10	7	M8*1.0P	42	M6*1.0P	39	79	Fig.5
BT40-SF10-200	$180	$0	265.4	200	173	27	32	63	24	32	10	7	M8*1.0P	42	M6*1.0P	39	119	Fig.5
BT40-SF10-250	$267	$0	315.4	250	223	27	32	63	24	32	10	7	M8*1.0P	42	M6*1.0P	39	169	Fig.5
BT40-SF10-300	$292	$0	365.4	300	273	27	32	63	24	32	10	7	M8*1.0P	42	M6*1.0P	39	219	Fig.5
BT40-SF12-90	$101	$0	155.4	90	63	27	37	63	24	32	12	3	M10*1.0P	47	M6*1.0P	-	-	Fig.3
BT40-SF12-120	$115	$0	185.4	120	93	27	37	63	24	32	12	10	M10*1.0P	47	M6*1.0P	-	-	Fig.4
BT40-SF12-160	$135	$0	225.4	160	133	27	37	63	24	32	12	7	M10*1.0P	47	M6*1.0P	39	79	Fig.5
BT40-SF12-200	$180	$0	265.4	200	173	27	37	63	24	32	12	7	M10*1.0P	47	M6*1.0P	39	119	Fig.5
BT40-SF12-250	$267	$0	315.4	250	223	27	37	63	24	32	12	7	M10*1.0P	47	M6*1.0P	39	169	Fig.5
BT40-SF12-300	$292	$0	365.4	300	273	27	37	63	24	32	12	7	M10*1.0P	47	M6*1.0P	39	219	Fig.5
BT40-SF14-90	$101	$0	155.4	90	63	27	37	63	27	34	14	3	M10*1.0P	47	M6*1.0P	-	-	Fig.3
BT40-SF14-120	$115	$0	185.4	120	93	27	37	63	27	34	14	10	M10*1.0P	47	M6*1.0P	-	-	Fig.4
BT40-SF14-160	$135	$0	225.4	160	133	27	37	63	27	34	14	5	M10*1.0P	47	M6*1.0P	42	78	Fig.5
BT40-SF14-200	$180	$0	265.4	200	173	27	37	63	27	34	14	5	M10*1.0P	47	M6*1.0P	42	118	Fig.5
BT40-SF14-250	$267	$0	315.4	250	223	27	37	63	27	34	14	5	M10*1.0P	47	M6*1.0P	42	168	Fig.5
BT40-SF14-300	$292	$0	365.4	300	273	27	37	63	27	34	14	5	M10*1.0P	47	M6*1.0P	42	218	Fig.5
BT40-SF16-90	$101	$0	155.4	90	63	27	40	63	27	34	16	3	M12*1.0P	50	M6*1.0P	-	-	Fig.3
BT40-SF16-120	$115	$0	185.4	120	93	27	40	63	27	34	16	10	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF16-160	$135	$0	225.4	160	133	27	40	63	27	34	16	5	M12*1.0P	50	M6*1.0P	42	78	Fig.5
BT40-SF16-200	$180	$0	265.4	200	173	27	40	63	27	34	16	5	M12*1.0P	50	M6*1.0P	42	118	Fig.5
BT40-SF16-250	$267	$0	315.4	250	223	27	40	63	27	34	16	5	M12*1.0P	50	M6*1.0P	42	168	Fig.5
BT40-SF16-300	$292	$0	365.4	300	273	27	40	63	27	34	16	5	M12*1.0P	50	M6*1.0P	42	218	Fig.5
BT40-SF18-90	$101	$0	155.4	90	63	27	40	63	33	41	18	2	M12*1.0P	50	M6*1.0P	-	-	Fig.3
BT40-SF18-120	$115	$0	185.4	120	93	27	40	63	33	42	18	5	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF18-160	$135	$0	225.4	160	133	27	40	63	33	42	18	5	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF18-200	$180	$0	265.4	200	173	27	40	63	33	42	18	5	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF18-250	$267	$0	315.4	250	223	27	40	63	33	42	18	5	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF18-300	$292	$0	365.4	300	273	27	40	63	33	42	18	5	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF20-90	$101	$0	155.4	90	63	27	42	63	33	41	20	2	M16*1.0P	50	M6*1.0P	-	-	Fig.3
BT40-SF20-120	$115	$0	185.4	120	93	27	42	63	33	42	20	5	M16*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF20-160	$135	$0	225.4	160	133	27	42	63	33	42	20	5	M16*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF20-200	$180	$0	265.4	200	173	27	42	63	33	42	20	5	M16*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF20-250	$267	$0	315.4	250	223	27	42	63	33	42	20	5	M16*1.0P	52	M6*1.0P	-	-	Fig.4
BT40-SF20-300	$292	$0	365.4	300	273	27	42	63	33	42	20	5	M16*1.0P	52	M6*1.0P	-	-	Fig.4
BT40-SF25-100	$106	$0	155.4	90	63	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.3
BT40-SF25-120	$115	$0	185.4	120	93	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.4
BT40-SF25-160	$135	$0	225.4	160	133	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.4
BT40-SF25-200	$180	$0	265.4	200	173	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.4
BT40-SF25-250	$267	$0	315.4	250	223	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.4
BT40-SF25-300	$292	$0	365.4	300	273	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.4
BT40-SF32-100	$106	$0	155.4	90	63	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.3
BT40-SF32-120	$115	$0	185.4	120	93	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.4
BT40-SF32-160	$135	$0	225.4	160	133	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.4
BT40-SF32-200	$180	$0	265.4	200	173	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.4
BT40-SF32-250	$267	$0	315.4	250	223	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.4
BT40-SF32-300	$292	$0	365.4	300	273	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.4
BT50-SF03-100	$258	$0	201.8	100	62	38	12	100	15	20	3	10	-	-	-	-	-	Fig.6
BT50-SF03-120	$281	$0	221.8	120	82	38	12	100	15	20	3	10	-	-	-	-	-	Fig.7
BT50-SF03-160	$333	$0	261.8	160	122	38	12	100	15	25	3	10	-	-	-	-	-	Fig.7
BT50-SF04-100	$258	$0	201.8	100	62	38	16	100	15	20	4	10	-	-	-	-	-	Fig.6
BT50-SF04-120	$281	$0	221.8	120	82	38	16	100	15	20	4	10	-	-	-	-	-	Fig.7
BT50-SF04-160	$333	$0	261.8	160	122	38	16	100	15	25	4	10	-	-	-	-	-	Fig.7
BT50-SF05-100	$258	$0	201.8	100	62	38	18	100	15	20	5	10	-	-	-	-	-	Fig.6
BT50-SF05-120	$281	$0	221.8	120	82	38	18	100	15	20	5	10	-	-	-	-	-	Fig.7
BT50-SF05-160	$333	$0	261.8	160	122	38	18	100	15	25	5	10	-	-	-	-	-	Fig.7
BT50-SF06-100	$258	$0	201.8	100	62	38	26	100	21	27	6	2	M5*0.8P	36	M6*1.0P	-	-	Fig.8
BT50-SF06-120	$281	$0	221.8	120	82	38	26	100	21	27	6	12	M5*0.8P	36	M6*1.0P	-	-	Fig.9
BT50-SF06-160	$333	$0	261.8	160	122	38	26	100	21	27	6	12	M5*0.8P	36	M6*1.0P	39	58	Fig.10
BT50-SF06-200	$378	$0	301.8	200	162	38	26	100	21	27	6	12	M5*0.8P	36	M6*1.0P	42	92	Fig.10
BT50-SF06-250	$459	$0	351.8	250	212	38	26	100	21	27	6	12	M5*0.8P	36	M6*1.0P	42	142	Fig.10
BT50-SF06-300	$516	$0	401.8	300	262	38	26	100	21	27	6	12	M5*0.8P	36	M6*1.0P	42	192	Fig.10
BT50-SF08-100	$258	$0	201.8	100	62	38	26	100	21	27	8	2	M6*1.0P	36	M6*1.0P	-	-	Fig.8
BT50-SF08-120	$281	$0	221.8	120	82	38	26	100	21	27	8	12	M6*1.0P	36	M6*1.0P	-	-	Fig.9
BT50-SF08-160	$333	$0	261.8	160	122	38	26	100	21	27	8	12	M6*1.0P	36	M6*1.0P	39	58	Fig.10
BT50-SF08-200	$378	$0	301.8	200	162	38	26	100	21	27	8	12	M6*1.0P	36	M6*1.0P	42	92	Fig.10
BT50-SF08-250	$459	$0	351.8	250	212	38	26	100	21	27	8	12	M6*1.0P	36	M6*1.0P	42	142	Fig.10
BT50-SF08-300	$516	$0	401.8	300	262	38	26	100	21	27	8	12	M5*0.8P	36	M6*1.0P	42	192	Fig.10
BT50-SF10-100	$258	$0	201.8	100	62	38	32	100	24	32	10	2	M8*1.0P	42	M6*1.0P	-	-	Fig.8
BT50-SF10-120	$281	$0	221.8	120	82	38	32	100	24	32	10	10	M8*1.0P	42	M6*1.0P	-	-	Fig.9
BT50-SF10-160	$333	$0	261.8	160	122	38	32	100	24	32	10	15	M8*1.0P	42	M6*1.0P	38	72	Fig.10
BT50-SF10-200	$378	$0	301.8	200	162	38	32	100	24	32	10	15	M8*1.0P	42	M6*1.0P	39	107	Fig.10
BT50-SF10-250	$459	$0	351.8	250	212	38	32	100	24	32	10	15	M8*1.0P	42	M6*1.0P	39	127	Fig.10
BT50-SF10-300	$516	$0	401.8	300	262	38	32	100	21	27	10	15	M5*0.8P	42	M6*1.0P	39	207	Fig.10
BT50-SF12-100	$258	$0	201.8	100	62	38	37	100	24	32	12	2	M10*1.0P	47	M6*1.0P	-	-	Fig.8
BT50-SF12-120	$281	$0	221.8	120	82	38	37	100	24	32	12	10	M10*1.0P	47	M6*1.0P	-	-	Fig.9
BT50-SF12-160	$333	$0	261.8	160	122	38	37	100	24	32	12	15	M10*1.0P	47	M6*1.0P	38	72	Fig.10
BT50-SF12-200	$378	$0	301.8	200	162	38	37	100	24	32	12	15	M10*1.0P	47	M6*1.0P	39	107	Fig.10
BT50-SF12-250	$459	$0	351.8	250	212	38	37	100	24	32	12	15	M10*1.0P	47	M6*1.0P	39	157	Fig.10
BT50-SF12-300	$516	$0	401.8	300	262	38	37	100	24	32	12	15	M10*1.0P	47	M6*1.0P	39	207	Fig.10
BT50-SF14-100	$258	$0	201.8	100	62	38	37	100	27	34	14	4	M10*1.0P	47	M6*1.0P	-	-	Fig.8
BT50-SF14-120	$281	$0	221.8	120	82	38	37	100	27	34	14	10	M10*1.0P	47	M6*1.0P	-	-	Fig.9
BT50-SF14-160	$333	$0	261.8	160	122	38	37	100	27	34	14	15	M10*1.0P	47	M6*1.0P	41	67	Fig.10
BT50-SF14-200	$378	$0	301.8	200	162	38	37	100	27	34	14	15	M10*1.0P	47	M6*1.0P	41	107	Fig.10
BT50-SF14-250	$459	$0	351.8	250	212	38	37	100	27	34	14	15	M10*1.0P	47	M6*1.0P	41	157	Fig.10
BT50-SF14-300	$516	$0	401.8	300	262	38	37	100	27	34	14	15	M10*1.0P	47	M6*1.0P	41	207	Fig.10
BT50-SF16-100	$258	$0	201.8	100	62	38	40	100	27	34	16	4	M12*1.0P	50	M6*1.0P	-	-	Fig.8
BT50-SF16-120	$281	$0	221.8	120	82	38	40	100	27	34	16	10	M12*1.0P	50	M6*1.0P	-	-	Fig.9
BT50-SF16-160	$333	$0	261.8	160	122	38	40	100	27	34	16	15	M12*1.0P	50	M6*1.0P	41	67	Fig.10
BT50-SF16-200	$378	$0	301.8	200	162	38	40	100	27	34	16	15	M12*1.0P	50	M6*1.0P	41	107	Fig.10
BT50-SF16-250	$459	$0	351.8	250	212	38	40	100	27	34	16	15	M12*1.0P	50	M6*1.0P	41	157	Fig.10
BT50-SF16-300	$516	$0	401.8	300	262	38	40	100	27	34	16	15	M5*0.8P	50	M6*1.0P	41	207	Fig.10
BT50-SF18-100	$258	$0	201.8	100	62	38	40	100	33	42	18	3	M12*1.0P	50	M6*1.0P	-	-	Fig.8
BT50-SF18-120	$281	$0	221.8	120	82	38	40	100	33	42	18	4	M12*1.0P	50	M6*1.0P	-	-	Fig.9
BT50-SF18-160	$333	$0	261.8	160	122	38	40	100	33	42	18	12	M12*1.0P	50	M6*1.0P	47	77	Fig.10
BT50-SF18-200	$378	$0	301.8	200	162	38	40	100	33	42	18	12	M12*1.0P	50	M6*1.0P	50	107	Fig.10
BT50-SF18-250	$459	$0	351.8	250	212	38	40	100	33	42	18	12	M12*1.0P	50	M6*1.0P	50	157	Fig.10
BT50-SF18-300	$516	$0	401.8	300	262	38	40	100	27	34	18	12	M5*0.8P	50	M6*1.0P	50	207	Fig.10
BT50-SF20-100	$258	$0	201.8	100	62	38	42	100	33	42	20	3	M16*1.0P	52	M6*1.0P	-	-	Fig.8
BT50-SF20-120	$281	$0	221.8	120	82	38	42	100	33	42	20	4	M16*1.0P	52	M6*1.0P	-	-	Fig.9
BT50-SF20-160	$333	$0	261.8	160	122	38	42	100	33	42	20	12	M16*1.0P	52	M6*1.0P	47	77	Fig.10
BT50-SF20-200	$378	$0	301.8	200	162	38	42	100	33	42	20	12	M16*1.0P	52	M6*1.0P	50	107	Fig.10
BT50-SF20-250	$459	$0	351.8	250	212	38	42	100	33	42	20	12	M16*1.0P	52	M6*1.0P	50	157	Fig.10
BT50-SF20-300	$516	$0	401.8	300	262	38	42	100	33	42	18	12	M5*0.8P	52	M6*1.0P	50	207	Fig.10
BT50-SF25-110	$270	$0	211.8	110	72	38	48	100	44	53	25	1	M16*1.0P	58	M6*1.0P	-	-	Fig.8
BT50-SF25-120	$281	$0	221.8	120	82	38	48	100	44	53	25	3	M16*1.0P	58	M6*1.0P	-	-	Fig.9
BT50-SF25-160	$333	$0	261.8	160	122	38	48	100	44	53	25	8	M16*1.0P	58	M6*1.0P	57	79	Fig.10
BT50-SF25-200	$378	$0	301.8	200	162	38	48	100	44	53	25	8	M16*1.0P	58	M6*1.0P	61	107	Fig.10
BT50-SF25-250	$459	$0	351.8	250	212	38	48	100	44	53	25	8	M16*1.0P	58	M6*1.0P	61	157	Fig.10
BT50-SF25-300	$516	$0	401.8	300	262	38	48	100	44	53	25	8	M16*1.0P	58	M6*1.0P	61	207	Fig.10
BT50-SF32-110	$270	$0	211.8	110	72	38	52	100	44	53	32	1	M16*1.0P	62	M6*1.0P	-	-	Fig.8
BT50-SF32-120	$281	$0	221.8	120	82	38	52	100	44	53	32	3	M16*1.0P	62	M6*1.0P	-	-	Fig.9
BT50-SF32-160	$333	$0	261.8	160	122	38	52	100	44	53	32	8	M16*1.0P	62	M6*1.0P	57	79	Fig.10
BT50-SF32-200	$378	$0	301.8	200	162	38	52	100	44	53	32	8	M16*1.0P	62	M6*1.0P	61	107	Fig.10
BT50-SF32-250	$459	$0	351.8	250	212	38	52	100	44	53	32	8	M16*1.0P	62	M6*1.0P	61	157	Fig.10
BT50-SF32-300	$516	$0	401.8	300	262	38	52	100	44	53	32	8	M16*1.0P	62	M6*1.0P	61	207	Fig.10

選択した商品0 × $0

小計$0

合計金額$0

選択: 0点

特長

この製品の主な特長と仕様をご紹介します。

高振れ精度による優れた精密加工性能

360°均一把持力による高把持トルク

動バランス精度: G2.5@25,000 RPM

短チャンファー設計、スリムトップ形状

高剛性シャンク設計による振動抑制

クールジェットオプション対応可

焼きばめ装置使用で工具交換5秒

JIS MAS 403 BT スピンドルテーパー規格準拠

技術図面

プロフェッショナル向けの詳細な技術仕様と寸法図。

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

BT 焼きばめホルダー

SKUを選択

数量

単価：

72.00 USD

中国倉庫から出荷

数量割引

注文金額

1000 + USD

割引

3% オフ

注文金額

3000 + USD

割引

5% オフ

注文金額

8000 + USD

割引

8% オフ

注文金額

15000 + USD

割引

12% オフ

注文金額

30000 + USD

割引

15% オフ

注文金額

50000 + USD

割引

18% オフ

割引はチェックアウト時に注文金額に基づいて自動適用されます。

出荷倉庫

🇨🇳

中国工場

在庫・生産対応可能

お支払い方法

Visa

MasterCard

American Express

Discover

Apple Pay

Google Pay

PayPal

Bank Transfer (TT)

仕様

SKU	Price	Total	L	L1	L2	L3	L4	D	D1	D2	d	R	T	L5	T1	D3	L6	FIG
BT30-SF03-80	$72	$0	128.4	80	58	22	12	46	15	20	3	5	-	-	-	-	-	Fig.1
BT30-SF04-80	$72	$0	128.4	80	58	22	16	46	15	20	4	5	-	-	-	-	-	Fig.1
BT30-SF04-120	$87	$0	168.4	120	98	22	16	46	15	20	4	5	-	-	-	-	-	Fig.2
BT30-SF05-80	$72	$0	128.4	80	58	22	18	46	15	20	5	5	-	-	-	-	-	Fig.1
BT30-SF05-120	$87	$0	168.4	120	98	22	18	46	15	20	5	5	-	-	-	-	-	Fig.2
BT30-SF06-80	$72	$0	128.4	80	58	22	26	46	21	27	6	1	M5*0.8P	36	M6*1.0P	-	-	Fig.3
BT30-SF06-120	$87	$0	168.4	120	98	22	26	46	21	27	6	5	M5*0.8P	36	M6*1.0P	-	-	Fig.4
BT30-SF08-80	$72	$0	128.4	80	58	22	26	46	21	27	8	1	M6*1.0P	36	M6*1.0P	-	-	Fig.3
BT30-SF08-120	$87	$0	168.4	120	98	22	26	46	21	27	8	5	M6*1.0P	36	M6*1.0P	-	-	Fig.4
BT30-SF10-80	$72	$0	128.4	80	58	22	32	46	24	32	10	1	M8*1.0P	42	M6*1.0P	-	-	Fig.3
BT30-SF10-120	$87	$0	168.4	120	98	22	32	46	24	32	10	5	M8*1.0P	42	M6*1.0P	-	-	Fig.4
BT30-SF12-80	$72	$0	128.4	80	58	22	37	46	24	32	12	1	M10*1.0P	47	M6*1.0P	-	-	Fig.3
BT30-SF12-120	$87	$0	168.4	120	98	22	37	46	24	32	12	5	M10*1.0P	47	M6*1.0P	-	-	Fig.4
BT30-SF14-80	$72	$0	128.4	80	58	22	37	46	27	34	14	1	M10*1.0P	47	M6*1.0P	-	-	Fig.3
BT30-SF14-120	$87	$0	168.4	120	98	22	37	46	27	34	14	3	M10*1.0P	47	M6*1.0P	-	-	Fig.4
BT30-SF16-90	$76	$0	138.4	90	68	22	40	46	27	34	16	1	M12*1.0P	50	M6*1.0P	-	-	Fig.3
BT30-SF16-120	$87	$0	168.4	120	98	22	40	46	27	34	16	3	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT30-SF18-90	$76	$0	138.4	90	68	22	40	46	33	42	18	1	M12*1.0P	50	M6*1.0P	-	-	Fig.3
BT30-SF18-120	$87	$0	168.4	120	98	22	40	46	33	42	18	1	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT30-SF20-90	$76	$0	138.4	90	68	22	42	46	33	42	20	1	M16*1.0P	52	M6*1.0P	-	-	Fig.3
BT30-SF20-120	$87	$0	168.4	120	98	22	42	46	33	42	20	1	M16*1.0P	52	M6*1.0P	-	-	Fig.4
BT40-SF03-90	$101	$0	155.4	90	63	27	12	63	15	20	3	5	-	-	-	-	-	Fig.1
BT40-SF03-120	$115	$0	185.4	120	93	27	12	63	15	20	3	5	-	-	-	-	-	Fig.2
BT40-SF03-160	$135	$0	225.4	160	133	27	12	63	15	25	3	5	-	-	-	-	-	Fig.2
BT40-SF04-90	$101	$0	155.4	90	63	27	16	63	15	20	4	5	-	-	-	-	-	Fig.1
BT40-SF04-120	$115	$0	185.4	120	93	27	16	63	15	20	4	5	-	-	-	-	-	Fig.2
BT40-SF04-160	$135	$0	225.4	160	133	27	16	63	15	25	4	5	-	-	-	-	-	Fig.2
BT40-SF05-90	$101	$0	155.4	90	63	27	18	63	15	20	5	5	-	-	-	-	-	Fig.1
BT40-SF05-120	$115	$0	185.4	120	93	27	18	63	15	20	5	5	-	-	-	-	-	Fig.2
BT40-SF05-160	$135	$0	225.4	160	133	27	18	63	15	25	5	5	-	-	-	-	-	Fig.2
BT40-SF06-90	$101	$0	155.4	90	63	27	26	63	21	27	6	5	M5*0.8P	36	M6*1.0P	-	-	Fig.3
BT40-SF06-120	$115	$0	185.4	120	93	27	26	63	21	27	6	5	M5*0.8P	36	M6*1.0P	-	-	Fig.4
BT40-SF06-160	$135	$0	225.4	160	133	27	26	63	21	27	6	6	M5*0.8P	36	M6*1.0P	40	79	Fig.5
BT40-SF06-200	$180	$0	265.4	200	173	27	26	63	21	27	6	6	M5*0.8P	36	M6*1.0P	40	119	Fig.5
BT40-SF06-250	$267	$0	315.4	250	223	27	26	63	21	27	6	6	M5*0.8P	36	M6*1.0P	40	169	Fig.5
BT40-SF06-300	$292	$0	365.4	300	273	27	26	63	21	27	6	6	M5*0.8P	36	M6*1.0P	40	219	Fig.5
BT40-SF08-90	$101	$0	155.4	90	63	27	26	63	21	27	8	5	M6*1.0P	36	M6*1.0P	-	-	Fig.3
BT40-SF08-120	$115	$0	185.4	120	93	27	26	63	21	27	8	5	M6*1.0P	36	M6*1.0P	-	-	Fig.4
BT40-SF08-160	$135	$0	225.4	160	133	27	26	63	21	27	8	6	M6*1.0P	36	M6*1.0P	40	79	Fig.5
BT40-SF08-200	$180	$0	265.4	200	173	27	26	63	21	27	8	6	M6*1.0P	36	M6*1.0P	40	119	Fig.5
BT40-SF08-250	$267	$0	315.4	250	223	27	26	63	21	27	8	6	M6*1.0P	36	M6*1.0P	40	169	Fig.5
BT40-SF08-300	$292	$0	365.4	300	273	27	26	63	21	27	8	6	M6*1.0P	36	M6*1.0P	40	219	Fig.5
BT40-SF10-90	$101	$0	155.4	90	63	27	32	63	24	32	10	3	M8*1.0P	42	M6*1.0P	-	-	Fig.3
BT40-SF10-120	$115	$0	185.4	120	93	27	32	63	24	32	10	10	M8*1.0P	42	M6*1.0P	-	-	Fig.4
BT40-SF10-160	$135	$0	225.4	160	133	27	32	63	24	32	10	7	M8*1.0P	42	M6*1.0P	39	79	Fig.5
BT40-SF10-200	$180	$0	265.4	200	173	27	32	63	24	32	10	7	M8*1.0P	42	M6*1.0P	39	119	Fig.5
BT40-SF10-250	$267	$0	315.4	250	223	27	32	63	24	32	10	7	M8*1.0P	42	M6*1.0P	39	169	Fig.5
BT40-SF10-300	$292	$0	365.4	300	273	27	32	63	24	32	10	7	M8*1.0P	42	M6*1.0P	39	219	Fig.5
BT40-SF12-90	$101	$0	155.4	90	63	27	37	63	24	32	12	3	M10*1.0P	47	M6*1.0P	-	-	Fig.3
BT40-SF12-120	$115	$0	185.4	120	93	27	37	63	24	32	12	10	M10*1.0P	47	M6*1.0P	-	-	Fig.4
BT40-SF12-160	$135	$0	225.4	160	133	27	37	63	24	32	12	7	M10*1.0P	47	M6*1.0P	39	79	Fig.5
BT40-SF12-200	$180	$0	265.4	200	173	27	37	63	24	32	12	7	M10*1.0P	47	M6*1.0P	39	119	Fig.5
BT40-SF12-250	$267	$0	315.4	250	223	27	37	63	24	32	12	7	M10*1.0P	47	M6*1.0P	39	169	Fig.5
BT40-SF12-300	$292	$0	365.4	300	273	27	37	63	24	32	12	7	M10*1.0P	47	M6*1.0P	39	219	Fig.5
BT40-SF14-90	$101	$0	155.4	90	63	27	37	63	27	34	14	3	M10*1.0P	47	M6*1.0P	-	-	Fig.3
BT40-SF14-120	$115	$0	185.4	120	93	27	37	63	27	34	14	10	M10*1.0P	47	M6*1.0P	-	-	Fig.4
BT40-SF14-160	$135	$0	225.4	160	133	27	37	63	27	34	14	5	M10*1.0P	47	M6*1.0P	42	78	Fig.5
BT40-SF14-200	$180	$0	265.4	200	173	27	37	63	27	34	14	5	M10*1.0P	47	M6*1.0P	42	118	Fig.5
BT40-SF14-250	$267	$0	315.4	250	223	27	37	63	27	34	14	5	M10*1.0P	47	M6*1.0P	42	168	Fig.5
BT40-SF14-300	$292	$0	365.4	300	273	27	37	63	27	34	14	5	M10*1.0P	47	M6*1.0P	42	218	Fig.5
BT40-SF16-90	$101	$0	155.4	90	63	27	40	63	27	34	16	3	M12*1.0P	50	M6*1.0P	-	-	Fig.3
BT40-SF16-120	$115	$0	185.4	120	93	27	40	63	27	34	16	10	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF16-160	$135	$0	225.4	160	133	27	40	63	27	34	16	5	M12*1.0P	50	M6*1.0P	42	78	Fig.5
BT40-SF16-200	$180	$0	265.4	200	173	27	40	63	27	34	16	5	M12*1.0P	50	M6*1.0P	42	118	Fig.5
BT40-SF16-250	$267	$0	315.4	250	223	27	40	63	27	34	16	5	M12*1.0P	50	M6*1.0P	42	168	Fig.5
BT40-SF16-300	$292	$0	365.4	300	273	27	40	63	27	34	16	5	M12*1.0P	50	M6*1.0P	42	218	Fig.5
BT40-SF18-90	$101	$0	155.4	90	63	27	40	63	33	41	18	2	M12*1.0P	50	M6*1.0P	-	-	Fig.3
BT40-SF18-120	$115	$0	185.4	120	93	27	40	63	33	42	18	5	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF18-160	$135	$0	225.4	160	133	27	40	63	33	42	18	5	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF18-200	$180	$0	265.4	200	173	27	40	63	33	42	18	5	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF18-250	$267	$0	315.4	250	223	27	40	63	33	42	18	5	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF18-300	$292	$0	365.4	300	273	27	40	63	33	42	18	5	M12*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF20-90	$101	$0	155.4	90	63	27	42	63	33	41	20	2	M16*1.0P	50	M6*1.0P	-	-	Fig.3
BT40-SF20-120	$115	$0	185.4	120	93	27	42	63	33	42	20	5	M16*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF20-160	$135	$0	225.4	160	133	27	42	63	33	42	20	5	M16*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF20-200	$180	$0	265.4	200	173	27	42	63	33	42	20	5	M16*1.0P	50	M6*1.0P	-	-	Fig.4
BT40-SF20-250	$267	$0	315.4	250	223	27	42	63	33	42	20	5	M16*1.0P	52	M6*1.0P	-	-	Fig.4
BT40-SF20-300	$292	$0	365.4	300	273	27	42	63	33	42	20	5	M16*1.0P	52	M6*1.0P	-	-	Fig.4
BT40-SF25-100	$106	$0	155.4	90	63	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.3
BT40-SF25-120	$115	$0	185.4	120	93	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.4
BT40-SF25-160	$135	$0	225.4	160	133	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.4
BT40-SF25-200	$180	$0	265.4	200	173	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.4
BT40-SF25-250	$267	$0	315.4	250	223	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.4
BT40-SF25-300	$292	$0	365.4	300	273	27	48	63	44	53	25	2	M16*1.0P	58	M6*1.0P	-	-	Fig.4
BT40-SF32-100	$106	$0	155.4	90	63	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.3
BT40-SF32-120	$115	$0	185.4	120	93	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.4
BT40-SF32-160	$135	$0	225.4	160	133	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.4
BT40-SF32-200	$180	$0	265.4	200	173	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.4
BT40-SF32-250	$267	$0	315.4	250	223	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.4
BT40-SF32-300	$292	$0	365.4	300	273	27	52	63	44	53	32	2	M16*1.0P	62	M6*1.0P	-	-	Fig.4
BT50-SF03-100	$258	$0	201.8	100	62	38	12	100	15	20	3	10	-	-	-	-	-	Fig.6
BT50-SF03-120	$281	$0	221.8	120	82	38	12	100	15	20	3	10	-	-	-	-	-	Fig.7
BT50-SF03-160	$333	$0	261.8	160	122	38	12	100	15	25	3	10	-	-	-	-	-	Fig.7
BT50-SF04-100	$258	$0	201.8	100	62	38	16	100	15	20	4	10	-	-	-	-	-	Fig.6
BT50-SF04-120	$281	$0	221.8	120	82	38	16	100	15	20	4	10	-	-	-	-	-	Fig.7
BT50-SF04-160	$333	$0	261.8	160	122	38	16	100	15	25	4	10	-	-	-	-	-	Fig.7
BT50-SF05-100	$258	$0	201.8	100	62	38	18	100	15	20	5	10	-	-	-	-	-	Fig.6
BT50-SF05-120	$281	$0	221.8	120	82	38	18	100	15	20	5	10	-	-	-	-	-	Fig.7
BT50-SF05-160	$333	$0	261.8	160	122	38	18	100	15	25	5	10	-	-	-	-	-	Fig.7
BT50-SF06-100	$258	$0	201.8	100	62	38	26	100	21	27	6	2	M5*0.8P	36	M6*1.0P	-	-	Fig.8
BT50-SF06-120	$281	$0	221.8	120	82	38	26	100	21	27	6	12	M5*0.8P	36	M6*1.0P	-	-	Fig.9
BT50-SF06-160	$333	$0	261.8	160	122	38	26	100	21	27	6	12	M5*0.8P	36	M6*1.0P	39	58	Fig.10
BT50-SF06-200	$378	$0	301.8	200	162	38	26	100	21	27	6	12	M5*0.8P	36	M6*1.0P	42	92	Fig.10
BT50-SF06-250	$459	$0	351.8	250	212	38	26	100	21	27	6	12	M5*0.8P	36	M6*1.0P	42	142	Fig.10
BT50-SF06-300	$516	$0	401.8	300	262	38	26	100	21	27	6	12	M5*0.8P	36	M6*1.0P	42	192	Fig.10
BT50-SF08-100	$258	$0	201.8	100	62	38	26	100	21	27	8	2	M6*1.0P	36	M6*1.0P	-	-	Fig.8
BT50-SF08-120	$281	$0	221.8	120	82	38	26	100	21	27	8	12	M6*1.0P	36	M6*1.0P	-	-	Fig.9
BT50-SF08-160	$333	$0	261.8	160	122	38	26	100	21	27	8	12	M6*1.0P	36	M6*1.0P	39	58	Fig.10
BT50-SF08-200	$378	$0	301.8	200	162	38	26	100	21	27	8	12	M6*1.0P	36	M6*1.0P	42	92	Fig.10
BT50-SF08-250	$459	$0	351.8	250	212	38	26	100	21	27	8	12	M6*1.0P	36	M6*1.0P	42	142	Fig.10
BT50-SF08-300	$516	$0	401.8	300	262	38	26	100	21	27	8	12	M5*0.8P	36	M6*1.0P	42	192	Fig.10
BT50-SF10-100	$258	$0	201.8	100	62	38	32	100	24	32	10	2	M8*1.0P	42	M6*1.0P	-	-	Fig.8
BT50-SF10-120	$281	$0	221.8	120	82	38	32	100	24	32	10	10	M8*1.0P	42	M6*1.0P	-	-	Fig.9
BT50-SF10-160	$333	$0	261.8	160	122	38	32	100	24	32	10	15	M8*1.0P	42	M6*1.0P	38	72	Fig.10
BT50-SF10-200	$378	$0	301.8	200	162	38	32	100	24	32	10	15	M8*1.0P	42	M6*1.0P	39	107	Fig.10
BT50-SF10-250	$459	$0	351.8	250	212	38	32	100	24	32	10	15	M8*1.0P	42	M6*1.0P	39	127	Fig.10
BT50-SF10-300	$516	$0	401.8	300	262	38	32	100	21	27	10	15	M5*0.8P	42	M6*1.0P	39	207	Fig.10
BT50-SF12-100	$258	$0	201.8	100	62	38	37	100	24	32	12	2	M10*1.0P	47	M6*1.0P	-	-	Fig.8
BT50-SF12-120	$281	$0	221.8	120	82	38	37	100	24	32	12	10	M10*1.0P	47	M6*1.0P	-	-	Fig.9
BT50-SF12-160	$333	$0	261.8	160	122	38	37	100	24	32	12	15	M10*1.0P	47	M6*1.0P	38	72	Fig.10
BT50-SF12-200	$378	$0	301.8	200	162	38	37	100	24	32	12	15	M10*1.0P	47	M6*1.0P	39	107	Fig.10
BT50-SF12-250	$459	$0	351.8	250	212	38	37	100	24	32	12	15	M10*1.0P	47	M6*1.0P	39	157	Fig.10
BT50-SF12-300	$516	$0	401.8	300	262	38	37	100	24	32	12	15	M10*1.0P	47	M6*1.0P	39	207	Fig.10
BT50-SF14-100	$258	$0	201.8	100	62	38	37	100	27	34	14	4	M10*1.0P	47	M6*1.0P	-	-	Fig.8
BT50-SF14-120	$281	$0	221.8	120	82	38	37	100	27	34	14	10	M10*1.0P	47	M6*1.0P	-	-	Fig.9
BT50-SF14-160	$333	$0	261.8	160	122	38	37	100	27	34	14	15	M10*1.0P	47	M6*1.0P	41	67	Fig.10
BT50-SF14-200	$378	$0	301.8	200	162	38	37	100	27	34	14	15	M10*1.0P	47	M6*1.0P	41	107	Fig.10
BT50-SF14-250	$459	$0	351.8	250	212	38	37	100	27	34	14	15	M10*1.0P	47	M6*1.0P	41	157	Fig.10
BT50-SF14-300	$516	$0	401.8	300	262	38	37	100	27	34	14	15	M10*1.0P	47	M6*1.0P	41	207	Fig.10
BT50-SF16-100	$258	$0	201.8	100	62	38	40	100	27	34	16	4	M12*1.0P	50	M6*1.0P	-	-	Fig.8
BT50-SF16-120	$281	$0	221.8	120	82	38	40	100	27	34	16	10	M12*1.0P	50	M6*1.0P	-	-	Fig.9
BT50-SF16-160	$333	$0	261.8	160	122	38	40	100	27	34	16	15	M12*1.0P	50	M6*1.0P	41	67	Fig.10
BT50-SF16-200	$378	$0	301.8	200	162	38	40	100	27	34	16	15	M12*1.0P	50	M6*1.0P	41	107	Fig.10
BT50-SF16-250	$459	$0	351.8	250	212	38	40	100	27	34	16	15	M12*1.0P	50	M6*1.0P	41	157	Fig.10
BT50-SF16-300	$516	$0	401.8	300	262	38	40	100	27	34	16	15	M5*0.8P	50	M6*1.0P	41	207	Fig.10
BT50-SF18-100	$258	$0	201.8	100	62	38	40	100	33	42	18	3	M12*1.0P	50	M6*1.0P	-	-	Fig.8
BT50-SF18-120	$281	$0	221.8	120	82	38	40	100	33	42	18	4	M12*1.0P	50	M6*1.0P	-	-	Fig.9
BT50-SF18-160	$333	$0	261.8	160	122	38	40	100	33	42	18	12	M12*1.0P	50	M6*1.0P	47	77	Fig.10
BT50-SF18-200	$378	$0	301.8	200	162	38	40	100	33	42	18	12	M12*1.0P	50	M6*1.0P	50	107	Fig.10
BT50-SF18-250	$459	$0	351.8	250	212	38	40	100	33	42	18	12	M12*1.0P	50	M6*1.0P	50	157	Fig.10
BT50-SF18-300	$516	$0	401.8	300	262	38	40	100	27	34	18	12	M5*0.8P	50	M6*1.0P	50	207	Fig.10
BT50-SF20-100	$258	$0	201.8	100	62	38	42	100	33	42	20	3	M16*1.0P	52	M6*1.0P	-	-	Fig.8
BT50-SF20-120	$281	$0	221.8	120	82	38	42	100	33	42	20	4	M16*1.0P	52	M6*1.0P	-	-	Fig.9
BT50-SF20-160	$333	$0	261.8	160	122	38	42	100	33	42	20	12	M16*1.0P	52	M6*1.0P	47	77	Fig.10
BT50-SF20-200	$378	$0	301.8	200	162	38	42	100	33	42	20	12	M16*1.0P	52	M6*1.0P	50	107	Fig.10
BT50-SF20-250	$459	$0	351.8	250	212	38	42	100	33	42	20	12	M16*1.0P	52	M6*1.0P	50	157	Fig.10
BT50-SF20-300	$516	$0	401.8	300	262	38	42	100	33	42	18	12	M5*0.8P	52	M6*1.0P	50	207	Fig.10
BT50-SF25-110	$270	$0	211.8	110	72	38	48	100	44	53	25	1	M16*1.0P	58	M6*1.0P	-	-	Fig.8
BT50-SF25-120	$281	$0	221.8	120	82	38	48	100	44	53	25	3	M16*1.0P	58	M6*1.0P	-	-	Fig.9
BT50-SF25-160	$333	$0	261.8	160	122	38	48	100	44	53	25	8	M16*1.0P	58	M6*1.0P	57	79	Fig.10
BT50-SF25-200	$378	$0	301.8	200	162	38	48	100	44	53	25	8	M16*1.0P	58	M6*1.0P	61	107	Fig.10
BT50-SF25-250	$459	$0	351.8	250	212	38	48	100	44	53	25	8	M16*1.0P	58	M6*1.0P	61	157	Fig.10
BT50-SF25-300	$516	$0	401.8	300	262	38	48	100	44	53	25	8	M16*1.0P	58	M6*1.0P	61	207	Fig.10
BT50-SF32-110	$270	$0	211.8	110	72	38	52	100	44	53	32	1	M16*1.0P	62	M6*1.0P	-	-	Fig.8
BT50-SF32-120	$281	$0	221.8	120	82	38	52	100	44	53	32	3	M16*1.0P	62	M6*1.0P	-	-	Fig.9
BT50-SF32-160	$333	$0	261.8	160	122	38	52	100	44	53	32	8	M16*1.0P	62	M6*1.0P	57	79	Fig.10
BT50-SF32-200	$378	$0	301.8	200	162	38	52	100	44	53	32	8	M16*1.0P	62	M6*1.0P	61	107	Fig.10
BT50-SF32-250	$459	$0	351.8	250	212	38	52	100	44	53	32	8	M16*1.0P	62	M6*1.0P	61	157	Fig.10
BT50-SF32-300	$516	$0	401.8	300	262	38	52	100	44	53	32	8	M16*1.0P	62	M6*1.0P	61	207	Fig.10
