Precision Interchangeable Points Live Center Series
Precision Interchangeable Points Live Center Series guarantees ≤0.005 mm runout for CNC and conventional lathes. Each center integrates three sets of imported NSK bearings, a heat-treated HRC60±2° body, and a dual sealing system with German skeleton seals plus a lip-ring deflection design to protect bearings from dust and coolant. This construction delivers high rigidity, long service life, and stable performance for turning operations that require interchangeable points and reliable workholding.
Unit Price: 282.00 USD
Volume Discount
Order Value
3000 + USD
Discount
3% off
Order Value
5000 + USD
Discount
5% off
Order Value
10000 + USD
Discount
8% off
Order Value
20000 + USD
Discount
12% off
Order Value
30000 + USD
Discount
15% off
Order Value
50000 + USD
Discount
18% off
Discounts are automatically applied at checkout based on order value.
Available Warehouse
China Factory
Stock & Production Available
Accepted Payment
Specifications
| Cart+ | SKU | Price | Quantity | Total | MT | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | L (mm) | Max Load (kg) | Max RPM | Weight (kg) | Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LC-PIP-MT3 | $282 | $0 | 3 | 50 | 25 | 85 | 52 | 35 | 6 | 15.8 | 172 | 150 | 5000 | 0.8 | 0.005 | ||
LC-PIP-MT4 | $310 | $0 | 4 | 69 | 32 | 108 | 58 | 37 | 8 | 15.8 | 203 | 250 | 3800 | 1.7 | 0.005 | ||
LC-PIP-MT5 | $395 | $0 | 5 | 88 | 40 | 136 | 72 | 40 | 8 | 15.8 | 248 | 650 | 3000 | 3.9 | 0.005 |
Features
Key product features and specifications that make this product stand out.
Precision guaranteed within 0.005 mm
Applicable to CNC machine tools and general machine tools
Equipped with 3 sets of imported Japanese NSK bearings (NSK double-row bearings, NSK thrust bearings, IKO needle roller bearings)
Heat-treated main body to HRC60±2° for enhanced strength, rigidity, and extended service life
Double sealing system with German imported skeleton oil seal built into the cover
High-performance lip-type skeleton oil seal and deflection shaft design protect bearing space from dust and coolant intrusion

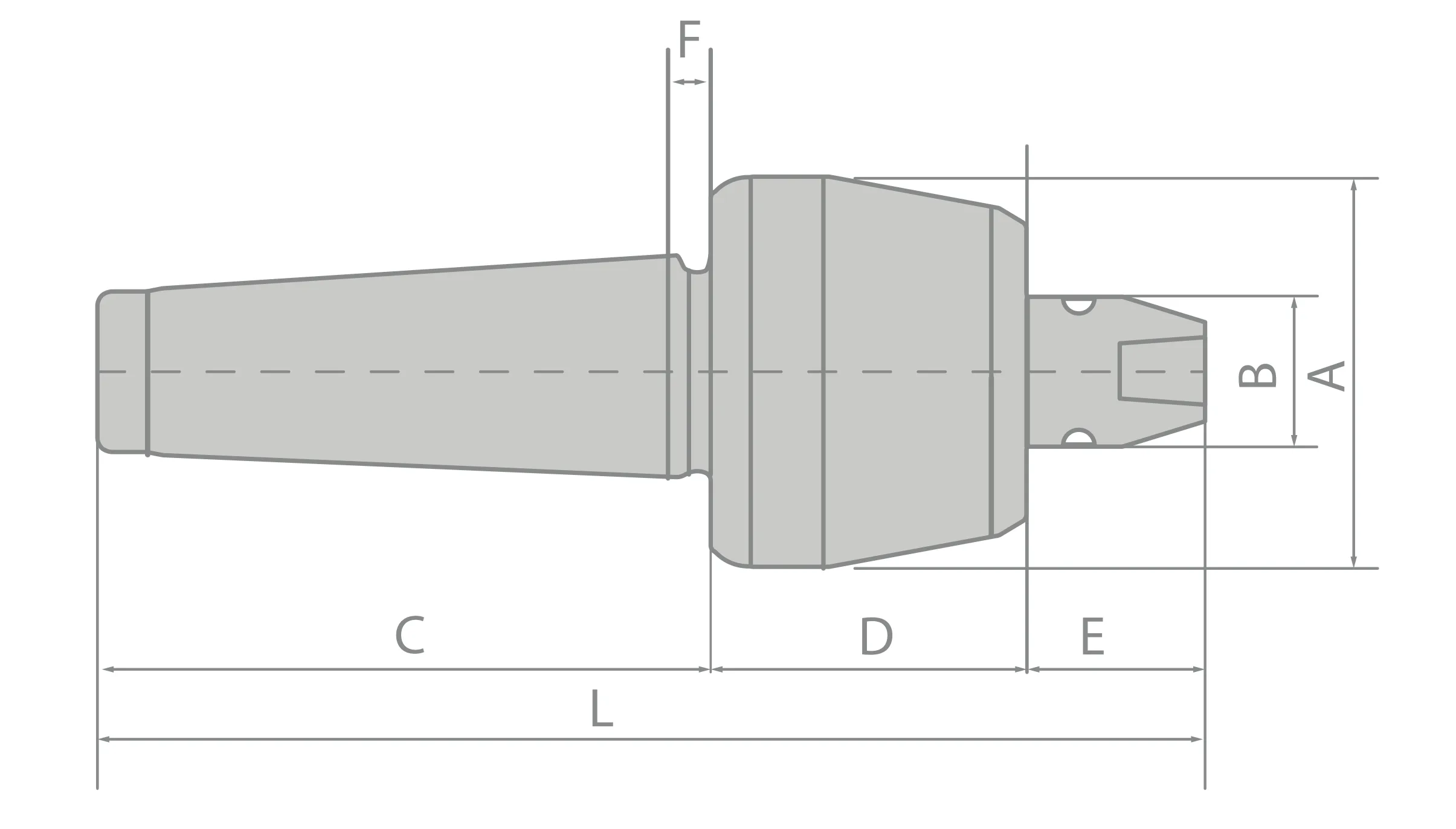

Technical Drawing
Detailed technical specifications and dimensions for professional reference.
Fig.1
Fig.1
