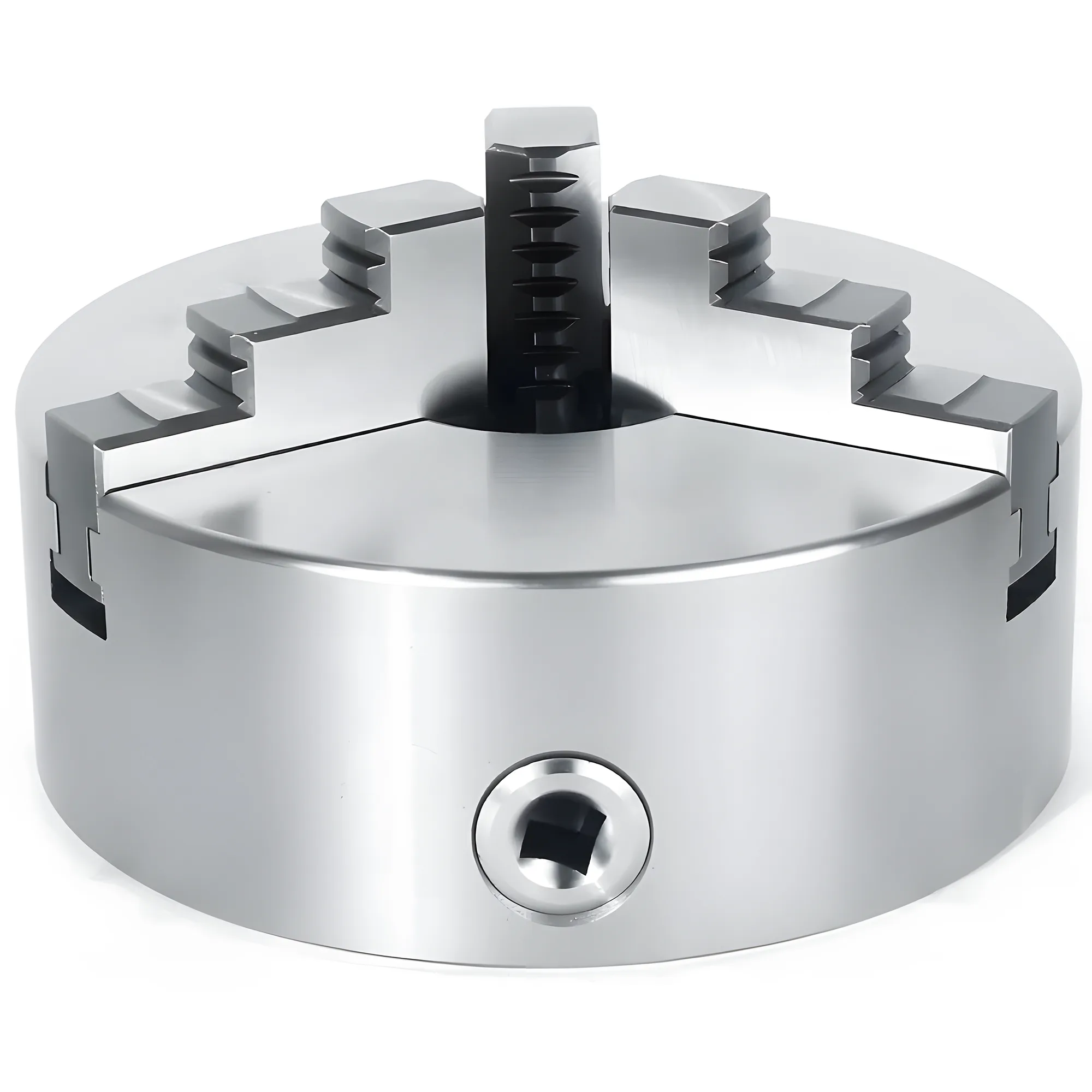

K11 3 jaw self centering lathe chuck in 16 sizes from 80mm to 500mm, rated for a maximum input torque of 40 to 630 Nm. It is a scroll chuck: one key turns the scroll and all three jaws move together, so round and hexagonal stock centers itself without indicating. Two sets of one-piece jaws come with every chuck, internal and external; soft jaws can be ordered and bored in place for precision work. Maximum speed falls as the chuck grows — 4800 rpm on the 80mm, 850 rpm on the 500mm — so size it to the work, not to the spindle nose. Mounting is the short cylindrical register on the back. For manual and CNC metal lathes; dimensions are in the chart below.
| Cart+ | SKU | Price | Quantity | Total | D (mm) | D1 (mm) | D2 (mm) | D3 (mm) | H (mm) | H1 (mm) | h (mm) | Z-d | Torque (Nm) | Speed (r/min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
K11-80 | $57 | $0 | 80 | 55 | 66 | 16 | 66 | 50 | 3.5 | 3-M6 | 40 | 4800 | ||
K11-100 | $62 | $0 | 100 | 72 | 84 | 22 | 74.5 | 55 | 3.5 | 3-M8 | 60 | 4200 | ||
K11-125 | $70 | $0 | 125 | 95 | 108 | 30 | 84 | 58 | 4 | 3-M8 | 100 | 3800 | ||
K11-130 | $72 | $0 | 130 | 100 | 115 | 30 | 86 | 60.5 | 3.5 | 3-M8 | 100 | 3800 | ||
K11-160 | $86 | $0 | 160 | 130 | 142 | 45 | 95 | 65 | 5 | 3-M8 | 160 | 3600 | ||
K11-165 | $92 | $0 | 165 | 130 | 145 | 40 | 96.5 | 67.5 | 4.5 | 3-M8 | 250 | 3600 | ||
K11-190 | $118 | $0 | 190 | 155 | 172 | 54 | 105 | 75 | 5 | 3-M10 | 250 | 3000 | ||
K11-200 | $129 | $0 | 200 | 165 | 180 | 65 | 109 | 75 | 5 | 3-M10 | 250 | 3000 | ||
K11-240 | $169 | $0 | 240 | 195 | 215 | 70 | 120 | 80 | 8 | 3-M12 | 320 | 2400 | ||
K11-250 | $179 | $0 | 250 | 206 | 226 | 80 | 120 | 80 | 5 | 3-M12 | 320 | 2400 | ||
K11-315 | $344 | $0 | 315 | 260 | 285 | 100 | 141.5 | 90 | 6 | 3-M16 | 400 | 1800 | ||
K11-320 | $344 | $0 | 320 | 270 | 290 | 100 | 143.5 | 95 | 11 | 3-M16 | 400 | 1800 | ||
K11-325 | $361 | $0 | 325 | 272 | 296 | 100 | 149.5 | 97 | 12 | 3-M16 | 400 | 1800 | ||
K11-380 | $505 | $0 | 380 | 325 | 350 | 145 | 155.7 | 102.5 | 6 | 3-M16 | 500 | 1200 | ||
K11-400 | $533 | $0 | 400 | 340 | 368 | 145 | 155 | 101.5 | 6 | 3-M16 | 500 | 1200 | ||
K11-500 | $874 | $0 | 500 | 440 | 465 | 210 | 175 | 115.4 | 6 | 6-M16 | 630 | 850 |
16 sizes, 80 to 500mm outside diameter
Self centering scroll action: one key drives all three jaws
Two sets of one-piece jaws included, internal and external
Soft jaws on request, bored in place for higher accuracy
Maximum input torque 40 to 630 Nm, rising with size
Maximum speed 4800 rpm on the 80mm, 850 rpm on the 500mm
Short cylindrical register mounting, three tapped holes, six on the 500mm

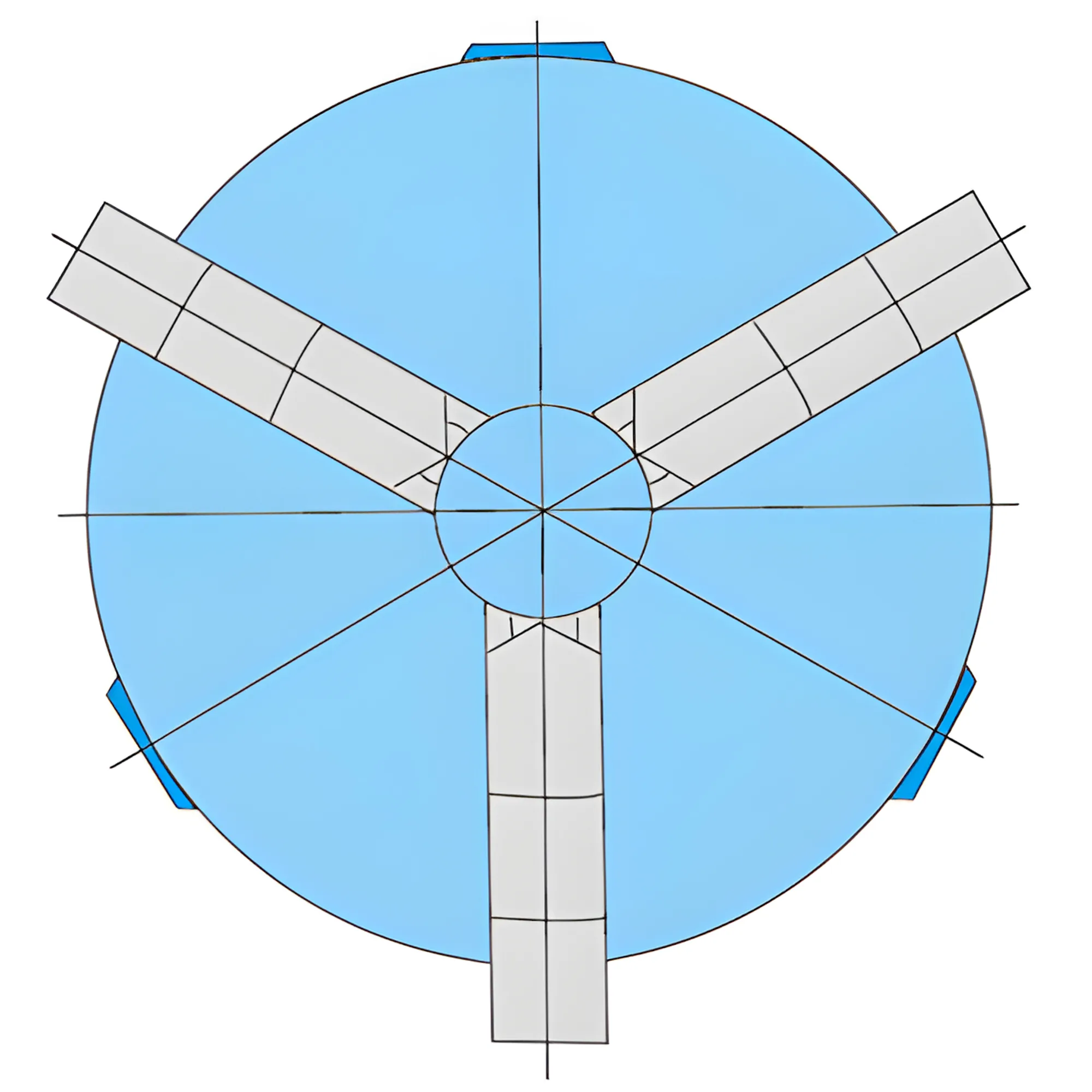

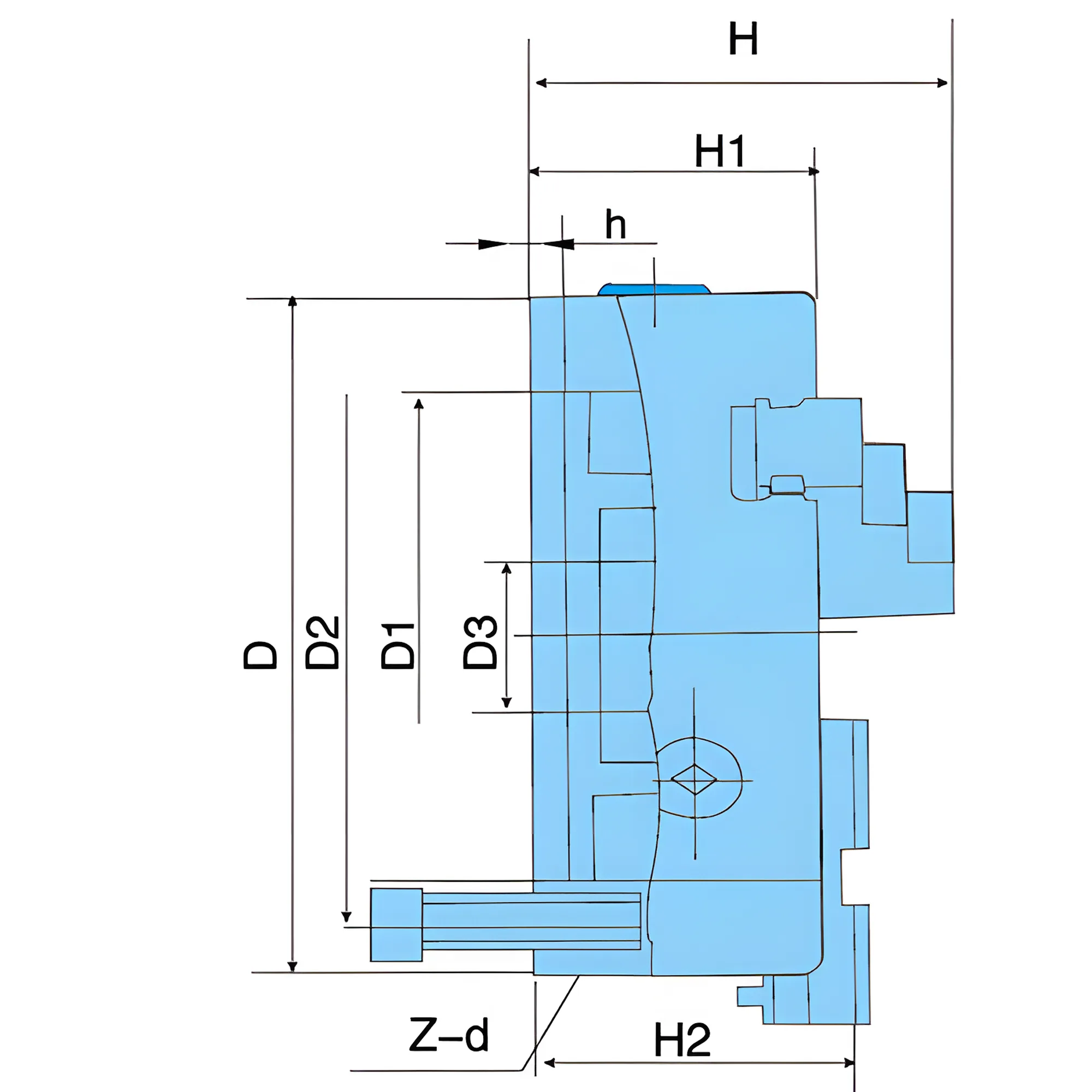

Dimensions and bolt sizes are in the chart below
