Foret hélicoïdal longueur jobber en M35 cobalt, revêtement TiN, pointe 135 degrés à affûtage en croix, en 285 tailles de 0,3 mm à 20 mm et du #60 au 11/16 pouce. Quatre systèmes de tailles, tous complets : 157 forets métriques, 60 forets à numéro #60 à #1, 26 forets à lettre A à Z et 42 forets fractionnaires 3/64 à 11/16 pouce, vendus à l'unité. La longueur jobber se situe au milieu des longueurs normalisées — plus longue qu'un foret série courte (mechanics length), plus courte qu'un foret série longue (taper length) ; DIN 338 est la norme métrique de la longueur jobber. Le M35 est un acier rapide à 5 % de cobalt, c'est ce qui tient l'arête dans l'inox, et la couleur dorée vient du TiN. L'équivalent décimal, la longueur totale et la longueur de goujure de chaque taille figurent dans le tableau ci-dessous.

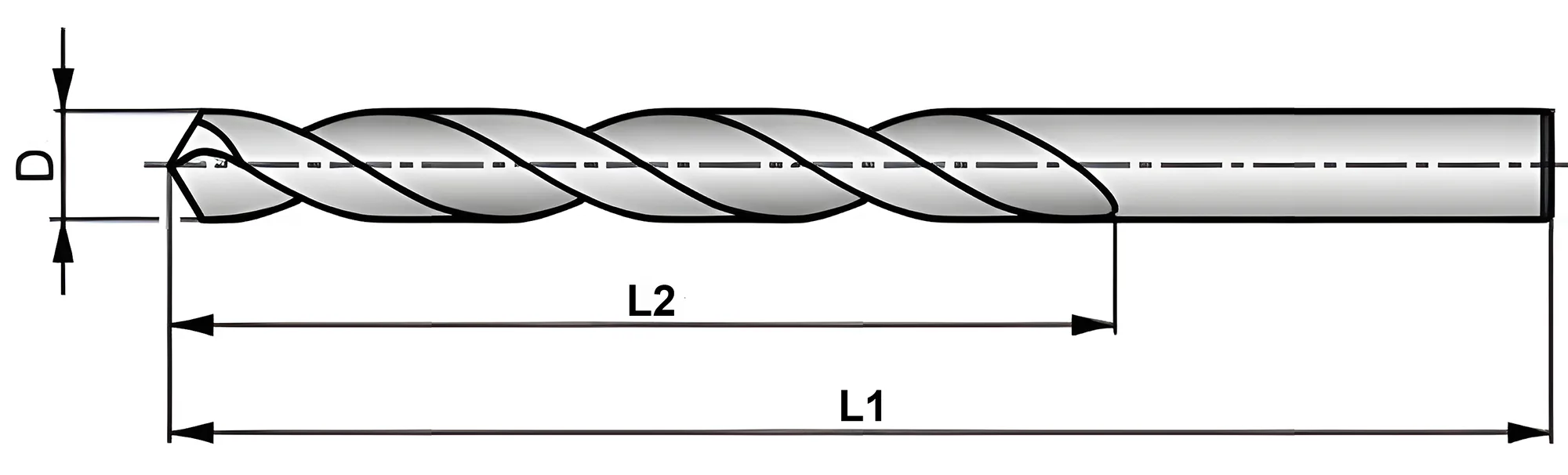

| Cart+ | SKU | Price | Quantity | Total | Size | D | L1 | L2 |
|---|---|---|---|---|---|---|---|---|
JDB-0.30 | $0.17 | $0 | 0.30 | 0.30 mm | 19 mm | 3 mm | ||
JDB-0.35 | $0.17 | $0 | 0.35 | 0.35 mm | 19 mm | 4 mm | ||
JDB-0.40 | $0.17 | $0 | 0.40 | 0.40 mm | 20 mm | 5 mm | ||
JDB-0.45 | $0.17 | $0 | 0.45 | 0.45 mm | 20 mm | 5 mm | ||
JDB-0.50 | $0.17 | $0 | 0.50 | 0.50 mm | 22 mm | 6 mm | ||
JDB-0.55 | $0.17 | $0 | 0.55 | 0.55 mm | 24 mm | 7 mm | ||
JDB-0.60 | $0.17 | $0 | 0.60 | 0.60 mm | 24 mm | 7 mm | ||
JDB-0.65 | $0.17 | $0 | 0.65 | 0.65 mm | 26 mm | 8 mm | ||
JDB-0.70 | $0.17 | $0 | 0.70 | 0.70 mm | 28 mm | 9 mm | ||
JDB-0.75 | $0.17 | $0 | 0.75 | 0.75 mm | 28 mm | 9 mm | ||
JDB-0.80 | $0.17 | $0 | 0.80 | 0.80 mm | 30 mm | 10 mm | ||
JDB-0.85 | $0.17 | $0 | 0.85 | 0.85 mm | 32 mm | 11 mm | ||
JDB-0.90 | $0.17 | $0 | 0.90 | 0.90 mm | 32 mm | 11 mm | ||
JDB-0.95 | $0.17 | $0 | 0.95 | 0.95 mm | 34 mm | 12 mm | ||
JDB-1.00 | $0.17 | $0 | 1.00 | 1.00 mm | 34 mm | 12 mm | ||
JDB-1.10 | $0.23 | $0 | 1.10 | 1.10 mm | 36 mm | 14 mm | ||
JDB-1.20 | $0.23 | $0 | 1.20 | 1.20 mm | 38 mm | 16 mm | ||
JDB-1.30 | $0.23 | $0 | 1.30 | 1.30 mm | 40 mm | 18 mm | ||
JDB-1.40 | $0.23 | $0 | 1.40 | 1.40 mm | 40 mm | 18 mm | ||
JDB-1.50 | $0.23 | $0 | 1.50 | 1.50 mm | 43 mm | 20 mm | ||
JDB-1.60 | $0.26 | $0 | 1.60 | 1.60 mm | 43 mm | 20 mm | ||
JDB-1.70 | $0.26 | $0 | 1.70 | 1.70 mm | 46 mm | 22 mm | ||
JDB-1.80 | $0.26 | $0 | 1.80 | 1.80 mm | 46 mm | 22 mm | ||
JDB-1.90 | $0.26 | $0 | 1.90 | 1.90 mm | 46 mm | 24 mm | ||
JDB-2.00 | $0.26 | $0 | 2.00 | 2.00 mm | 49 mm | 24 mm | ||
JDB-2.10 | $0.33 | $0 | 2.10 | 2.10 mm | 49 mm | 24 mm | ||
JDB-2.20 | $0.33 | $0 | 2.20 | 2.20 mm | 53 mm | 27 mm | ||
JDB-2.30 | $0.33 | $0 | 2.30 | 2.30 mm | 53 mm | 27 mm | ||
JDB-2.40 | $0.33 | $0 | 2.40 | 2.40 mm | 57 mm | 30 mm | ||
JDB-2.50 | $0.33 | $0 | 2.50 | 2.50 mm | 57 mm | 30 mm | ||
JDB-2.60 | $0.44 | $0 | 2.60 | 2.60 mm | 57 mm | 30 mm | ||
JDB-2.70 | $0.44 | $0 | 2.70 | 2.70 mm | 61 mm | 33 mm | ||
JDB-2.80 | $0.44 | $0 | 2.80 | 2.80 mm | 61 mm | 33 mm | ||
JDB-2.90 | $0.44 | $0 | 2.90 | 2.90 mm | 61 mm | 33 mm | ||
JDB-3.00 | $0.44 | $0 | 3.00 | 3.00 mm | 61 mm | 33 mm | ||
JDB-3.10 | $0.6 | $0 | 3.10 | 3.10 mm | 65 mm | 36 mm | ||
JDB-3.20 | $0.6 | $0 | 3.20 | 3.20 mm | 65 mm | 36 mm | ||
JDB-3.30 | $0.6 | $0 | 3.30 | 3.30 mm | 65 mm | 36 mm | ||
JDB-3.40 | $0.6 | $0 | 3.40 | 3.40 mm | 70 mm | 39 mm | ||
JDB-3.50 | $0.6 | $0 | 3.50 | 3.50 mm | 70 mm | 39 mm | ||
JDB-3.60 | $0.72 | $0 | 3.60 | 3.60 mm | 70 mm | 39 mm | ||
JDB-3.70 | $0.72 | $0 | 3.70 | 3.70 mm | 70 mm | 39 mm | ||
JDB-3.80 | $0.72 | $0 | 3.80 | 3.80 mm | 75 mm | 43 mm | ||
JDB-3.90 | $0.72 | $0 | 3.90 | 3.90 mm | 75 mm | 43 mm | ||
JDB-4.00 | $0.72 | $0 | 4.00 | 4.00 mm | 75 mm | 43 mm | ||
JDB-4.10 | $0.92 | $0 | 4.10 | 4.10 mm | 75 mm | 43 mm | ||
JDB-4.20 | $0.92 | $0 | 4.20 | 4.20 mm | 75 mm | 43 mm | ||
JDB-4.30 | $0.92 | $0 | 4.30 | 4.30 mm | 80 mm | 47 mm | ||
JDB-4.40 | $0.92 | $0 | 4.40 | 4.40 mm | 80 mm | 47 mm | ||
JDB-4.50 | $0.92 | $0 | 4.50 | 4.50 mm | 80 mm | 47 mm | ||
JDB-4.60 | $1.07 | $0 | 4.60 | 4.60 mm | 80 mm | 47 mm | ||
JDB-4.70 | $1.07 | $0 | 4.70 | 4.70 mm | 80 mm | 47 mm | ||
JDB-4.80 | $1.07 | $0 | 4.80 | 4.80 mm | 86 mm | 52 mm | ||
JDB-4.90 | $1.07 | $0 | 4.90 | 4.90 mm | 86 mm | 52 mm | ||
JDB-5.00 | $1.07 | $0 | 5.00 | 5.00 mm | 86 mm | 52 mm | ||
JDB-5.10 | $1.36 | $0 | 5.10 | 5.10 mm | 86 mm | 52 mm | ||
JDB-5.20 | $1.36 | $0 | 5.20 | 5.20 mm | 86 mm | 52 mm | ||
JDB-5.30 | $1.36 | $0 | 5.30 | 5.30 mm | 86 mm | 52 mm | ||
JDB-5.40 | $1.36 | $0 | 5.40 | 5.40 mm | 93 mm | 57 mm | ||
JDB-5.50 | $1.36 | $0 | 5.50 | 5.50 mm | 93 mm | 57 mm | ||
JDB-5.60 | $1.59 | $0 | 5.60 | 5.60 mm | 93 mm | 57 mm | ||
JDB-5.70 | $1.59 | $0 | 5.70 | 5.70 mm | 93 mm | 57 mm | ||
JDB-5.80 | $1.59 | $0 | 5.80 | 5.80 mm | 93 mm | 57 mm | ||
JDB-5.90 | $1.59 | $0 | 5.90 | 5.90 mm | 93 mm | 57 mm | ||
JDB-6.00 | $1.59 | $0 | 6.00 | 6.00 mm | 93 mm | 57 mm | ||
JDB-6.10 | $1.8 | $0 | 6.10 | 6.10 mm | 101 mm | 63 mm | ||
JDB-6.20 | $1.8 | $0 | 6.20 | 6.20 mm | 101 mm | 63 mm | ||
JDB-6.30 | $1.8 | $0 | 6.30 | 6.30 mm | 101 mm | 63 mm | ||
JDB-6.40 | $1.8 | $0 | 6.40 | 6.40 mm | 101 mm | 63 mm | ||
JDB-6.50 | $1.8 | $0 | 6.50 | 6.50 mm | 101 mm | 63 mm | ||
JDB-6.60 | $2.1 | $0 | 6.60 | 6.60 mm | 101 mm | 63 mm | ||
JDB-6.70 | $2.1 | $0 | 6.70 | 6.70 mm | 101 mm | 63 mm | ||
JDB-6.80 | $2.1 | $0 | 6.80 | 6.80 mm | 109 mm | 69 mm | ||
JDB-6.90 | $2.1 | $0 | 6.90 | 6.90 mm | 109 mm | 69 mm | ||
JDB-7.00 | $2.1 | $0 | 7.00 | 7.00 mm | 109 mm | 69 mm | ||
JDB-7.10 | $2.42 | $0 | 7.10 | 7.10 mm | 109 mm | 69 mm | ||
JDB-7.20 | $2.42 | $0 | 7.20 | 7.20 mm | 109 mm | 69 mm | ||
JDB-7.30 | $2.42 | $0 | 7.30 | 7.30 mm | 109 mm | 69 mm | ||
JDB-7.40 | $2.42 | $0 | 7.40 | 7.40 mm | 109 mm | 69 mm | ||
JDB-7.50 | $2.42 | $0 | 7.50 | 7.50 mm | 109 mm | 69 mm | ||
JDB-7.60 | $2.93 | $0 | 7.60 | 7.60 mm | 117 mm | 75 mm | ||
JDB-7.70 | $2.93 | $0 | 7.70 | 7.70 mm | 117 mm | 75 mm | ||
JDB-7.80 | $2.93 | $0 | 7.80 | 7.80 mm | 117 mm | 75 mm | ||
JDB-7.90 | $2.93 | $0 | 7.90 | 7.90 mm | 117 mm | 75 mm | ||
JDB-8.00 | $2.93 | $0 | 8.00 | 8.00 mm | 117 mm | 75 mm | ||
JDB-8.10 | $3.28 | $0 | 8.10 | 8.10 mm | 117 mm | 75 mm | ||
JDB-8.20 | $3.28 | $0 | 8.20 | 8.20 mm | 117 mm | 75 mm | ||
JDB-8.30 | $3.28 | $0 | 8.30 | 8.30 mm | 117 mm | 75 mm | ||
JDB-8.40 | $3.28 | $0 | 8.40 | 8.40 mm | 117 mm | 75 mm | ||
JDB-8.50 | $3.28 | $0 | 8.50 | 8.50 mm | 117 mm | 75 mm | ||
JDB-8.60 | $3.83 | $0 | 8.60 | 8.60 mm | 125 mm | 81 mm | ||
JDB-8.70 | $3.83 | $0 | 8.70 | 8.70 mm | 125 mm | 81 mm | ||
JDB-8.80 | $3.83 | $0 | 8.80 | 8.80 mm | 125 mm | 81 mm | ||
JDB-8.90 | $3.83 | $0 | 8.90 | 8.90 mm | 125 mm | 81 mm | ||
JDB-9.00 | $3.83 | $0 | 9.00 | 9.00 mm | 125 mm | 81 mm | ||
JDB-9.10 | $4.19 | $0 | 9.10 | 9.10 mm | 125 mm | 81 mm | ||
JDB-9.20 | $4.19 | $0 | 9.20 | 9.20 mm | 125 mm | 81 mm | ||
JDB-9.30 | $4.19 | $0 | 9.30 | 9.30 mm | 125 mm | 81 mm | ||
JDB-9.40 | $4.19 | $0 | 9.40 | 9.40 mm | 125 mm | 81 mm | ||
JDB-9.50 | $4.19 | $0 | 9.50 | 9.50 mm | 133 mm | 87 mm | ||
JDB-9.60 | $4.74 | $0 | 9.60 | 9.60 mm | 133 mm | 87 mm | ||
JDB-9.70 | $4.74 | $0 | 9.70 | 9.70 mm | 133 mm | 87 mm | ||
JDB-9.80 | $4.74 | $0 | 9.80 | 9.80 mm | 133 mm | 87 mm | ||
JDB-9.90 | $4.74 | $0 | 9.90 | 9.90 mm | 133 mm | 87 mm | ||
JDB-10.00 | $4.74 | $0 | 10.00 | 10.00 mm | 133 mm | 87 mm | ||
JDB-10.10 | $5.25 | $0 | 10.10 | 10.10 mm | 133 mm | 87 mm | ||
JDB-10.20 | $5.25 | $0 | 10.20 | 10.20 mm | 133 mm | 87 mm | ||
JDB-10.30 | $5.25 | $0 | 10.30 | 10.30 mm | 133 mm | 87 mm | ||
JDB-10.40 | $5.25 | $0 | 10.40 | 10.40 mm | 133 mm | 87 mm | ||
JDB-10.50 | $5.25 | $0 | 10.50 | 10.50 mm | 133 mm | 87 mm | ||
JDB-10.60 | $6.08 | $0 | 10.60 | 10.60 mm | 133 mm | 87 mm | ||
JDB-10.70 | $6.08 | $0 | 10.70 | 10.70 mm | 142 mm | 94 mm | ||
JDB-10.80 | $6.08 | $0 | 10.80 | 10.80 mm | 142 mm | 94 mm | ||
JDB-10.90 | $6.08 | $0 | 10.90 | 10.90 mm | 142 mm | 94 mm | ||
JDB-11.00 | $6.08 | $0 | 11.00 | 11.00 mm | 142 mm | 94 mm | ||
JDB-11.10 | $6.59 | $0 | 11.10 | 11.10 mm | 142 mm | 94 mm | ||
JDB-11.20 | $6.59 | $0 | 11.20 | 11.20 mm | 142 mm | 94 mm | ||
JDB-11.30 | $6.59 | $0 | 11.30 | 11.30 mm | 142 mm | 94 mm | ||
JDB-11.40 | $6.59 | $0 | 11.40 | 11.40 mm | 142 mm | 94 mm | ||
JDB-11.50 | $6.59 | $0 | 11.50 | 11.50 mm | 142 mm | 94 mm | ||
JDB-11.60 | $7.66 | $0 | 11.60 | 11.60 mm | 142 mm | 94 mm | ||
JDB-11.70 | $7.66 | $0 | 11.70 | 11.70 mm | 142 mm | 94 mm | ||
JDB-11.80 | $7.66 | $0 | 11.80 | 11.80 mm | 142 mm | 94 mm | ||
JDB-11.90 | $7.66 | $0 | 11.90 | 11.90 mm | 151 mm | 101 mm | ||
JDB-12.00 | $7.66 | $0 | 12.00 | 12.00 mm | 151 mm | 101 mm | ||
JDB-12.10 | $8.21 | $0 | 12.10 | 12.10 mm | 151 mm | 101 mm | ||
JDB-12.20 | $8.21 | $0 | 12.20 | 12.20 mm | 151 mm | 101 mm | ||
JDB-12.30 | $8.21 | $0 | 12.30 | 12.30 mm | 151 mm | 101 mm | ||
JDB-12.40 | $8.21 | $0 | 12.40 | 12.40 mm | 151 mm | 101 mm | ||
JDB-12.50 | $8.21 | $0 | 12.50 | 12.50 mm | 151 mm | 101 mm | ||
JDB-12.60 | $8.76 | $0 | 12.60 | 12.60 mm | 151 mm | 101 mm | ||
JDB-12.70 | $8.76 | $0 | 12.70 | 12.70 mm | 151 mm | 101 mm | ||
JDB-12.80 | $8.76 | $0 | 12.80 | 12.80 mm | 151 mm | 101 mm | ||
JDB-12.90 | $8.76 | $0 | 12.90 | 12.90 mm | 151 mm | 101 mm | ||
JDB-13.00 | $8.76 | $0 | 13.00 | 13.00 mm | 151 mm | 101 mm | ||
JDB-13.10 | $12.31 | $0 | 13.10 | 13.10 mm | 151 mm | 101 mm | ||
JDB-13.20 | $12.31 | $0 | 13.20 | 13.20 mm | 151 mm | 101 mm | ||
JDB-13.30 | $12.31 | $0 | 13.30 | 13.30 mm | 160 mm | 108 mm | ||
JDB-13.40 | $12.31 | $0 | 13.40 | 13.40 mm | 160 mm | 108 mm | ||
JDB-13.50 | $12.31 | $0 | 13.50 | 13.50 mm | 160 mm | 108 mm | ||
JDB-13.60 | $13.94 | $0 | 13.60 | 13.60 mm | 160 mm | 108 mm | ||
JDB-13.70 | $13.94 | $0 | 13.70 | 13.70 mm | 160 mm | 108 mm | ||
JDB-13.80 | $13.94 | $0 | 13.80 | 13.80 mm | 160 mm | 108 mm | ||
JDB-13.90 | $13.94 | $0 | 13.90 | 13.90 mm | 160 mm | 108 mm | ||
JDB-14.00 | $13.94 | $0 | 14.00 | 14.00 mm | 160 mm | 108 mm | ||
JDB-14.50 | $14.68 | $0 | 14.50 | 14.50 mm | 169 mm | 114 mm | ||
JDB-15.00 | $16.5 | $0 | 15.00 | 15.00 mm | 169 mm | 114 mm | ||
JDB-15.50 | $17.24 | $0 | 15.50 | 15.50 mm | 178 mm | 120 mm | ||
JDB-16.00 | $19.27 | $0 | 16.00 | 16.00 mm | 178 mm | 120 mm | ||
JDB-16.50 | $20.01 | $0 | 16.50 | 16.50 mm | 184 mm | 125 mm | ||
JDB-17.00 | $22.23 | $0 | 17.00 | 17.00 mm | 184 mm | 125 mm | ||
JDB-17.50 | $22.95 | $0 | 17.50 | 17.50 mm | 191 mm | 130 mm | ||
JDB-18.00 | $25.37 | $0 | 18.00 | 18.00 mm | 191 mm | 130 mm | ||
JDB-18.50 | $26.27 | $0 | 18.50 | 18.50 mm | 198 mm | 135 mm | ||
JDB-19.00 | $28.91 | $0 | 19.00 | 19.00 mm | 198 mm | 135 mm | ||
JDB-19.50 | $29.91 | $0 | 19.50 | 19.50 mm | 205 mm | 140 mm | ||
JDB-20.00 | $32.78 | $0 | 20.00 | 20.00 mm | 205 mm | 140 mm | ||
JDB-#60 | $0.22 | $0 | #60 | 0.0400″ | 1-5/8″ | 11/16″ | ||
JDB-#59 | $0.22 | $0 | #59 | 0.0410″ | 1-5/8″ | 11/16″ | ||
JDB-#58 | $0.22 | $0 | #58 | 0.0420″ | 1-5/8″ | 11/16″ | ||
JDB-#57 | $0.22 | $0 | #57 | 0.0430″ | 1-3/4″ | 3/4″ | ||
JDB-#56 | $0.22 | $0 | #56 | 0.0465″ | 1-3/4″ | 3/4″ | ||
JDB-#55 | $0.22 | $0 | #55 | 0.0520″ | 1-7/8″ | 7/8″ | ||
JDB-#54 | $0.22 | $0 | #54 | 0.0550″ | 1-7/8″ | 7/8″ | ||
JDB-#53 | $0.22 | $0 | #53 | 0.0595″ | 1-7/8″ | 7/8″ | ||
JDB-#52 | $0.24 | $0 | #52 | 0.0635″ | 1-7/8″ | 7/8″ | ||
JDB-#51 | $0.24 | $0 | #51 | 0.0670″ | 2″ | 1″ | ||
JDB-#50 | $0.24 | $0 | #50 | 0.0700″ | 2″ | 1″ | ||
JDB-#49 | $0.24 | $0 | #49 | 0.0730″ | 2″ | 1″ | ||
JDB-#48 | $0.24 | $0 | #48 | 0.0760″ | 2″ | 1″ | ||
JDB-#47 | $0.24 | $0 | #47 | 0.0785″ | 2″ | 1″ | ||
JDB-#46 | $0.29 | $0 | #46 | 0.0810″ | 2-1/8″ | 1-1/8″ | ||
JDB-#45 | $0.29 | $0 | #45 | 0.0820″ | 2-1/8″ | 1-1/8″ | ||
JDB-#44 | $0.29 | $0 | #44 | 0.0860″ | 2-1/8″ | 1-1/8″ | ||
JDB-#43 | $0.29 | $0 | #43 | 0.0890″ | 2-1/4″ | 1-1/4″ | ||
JDB-#42 | $0.29 | $0 | #42 | 0.0935″ | 2-1/4″ | 1-1/4″ | ||
JDB-#41 | $0.29 | $0 | #41 | 0.0960″ | 2-3/8″ | 1-3/8″ | ||
JDB-#40 | $0.41 | $0 | #40 | 0.0980″ | 2-3/8″ | 1-3/8″ | ||
JDB-#39 | $0.41 | $0 | #39 | 0.0995″ | 2-3/8″ | 1-3/8″ | ||
JDB-#38 | $0.41 | $0 | #38 | 0.1015″ | 2-1/2″ | 1-7/16″ | ||
JDB-#37 | $0.41 | $0 | #37 | 0.1040″ | 2-1/2″ | 1-7/16″ | ||
JDB-#36 | $0.41 | $0 | #36 | 0.1065″ | 2-1/2″ | 1-7/16″ | ||
JDB-#35 | $0.41 | $0 | #35 | 0.1100″ | 2-5/8″ | 1-1/2″ | ||
JDB-#34 | $0.41 | $0 | #34 | 0.1110″ | 2-5/8″ | 1-1/2″ | ||
JDB-#33 | $0.41 | $0 | #33 | 0.1130″ | 2-5/8″ | 1-1/2″ | ||
JDB-#32 | $0.41 | $0 | #32 | 0.1160″ | 2-3/4″ | 1-5/8″ | ||
JDB-#31 | $0.56 | $0 | #31 | 0.1200″ | 2-3/4″ | 1-5/8″ | ||
JDB-#30 | $0.56 | $0 | #30 | 0.1285″ | 2-3/4″ | 1-5/8″ | ||
JDB-#29 | $0.56 | $0 | #29 | 0.1360″ | 2-7/8″ | 1-3/4″ | ||
JDB-#28 | $0.68 | $0 | #28 | 0.1405″ | 2-7/8″ | 1-3/4″ | ||
JDB-#27 | $0.68 | $0 | #27 | 0.1440″ | 3″ | 1-7/8″ | ||
JDB-#26 | $0.68 | $0 | #26 | 0.1470″ | 3″ | 1-7/8″ | ||
JDB-#25 | $0.68 | $0 | #25 | 0.1495″ | 3″ | 1-7/8″ | ||
JDB-#24 | $0.68 | $0 | #24 | 0.1520″ | 3-1/8″ | 2″ | ||
JDB-#23 | $0.68 | $0 | #23 | 0.1540″ | 3-1/8″ | 2″ | ||
JDB-#22 | $0.68 | $0 | #22 | 0.1570″ | 3-1/8″ | 2″ | ||
JDB-#21 | $0.87 | $0 | #21 | 0.1590″ | 3-1/4″ | 2-1/8″ | ||
JDB-#20 | $0.87 | $0 | #20 | 0.1610″ | 3-1/4″ | 2-1/8″ | ||
JDB-#19 | $0.87 | $0 | #19 | 0.1660″ | 3-1/4″ | 2-1/8″ | ||
JDB-#18 | $0.87 | $0 | #18 | 0.1695″ | 3-1/4″ | 2-1/8″ | ||
JDB-#17 | $0.87 | $0 | #17 | 0.1730″ | 3-3/8″ | 2-3/16″ | ||
JDB-#16 | $0.87 | $0 | #16 | 0.1770″ | 3-3/8″ | 2-3/16″ | ||
JDB-#15 | $1.03 | $0 | #15 | 0.1800″ | 3-3/8″ | 2-3/16″ | ||
JDB-#14 | $1.03 | $0 | #14 | 0.1820″ | 3-3/8″ | 2-3/16″ | ||
JDB-#13 | $1.03 | $0 | #13 | 0.1850″ | 3-1/2″ | 2-5/16″ | ||
JDB-#12 | $1.03 | $0 | #12 | 0.1890″ | 3-1/2″ | 2-5/16″ | ||
JDB-#11 | $1.03 | $0 | #11 | 0.1910″ | 3-1/2″ | 2-5/16″ | ||
JDB-#10 | $1.03 | $0 | #10 | 0.1935″ | 3-5/8″ | 2-7/16″ | ||
JDB-#9 | $1.03 | $0 | #9 | 0.1960″ | 3-5/8″ | 2-7/16″ | ||
JDB-#8 | $1.28 | $0 | #8 | 0.1990″ | 3-5/8″ | 2-7/16″ | ||
JDB-#7 | $1.28 | $0 | #7 | 0.2010″ | 3-5/8″ | 2-7/16″ | ||
JDB-#6 | $1.28 | $0 | #6 | 0.2040″ | 3-3/4″ | 2-1/2″ | ||
JDB-#5 | $1.28 | $0 | #5 | 0.2055″ | 3-3/4″ | 2-1/2″ | ||
JDB-#4 | $1.28 | $0 | #4 | 0.2090″ | 3-3/4″ | 2-1/2″ | ||
JDB-#3 | $1.28 | $0 | #3 | 0.2130″ | 3-3/4″ | 2-1/2″ | ||
JDB-#2 | $1.5 | $0 | #2 | 0.2210″ | 3-7/8″ | 2-5/8″ | ||
JDB-#1 | $1.5 | $0 | #1 | 0.2280″ | 3-7/8″ | 2-5/8″ | ||
JDB-A | $1.5 | $0 | A | 0.2340″ | 3-7/8″ | 2-5/8″ | ||
JDB-B | $1.7 | $0 | B | 0.2380″ | 4″ | 2-3/4″ | ||
JDB-C | $1.7 | $0 | C | 0.2420″ | 4″ | 2-3/4″ | ||
JDB-D | $1.7 | $0 | D | 0.2460″ | 4″ | 2-3/4″ | ||
JDB-E | $1.7 | $0 | E | 0.2500″ | 4″ | 2-3/4″ | ||
JDB-F | $2.13 | $0 | F | 0.2570″ | 4-1/8″ | 2-7/8″ | ||
JDB-G | $2.13 | $0 | G | 0.2610″ | 4-1/8″ | 2-7/8″ | ||
JDB-H | $2.13 | $0 | H | 0.2660″ | 4-1/8″ | 2-7/8″ | ||
JDB-I | $2.13 | $0 | I | 0.2720″ | 4-1/8″ | 2-7/8″ | ||
JDB-J | $2.13 | $0 | J | 0.2770″ | 4-1/8″ | 2-7/8″ | ||
JDB-K | $2.41 | $0 | K | 0.2810″ | 4-1/4″ | 2-15/16″ | ||
JDB-L | $2.41 | $0 | L | 0.2900″ | 4-1/4″ | 2-15/16″ | ||
JDB-M | $2.41 | $0 | M | 0.2950″ | 4-3/8″ | 3-1/16″ | ||
JDB-N | $2.92 | $0 | N | 0.3020″ | 4-3/8″ | 3-1/16″ | ||
JDB-O | $3.26 | $0 | O | 0.3160″ | 4-1/2″ | 3-3/16″ | ||
JDB-P | $3.26 | $0 | P | 0.3230″ | 4-5/8″ | 3-5/16″ | ||
JDB-Q | $3.26 | $0 | Q | 0.3320″ | 4-3/4″ | 3-7/16″ | ||
JDB-R | $3.81 | $0 | R | 0.3390″ | 4-3/4″ | 3-7/16″ | ||
JDB-S | $3.81 | $0 | S | 0.3480″ | 4-7/8″ | 3-1/2″ | ||
JDB-T | $4.16 | $0 | T | 0.3580″ | 4-7/8″ | 3-1/2″ | ||
JDB-U | $4.16 | $0 | U | 0.3680″ | 5″ | 3-5/8″ | ||
JDB-V | $4.71 | $0 | V | 0.3770″ | 5″ | 3-5/8″ | ||
JDB-W | $4.71 | $0 | W | 0.3860″ | 5-1/8″ | 3-3/4″ | ||
JDB-X | $6.05 | $0 | X | 0.3970″ | 5-1/8″ | 3-3/4″ | ||
JDB-Y | $6.05 | $0 | Y | 0.4040″ | 5-1/4″ | 3-7/8″ | ||
JDB-Z | $6.05 | $0 | Z | 0.4130″ | 5-1/4″ | 3-7/8″ | ||
JDB-3/64 | $0.17 | $0 | 3/64 | 0.0469″ | 1-3/4″ | 3/4″ | ||
JDB-1/16 | $0.23 | $0 | 1/16 | 0.0625″ | 1-7/8″ | 7/8″ | ||
JDB-5/64 | $0.26 | $0 | 5/64 | 0.0781″ | 2″ | 1″ | ||
JDB-3/32 | $0.33 | $0 | 3/32 | 0.0938″ | 2-3/8″ | 1-3/8″ | ||
JDB-7/64 | $0.44 | $0 | 7/64 | 0.1094″ | 2-5/8″ | 1-1/2″ | ||
JDB-1/8 | $0.6 | $0 | 1/8 | 0.1250″ | 2-3/4″ | 1-5/8″ | ||
JDB-9/64 | $0.6 | $0 | 9/64 | 0.1406″ | 2-7/8″ | 1-3/4″ | ||
JDB-5/32 | $0.72 | $0 | 5/32 | 0.1562″ | 3-1/8″ | 2″ | ||
JDB-11/64 | $0.92 | $0 | 11/64 | 0.1719″ | 3-3/8″ | 2-3/16″ | ||
JDB-3/16 | $1.07 | $0 | 3/16 | 0.1875″ | 3-1/2″ | 2-5/16″ | ||
JDB-13/64 | $1.07 | $0 | 13/64 | 0.2031″ | 3-5/8″ | 2-7/16″ | ||
JDB-7/32 | $1.36 | $0 | 7/32 | 0.2188″ | 3-3/4″ | 2-1/2″ | ||
JDB-15/64 | $1.59 | $0 | 15/64 | 0.2344″ | 3-7/8″ | 2-5/8″ | ||
JDB-1/4 | $1.8 | $0 | 1/4 | 0.2500″ | 4″ | 2-3/4″ | ||
JDB-17/64 | $2.1 | $0 | 17/64 | 0.2656″ | 4-1/8″ | 2-7/8″ | ||
JDB-9/32 | $2.42 | $0 | 9/32 | 0.2812″ | 4-1/4″ | 2-15/16″ | ||
JDB-19/64 | $2.42 | $0 | 19/64 | 0.2969″ | 4-3/8″ | 3-1/16″ | ||
JDB-5/16 | $2.93 | $0 | 5/16 | 0.3125″ | 4-1/2″ | 3-3/16″ | ||
JDB-21/64 | $3.28 | $0 | 21/64 | 0.3281″ | 4-5/8″ | 3-5/16″ | ||
JDB-11/32 | $3.83 | $0 | 11/32 | 0.3438″ | 4-3/4″ | 3-7/16″ | ||
JDB-23/64 | $4.19 | $0 | 23/64 | 0.3594″ | 4-7/8″ | 3-1/2″ | ||
JDB-3/8 | $4.19 | $0 | 3/8 | 0.3750″ | 5″ | 3-5/8″ | ||
JDB-25/64 | $4.74 | $0 | 25/64 | 0.3906″ | 5-1/8″ | 3-3/4″ | ||
JDB-13/32 | $5.25 | $0 | 13/32 | 0.4062″ | 5-1/4″ | 3-7/8″ | ||
JDB-27/64 | $6.08 | $0 | 27/64 | 0.4219″ | 5-3/8″ | 3-15/16″ | ||
JDB-7/16 | $6.59 | $0 | 7/16 | 0.4375″ | 5-1/2″ | 4-1/16″ | ||
JDB-29/64 | $6.59 | $0 | 29/64 | 0.4531″ | 5-3/4″ | 4-5/16″ | ||
JDB-15/32 | $7.66 | $0 | 15/32 | 0.4688″ | 5-3/4″ | 4-5/16″ | ||
JDB-31/64 | $8.21 | $0 | 31/64 | 0.4844″ | 5-7/8″ | 4-3/8″ | ||
JDB-1/2 | $8.76 | $0 | 1/2 | 0.5000″ | 6″ | 4-1/2″ | ||
JDB-33/64 | $10.54 | $0 | 33/64 | 0.5156″ | 6-5/8″ | 4-13/16″ | ||
JDB-17/32 | $12.31 | $0 | 17/32 | 0.5312″ | 6-5/8″ | 4-13/16″ | ||
JDB-35/64 | $13.94 | $0 | 35/64 | 0.5469″ | 6-5/8″ | 4-13/16″ | ||
JDB-9/16 | $14.68 | $0 | 9/16 | 0.5625″ | 6-5/8″ | 4-13/16″ | ||
JDB-37/64 | $15.59 | $0 | 37/64 | 0.5781″ | 7-1/8″ | 5-3/16″ | ||
JDB-19/32 | $16.5 | $0 | 19/32 | 0.5938″ | 7-1/8″ | 5-3/16″ | ||
JDB-39/64 | $17.24 | $0 | 39/64 | 0.6094″ | 7-1/8″ | 5-3/16″ | ||
JDB-5/8 | $19.27 | $0 | 5/8 | 0.6250″ | 7-1/8″ | 5-3/16″ | ||
JDB-41/64 | $20.01 | $0 | 41/64 | 0.6406″ | 7-1/8″ | 5-3/16″ | ||
JDB-21/32 | $22.23 | $0 | 21/32 | 0.6562″ | 7-5/8″ | 5-5/8″ | ||
JDB-43/64 | $22.59 | $0 | 43/64 | 0.6719″ | 7-5/8″ | 5-5/8″ | ||
JDB-11/16 | $22.95 | $0 | 11/16 | 0.6875″ | 7-5/8″ | 5-5/8″ |
Acier rapide M35 HSS-Co, 5 % cobalt
Revêtement TiN pour une durée de vie prolongée et moins de friction, finition dorée
Pointe 135 degrés (135°) à affûtage en croix, auto-centrante
Entièrement rectifié, coupe à droite, queue cylindrique ronde
Longueur jobber selon DIN 338 (métrique) et ANSI B94.11 (pouce)
285 tailles : métriques, à numéro (wire gauge), à lettre et fractionnaires
Métrique 0,30-20,00 mm, numéro #60-#1, lettre A-Z, fraction 3/64-11/16 in
Sur demande : M42, 6542, 9341, queue hexagonale, pointe 118°, autres revêtements
Pour l'acier, l'aluminium, l'inox et l'usinage général des métaux
Porte-outil BT à mandrin APU
à partir de$37
Porte-outil BT à pince ER
à partir de$15
Porte-outil BT à cône Morse
à partir de$15
Tirette d'accrochage BT norme MAS 403-1975
à partir de$3
Porte-outil BT à serrage fretté
à partir de$72
Fraise carbure à bout hémisphérique
à partir de$50
Fraise torique carbure
à partir de$50
Fraise carbure à bout plat
à partir de$43
