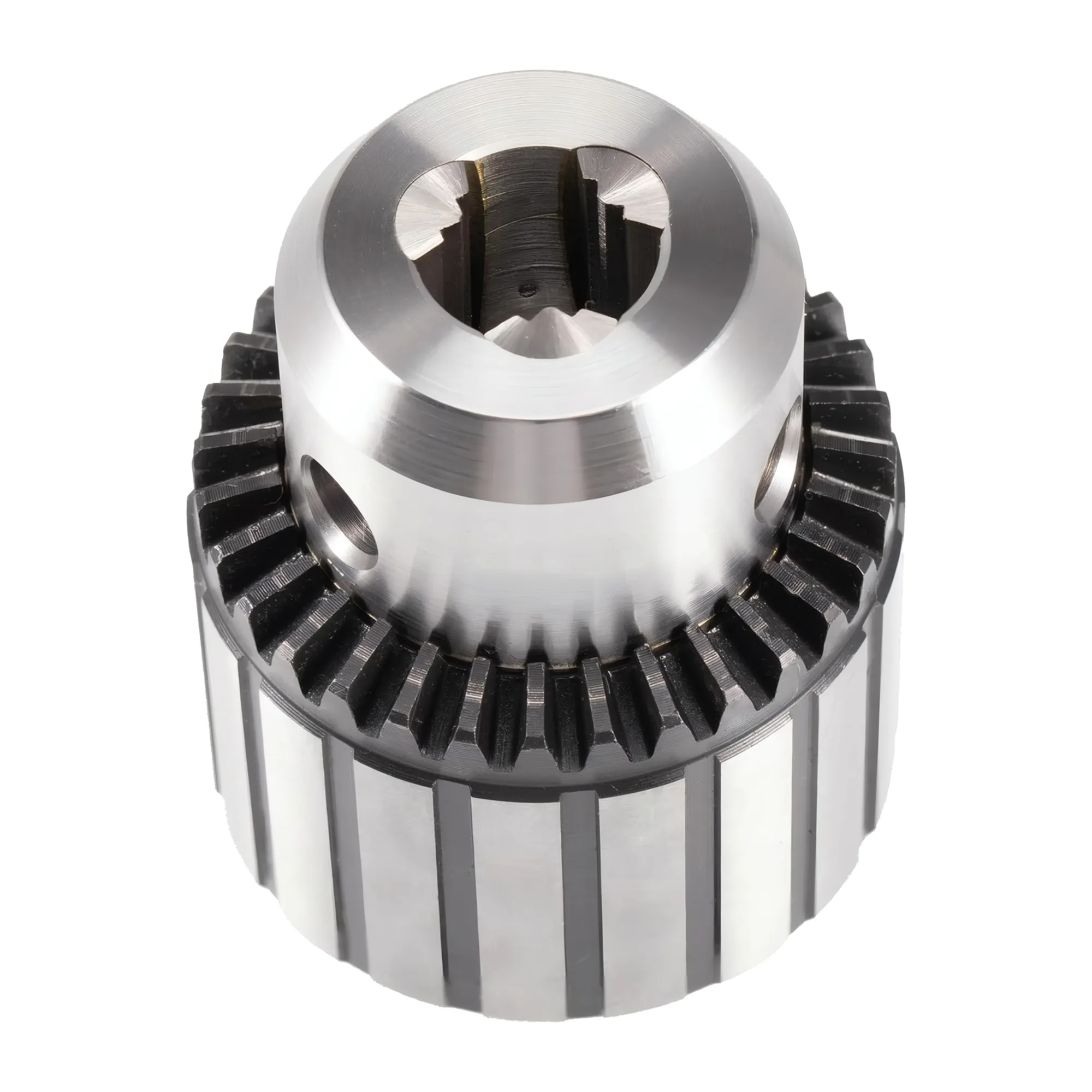

Heavy-Duty Keyed Drill Chuck
Heavy-duty Keyed Drill Chuck is engineered for heavy and super heavy-duty operations with high precision, exceptional durability, and superior reliability. All components including drill body, nut, jaws, jacket, and wrench wheel are meticulously crafted from premium steel using advanced vacuum heat treatment. Ideal for lathes, drilling machines, milling machines, CNC equipment, and woodworking machinery, these chucks withstand high-speed cutting operations.
Unit Price:
12.00 USDVolume Discount
Order Value
1000 + USD
Discount
3% off
Order Value
3000 + USD
Discount
5% off
Order Value
8000 + USD
Discount
8% off
Order Value
15000 + USD
Discount
12% off
Order Value
30000 + USD
Discount
15% off
Order Value
50000 + USD
Discount
18% off
Discounts are automatically applied at checkout based on order value.
Available Warehouse
China Factory
Stock & Production Available
Accepted Payment
Specifications
| Cart+ | SKU | Price | Quantity | Total | Clamping Range | Connection | D (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|
DC-KD-HS15-B10-6-D32 | $12 | $0 | 0.5-6 (1/64-1/4) | B10 | 32 | 50 | ||
DC-KD-HS15-B10-6-D30 | $12 | $0 | 0.5-6 (1/64-1/4) | B10 | 30 | 50 | ||
DC-KD-HS15-B12-10-D42 | $16 | $0 | 1.0-10 (1/32-3/8) | B12 | 42 | 67 | ||
DC-KD-HS15-B12-10-D35 | $16 | $0 | 1.0-10 (1/32-3/8) | B12 | 35 | 58 | ||
DC-KD-HS15-B16-13-D53 | $20 | $0 | 1.0-13 (1/32-1/2) | B16 | 53 | 86 | ||
DC-KD-HS15-B18-13 | $20 | $0 | 1.0-13 (1/32-1/2) | B18 | 53 | 86 | ||
DC-KD-HS15-B16-13-D46 | $18 | $0 | 1.0-13 (1/32-1/2) | B16 | 46 | 75 | ||
DC-KD-HS15-B16-16-D53 | $20 | $0 | 3.0-16 (1/8-5/8) | B16 | 53 | 86 | ||
DC-KD-HS15-B18-16-D53 | $20 | $0 | 3.0-16 (1/8-5/8) | B18 | 53 | 86 | ||
DC-KD-HS15-B18-16-D57 | $23 | $0 | 1.0-16 (1/32-5/8) | B18 | 57 | 93 | ||
DC-KD-HS15-B16-16-D57 | $23 | $0 | 1.0-16 (1/32-5/8) | B16 | 57 | 93 | ||
DC-KD-HS15-B22-20-D65 | $34 | $0 | 5.0-20 (3/16-3/4) | B22 | 65 | 108 | ||
DC-KD-HS15-B22-20-D68 | $46 | $0 | 1.0-20 (1/32-3/4) | B22 | 68 | 120 | ||
DC-KD-HS15-JT0-4 | $12 | $0 | 0.3-4 (1/88-1/6) | JT0 | 21.5 | 36 | ||
DC-KD-HS15-JT1-6-D32 | $12 | $0 | 0.5-6 (1/64-1/4) | JT1 | 32 | 50 | ||
DC-KD-HS15-JT1-6-D30 | $12 | $0 | 0.5-6 (1/64-1/4) | JT1 | 30 | 50 | ||
DC-KD-HS15-JT2-10 | $16 | $0 | 1.0-10 (1/32-3/8) | JT2 | 42 | 67 | ||
DC-KD-HS15-JT2S-10 | $16 | $0 | 1.0-10 (1/32-3/8) | JT2S(Short) | 42 | 67 | ||
DC-KD-HS15-JT33-13-D53 | $20 | $0 | 1.0-13 (1/32-1/2) | JT33 | 53 | 86 | ||
DC-KD-HS15-JT6-13-D53 | $20 | $0 | 1.0-13 (1/32-1/2) | JT6 | 53 | 86 | ||
DC-KD-HS15-JT33-13-D46 | $18 | $0 | 1.0-13 (1/32-1/2) | JT33 | 46 | 75 | ||
DC-KD-HS15-JT6-13-D46 | $18 | $0 | 1.0-13 (1/32-1/2) | JT6 | 46 | 75 | ||
DC-KD-HS15-JT2S-13 | $18 | $0 | 1.0-13 (1/32-1/2) | JT2S(Short) | 46 | 75 | ||
DC-KD-HS15-JT33-16 | $20 | $0 | 3.0-16 (1/8-5/8) | JT33 | 53 | 86 | ||
DC-KD-HS15-JT6-16-D53 | $20 | $0 | 3.0-16 (1/8-5/8) | JT6 | 53 | 86 | ||
DC-KD-HS15-JT3-16 | $23 | $0 | 1.0-16 (1/32-5/8) | JT3 | 57 | 93 | ||
DC-KD-HS15-JT6-16-D57 | $23 | $0 | 1.0-16 (1/32-5/8) | JT6 | 57 | 93 | ||
DC-KD-HS15-JT3-20-D65 | $34 | $0 | 5.0-20 (3/16-3/4) | JT3 | 65 | 108 | ||
DC-KD-HS15-JT3-20-D68 | $46 | $0 | 1.0-20 (1/32-3/4) | JT3 | 68 | 120 | ||
DC-KD-HS15-JT4-20 | $46 | $0 | 1.0-20 (1/32-3/4) | JT4 | 68 | 120 | ||
DC-KD-HS15-JT4-19 | $40 | $0 | 1.0-19 (1/32-3/4) | JT4 | 68 | 120 | ||
DC-KD-HS15-JT3-19 | $40 | $0 | 1.0-19 (1/32-3/4) | JT3 | 68 | 120 | ||
DC-KD-HS15-24UNF-6-D32 | $13 | $0 | 0.6-6 (1/64-1/4) | 3/8-24UNF | 32 | 50 | ||
DC-KD-HS15-24UNF-6-D30 | $13 | $0 | 0.6-6 (1/64-1/4) | 3/8-24UNF | 30 | 50 | ||
DC-KD-HS15-24UNF-10-D42 | $17 | $0 | 1.0-10 (1/32-3/8) | 3/8-24UNF | 42 | 67 | ||
DC-KD-HS15-20UNF-10-D42 | $17 | $0 | 1.0-10 (1/32-3/8) | 1/2-20UNF | 42 | 67 | ||
DC-KD-HS15-24UNF-10-D35 | $17 | $0 | 1.0-10 (1/32-3/8) | 3/8-24UNF | 35 | 58 | ||
DC-KD-HS15-20UNF-10-D35 | $17 | $0 | 1.0-10 (1/32-3/8) | 1/2-20UNF | 35 | 58 | ||
DC-KD-HS15-20UNF-13-D53 | $21 | $0 | 1.0-13 (1/32-1/2) | 1/2-20UNF | 53 | 86 | ||
DC-KD-HS15-24UNF-13 | $21 | $0 | 1.0-13 (1/32-1/2) | 3/8-24UNF | 53 | 86 | ||
DC-KD-HS15-M12-13 | $21 | $0 | 1.0-13 (1/32-1/2) | M12x1.25 | 53 | 86 | ||
DC-KD-HS15-20UNF-13-D46 | $18 | $0 | 1.0-13 (1/32-1/2) | 1/2-20UNF | 46 | 75 | ||
DC-KD-HS15-16UNF-16-D53 | $21 | $0 | 3.0-16 (1/8-5/8) | 5/8-16UNF | 53 | 86 | ||
DC-KD-HS15-M12-16 | $21 | $0 | 3.0-16 (1/8-5/8) | M12x1.25 | 53 | 86 | ||
DC-KD-HS15-20UNF-16 | $24 | $0 | 1.0-16 (1/32-5/8) | 1/2-20UNF | 57 | 93 | ||
DC-KD-HS15-16UNF-16-D57 | $24 | $0 | 1.0-16 (1/32-5/8) | 5/8-16UNF | 57 | 93 |
Features
Key product features and specifications that make this product stand out.
High precision with exceptional durability & reliability
Premium steel construction with vacuum heat treatment
Suitable for heavy & super heavy-duty operations
Compatible with lathes, drills, mills, CNC & woodworking
Withstands high-speed cutting operations efficiently

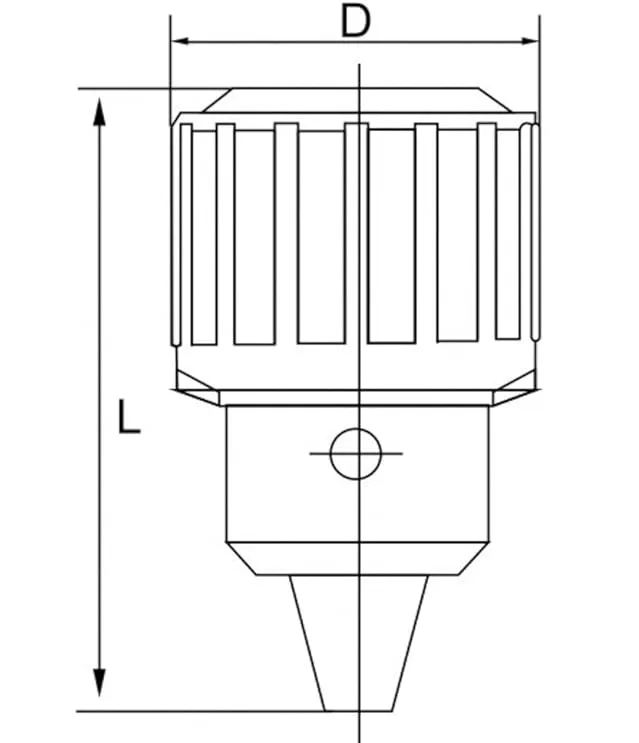

Technical Drawing
Detailed technical specifications and dimensions for professional reference.
Fig.1
Fig.1
