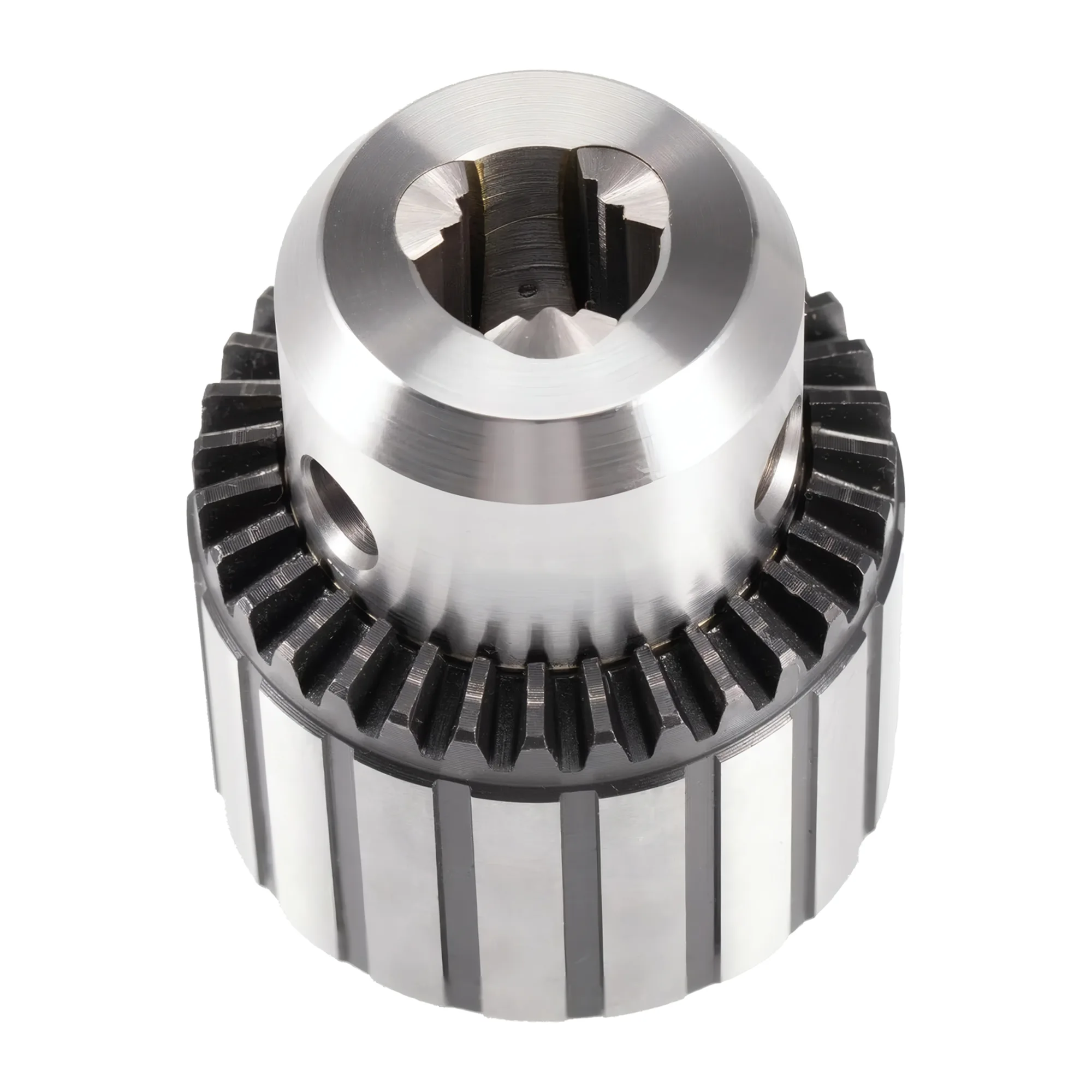

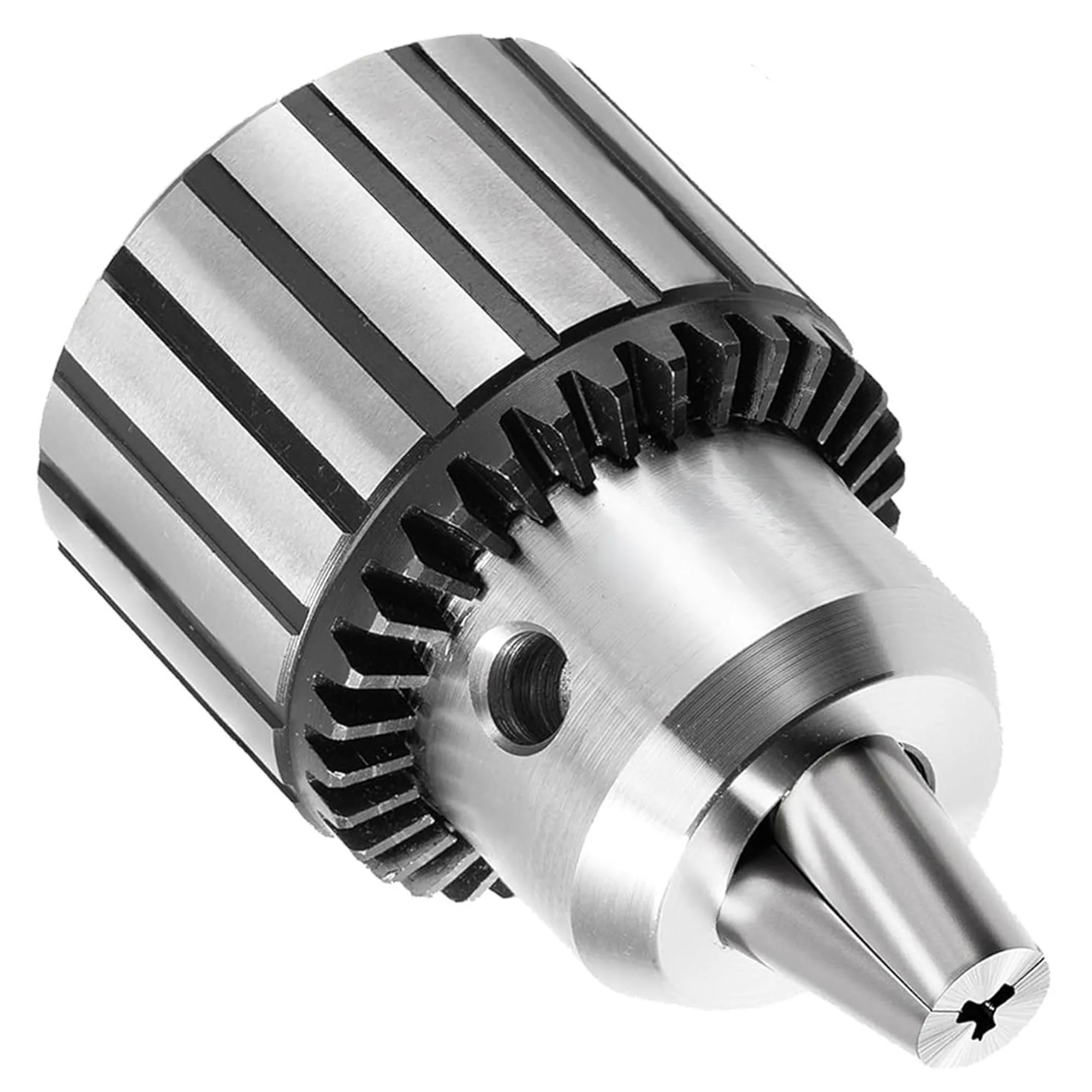

고하중 가공 키드 드릴척은 런아웃 0.15 mm, 클램핑 범위 0.3-20 mm이며 B 테이퍼와 JT 테이퍼에 나사식 노즈 4종을 더해 총 17종 마운트로 제공됩니다. 키드 척은 드릴 비트가 미끄러지면 안 되는 작업에 사용하며, 키와 기어 링으로 조를 확실하게 조여 그 상태를 유지합니다. 본체, 너트, 조, 슬리브, 기어 링은 프리미엄 강재를 가공한 뒤 진공 열처리하여, 산업 현장에서 강한 부하로 사용해도 조의 물림이 유지됩니다. 마운트, 클램핑 범위 및 치수는 아래 사이즈 차트를 참조하십시오.
| Cart+ | SKU | Price | Quantity | Total | Clamping Range | Connection | D (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|
DC-KD-HS15-B10-6-D32 | $12 | $0 | 0.5-6 (1/64-1/4) | B10 | 32 | 50 | ||
DC-KD-HS15-B10-6-D30 | $12 | $0 | 0.5-6 (1/64-1/4) | B10 | 30 | 50 | ||
DC-KD-HS15-B12-10-D42 | $16 | $0 | 1.0-10 (1/32-3/8) | B12 | 42 | 67 | ||
DC-KD-HS15-B12-10-D35 | $16 | $0 | 1.0-10 (1/32-3/8) | B12 | 35 | 58 | ||
DC-KD-HS15-B16-13-D53 | $20 | $0 | 1.0-13 (1/32-1/2) | B16 | 53 | 86 | ||
DC-KD-HS15-B18-13 | $20 | $0 | 1.0-13 (1/32-1/2) | B18 | 53 | 86 | ||
DC-KD-HS15-B16-13-D46 | $18 | $0 | 1.0-13 (1/32-1/2) | B16 | 46 | 75 | ||
DC-KD-HS15-B16-16-D53 | $20 | $0 | 3.0-16 (1/8-5/8) | B16 | 53 | 86 | ||
DC-KD-HS15-B18-16-D53 | $20 | $0 | 3.0-16 (1/8-5/8) | B18 | 53 | 86 | ||
DC-KD-HS15-B18-16-D57 | $23 | $0 | 1.0-16 (1/32-5/8) | B18 | 57 | 93 | ||
DC-KD-HS15-B16-16-D57 | $23 | $0 | 1.0-16 (1/32-5/8) | B16 | 57 | 93 | ||
DC-KD-HS15-B22-20-D65 | $34 | $0 | 5.0-20 (3/16-3/4) | B22 | 65 | 108 | ||
DC-KD-HS15-B22-20-D68 | $46 | $0 | 1.0-20 (1/32-3/4) | B22 | 68 | 120 | ||
DC-KD-HS15-JT0-4 | $12 | $0 | 0.3-4 (1/88-1/6) | JT0 | 21.5 | 36 | ||
DC-KD-HS15-JT1-6-D32 | $12 | $0 | 0.5-6 (1/64-1/4) | JT1 | 32 | 50 | ||
DC-KD-HS15-JT1-6-D30 | $12 | $0 | 0.5-6 (1/64-1/4) | JT1 | 30 | 50 | ||
DC-KD-HS15-JT2-10 | $16 | $0 | 1.0-10 (1/32-3/8) | JT2 | 42 | 67 | ||
DC-KD-HS15-JT2S-10 | $16 | $0 | 1.0-10 (1/32-3/8) | JT2S(Short) | 42 | 67 | ||
DC-KD-HS15-JT33-13-D53 | $20 | $0 | 1.0-13 (1/32-1/2) | JT33 | 53 | 86 | ||
DC-KD-HS15-JT6-13-D53 | $20 | $0 | 1.0-13 (1/32-1/2) | JT6 | 53 | 86 | ||
DC-KD-HS15-JT33-13-D46 | $18 | $0 | 1.0-13 (1/32-1/2) | JT33 | 46 | 75 | ||
DC-KD-HS15-JT6-13-D46 | $18 | $0 | 1.0-13 (1/32-1/2) | JT6 | 46 | 75 | ||
DC-KD-HS15-JT2S-13 | $18 | $0 | 1.0-13 (1/32-1/2) | JT2S(Short) | 46 | 75 | ||
DC-KD-HS15-JT33-16 | $20 | $0 | 3.0-16 (1/8-5/8) | JT33 | 53 | 86 | ||
DC-KD-HS15-JT6-16-D53 | $20 | $0 | 3.0-16 (1/8-5/8) | JT6 | 53 | 86 | ||
DC-KD-HS15-JT3-16 | $23 | $0 | 1.0-16 (1/32-5/8) | JT3 | 57 | 93 | ||
DC-KD-HS15-JT6-16-D57 | $23 | $0 | 1.0-16 (1/32-5/8) | JT6 | 57 | 93 | ||
DC-KD-HS15-JT3-20-D65 | $34 | $0 | 5.0-20 (3/16-3/4) | JT3 | 65 | 108 | ||
DC-KD-HS15-JT3-20-D68 | $46 | $0 | 1.0-20 (1/32-3/4) | JT3 | 68 | 120 | ||
DC-KD-HS15-JT4-20 | $46 | $0 | 1.0-20 (1/32-3/4) | JT4 | 68 | 120 | ||
DC-KD-HS15-JT4-19 | $40 | $0 | 1.0-19 (1/32-3/4) | JT4 | 68 | 120 | ||
DC-KD-HS15-JT3-19 | $40 | $0 | 1.0-19 (1/32-3/4) | JT3 | 68 | 120 | ||
DC-KD-HS15-24UNF-6-D32 | $13 | $0 | 0.6-6 (1/64-1/4) | 3/8-24UNF | 32 | 50 | ||
DC-KD-HS15-24UNF-6-D30 | $13 | $0 | 0.6-6 (1/64-1/4) | 3/8-24UNF | 30 | 50 | ||
DC-KD-HS15-24UNF-10-D42 | $17 | $0 | 1.0-10 (1/32-3/8) | 3/8-24UNF | 42 | 67 | ||
DC-KD-HS15-20UNF-10-D42 | $17 | $0 | 1.0-10 (1/32-3/8) | 1/2-20UNF | 42 | 67 | ||
DC-KD-HS15-24UNF-10-D35 | $17 | $0 | 1.0-10 (1/32-3/8) | 3/8-24UNF | 35 | 58 | ||
DC-KD-HS15-20UNF-10-D35 | $17 | $0 | 1.0-10 (1/32-3/8) | 1/2-20UNF | 35 | 58 | ||
DC-KD-HS15-20UNF-13-D53 | $21 | $0 | 1.0-13 (1/32-1/2) | 1/2-20UNF | 53 | 86 | ||
DC-KD-HS15-24UNF-13 | $21 | $0 | 1.0-13 (1/32-1/2) | 3/8-24UNF | 53 | 86 | ||
DC-KD-HS15-M12-13 | $21 | $0 | 1.0-13 (1/32-1/2) | M12x1.25 | 53 | 86 | ||
DC-KD-HS15-20UNF-13-D46 | $18 | $0 | 1.0-13 (1/32-1/2) | 1/2-20UNF | 46 | 75 | ||
DC-KD-HS15-16UNF-16-D53 | $21 | $0 | 3.0-16 (1/8-5/8) | 5/8-16UNF | 53 | 86 | ||
DC-KD-HS15-M12-16 | $21 | $0 | 3.0-16 (1/8-5/8) | M12x1.25 | 53 | 86 | ||
DC-KD-HS15-20UNF-16 | $24 | $0 | 1.0-16 (1/32-5/8) | 1/2-20UNF | 57 | 93 | ||
DC-KD-HS15-16UNF-16-D57 | $24 | $0 | 1.0-16 (1/32-5/8) | 5/8-16UNF | 57 | 93 |
런아웃 0.15 mm (0.006 in), 고정밀 시리즈는 0.10 mm
0.3-4 mm부터 5.0-20 mm까지 클램핑 범위 10단계, 13 mm (1/2 inch) 포함
46종 사이즈 - 외경 21.5-68 mm, 전체 길이 36-120 mm
진공 열처리로 경도 및 치수 안정성 확보
17종 마운트 - B 테이퍼 5종, 자콥스 테이퍼 8종, 나사식 노즈 4종
본체, 너트, 조, 슬리브, 기어 링 프리미엄 강재 가공
드릴링 머신, 선반, 밀링 머신, 목공 기계용
