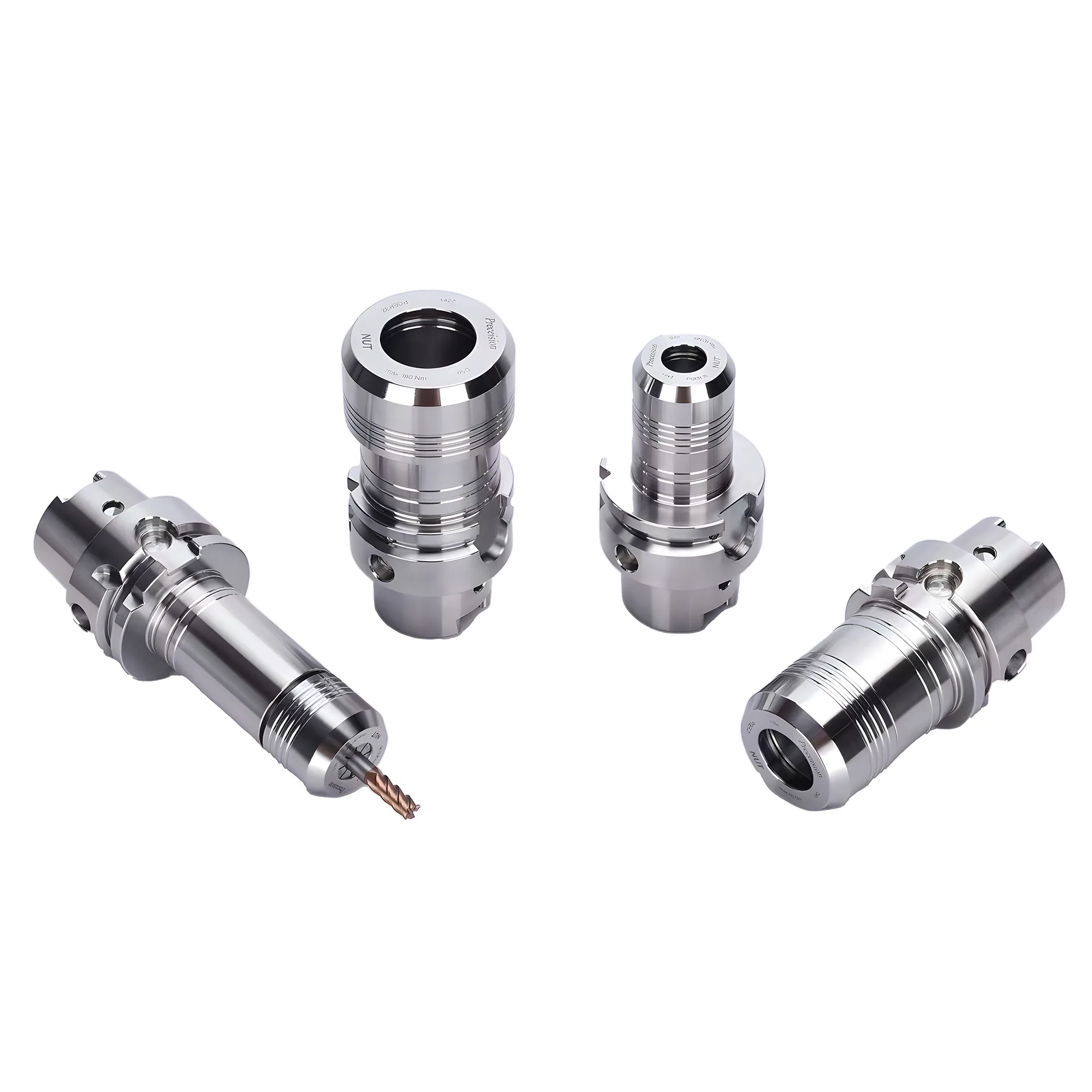

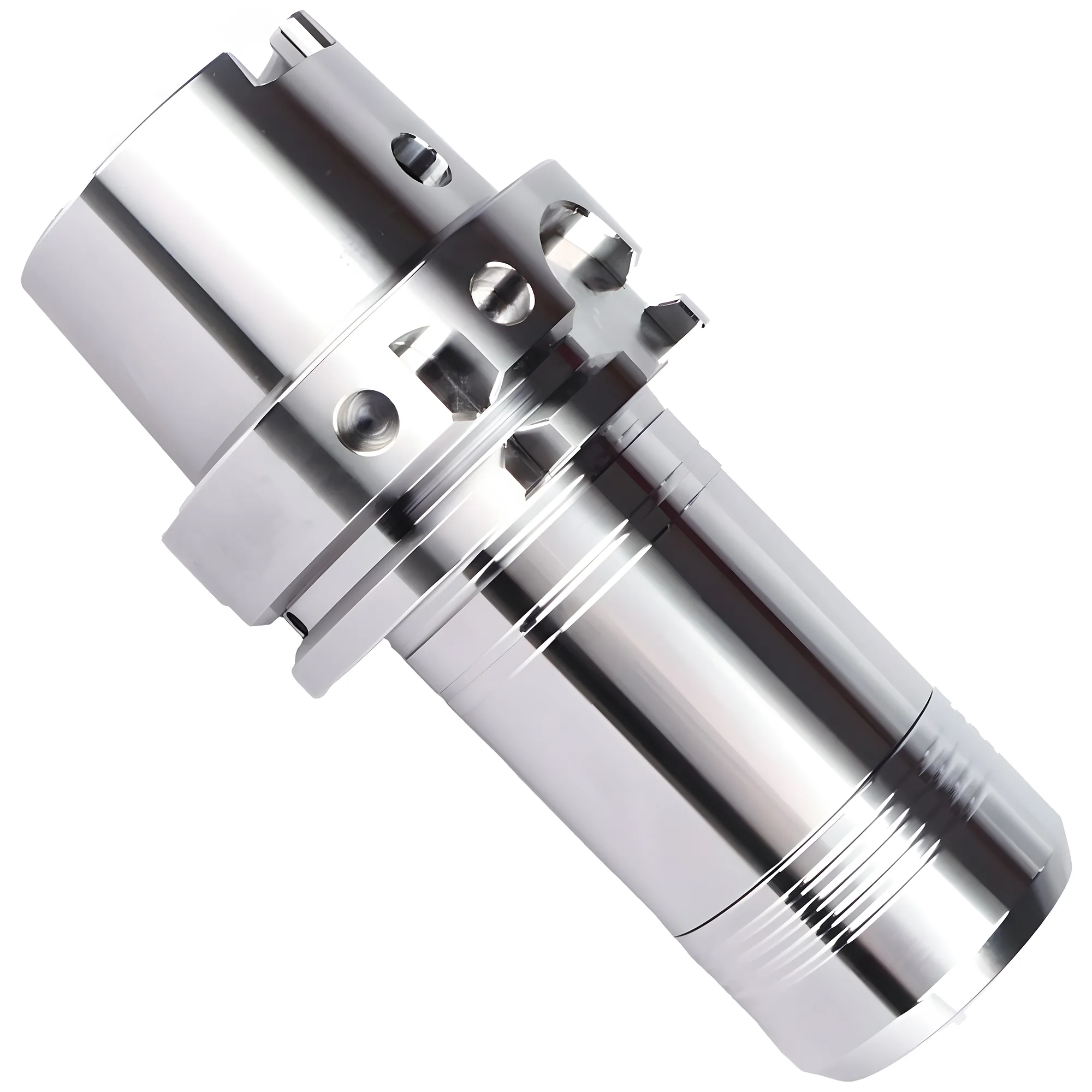

Portaherramientas HSK con portapinzas PGER
Portaherramientas HSK con sistema de portapinzas PGER. La pinza elástica va completamente alojada dentro del portaherramientas, proporcionando el doble de fuerza de sujeción que los portapinzas estándar. Rosca trapezoidal rectificada de 30° que evita atascos. Tratamiento criogénico a -195 °C. Concentricidad del sistema de 3 µm. Equilibrado dinámico fino hasta 50.000 RPM.
Precio unitario:
79.00 USDDescuento por volumen
Valor del pedido
1000 + USD
Descuento
3% de descuento
Valor del pedido
3000 + USD
Descuento
5% de descuento
Valor del pedido
8000 + USD
Descuento
8% de descuento
Valor del pedido
15000 + USD
Descuento
12% de descuento
Valor del pedido
30000 + USD
Descuento
15% de descuento
Valor del pedido
50000 + USD
Descuento
18% de descuento
Los descuentos se aplican automáticamente al pagar según el valor del pedido.
Almacenes disponibles
Fábrica en China
Stock y producción disponibles
Pagos aceptados
Especificaciones
| Cart+ | SKU | Price | Quantity | Total | L (mm) | L1 (mm) | L2 (mm) | D (mm) | Gripping Range (mm) |
|---|---|---|---|---|---|---|---|---|---|
HSK40A-PGER16-70 | $79 | $0 | 90 | 70 | 50 | 30 | 3-10 | ||
HSK40A-PGER20-70 | $79 | $0 | 90 | 70 | 50 | 32 | 3-13 | ||
HSK40A-PGER25-70 | $79 | $0 | 90 | 70 | 50 | 40 | 3-16 | ||
HSK40A-PGER32-70 | $79 | $0 | 90 | 70 | 50 | 50 | 3-20 | ||
HSK40E-PGER16-70 | $79 | $0 | 90 | 70 | 50 | 30 | 3-10 | ||
HSK40E-PGER20-70 | $79 | $0 | 90 | 70 | 50 | 32 | 3-13 | ||
HSK40E-PGER25-70 | $79 | $0 | 90 | 70 | 50 | 40 | 3-16 | ||
HSK40E-PGER32-70 | $79 | $0 | 90 | 70 | 50 | 50 | 3-20 | ||
HSK50A-PGER16-70 | $96 | $0 | 95 | 70 | 44 | 30 | 3-10 | ||
HSK50A-PGER16-100 | $96 | $0 | 125 | 100 | 74 | 30 | 3-10 | ||
HSK50A-PGER20-70 | $96 | $0 | 95 | 70 | 44 | 32 | 3-13 | ||
HSK50A-PGER20-100 | $96 | $0 | 125 | 100 | 74 | 32 | 3-13 | ||
HSK50A-PGER25-80 | $96 | $0 | 105 | 80 | 54 | 40 | 3-16 | ||
HSK50A-PGER32-80 | $96 | $0 | 105 | 80 | 54 | 50 | 3-20 | ||
HSK50E-PGER16-70 | $96 | $0 | 95 | 70 | 44 | 30 | 3-10 | ||
HSK50E-PGER20-70 | $96 | $0 | 95 | 70 | 44 | 32 | 3-13 | ||
HSK50E-PGER25-80 | $96 | $0 | 105 | 80 | 54 | 40 | 3-16 | ||
HSK50E-PGER32-80 | $96 | $0 | 105 | 80 | 54 | 50 | 3-20 | ||
HSK63A-PGER16-70 | $96 | $0 | 102 | 70 | 44 | 30 | 3-10 | ||
HSK63A-PGER16-100 | $96 | $0 | 132 | 100 | 74 | 30 | 3-10 | ||
HSK63A-PGER16-120 | $106 | $0 | 152 | 120 | 94 | 30 | 3-10 | ||
HSK63A-PGER16-150 | $106 | $0 | 182 | 150 | 124 | 30 | 3-10 | ||
HSK63A-PGER20-70 | $96 | $0 | 102 | 70 | 44 | 32 | 3-13 | ||
HSK63A-PGER20-100 | $96 | $0 | 132 | 100 | 74 | 32 | 3-13 | ||
HSK63A-PGER20-120 | $106 | $0 | 152 | 120 | 94 | 32 | 3-13 | ||
HSK63A-PGER20-150 | $106 | $0 | 182 | 150 | 124 | 32 | 3-13 | ||
HSK63A-PGER25-70 | $96 | $0 | 102 | 70 | 44 | 40 | 3-16 | ||
HSK63A-PGER25-100 | $96 | $0 | 132 | 100 | 74 | 40 | 3-16 | ||
HSK63A-PGER25-120 | $106 | $0 | 152 | 120 | 94 | 40 | 3-16 | ||
HSK63A-PGER25-150 | $106 | $0 | 182 | 150 | 124 | 40 | 3-16 | ||
HSK63A-PGER32-70 | $96 | $0 | 102 | 70 | 44 | 50 | 3-20 | ||
HSK63A-PGER32-100 | $96 | $0 | 132 | 100 | 74 | 50 | 3-20 | ||
HSK63A-PGER32-120 | $106 | $0 | 152 | 120 | 94 | 50 | 3-20 | ||
HSK63A-PGER32-150 | $106 | $0 | 182 | 150 | 124 | 50 | 3-20 | ||
HSK63F-PGER16-70 | $96 | $0 | 95 | 70 | 44 | 30 | 3-10 | ||
HSK63F-PGER16-100 | $96 | $0 | 125 | 100 | 74 | 30 | 3-10 | ||
HSK63F-PGER20-70 | $96 | $0 | 95 | 70 | 44 | 32 | 3-13 | ||
HSK63F-PGER20-100 | $96 | $0 | 125 | 100 | 74 | 32 | 3-13 | ||
HSK63F-PGER25-70 | $96 | $0 | 95 | 70 | 44 | 40 | 3-16 | ||
HSK63F-PGER25-100 | $96 | $0 | 125 | 100 | 74 | 40 | 3-16 | ||
HSK63F-PGER32-70 | $96 | $0 | 95 | 70 | 44 | 50 | 3-20 | ||
HSK63F-PGER32-100 | $96 | $0 | 125 | 100 | 74 | 50 | 3-20 | ||
HSK100A-PGER16-100 | $208 | $0 | 150 | 100 | 71 | 30 | 3-10 | ||
HSK100A-PGER16-120 | $218 | $0 | 170 | 120 | 91 | 30 | 3-10 | ||
HSK100A-PGER16-150 | $233 | $0 | 200 | 150 | 121 | 30 | 3-10 | ||
HSK100A-PGER16-200 | $254 | $0 | 250 | 200 | 171 | 30 | 3-10 | ||
HSK100A-PGER20-100 | $208 | $0 | 150 | 100 | 71 | 32 | 3-13 | ||
HSK100A-PGER20-120 | $218 | $0 | 170 | 120 | 91 | 32 | 3-13 | ||
HSK100A-PGER20-150 | $233 | $0 | 200 | 150 | 121 | 32 | 3-13 | ||
HSK100A-PGER20-200 | $254 | $0 | 250 | 200 | 171 | 32 | 3-13 | ||
HSK100A-PGER25-100 | $208 | $0 | 150 | 100 | 71 | 40 | 3-16 | ||
HSK100A-PGER25-120 | $218 | $0 | 170 | 120 | 91 | 40 | 3-16 | ||
HSK100A-PGER25-150 | $233 | $0 | 200 | 150 | 121 | 40 | 3-16 | ||
HSK100A-PGER25-200 | $254 | $0 | 250 | 200 | 171 | 40 | 3-16 | ||
HSK100A-PGER32-100 | $208 | $0 | 150 | 100 | 71 | 50 | 3-20 | ||
HSK100A-PGER32-120 | $218 | $0 | 170 | 120 | 91 | 50 | 3-20 | ||
HSK100A-PGER32-150 | $233 | $0 | 200 | 150 | 121 | 50 | 3-20 | ||
HSK100A-PGER32-200 | $254 | $0 | 250 | 200 | 171 | 50 | 3-20 |
Características
Características y especificaciones clave de este producto.
Pinza elástica interna con doble fuerza de sujeción
Rosca circular completa que reduce resistencia al viento a altas velocidades
Rosca trapezoidal rectificada de 30° que evita atascos
Tratamiento criogénico a -195 °C mejora dureza y resistencia al desgaste
Acero aleado de alto rendimiento, estabilidad 3 veces mayor
Concentricidad del sistema de ultra alta precisión: 3 µm, 6 veces superior
Equilibrado dinámico fino hasta 50.000 RPM

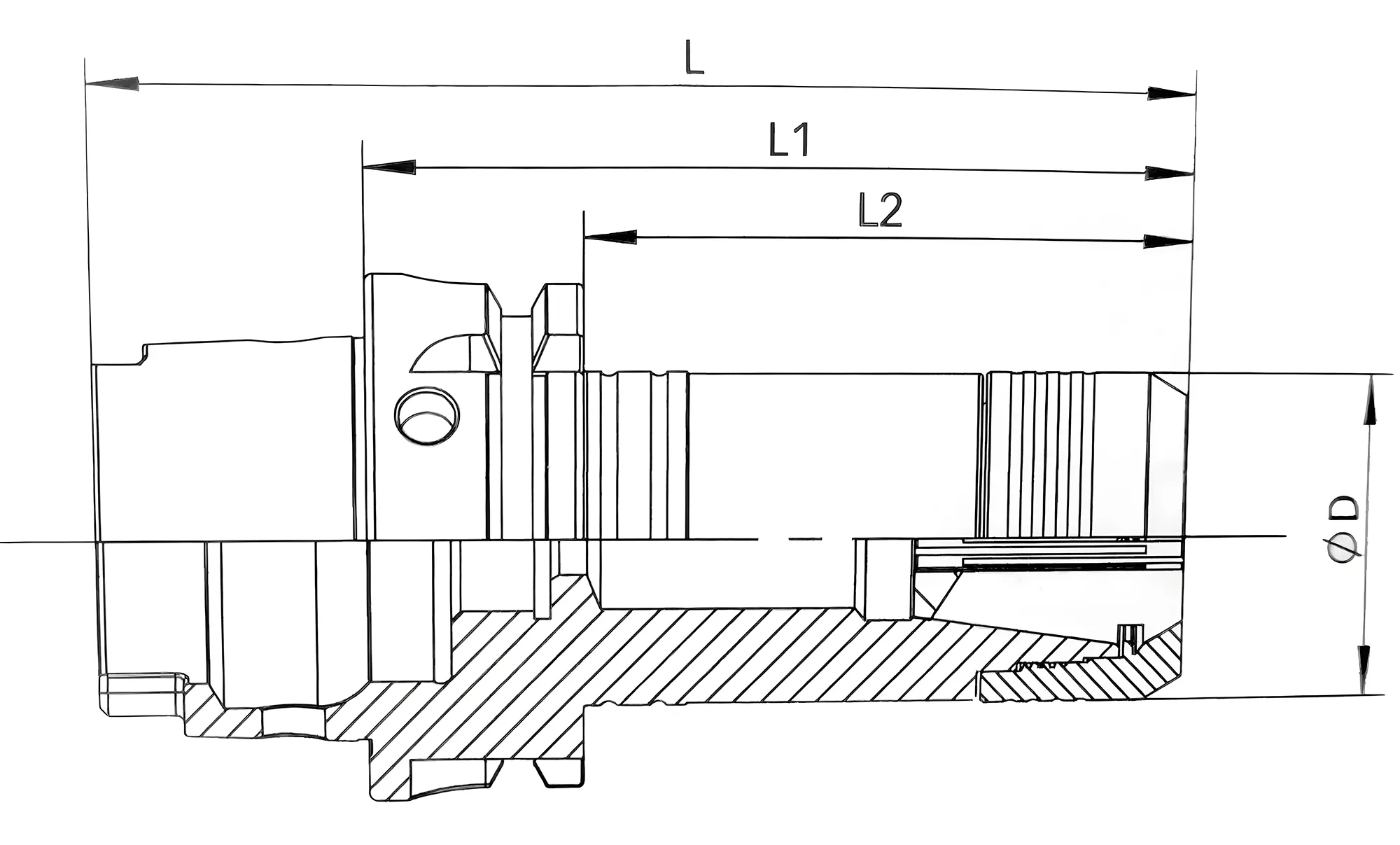

Dibujo técnico
Especificaciones técnicas detalladas y dimensiones para referencia profesional.
Fig.1
Fig.1
