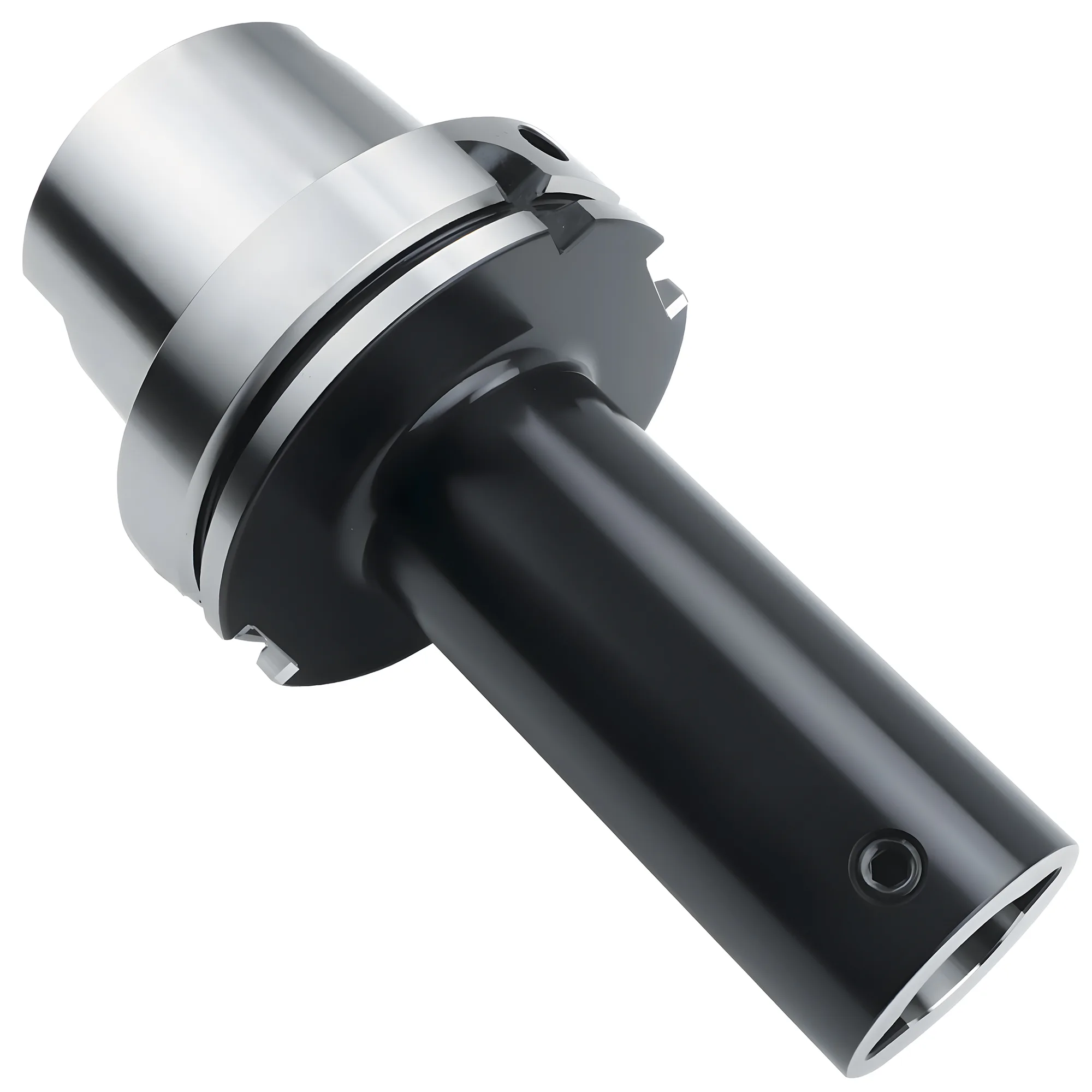

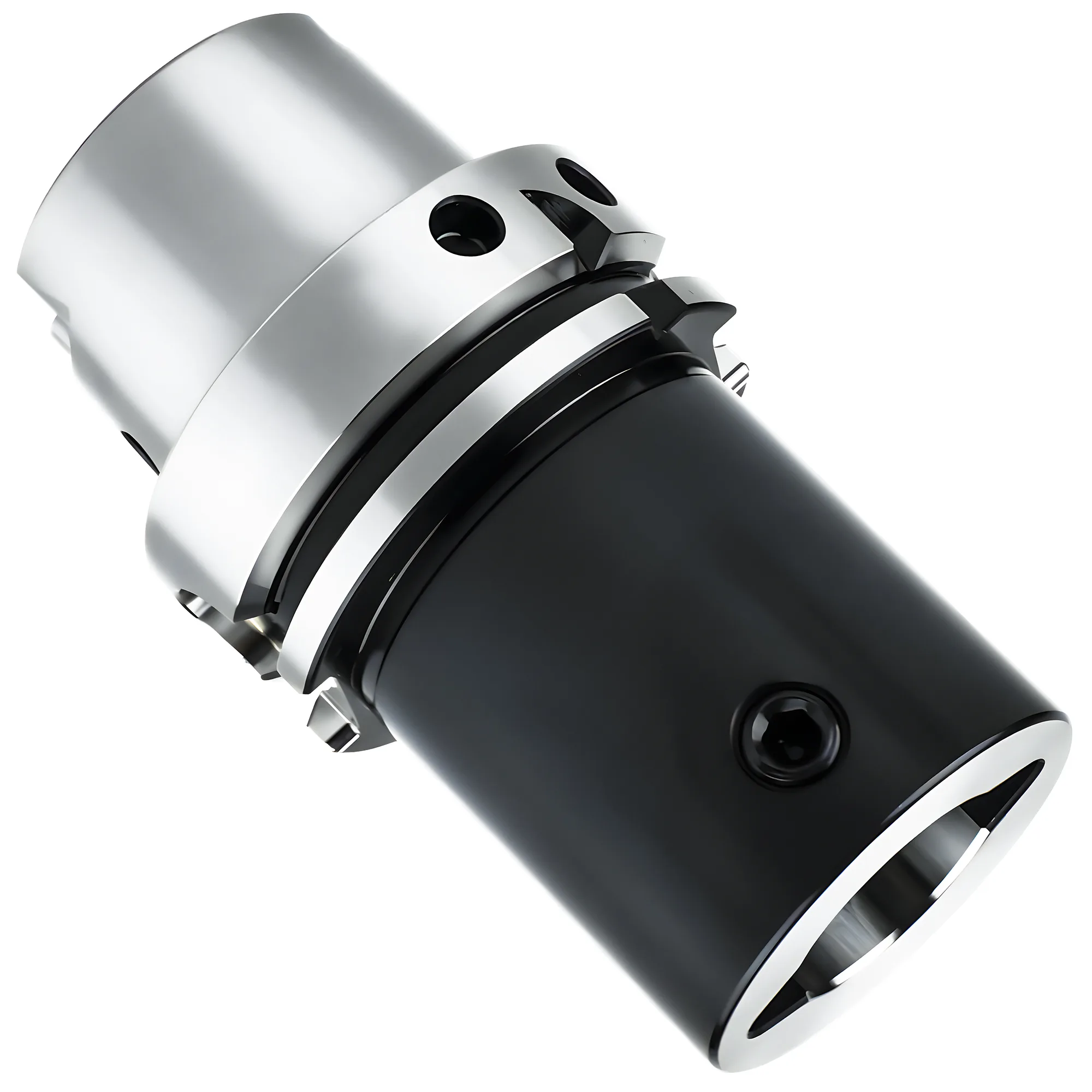

HSK-Werkzeughalter für CK-Bohrkopf

HSK-CK-Bohrkopfaufnahme in HSK50A, HSK63A und HSK100A, für Feinbohrköpfe CK1 bis CK6, 60 bis 400 mm Auskraglänge. Dies ist die Aufnahme — der Halter, der den Kopf trägt, nicht der Kopf selbst. Das CK-Ende ist der Teil, der zu dem modularen Bohrsystem passen muss, das Sie bereits einsetzen: CK1 ist ein 11-mm-Zapfen mit Anzugsschraube M4, CK6 misst 36 mm mit M12, und die vier Größen dazwischen steigen der Reihe nach an. Alle drei Kegel sind HSK-A-Form nach ISO 12164, mit Mitnehmernuten, sodass sie einen schweren Bohrschnitt aufnehmen; keine E- oder F-Form. Der Grundkörper ist einteilig, ohne Verbindungsstelle zwischen Kegel und CK-Nase. Längen und CK-Größen finden Sie in der Tabelle unten.

Variante wählen

Menge

MengenrabattAngebot anfragen →

$1k+

$3k+

$8k+

12%

$15k+

15%

$30k+

18%

$50k+

Beim Checkout automatisch

Akzeptierte Zahlungen

Visa

MasterCard

American Express

Discover

Apple Pay

Google Pay

PayPal

Bank Transfer (TT)

HSK-Werkzeughalter für CK-Bohrkopf Spezifikationen 68 SKUs verfügbar

SKU	Price	Total	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	L5 (mm)	D (mm)	d1 (mm)	d2 (mm)	T	FIG
HSK50A-CK1-60	$66	$0	85	60	34	26	5.05	30	50	11	19	M4*0.5P	Fig.1
HSK50A-CK1-100	$77	$0	125	100	74	26	5.05	30	50	11	19	M4*0.5P	Fig.1
HSK50A-CK2-60	$67	$0	85	60	34	26	6.62	31	50	14	24	M5*0.5P	Fig.1
HSK50A-CK2-100	$77	$0	125	100	74	26	6.62	31	50	14	24	M5*0.5P	Fig.1
HSK50A-CK3-60	$68	$0	85	60	34	26	8	35	50	18	31	M6*0.75P	Fig.1
HSK50A-CK3-100	$79	$0	125	100	74	26	8	35	50	18	31	M6*0.75P	Fig.1
HSK50A-CK4-60	$70	$0	85	60	34	26	10	39	50	22	39	M8*0.75P	Fig.1
HSK50A-CK4-100	$80	$0	125	100	74	26	10	39	50	22	39	M8*0.75P	Fig.1
HSK50A-CK5-80	$77	$0	105	80	54	26	13	45	50	28	50	M10*1.0P	Fig.2
HSK50A-CK5-115	$86	$0	140	115	89	26	13	45	50	28	50	M10*1.0P	Fig.2
HSK50A-CK6-80	$80	$0	105	80	54	26	16	55	50	36	63	M12*1.0P	Fig.2
HSK50A-CK6-115	$89	$0	140	115	89	26	16	55	50	36	63	M12*1.0P	Fig.2
HSK63A-CK1-75	$77	$0	107	75	49	26	5.05	30	63	11	19	M4*0.5P	Fig.1
HSK63A-CK1-105	$86	$0	137	105	79	26	5.05	30	63	11	19	M4*0.5P	Fig.1
HSK63A-CK2-90	$83	$0	122	90	64	26	6.62	31	63	14	24	M5*0.5P	Fig.1
HSK63A-CK2-120	$92	$0	152	120	94	26	6.62	31	63	14	24	M5*0.5P	Fig.1
HSK63A-CK2-165	$105	$0	197	165	139	26	6.62	31	63	14	24	M5*0.5P	Fig.1
HSK63A-CK3-100	$88	$0	132	100	74	26	8	35	63	18	31	M6*0.75P	Fig.1
HSK63A-CK3-135	$98	$0	167	135	109	26	8	35	63	18	31	M6*0.75P	Fig.1
HSK63A-CK3-165	$107	$0	197	165	139	26	8	35	63	18	31	M6*0.75P	Fig.1
HSK63A-CK3-205	$118	$0	237	205	179	26	8	35	63	18	31	M6*0.75P	Fig.1
HSK63A-CK4-90	$86	$0	122	90	64	26	10	39	63	22	39	M8*0.75P	Fig.1
HSK63A-CK4-130	$98	$0	162	130	104	26	10	39	63	22	39	M8*0.75P	Fig.1
HSK63A-CK4-170	$110	$0	202	170	144	26	10	39	63	22	39	M8*0.75P	Fig.1
HSK63A-CK4-205	$120	$0	237	205	179	26	10	39	63	22	39	M8*0.75P	Fig.1
HSK63A-CK4-245	$132	$0	277	245	219	26	10	39	63	22	39	M8*0.75P	Fig.1
HSK63A-CK5-80	$85	$0	112	80	54	26	13	45	63	28	50	M10*1.0P	Fig.1
HSK63A-CK5-135	$102	$0	167	135	109	26	13	45	63	28	50	M10*1.0P	Fig.1
HSK63A-CK5-180	$115	$0	212	180	154	26	13	45	63	28	50	M10*1.0P	Fig.1
HSK63A-CK5-215	$126	$0	247	215	189	26	13	45	63	28	50	M10*1.0P	Fig.1
HSK63A-CK5-250	$136	$0	282	250	224	26	13	45	63	28	50	M10*1.0P	Fig.1
HSK63A-CK6-80	$88	$0	112	80	54	26	16	55	63	36	63	M12*1.0P	Fig.2
HSK63A-CK6-115	$99	$0	147	115	89	26	16	55	63	36	63	M12*1.0P	Fig.2
HSK63A-CK6-150	$109	$0	182	150	124	26	16	55	63	36	63	M12*1.0P	Fig.2
HSK63A-CK6-180	$118	$0	212	180	154	26	16	55	63	36	63	M12*1.0P	Fig.2
HSK63A-CK6-215	$128	$0	247	215	189	26	16	55	63	36	63	M12*1.0P	Fig.2
HSK63A-CK6-250	$139	$0	282	250	224	26	16	55	63	36	63	M12*1.0P	Fig.2
HSK63A-CK6-300	$153	$0	332	300	274	26	16	55	63	36	63	M12*1.0P	Fig.2
HSK100A-CK1-100	$144	$0	150	100	71	29	5.05	30	100	11	19	M4*0.5P	Fig.3
HSK100A-CK1-145	$167	$0	195	145	116	29	5.05	30	100	11	19	M4*0.5P	Fig.3
HSK100A-CK2-80	$136	$0	130	80	51	29	6.62	31	100	14	24	M5*0.5P	Fig.3
HSK100A-CK2-115	$153	$0	165	115	86	29	6.62	31	100	14	24	M5*0.5P	Fig.3
HSK100A-CK2-165	$179	$0	215	165	136	29	6.62	31	100	14	24	M5*0.5P	Fig.3
HSK100A-CK2-205	$199	$0	255	205	196	29	6.62	31	100	14	24	M5*0.5P	Fig.3
HSK100A-CK3-90	$144	$0	140	90	61	29	8	35	100	18	31	M6*0.75P	Fig.3
HSK100A-CK3-125	$161	$0	175	125	96	29	8	35	100	18	31	M6*0.75P	Fig.3
HSK100A-CK3-165	$182	$0	215	165	136	29	8	35	100	18	31	M6*0.75P	Fig.3
HSK100A-CK3-205	$202	$0	255	205	176	29	8	35	100	18	31	M6*0.75P	Fig.3
HSK100A-CK4-120	$162	$0	170	120	91	29	10	39	100	22	39	M8*0.75P	Fig.3
HSK100A-CK4-155	$180	$0	205	155	126	29	10	39	100	22	39	M8*0.75P	Fig.3
HSK100A-CK4-180	$193	$0	230	180	151	29	10	39	100	22	39	M8*0.75P	Fig.3
HSK100A-CK4-215	$210	$0	265	215	186	29	10	39	100	22	39	M8*0.75P	Fig.3
HSK100A-CK4-250	$228	$0	300	250	221	29	10	39	100	22	39	M8*0.75P	Fig.3
HSK100A-CK4-300	$254	$0	350	300	271	29	10	39	100	22	39	M8*0.75P	Fig.3
HSK100A-CK5-110	$162	$0	160	110	81	29	13	45	100	28	50	M10*1.0P	Fig.3
HSK100A-CK5-145	$180	$0	195	145	116	29	13	45	100	28	50	M10*1.0P	Fig.3
HSK100A-CK5-180	$197	$0	230	180	151	29	13	45	100	28	50	M10*1.0P	Fig.3
HSK100A-CK5-230	$223	$0	280	230	201	29	13	45	100	28	50	M10*1.0P	Fig.3
HSK100A-CK5-270	$243	$0	320	270	241	29	13	45	100	28	50	M10*1.0P	Fig.3
HSK100A-CK5-300	$258	$0	350	300	271	29	13	45	100	28	50	M10*1.0P	Fig.3
HSK100A-CK6-110	$167	$0	160	110	81	29	16	55	100	36	63	M12*1.0P	Fig.3
HSK100A-CK6-145	$185	$0	195	145	116	29	16	55	100	36	63	M12*1.0P	Fig.3
HSK100A-CK6-170	$198	$0	220	170	141	29	16	55	100	36	63	M12*1.0P	Fig.3
HSK100A-CK6-230	$228	$0	280	230	201	29	16	55	100	36	63	M12*1.0P	Fig.3
HSK100A-CK6-270	$249	$0	320	270	241	29	16	55	100	36	63	M12*1.0P	Fig.3
HSK100A-CK6-300	$264	$0	350	300	271	29	16	55	100	36	63	M12*1.0P	Fig.3
HSK100A-CK6-350	$289	$0	400	350	321	29	16	55	100	36	63	M12*1.0P	Fig.3
HSK100A-CK6-400	$314	$0	450	400	371	29	16	55	100	36	63	M12*1.0P	Fig.3

Ausgewählte Artikel

0 × $0

Zwischensumme

Gesamtbetrag

$0 USD

HSK-Werkzeughalter für CK-Bohrkopf Merkmale

68 Modelle: Schäfte HSK50A, HSK63A und HSK100A, Nasen CK1 bis CK6

Auskraglänge 60–400 mm, Gesamtlänge 85–450 mm

CK-Zapfen 11 mm bei CK1, steigend auf 36 mm bei CK6

Anzugsschraube M4x0,5 bei CK1, steigend auf M12x1,0 bei CK6

Aufnahmeform HSK-A-Kegel nach ISO 12164

Einteiliger Grundkörper, keine Verbindungsstelle zwischen Kegel und CK-Nase

Nimmt Feinbohrköpfe CK1, CK2, CK3, CK4, CK5 und CK6 auf

Zur professionellen Referenz

Technische Zeichnung

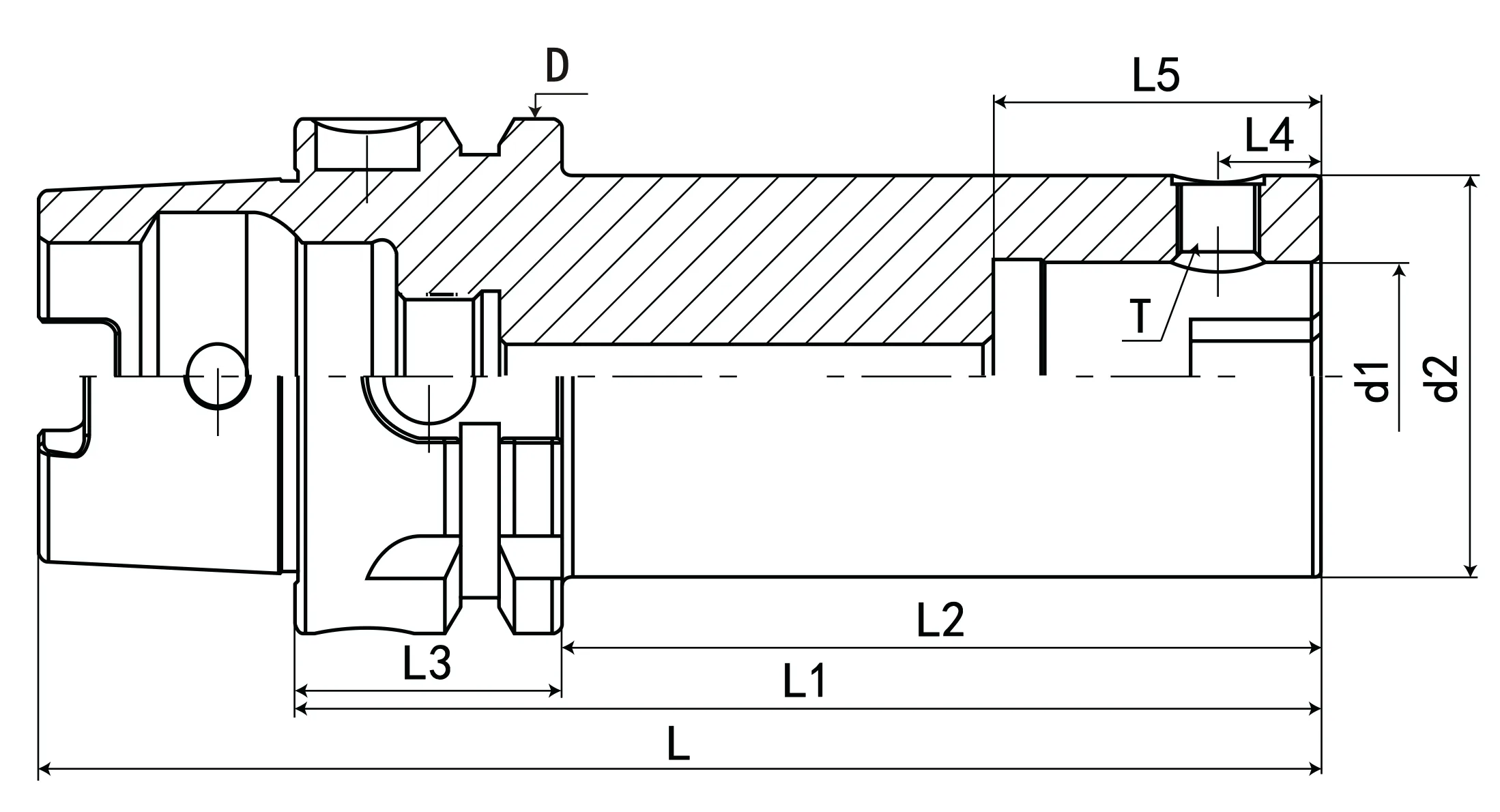

Fig.1

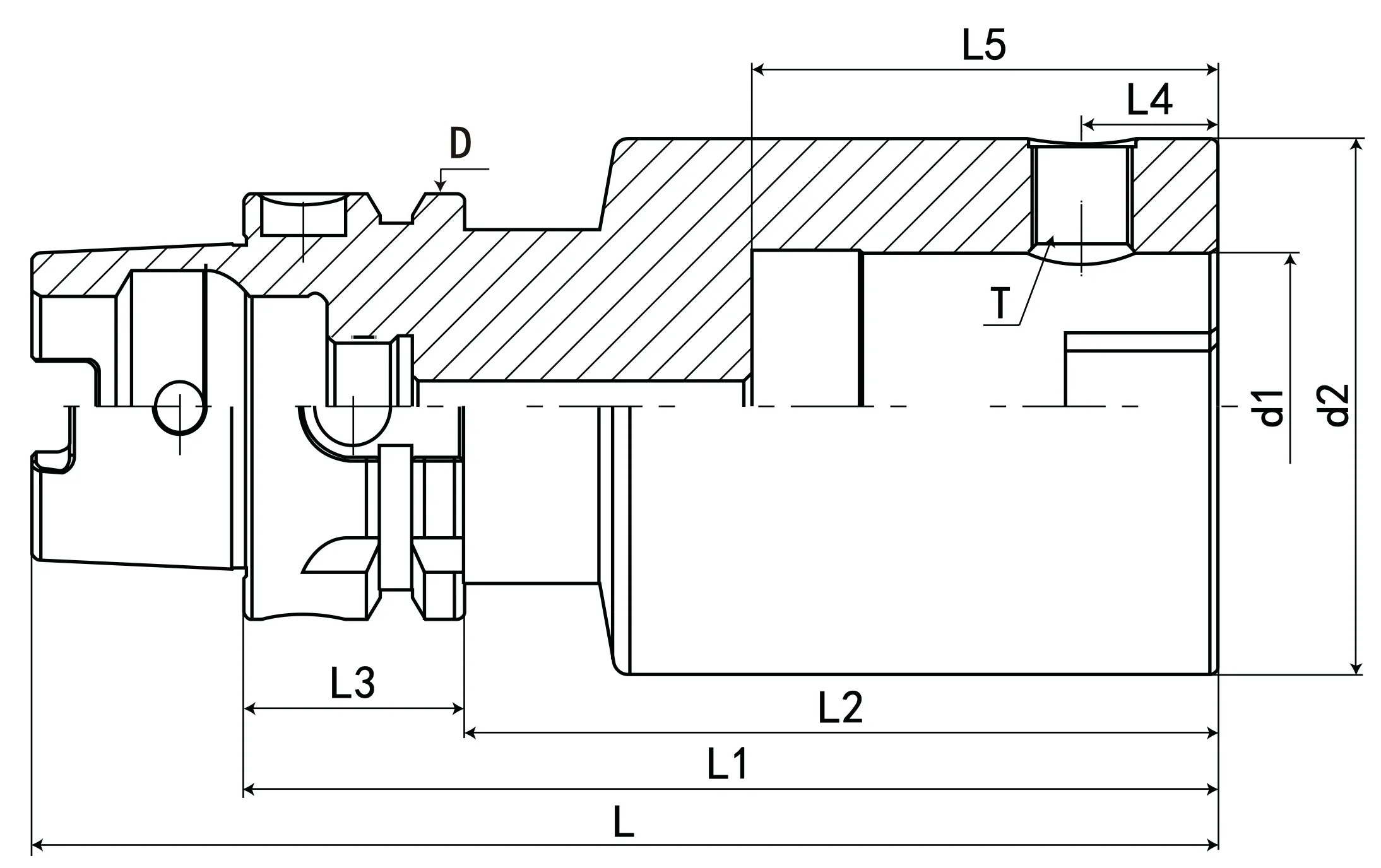

Fig.2

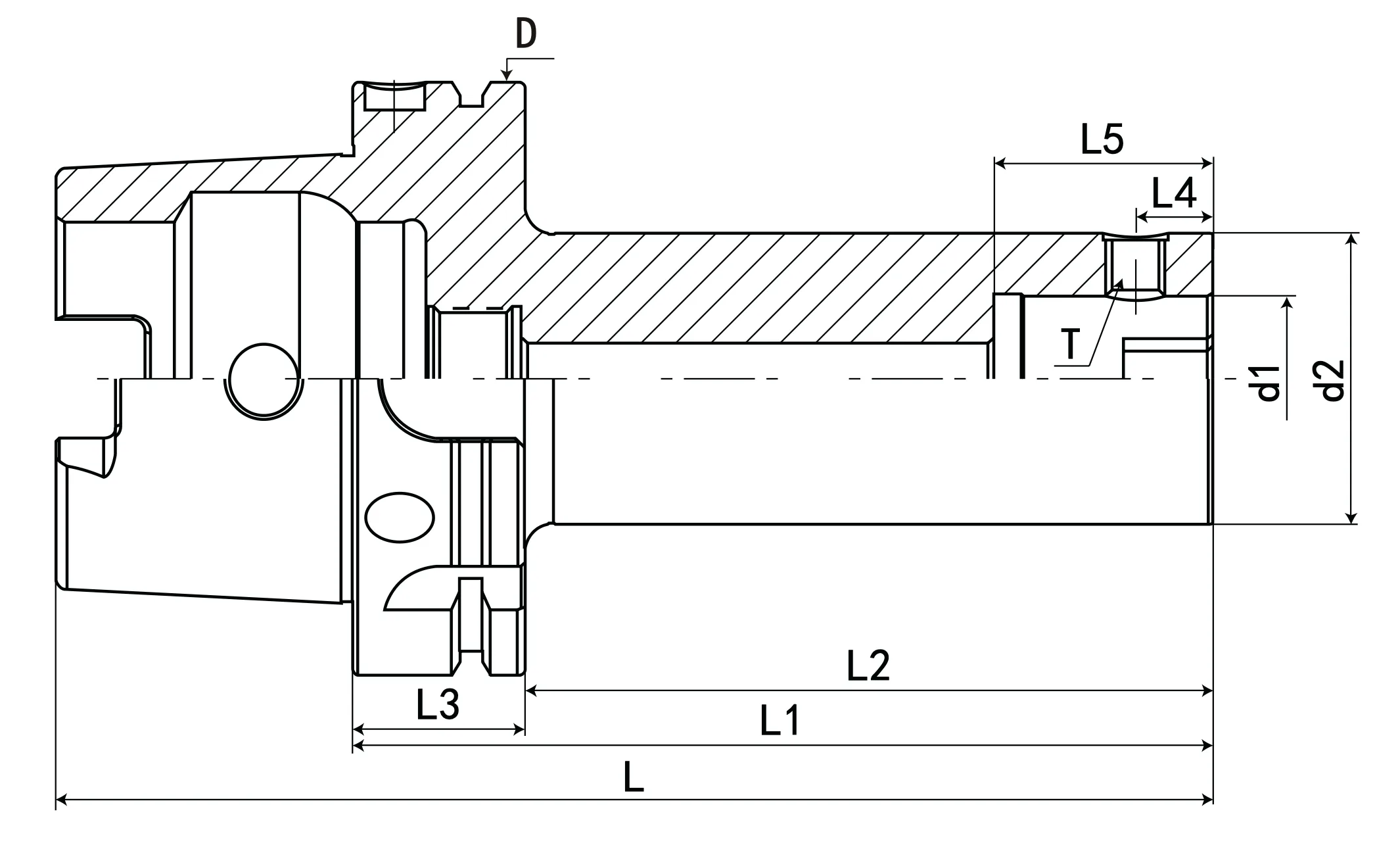

Fig.3
