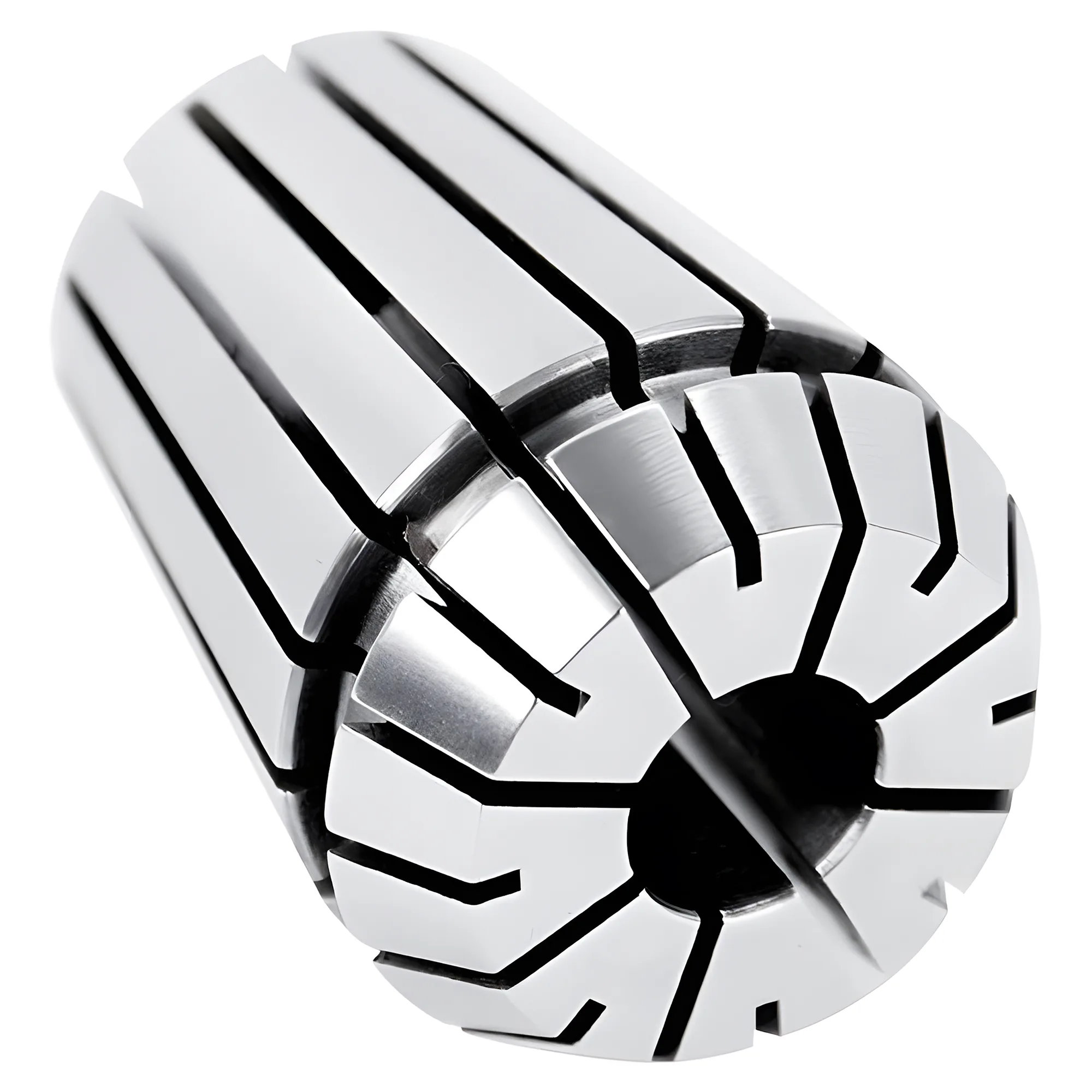

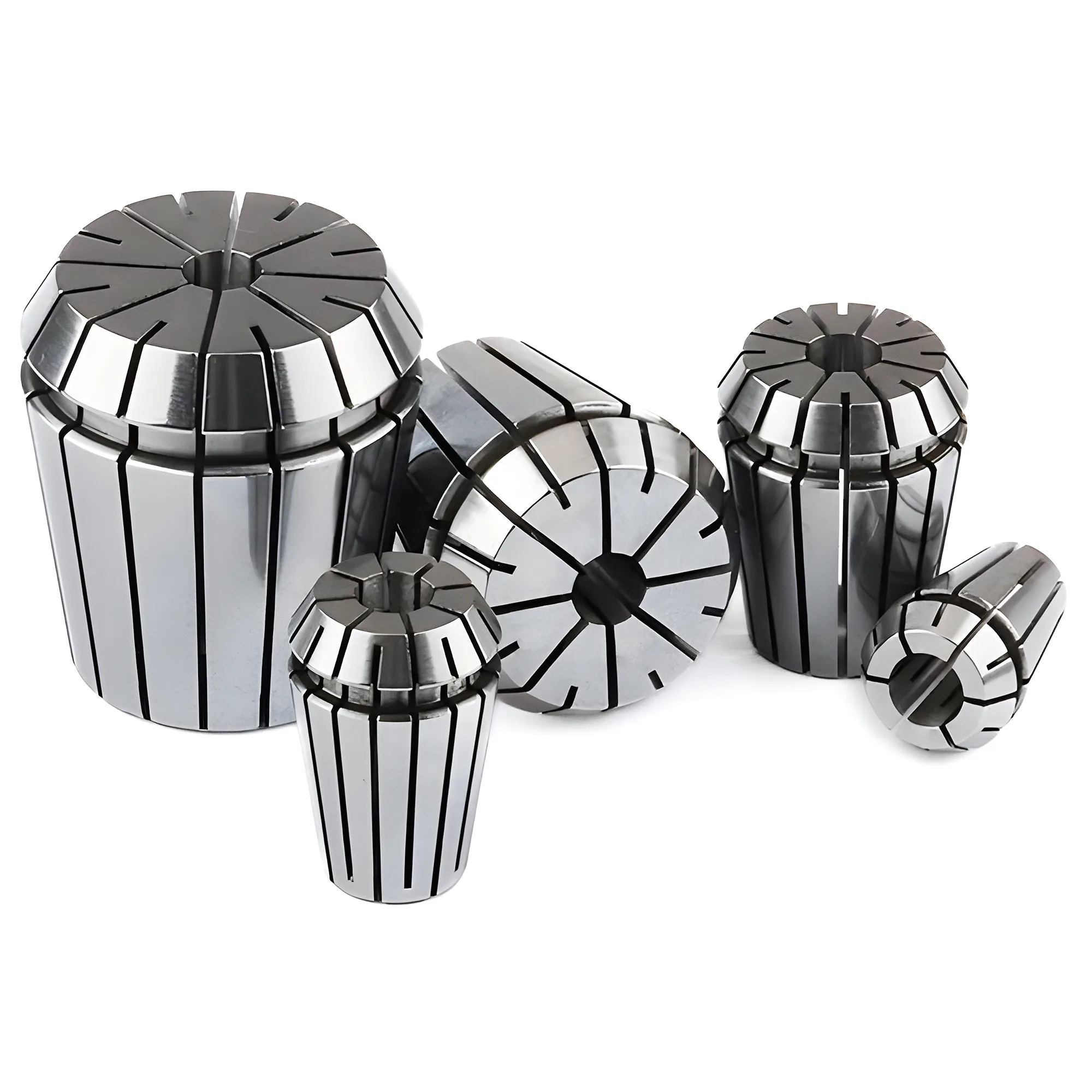

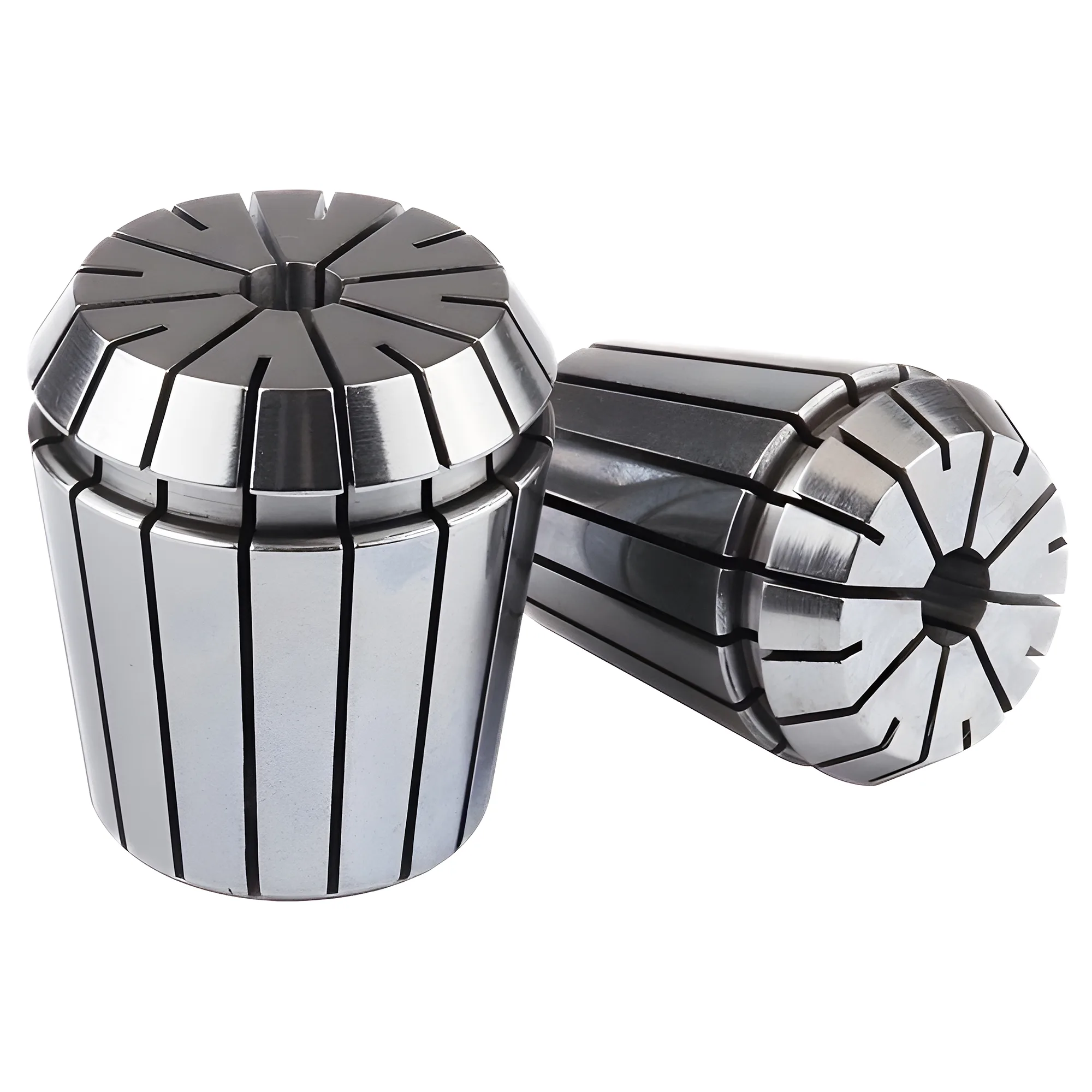

Hochpräzisions-ER-Spannzange, ER8 bis ER50, Spannbereich 0,5 mm bis 36 mm und 1/16" bis 1-1/4" über 303 Größen bei ≤0,005 mm TIR. Dies ist die Spannzange selbst — das Futter, das sie aufnimmt, und die ER-Mutter, die sie schließt, sind eigene Produkte. Die Größenauswahl geht über das Spannband, nicht über den Nenndurchmesser: metrisch in 0,5-mm-Stufen, zöllig etwa 1/32", also sagt Ihnen die Größentabelle und nicht die Beschriftung, was passt. ER32 gegen ER40 ist die übliche Entscheidung — ER32 endet bei 20 mm (3/4"), ER40 bei 26 mm (1"). 65Mn-Federstahl, gehärtet auf HRC 46-48, geschliffen nach DIN 6499-2. Wie gelistet ist dies die Güteklasse STANDARD; PRECISION aus 60Si2Mn mit ≤0,003 mm und ECONOMY mit ≤0,008 mm werden auf Anfrage angeboten.

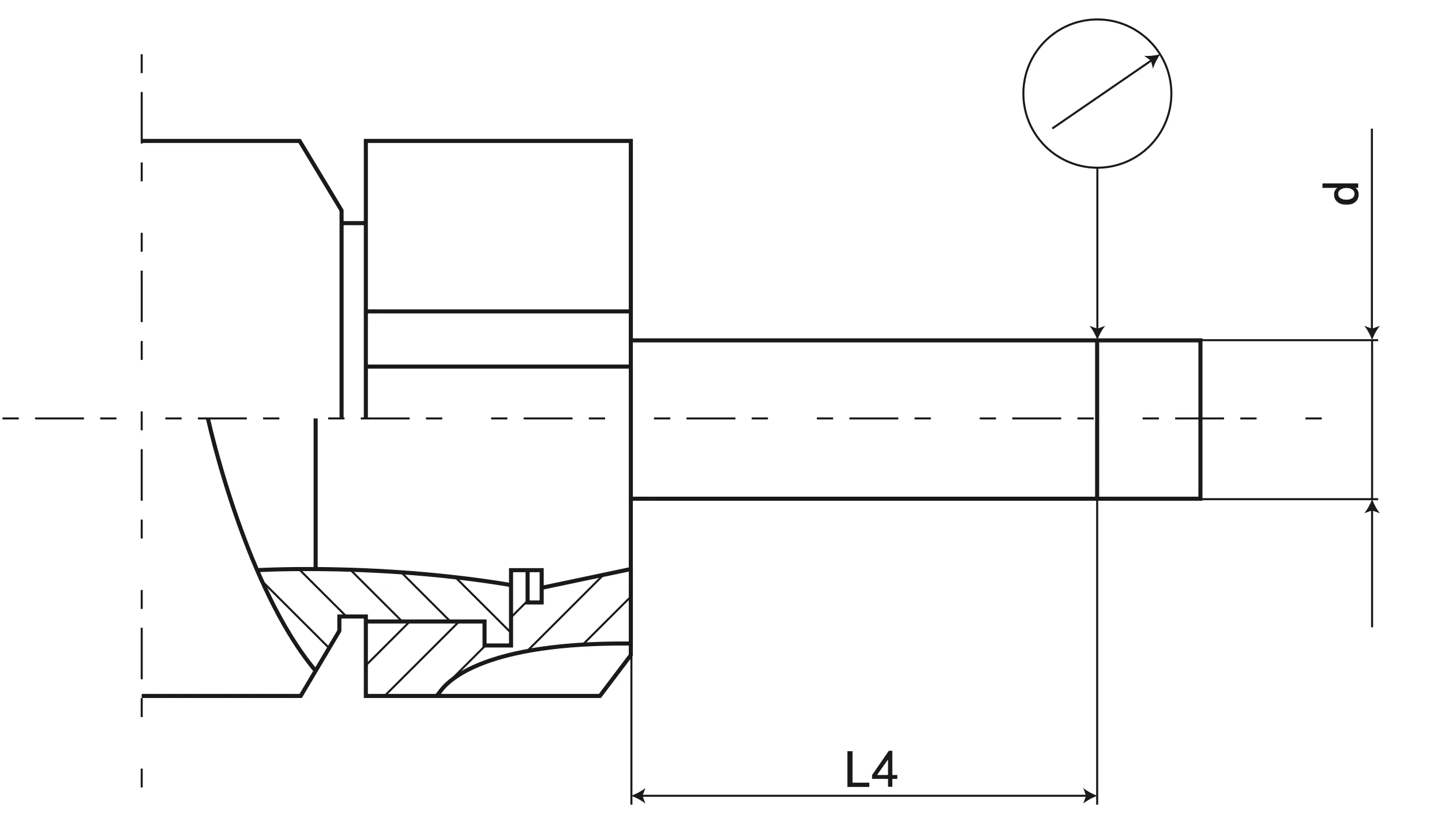

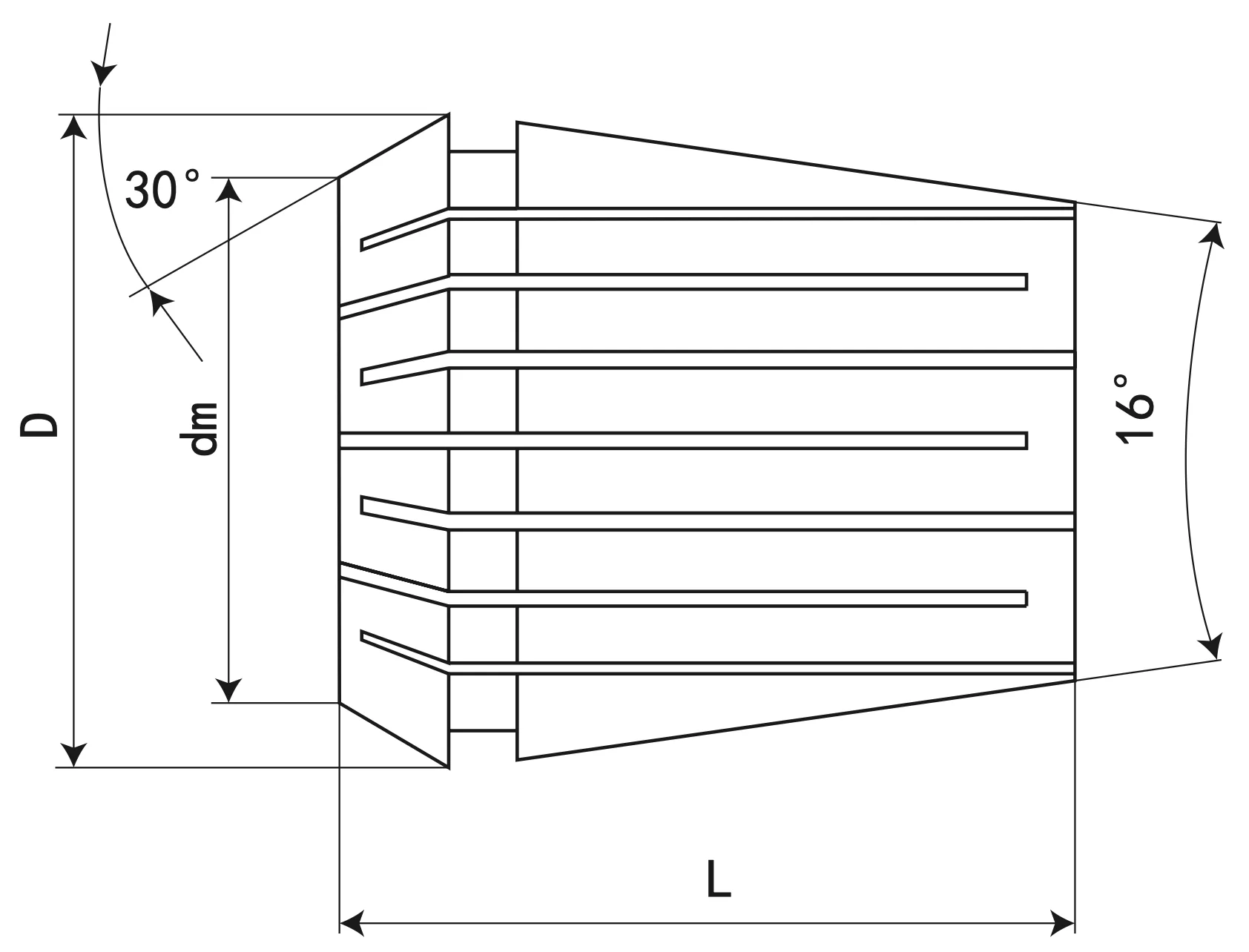

| Cart+ | SKU | Price | Quantity | Total | L (mm) | D (mm) | L4 (mm) | d (mm) | Clamp Range |
|---|---|---|---|---|---|---|---|---|---|
ER8-1 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 0.5-1.0 mm | ||
ER8-1.5 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 1.0-1.5 mm | ||
ER8-2 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 1.5-2.0 mm | ||
ER8-2.5 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 2.0-2.5 mm | ||
ER8-3 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 2.5-3.0 mm | ||
ER8-3.5 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 3.0-3.5 mm | ||
ER8-4 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 3.5-4.0 mm | ||
ER8-4.5 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 4.0-4.5 mm | ||
ER8-5 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 4.5-5.0 mm | ||
ER8-1/16 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 0.043-0.062″ | ||
ER8-1/8 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 0.086-0.125″ | ||
ER8-3/16 | $7 | $0 | 13.5 | 8.45 | 12 | 3 | 0.148-0.187″ | ||
ER11-1 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 0.5-1.0 mm | ||
ER11-1.5 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 1.0-1.5 mm | ||
ER11-2 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 1.5-2.0 mm | ||
ER11-2.5 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 2.0-2.5 mm | ||
ER11-3 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 2.5-3.0 mm | ||
ER11-3.5 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 3.0-3.5 mm | ||
ER11-4 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 3.5-4.0 mm | ||
ER11-4.5 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 4.0-4.5 mm | ||
ER11-5 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 4.5-5.0 mm | ||
ER11-5.5 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 5.0-5.5 mm | ||
ER11-6 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 5.5-6.0 mm | ||
ER11-6.5 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 6.0-6.5 mm | ||
ER11-7 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 6.5-7.0 mm | ||
ER11-1/16 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 0.043-0.062″ | ||
ER11-3/32 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 0.054-0.093″ | ||
ER11-1/8 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 0.086-0.125″ | ||
ER11-5/32 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 0.117-0.156″ | ||
ER11-3/16 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 0.148-0.187″ | ||
ER11-7/32 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 0.179-0.218″ | ||
ER11-1/4 | $8 | $0 | 18.5 | 11.5 | 15 | 5 | 0.211-0.250″ | ||
ER16-1 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.5-1.0 mm | ||
ER16-1.5 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 1.0-1.5 mm | ||
ER16-2 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 1.5-2.0 mm | ||
ER16-2.5 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 2.0-2.5 mm | ||
ER16-3 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 2.5-3.0 mm | ||
ER16-3.5 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 3.0-3.5 mm | ||
ER16-4 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 3.5-4.0 mm | ||
ER16-4.5 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 4.0-4.5 mm | ||
ER16-5 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 4.5-5.0 mm | ||
ER16-5.5 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 5.0-5.5 mm | ||
ER16-6 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 5.5-6.0 mm | ||
ER16-6.5 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 6.0-6.5 mm | ||
ER16-7 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 6.5-7.0 mm | ||
ER16-7.5 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 7.0-7.5 mm | ||
ER16-8 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 7.5-8.0 mm | ||
ER16-8.5 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 8.0-8.5 mm | ||
ER16-9 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 8.5-9.0 mm | ||
ER16-9.5 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 9.0-9.5 mm | ||
ER16-10 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 9.5-10.0 mm | ||
ER16-1/16 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.043-0.062″ | ||
ER16-3/32 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.054-0.093″ | ||
ER16-1/8 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.086-0.125″ | ||
ER16-5/32 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.117-0.156″ | ||
ER16-3/16 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.148-0.187″ | ||
ER16-7/32 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.179-0.218″ | ||
ER16-1/4 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.211-0.250″ | ||
ER16-9/32 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.242-0.281″ | ||
ER16-5/16 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.273-0.312″ | ||
ER16-11/32 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.304-0.343″ | ||
ER16-3/8 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.336-0.375″ | ||
ER16-13/32 | $8 | $0 | 27.5 | 17.5 | 24 | 6 | 0.367-0.406″ | ||
ER20-1 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.5-1.0 mm | ||
ER20-1.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 1.0-1.5 mm | ||
ER20-2 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 1.5-2.0 mm | ||
ER20-2.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 2.0-2.5 mm | ||
ER20-3 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 2.5-3.0 mm | ||
ER20-3.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 3.0-3.5 mm | ||
ER20-4 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 3.5-4.0 mm | ||
ER20-4.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 4.0-4.5 mm | ||
ER20-5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 4.5-5.0 mm | ||
ER20-5.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 5.0-5.5 mm | ||
ER20-6 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 5.5-6.0 mm | ||
ER20-6.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 6.0-6.5 mm | ||
ER20-7 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 6.5-7.0 mm | ||
ER20-7.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 7.0-7.5 mm | ||
ER20-8 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 7.5-8.0 mm | ||
ER20-8.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 8.0-8.5 mm | ||
ER20-9 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 8.5-9.0 mm | ||
ER20-9.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 9.0-9.5 mm | ||
ER20-10 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 9.5-10.0 mm | ||
ER20-10.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 10.0-10.5 mm | ||
ER20-11 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 10.5-11.0 mm | ||
ER20-11.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 11.0-11.5 mm | ||
ER20-12 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 11.5-12.0 mm | ||
ER20-12.5 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 12.0-12.5 mm | ||
ER20-13 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 12.5-13.0 mm | ||
ER20-1/16 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.043-0.062″ | ||
ER20-3/32 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.054-0.093″ | ||
ER20-1/8 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.086-0.125″ | ||
ER20-5/32 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.117-0.156″ | ||
ER20-3/16 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.148-0.187″ | ||
ER20-7/32 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.179-0.218″ | ||
ER20-1/4 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.211-0.250″ | ||
ER20-9/32 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.242-0.281″ | ||
ER20-5/16 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.273-0.312″ | ||
ER20-11/32 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.304-0.343″ | ||
ER20-3/8 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.336-0.375″ | ||
ER20-13/32 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.367-0.406″ | ||
ER20-7/16 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.398-0.437″ | ||
ER20-15/32 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.429-0.468″ | ||
ER20-1/2 | $9 | $0 | 31.5 | 21.0 | 32 | 8 | 0.461-0.500″ | ||
ER25-1 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.5-1.0 mm | ||
ER25-1.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 1.0-1.5 mm | ||
ER25-2 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 1.5-2.0 mm | ||
ER25-2.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 2.0-2.5 mm | ||
ER25-3 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 2.5-3.0 mm | ||
ER25-3.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 3.0-3.5 mm | ||
ER25-4 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 3.5-4.0 mm | ||
ER25-4.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 4.0-4.5 mm | ||
ER25-5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 4.5-5.0 mm | ||
ER25-5.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 5.0-5.5 mm | ||
ER25-6 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 5.5-6.0 mm | ||
ER25-6.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 6.0-6.5 mm | ||
ER25-7 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 6.5-7.0 mm | ||
ER25-7.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 7.0-7.5 mm | ||
ER25-8 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 7.5-8.0 mm | ||
ER25-8.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 8.0-8.5 mm | ||
ER25-9 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 8.5-9.0 mm | ||
ER25-9.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 9.0-9.5 mm | ||
ER25-10 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 9.5-10.0 mm | ||
ER25-10.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 10.0-10.5 mm | ||
ER25-11 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 10.5-11.0 mm | ||
ER25-11.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 11.0-11.5 mm | ||
ER25-12 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 11.5-12.0 mm | ||
ER25-12.5 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 12.0-12.5 mm | ||
ER25-13 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 12.5-13.0 mm | ||
ER25-14 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 13.0-14.0 mm | ||
ER25-15 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 14.0-15.0 mm | ||
ER25-16 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 15.0-16.0 mm | ||
ER25-3/32 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.054-0.093″ | ||
ER25-1/8 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.086-0.125″ | ||
ER25-5/32 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.117-0.156″ | ||
ER25-3/16 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.148-0.187″ | ||
ER25-7/32 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.179-0.218″ | ||
ER25-1/4 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.211-0.250″ | ||
ER25-9/32 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.242-0.281″ | ||
ER25-5/16 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.273-0.312″ | ||
ER25-11/32 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.304-0.343″ | ||
ER25-3/8 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.336-0.375″ | ||
ER25-13/32 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.367-0.406″ | ||
ER25-7/16 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.398-0.437″ | ||
ER25-15/32 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.429-0.468″ | ||
ER25-1/2 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.461-0.500″ | ||
ER25-17/32 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.492-0.531″ | ||
ER25-9/16 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.523-0.562″ | ||
ER25-19/32 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.554-0.593″ | ||
ER25-5/8 | $10 | $0 | 34.0 | 28.0 | 48 | 12 | 0.586-0.625″ | ||
ER32-1 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.5-1.0 mm | ||
ER32-1.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 1.0-1.5 mm | ||
ER32-2 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 1.5-2.0 mm | ||
ER32-2.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 2.0-2.5 mm | ||
ER32-3 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 2.5-3.0 mm | ||
ER32-3.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 3.0-3.5 mm | ||
ER32-4 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 3.5-4.0 mm | ||
ER32-4.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 4.0-4.5 mm | ||
ER32-5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 4.5-5.0 mm | ||
ER32-5.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 5.0-5.5 mm | ||
ER32-6 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 5.5-6.0 mm | ||
ER32-6.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 6.0-6.5 mm | ||
ER32-7 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 6.5-7.0 mm | ||
ER32-7.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 7.0-7.5 mm | ||
ER32-8 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 7.5-8.0 mm | ||
ER32-8.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 8.0-8.5 mm | ||
ER32-9 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 8.5-9.0 mm | ||
ER32-9.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 9.0-9.5 mm | ||
ER32-10 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 9.5-10.0 mm | ||
ER32-10.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 10.0-10.5 mm | ||
ER32-11 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 10.5-11.0 mm | ||
ER32-11.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 11.0-11.5 mm | ||
ER32-12 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 11.5-12.0 mm | ||
ER32-12.5 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 12.0-12.5 mm | ||
ER32-13 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 12.5-13.0 mm | ||
ER32-14 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 13.0-14.0 mm | ||
ER32-15 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 14.0-15.0 mm | ||
ER32-16 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 15.0-16.0 mm | ||
ER32-17 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 16.0-17.0 mm | ||
ER32-18 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 17.0-18.0 mm | ||
ER32-19 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 18.0-19.0 mm | ||
ER32-20 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 19.0-20.0 mm | ||
ER32-1/16 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.043-0.062″ | ||
ER32-3/32 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.054-0.093″ | ||
ER32-1/8 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.086-0.125″ | ||
ER32-5/32 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.117-0.156″ | ||
ER32-3/16 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.148-0.187″ | ||
ER32-7/32 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.179-0.218″ | ||
ER32-1/4 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.211-0.250″ | ||
ER32-9/32 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.242-0.281″ | ||
ER32-5/16 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.273-0.312″ | ||
ER32-11/32 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.304-0.343″ | ||
ER32-3/8 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.336-0.375″ | ||
ER32-13/32 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.367-0.406″ | ||
ER32-7/16 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.398-0.437″ | ||
ER32-15/32 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.429-0.468″ | ||
ER32-1/2 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.461-0.500″ | ||
ER32-17/32 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.492-0.531″ | ||
ER32-9/16 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.523-0.562″ | ||
ER32-19/32 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.554-0.593″ | ||
ER32-5/8 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.586-0.625″ | ||
ER32-21/32 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.617-0.656″ | ||
ER32-11/16 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.648-0.687″ | ||
ER32-23/32 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.679-0.718″ | ||
ER32-3/4 | $10 | $0 | 40.0 | 33.0 | 64 | 16 | 0.711-0.750″ | ||
ER40-1 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.5-1.0 mm | ||
ER40-1.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 1.0-1.5 mm | ||
ER40-2 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 1.5-2.0 mm | ||
ER40-2.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 2.0-2.5 mm | ||
ER40-3 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 2.5-3.0 mm | ||
ER40-3.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 3.0-3.5 mm | ||
ER40-4 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 3.5-4.0 mm | ||
ER40-4.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 4.0-4.5 mm | ||
ER40-5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 4.5-5.0 mm | ||
ER40-5.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 5.0-5.5 mm | ||
ER40-6 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 5.5-6.0 mm | ||
ER40-6.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 6.0-6.5 mm | ||
ER40-7 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 6.5-7.0 mm | ||
ER40-7.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 7.0-7.5 mm | ||
ER40-8 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 7.5-8.0 mm | ||
ER40-8.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 8.0-8.5 mm | ||
ER40-9 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 8.5-9.0 mm | ||
ER40-9.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 9.0-9.5 mm | ||
ER40-10 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 9.5-10.0 mm | ||
ER40-10.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 10.0-10.5 mm | ||
ER40-11 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 10.5-11.0 mm | ||
ER40-11.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 11.0-11.5 mm | ||
ER40-12 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 11.5-12.0 mm | ||
ER40-12.5 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 12.0-12.5 mm | ||
ER40-13 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 12.5-13.0 mm | ||
ER40-14 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 13.0-14.0 mm | ||
ER40-15 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 14.0-15.0 mm | ||
ER40-16 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 15.0-16.0 mm | ||
ER40-17 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 16.0-17.0 mm | ||
ER40-18 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 17.0-18.0 mm | ||
ER40-19 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 18.0-19.0 mm | ||
ER40-20 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 19.0-20.0 mm | ||
ER40-21 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 20.0-21.0 mm | ||
ER40-22 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 21.0-22.0 mm | ||
ER40-23 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 22.0-23.0 mm | ||
ER40-24 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 23.0-24.0 mm | ||
ER40-25 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 24.0-25.0 mm | ||
ER40-26 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 25.0-26.0 mm | ||
ER40-1/8 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.086-0.125″ | ||
ER40-5/32 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.117-0.156″ | ||
ER40-3/16 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.148-0.187″ | ||
ER40-7/32 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.179-0.218″ | ||
ER40-1/4 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.211-0.250″ | ||
ER40-9/32 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.242-0.281″ | ||
ER40-5/16 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.273-0.312″ | ||
ER40-11/32 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.304-0.343″ | ||
ER40-3/8 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.336-0.375″ | ||
ER40-13/32 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.367-0.406″ | ||
ER40-7/16 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.398-0.437″ | ||
ER40-15/32 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.429-0.468″ | ||
ER40-1/2 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.461-0.500″ | ||
ER40-17/32 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.492-0.531″ | ||
ER40-9/16 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.523-0.562″ | ||
ER40-19/32 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.554-0.593″ | ||
ER40-5/8 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.586-0.625″ | ||
ER40-21/32 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.617-0.656″ | ||
ER40-11/16 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.648-0.687″ | ||
ER40-23/32 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.679-0.718″ | ||
ER40-3/4 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.711-0.750″ | ||
ER40-7/8 | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.836-0.875″ | ||
ER40-1-INCH | $12 | $0 | 46.0 | 41.0 | 80 | 20 | 0.961-1.00″ | ||
ER50-5 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 4.5-5.0 mm | ||
ER50-6 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 5.5-6.0 mm | ||
ER50-7 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 6.5-7.0 mm | ||
ER50-8 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 7.5-8.0 mm | ||
ER50-9 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 8.5-9.0 mm | ||
ER50-10 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 9.5-10.0 mm | ||
ER50-11 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 10.5-11.0 mm | ||
ER50-12 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 11.5-12.0 mm | ||
ER50-13 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 12.5-13.0 mm | ||
ER50-14 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 13.0-14.0 mm | ||
ER50-15 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 14.0-15.0 mm | ||
ER50-16 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 15.0-16.0 mm | ||
ER50-17 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 16.0-17.0 mm | ||
ER50-18 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 17.0-18.0 mm | ||
ER50-19 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 18.0-19.0 mm | ||
ER50-20 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 19.0-20.0 mm | ||
ER50-21 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 20.0-21.0 mm | ||
ER50-22 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 21.0-22.0 mm | ||
ER50-23 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 22.0-23.0 mm | ||
ER50-24 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 23.0-24.0 mm | ||
ER50-25 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 24.0-25.0 mm | ||
ER50-26 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 25.0-26.0 mm | ||
ER50-27 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 26.0-27.0 mm | ||
ER50-28 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 27.0-28.0 mm | ||
ER50-29 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 28.0-29.0 mm | ||
ER50-30 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 29.0-30.0 mm | ||
ER50-31 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 30.0-31.0 mm | ||
ER50-32 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 31.0-32.0 mm | ||
ER50-33 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 32.0-33.0 mm | ||
ER50-34 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 33.0-34.0 mm | ||
ER50-35 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 34.0-35.0 mm | ||
ER50-36 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 35.0-36.0 mm | ||
ER50-1/2 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 0.461-0.500″ | ||
ER50-5/8 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 0.586-0.625″ | ||
ER50-3/4 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 0.711-0.750″ | ||
ER50-7/8 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 0.836-0.875″ | ||
ER50-1-INCH | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 0.961-1.00″ | ||
ER50-1-1/4 | $14 | $0 | 60.0 | 51.0 | 100 | 25 | 1.211-1.250″ |
Vollständige ER-Baureihe: ER8, ER11, ER16, ER20, ER25, ER32, ER40, ER50
303 Größen, metrisch und zöllig
Spannbereich 0,5 mm bis 36 mm; 1/16" bis 1-1/4"
Metrische Stufung 0,5 mm, zöllig etwa 1/32"
Wie gelistet: 65Mn-Federstahl (AISI 1566 / DIN 1.1231), TIR ≤0,005 mm
BT-APU Werkzeughalter mit schlüssellosem Bohrfutter
ab$37
BT-Werkzeughalter mit ER-Spannzangenfutter
ab$15
BT-Werkzeughalter mit Morsekegel-Aufnahme
ab$15
BT-Anzugsbolzen MAS 403-1975
ab$3
BT-Schrumpf-Werkzeughalter
ab$72
VHM-Kugelfräser mit Nanobeschichtung
ab$50
VHM-Torusfräser mit Nanobeschichtung
ab$50
VHM-Schaftfräser mit Nanobeschichtung
ab$43
PRECISION 60Si2Mn (AISI 9260 / DIN 1.7108), TIR ≤0,003 mm — auf Anfrage
Konform mit ISO 15488 und DIN 6499-2
ECONOMY 65Mn, TIR ≤0,008 mm — auf Anfrage; alle Güteklassen HRC 46-48
Nur die Spannzange; ER-Futter und Muttern werden separat verkauft
