Portautensili BT per fresa a spianare

Name: Portautensili BT per fresa a spianare
Brand: MACHALLY
Availability: OutOfStock

Portautensili BT per operazioni di fresatura a spianare. Conforme allo standard JIS MAS 403 con passaggio refrigerante interno per riduzione delle vibrazioni. Parte di accoppiamento a misura metrica con tolleranza h6. Disponibile in dimensioni personalizzate su richiesta. *Tirante di ritenzione da acquistare separatamente

Scegli variante

Quantità

Prezzo unitario:

16.00 USD

Spedito dal magazzino in Cina

Sconto quantità

Valore ordine

1000 + USD

Sconto

3% di sconto

Valore ordine

3000 + USD

Sconto

5% di sconto

Valore ordine

8000 + USD

Sconto

8% di sconto

Valore ordine

15000 + USD

Sconto

12% di sconto

Valore ordine

30000 + USD

Sconto

15% di sconto

Valore ordine

50000 + USD

Sconto

18% di sconto

Gli sconti vengono applicati automaticamente al checkout in base al valore dell'ordine.

Magazzini disponibili

🇨🇳

Produzione in Cina

Stock e produzione disponibili

Pagamenti accettati

Visa

MasterCard

American Express

Discover

Apple Pay

Google Pay

PayPal

Bank Transfer (TT)

Specifiche

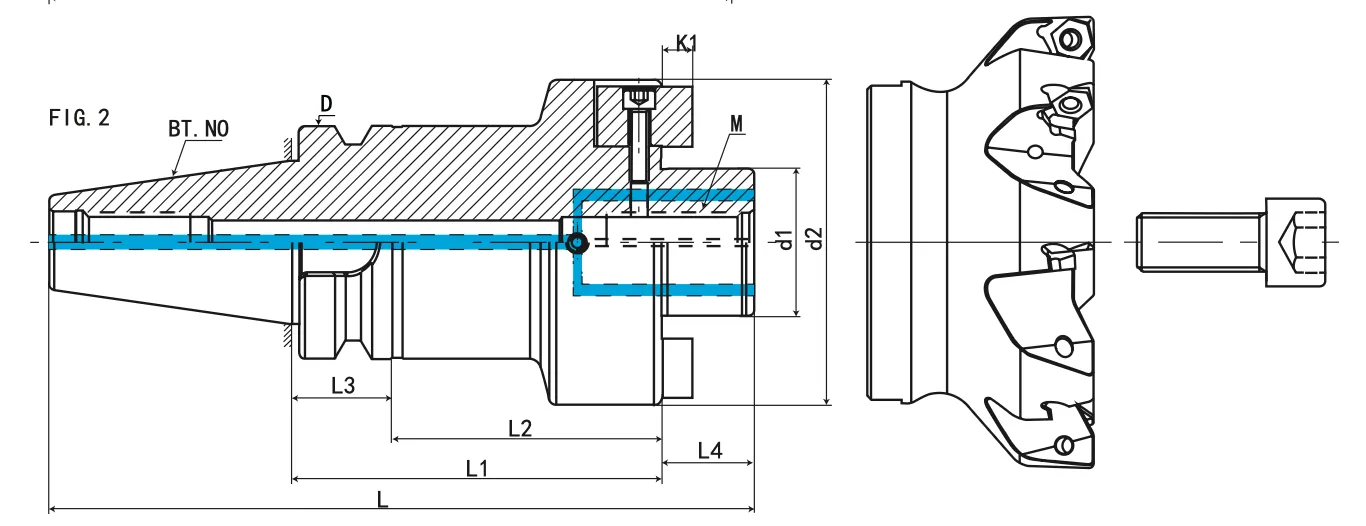

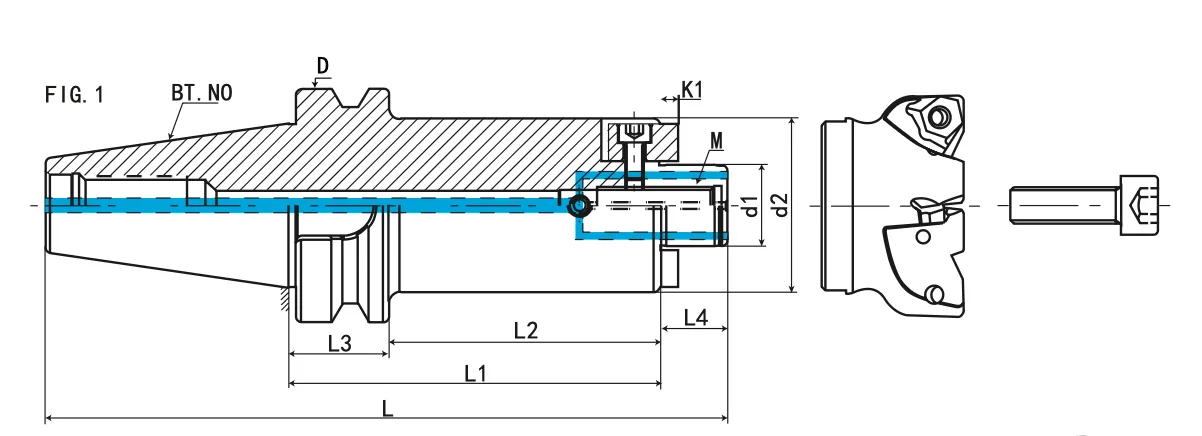

SKU	Price	Total	L	L1	L2	L3	L4	D	d1	d2	K1	K2	M	FIG
BT30-FMB16-60	$16	$0	125.4	60	38	22	17	46	16	38	3.2	8	M8*1.25P	Fig.1
BT30-FMB22-45	$16	$0	111.4	45	23	22	18	46	22	48	4.8	10	M10*1.5P	Fig.2
BT30-FMB22-60	$16	$0	126.4	60	38	22	18	46	22	48	4.8	10	M10*1.5P	Fig.2
BT30-FMB27-45	$19	$0	113.4	45	23	22	20	46	27	58	5.8	12	M12*1.75P	Fig.2
BT30-FMB27-60	$20	$0	128.4	60	38	22	20	46	27	58	5.8	12	M12*1.75P	Fig.2
BT30-FMB32-45	$20	$0	115.4	45	23	22	22	46	32	63	6.8	14	M16*2.0P	Fig.2
BT30-FMB32-60	$23	$0	130.4	60	38	22	22	46	32	63	6.8	14	M16*2.0P	Fig.2
BT30-FMB40-60	$23	$0	133.4	60	38	22	25	46	40	63	6.8	14	M16*2.0P	Fig.2
BT40-FMB16-60	$23	$0	142.4	60	33	27	17	63	16	38	3.2	8	M8*1.25P	Fig.1
BT40-FMB16-100	$23	$0	182.4	100	73	27	17	63	16	38	3.2	8	M8*1.25P	Fig.1
BT40-FMB22-60	$23	$0	143.4	60	33	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-100	$23	$0	183.4	100	73	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-150	$31	$0	233.4	150	123	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-200	$41	$0	283.4	200	173	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-250	$57	$0	333.4	250	223	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-300	$68	$0	383.4	300	273	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-350	$113	$0	433.4	350	323	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-400	$141	$0	483.4	400	373	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-450	$170	$0	533.4	450	423	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-500	$198	$0	583.4	500	473	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB27-60	$23	$0	145.4	60	33	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB27-100	$23	$0	185.4	100	73	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB27-150	$31	$0	235.4	150	123	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB27-200	$41	$0	285.4	200	173	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB27-250	$60	$0	335.4	250	223	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB27-300	$71	$0	385.4	300	273	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB32-60	$23	$0	147.4	60	33	27	22	63	32	63	6.8	14	M16*2.0P	Fig.2
BT40-FMB32-100	$26	$0	187.4	100	73	27	22	63	32	63	6.8	14	M16*2.0P	Fig.2
BT40-FMB32-150	$34	$0	237.4	150	123	27	22	63	32	63	6.8	14	M16*2.0P	Fig.2
BT40-FMB32-200	$46	$0	287.4	200	173	27	22	63	32	63	6.8	14	M16*2.0P	Fig.2
BT40-FMB40-60	$26	$0	150.4	60	33	27	25	63	40	74	8.3	16	M16*2.0P	Fig.2
BT40-FMB40-100	$26	$0	190.4	100	73	27	25	63	40	74	8.3	16	M16*2.0P	Fig.2
BT40-FMB40-150	$34	$0	240.4	150	123	27	25	63	40	74	8.3	16	M16*2.0P	Fig.2
BT40-FMB40-200	$48	$0	290.4	200	173	27	25	63	40	74	8.3	16	M16*2.0P	Fig.2
BT50-FMB16-60	$44	$0	178.8	60	22	38	17	100	16	38	3.2	8	M8*1.25P	Fig.1
BT50-FMB16-100	$48	$0	218.8	100	62	38	17	100	16	38	3.2	8	M8*1.25P	Fig.1
BT50-FMB16-150	$57	$0	268.8	150	112	38	17	100	16	38	3.2	8	M8*1.25P	Fig.1
BT50-FMB16-200	$68	$0	318.8	200	162	38	17	100	16	38	3.2	8	M8*1.25P	Fig.1
BT50-FMB22-60-D48	$41	$0	179.8	60	22	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-100-D48	$48	$0	219.8	100	62	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-150-D48	$57	$0	269.8	150	112	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-200-D48	$65	$0	319.8	200	162	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-250-D48	$91	$0	369.8	250	212	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-300-D48	$113	$0	419.8	300	262	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-350-D48	$136	$0	469.8	350	312	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-400-D48	$158	$0	519.8	400	362	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-450-D48	$186	$0	569.8	450	412	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-500-D48	$209	$0	619.8	500	462	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-45-D60	$40	$0	164.8	45	7	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-60-D60	$41	$0	179.8	60	22	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-100-D60	$48	$0	219.8	100	62	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-150-D60	$57	$0	269.8	150	112	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-200-D60	$65	$0	319.8	200	162	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-250-D60	$91	$0	369.8	250	212	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-300-D60	$113	$0	419.8	300	262	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-350-D62	$136	$0	469.8	350	312	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-400-D62	$158	$0	519.8	400	362	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-450-D62	$186	$0	569.8	450	412	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-500-D62	$209	$0	619.8	500	462	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-550-D62	$237	$0	669.8	550	512	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-600-D62	$288	$0	719.8	600	562	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-650-D62	$339	$0	769.8	650	612	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-700-D62	$406	$0	819.8	700	662	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB27-45	$40	$0	166.8	45	7	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-60	$41	$0	181.8	60	22	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-100	$48	$0	221.8	100	62	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-150	$57	$0	271.8	150	112	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-200	$65	$0	321.8	200	162	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-250	$91	$0	371.8	250	212	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-300	$113	$0	421.8	300	262	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-350	$136	$0	471.8	350	312	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-400	$158	$0	521.8	400	362	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-450	$184	$0	571.8	450	412	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-500	$209	$0	621.8	500	462	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-550	$240	$0	671.8	550	512	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-600	$291	$0	721.8	600	562	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB32-60	$43	$0	183.8	60	22	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-100	$51	$0	223.8	100	62	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-150	$65	$0	273.8	150	112	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-200	$65	$0	323.8	200	162	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-250	$91	$0	373.8	250	212	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-300	$113	$0	423.8	300	262	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-350	$139	$0	473.8	350	312	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-400	$158	$0	523.8	400	362	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-450	$186	$0	573.8	450	412	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-500	$212	$0	623.8	500	462	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB40-60	$43	$0	186.8	60	22	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-100	$57	$0	226.8	100	62	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-150	$68	$0	276.8	150	112	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-200	$68	$0	326.8	200	162	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-250	$102	$0	376.8	250	212	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-300	$119	$0	426.8	300	262	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-350	$139	$0	476.8	350	312	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-400	$158	$0	526.8	400	362	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-450	$189	$0	576.8	450	412	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-500	$215	$0	626.8	500	462	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT30-FMA25.4-45	$23	$0	113.4	45	23	22	20	46	25.4	50	4.52	9.52	-	Fig.1
BT30-FMA25.4-60	$23	$0	128.4	60	38	22	20	46	25.4	50	4.52	9.52	-	Fig.1
BT30-FMA31.75-45	$23	$0	115.4	45	23	22	22	46	31.75	60	6.7	12.7	-	Fig.1
BT30-FMA31.75-60	$23	$0	130.4	60	38	22	22	46	31.75	60	6.7	12.7	-	Fig.1
BT40-FMA25.4-60	$23	$0	145.4	60	33	27	20	63	25.4	50	4.52	9.52	-	Fig.1
BT40-FMA25.4-100	$23	$0	185.4	100	73	27	20	63	25.4	50	4.52	9.52	-	Fig.1
BT40-FMA25.4-150	$31	$0	235.4	150	123	27	20	63	25.4	50	4.52	9.52	-	Fig.1
BT40-FMA25.4-200	$41	$0	285.4	200	173	27	20	63	25.4	50	4.52	9.52	-	Fig.1
BT40-FMA31.75-60	$23	$0	147.4	60	33	27	22	63	31.75	60	6.7	12.7	-	Fig.1
BT40-FMA31.75-100	$23	$0	187.4	100	73	27	22	63	31.75	60	6.7	12.7	-	Fig.1
BT40-FMA31.75-150	$31	$0	237.4	150	123	27	22	63	31.75	60	6.7	12.7	-	Fig.1
BT40-FMA38.10-60	$23	$0	150.4	60	33	27	25	63	38.1	75	8.87	15.87	-	Fig.2
BT40-FMA38.10-100	$23	$0	190.4	100	73	27	25	63	38.1	75	8.87	15.87	-	Fig.2
BT40-FMA50.80-60	$23	$0	161.4	60	33	27	36	63	50.8	98	9.75	19.05	-	Fig.2
BT50-FMA25.4-60	$48	$0	181.8	60	22	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-100	$54	$0	221.8	100	62	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-150	$62	$0	271.8	150	112	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-200	$71	$0	321.8	200	162	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-250	$96	$0	371.8	250	212	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-300	$119	$0	421.8	300	262	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-350	$141	$0	471.8	350	312	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-400	$164	$0	521.8	400	362	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-450	$189	$0	571.8	450	412	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-500	$212	$0	621.8	500	462	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA31.75-60	$48	$0	183.8	60	22	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-100	$54	$0	223.8	100	62	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-150	$68	$0	273.8	150	112	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-200	$91	$0	323.8	200	162	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-250	$113	$0	373.8	250	212	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-300	$136	$0	423.8	300	262	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-350	$158	$0	473.8	350	312	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA38.10-60	$48	$0	186.8	60	22	38	25	100	38.1	75	8.87	15.87	-	Fig.1
BT50-FMA38.10-100	$54	$0	226.8	100	62	38	25	100	38.1	75	8.87	15.87	-	Fig.1
BT50-FMA38.10-150	$68	$0	276.8	150	112	38	25	100	38.1	75	8.87	15.87	-	Fig.1
BT50-FMA38.10-200	$91	$0	326.8	200	162	38	25	100	38.1	75	8.87	15.87	-	Fig.1
BT50-FMA50.80-75	$48	$0	212.8	75	37	38	36	100	50.8	98	9.75	19.05	-	Fig.1
BT50-FMA50.80-100	$54	$0	237.8	100	62	38	36	100	50.8	98	9.75	19.05	-	Fig.1
BT50-FMA50.80-150	$68	$0	287.8	150	112	38	36	100	50.8	98	9.75	19.05	-	Fig.1
BT50-FMA50.80-200	$91	$0	337.8	200	162	38	36	100	50.8	98	9.75	19.05	-	Fig.1

Articoli selezionati0 × $0

Subtotale$0

Importo totale$0

0 articoli selezionati

Caratteristiche

Caratteristiche e specifiche principali di questo prodotto.

Interfaccia cono BT conforme allo standard JIS MAS 403

Passaggio refrigerante interno per riduzione delle vibrazioni

Parte di connessione metrica con tolleranza h6

Adatto per operazioni di fresatura a spianare su centri CNC

Dimensioni personalizzabili su richiesta

Tirante di ritenzione venduto separatamente

Disegni tecnici

Specifiche tecniche dettagliate e dimensioni per riferimento professionale.

Fig.1

Fig.2

Fig.1

Fig.2

Portautensili BT per fresa a spianare

Scegli variante

Quantità

Prezzo unitario:

16.00 USD

Spedito dal magazzino in Cina

Sconto quantità

Valore ordine

1000 + USD

Sconto

3% di sconto

Valore ordine

3000 + USD

Sconto

5% di sconto

Valore ordine

8000 + USD

Sconto

8% di sconto

Valore ordine

15000 + USD

Sconto

12% di sconto

Valore ordine

30000 + USD

Sconto

15% di sconto

Valore ordine

50000 + USD

Sconto

18% di sconto

Gli sconti vengono applicati automaticamente al checkout in base al valore dell'ordine.

Magazzini disponibili

🇨🇳

Produzione in Cina

Stock e produzione disponibili

Pagamenti accettati

Visa

MasterCard

American Express

Discover

Apple Pay

Google Pay

PayPal

Bank Transfer (TT)

Specifiche

SKU	Price	Total	L	L1	L2	L3	L4	D	d1	d2	K1	K2	M	FIG
BT30-FMB16-60	$16	$0	125.4	60	38	22	17	46	16	38	3.2	8	M8*1.25P	Fig.1
BT30-FMB22-45	$16	$0	111.4	45	23	22	18	46	22	48	4.8	10	M10*1.5P	Fig.2
BT30-FMB22-60	$16	$0	126.4	60	38	22	18	46	22	48	4.8	10	M10*1.5P	Fig.2
BT30-FMB27-45	$19	$0	113.4	45	23	22	20	46	27	58	5.8	12	M12*1.75P	Fig.2
BT30-FMB27-60	$20	$0	128.4	60	38	22	20	46	27	58	5.8	12	M12*1.75P	Fig.2
BT30-FMB32-45	$20	$0	115.4	45	23	22	22	46	32	63	6.8	14	M16*2.0P	Fig.2
BT30-FMB32-60	$23	$0	130.4	60	38	22	22	46	32	63	6.8	14	M16*2.0P	Fig.2
BT30-FMB40-60	$23	$0	133.4	60	38	22	25	46	40	63	6.8	14	M16*2.0P	Fig.2
BT40-FMB16-60	$23	$0	142.4	60	33	27	17	63	16	38	3.2	8	M8*1.25P	Fig.1
BT40-FMB16-100	$23	$0	182.4	100	73	27	17	63	16	38	3.2	8	M8*1.25P	Fig.1
BT40-FMB22-60	$23	$0	143.4	60	33	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-100	$23	$0	183.4	100	73	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-150	$31	$0	233.4	150	123	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-200	$41	$0	283.4	200	173	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-250	$57	$0	333.4	250	223	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-300	$68	$0	383.4	300	273	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-350	$113	$0	433.4	350	323	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-400	$141	$0	483.4	400	373	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-450	$170	$0	533.4	450	423	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB22-500	$198	$0	583.4	500	473	27	18	63	22	48	4.8	10	M10*1.5P	Fig.1
BT40-FMB27-60	$23	$0	145.4	60	33	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB27-100	$23	$0	185.4	100	73	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB27-150	$31	$0	235.4	150	123	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB27-200	$41	$0	285.4	200	173	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB27-250	$60	$0	335.4	250	223	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB27-300	$71	$0	385.4	300	273	27	20	63	27	58	5.8	12	M12*1.75P	Fig.1
BT40-FMB32-60	$23	$0	147.4	60	33	27	22	63	32	63	6.8	14	M16*2.0P	Fig.2
BT40-FMB32-100	$26	$0	187.4	100	73	27	22	63	32	63	6.8	14	M16*2.0P	Fig.2
BT40-FMB32-150	$34	$0	237.4	150	123	27	22	63	32	63	6.8	14	M16*2.0P	Fig.2
BT40-FMB32-200	$46	$0	287.4	200	173	27	22	63	32	63	6.8	14	M16*2.0P	Fig.2
BT40-FMB40-60	$26	$0	150.4	60	33	27	25	63	40	74	8.3	16	M16*2.0P	Fig.2
BT40-FMB40-100	$26	$0	190.4	100	73	27	25	63	40	74	8.3	16	M16*2.0P	Fig.2
BT40-FMB40-150	$34	$0	240.4	150	123	27	25	63	40	74	8.3	16	M16*2.0P	Fig.2
BT40-FMB40-200	$48	$0	290.4	200	173	27	25	63	40	74	8.3	16	M16*2.0P	Fig.2
BT50-FMB16-60	$44	$0	178.8	60	22	38	17	100	16	38	3.2	8	M8*1.25P	Fig.1
BT50-FMB16-100	$48	$0	218.8	100	62	38	17	100	16	38	3.2	8	M8*1.25P	Fig.1
BT50-FMB16-150	$57	$0	268.8	150	112	38	17	100	16	38	3.2	8	M8*1.25P	Fig.1
BT50-FMB16-200	$68	$0	318.8	200	162	38	17	100	16	38	3.2	8	M8*1.25P	Fig.1
BT50-FMB22-60-D48	$41	$0	179.8	60	22	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-100-D48	$48	$0	219.8	100	62	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-150-D48	$57	$0	269.8	150	112	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-200-D48	$65	$0	319.8	200	162	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-250-D48	$91	$0	369.8	250	212	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-300-D48	$113	$0	419.8	300	262	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-350-D48	$136	$0	469.8	350	312	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-400-D48	$158	$0	519.8	400	362	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-450-D48	$186	$0	569.8	450	412	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-500-D48	$209	$0	619.8	500	462	38	18	100	22	48	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-45-D60	$40	$0	164.8	45	7	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-60-D60	$41	$0	179.8	60	22	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-100-D60	$48	$0	219.8	100	62	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-150-D60	$57	$0	269.8	150	112	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-200-D60	$65	$0	319.8	200	162	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-250-D60	$91	$0	369.8	250	212	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-300-D60	$113	$0	419.8	300	262	38	18	100	22	60	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-350-D62	$136	$0	469.8	350	312	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-400-D62	$158	$0	519.8	400	362	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-450-D62	$186	$0	569.8	450	412	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-500-D62	$209	$0	619.8	500	462	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-550-D62	$237	$0	669.8	550	512	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-600-D62	$288	$0	719.8	600	562	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-650-D62	$339	$0	769.8	650	612	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB22-700-D62	$406	$0	819.8	700	662	38	18	100	22	62-58	4.8	10	M10*1.5P	Fig.1
BT50-FMB27-45	$40	$0	166.8	45	7	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-60	$41	$0	181.8	60	22	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-100	$48	$0	221.8	100	62	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-150	$57	$0	271.8	150	112	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-200	$65	$0	321.8	200	162	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-250	$91	$0	371.8	250	212	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-300	$113	$0	421.8	300	262	38	20	100	27	60	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-350	$136	$0	471.8	350	312	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-400	$158	$0	521.8	400	362	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-450	$184	$0	571.8	450	412	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-500	$209	$0	621.8	500	462	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-550	$240	$0	671.8	550	512	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB27-600	$291	$0	721.8	600	562	38	20	100	27	62	5.8	12	M12*1.75P	Fig.1
BT50-FMB32-60	$43	$0	183.8	60	22	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-100	$51	$0	223.8	100	62	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-150	$65	$0	273.8	150	112	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-200	$65	$0	323.8	200	162	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-250	$91	$0	373.8	250	212	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-300	$113	$0	423.8	300	262	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-350	$139	$0	473.8	350	312	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-400	$158	$0	523.8	400	362	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-450	$186	$0	573.8	450	412	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB32-500	$212	$0	623.8	500	462	38	22	100	32	70	6.8	14	M16*2.0P	Fig.1
BT50-FMB40-60	$43	$0	186.8	60	22	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-100	$57	$0	226.8	100	62	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-150	$68	$0	276.8	150	112	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-200	$68	$0	326.8	200	162	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-250	$102	$0	376.8	250	212	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-300	$119	$0	426.8	300	262	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-350	$139	$0	476.8	350	312	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-400	$158	$0	526.8	400	362	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-450	$189	$0	576.8	450	412	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT50-FMB40-500	$215	$0	626.8	500	462	38	25	100	40	80	8.3	16	M16*2.0P	Fig.1
BT30-FMA25.4-45	$23	$0	113.4	45	23	22	20	46	25.4	50	4.52	9.52	-	Fig.1
BT30-FMA25.4-60	$23	$0	128.4	60	38	22	20	46	25.4	50	4.52	9.52	-	Fig.1
BT30-FMA31.75-45	$23	$0	115.4	45	23	22	22	46	31.75	60	6.7	12.7	-	Fig.1
BT30-FMA31.75-60	$23	$0	130.4	60	38	22	22	46	31.75	60	6.7	12.7	-	Fig.1
BT40-FMA25.4-60	$23	$0	145.4	60	33	27	20	63	25.4	50	4.52	9.52	-	Fig.1
BT40-FMA25.4-100	$23	$0	185.4	100	73	27	20	63	25.4	50	4.52	9.52	-	Fig.1
BT40-FMA25.4-150	$31	$0	235.4	150	123	27	20	63	25.4	50	4.52	9.52	-	Fig.1
BT40-FMA25.4-200	$41	$0	285.4	200	173	27	20	63	25.4	50	4.52	9.52	-	Fig.1
BT40-FMA31.75-60	$23	$0	147.4	60	33	27	22	63	31.75	60	6.7	12.7	-	Fig.1
BT40-FMA31.75-100	$23	$0	187.4	100	73	27	22	63	31.75	60	6.7	12.7	-	Fig.1
BT40-FMA31.75-150	$31	$0	237.4	150	123	27	22	63	31.75	60	6.7	12.7	-	Fig.1
BT40-FMA38.10-60	$23	$0	150.4	60	33	27	25	63	38.1	75	8.87	15.87	-	Fig.2
BT40-FMA38.10-100	$23	$0	190.4	100	73	27	25	63	38.1	75	8.87	15.87	-	Fig.2
BT40-FMA50.80-60	$23	$0	161.4	60	33	27	36	63	50.8	98	9.75	19.05	-	Fig.2
BT50-FMA25.4-60	$48	$0	181.8	60	22	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-100	$54	$0	221.8	100	62	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-150	$62	$0	271.8	150	112	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-200	$71	$0	321.8	200	162	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-250	$96	$0	371.8	250	212	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-300	$119	$0	421.8	300	262	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-350	$141	$0	471.8	350	312	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-400	$164	$0	521.8	400	362	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-450	$189	$0	571.8	450	412	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA25.4-500	$212	$0	621.8	500	462	38	20	100	25.4	50	4.52	9.52	-	Fig.1
BT50-FMA31.75-60	$48	$0	183.8	60	22	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-100	$54	$0	223.8	100	62	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-150	$68	$0	273.8	150	112	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-200	$91	$0	323.8	200	162	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-250	$113	$0	373.8	250	212	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-300	$136	$0	423.8	300	262	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA31.75-350	$158	$0	473.8	350	312	38	22	100	31.75	60	6.7	12.7	-	Fig.1
BT50-FMA38.10-60	$48	$0	186.8	60	22	38	25	100	38.1	75	8.87	15.87	-	Fig.1
BT50-FMA38.10-100	$54	$0	226.8	100	62	38	25	100	38.1	75	8.87	15.87	-	Fig.1
BT50-FMA38.10-150	$68	$0	276.8	150	112	38	25	100	38.1	75	8.87	15.87	-	Fig.1
BT50-FMA38.10-200	$91	$0	326.8	200	162	38	25	100	38.1	75	8.87	15.87	-	Fig.1
BT50-FMA50.80-75	$48	$0	212.8	75	37	38	36	100	50.8	98	9.75	19.05	-	Fig.1
BT50-FMA50.80-100	$54	$0	237.8	100	62	38	36	100	50.8	98	9.75	19.05	-	Fig.1
BT50-FMA50.80-150	$68	$0	287.8	150	112	38	36	100	50.8	98	9.75	19.05	-	Fig.1
BT50-FMA50.80-200	$91	$0	337.8	200	162	38	36	100	50.8	98	9.75	19.05	-	Fig.1
