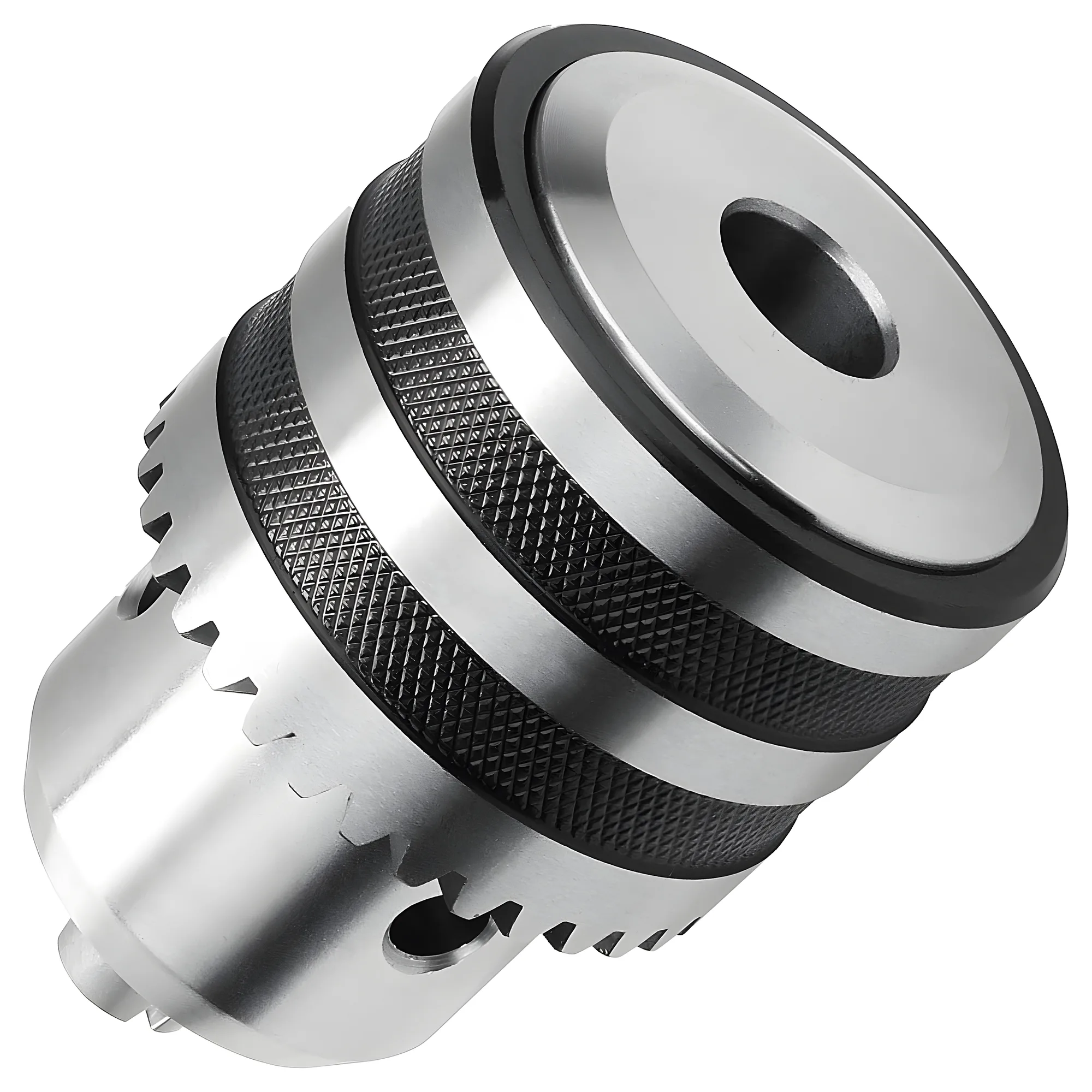

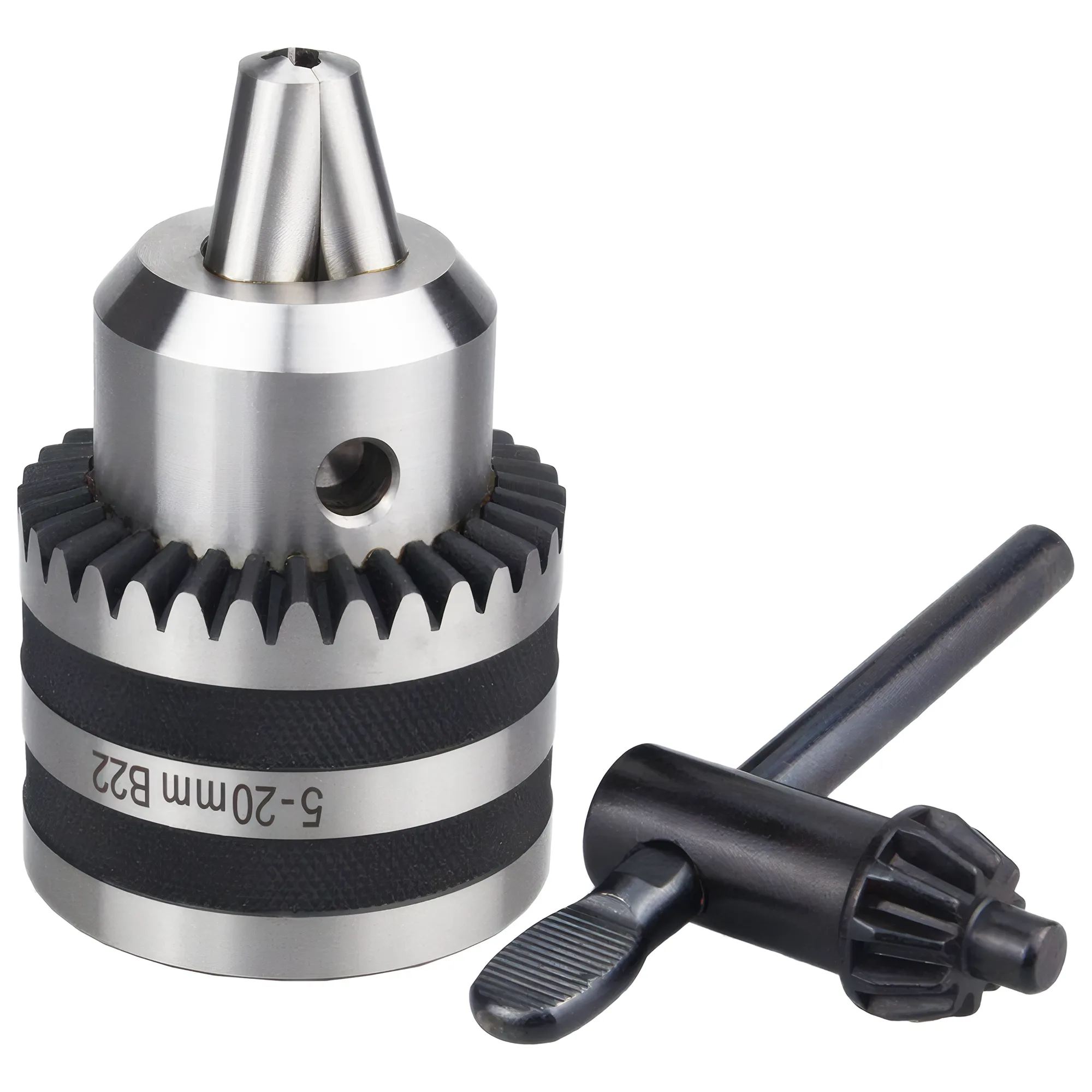

Portabrocas con llave precisión servicio pesado
Portabrocas con llave de alta precisión para servicio pesado, con descentramiento de 0,1 mm. Todos los componentes mecanizados con precisión, fabricados en acero con tratamiento térmico al vacío. Apto para operaciones de precisión en CNC, tornos y fresadoras.
Precio unitario:
14.00 USDDescuento por volumen
Valor del pedido
1000 + USD
Descuento
3% de descuento
Valor del pedido
3000 + USD
Descuento
5% de descuento
Valor del pedido
8000 + USD
Descuento
8% de descuento
Valor del pedido
15000 + USD
Descuento
12% de descuento
Valor del pedido
30000 + USD
Descuento
15% de descuento
Valor del pedido
50000 + USD
Descuento
18% de descuento
Los descuentos se aplican automáticamente al pagar según el valor del pedido.
Almacenes disponibles
Fábrica en China
Stock y producción disponibles
Pagos aceptados
Especificaciones
| Cart+ | SKU | Price | Quantity | Total | Clamping Range | Connection | D (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|
DC-KD-HP10-B10-6-D32 | $14 | $0 | 0.5-6 (1/64-1/4) | B10 | 32 | 50 | ||
DC-KD-HP10-B10-6-D30 | $14 | $0 | 0.5-6 (1/64-1/4) | B10 | 30 | 50 | ||
DC-KD-HP10-B12-10-D42 | $17 | $0 | 1.0-10 (1/32-3/8) | B12 | 42 | 67 | ||
DC-KD-HP10-B12-10-D35 | $17 | $0 | 1.0-10 (1/32-3/8) | B12 | 35 | 58 | ||
DC-KD-HP10-B16-13-D53 | $22 | $0 | 1.0-13 (1/32-1/2) | B16 | 53 | 86 | ||
DC-KD-HP10-B18-13 | $22 | $0 | 1.0-13 (1/32-1/2) | B18 | 53 | 86 | ||
DC-KD-HP10-B16-13-D46 | $20 | $0 | 1.0-13 (1/32-1/2) | B16 | 46 | 75 | ||
DC-KD-HP10-B16-16-D53 | $22 | $0 | 3.0-16 (1/8-5/8) | B16 | 53 | 86 | ||
DC-KD-HP10-B18-16-D53 | $26 | $0 | 3.0-16 (1/8-5/8) | B18 | 53 | 86 | ||
DC-KD-HP10-B18-16-D57 | $26 | $0 | 1.0-16 (1/32-5/8) | B18 | 57 | 93 | ||
DC-KD-HP10-B16-16-D57 | $26 | $0 | 1.0-16 (1/32-5/8) | B16 | 57 | 93 | ||
DC-KD-HP10-B22-20-D65 | $38 | $0 | 5.0-20 (3/16-3/4) | B22 | 65 | 108 | ||
DC-KD-HP10-B22-20-D68 | $52 | $0 | 1.0-20 (1/32-3/4) | B22 | 68 | 120 | ||
DC-KD-HP10-JT0-4 | $14 | $0 | 0.3-4 (1/88-1/6) | JT0 | 21.5 | 36 | ||
DC-KD-HP10-JT1-6-D32 | $14 | $0 | 0.5-6 (1/64-1/4) | JT1 | 32 | 50 | ||
DC-KD-HP10-JT1-6-D30 | $14 | $0 | 0.5-6 (1/64-1/4) | JT1 | 30 | 50 | ||
DC-KD-HP10-JT2-10 | $17 | $0 | 1.0-10 (1/32-3/8) | JT2 | 42 | 67 | ||
DC-KD-HP10-JT2S-10 | $17 | $0 | 1.0-10 (1/32-3/8) | JT2S(Short) | 42 | 67 | ||
DC-KD-HP10-JT33-13-D53 | $22 | $0 | 1.0-13 (1/32-1/2) | JT33 | 53 | 86 | ||
DC-KD-HP10-JT6-13-D53 | $22 | $0 | 1.0-13 (1/32-1/2) | JT6 | 53 | 86 | ||
DC-KD-HP10-JT33-13-D46 | $20 | $0 | 1.0-13 (1/32-1/2) | JT33 | 46 | 75 | ||
DC-KD-HP10-JT6-13-D46 | $20 | $0 | 1.0-13 (1/32-1/2) | JT6 | 46 | 75 | ||
DC-KD-HP10-JT2S-13 | $20 | $0 | 1.0-13 (1/32-1/2) | JT2S(Short) | 46 | 75 | ||
DC-KD-HP10-JT33-16 | $26 | $0 | 3.0-16 (1/8-5/8) | JT33 | 53 | 86 | ||
DC-KD-HP10-JT6-16-D53 | $26 | $0 | 3.0-16 (1/8-5/8) | JT6 | 53 | 86 | ||
DC-KD-HP10-JT3-16 | $26 | $0 | 1.0-16 (1/32-5/8) | JT3 | 57 | 93 | ||
DC-KD-HP10-JT6-16-D57 | $26 | $0 | 1.0-16 (1/32-5/8) | JT6 | 57 | 93 | ||
DC-KD-HP10-JT3-20-D65 | $38 | $0 | 5.0-20 (3/16-3/4) | JT3 | 65 | 108 | ||
DC-KD-HP10-JT3-20-D68 | $52 | $0 | 1.0-20 (1/32-3/4) | JT3 | 68 | 120 | ||
DC-KD-HP10-JT4-20 | $52 | $0 | 1.0-20 (1/32-3/4) | JT4 | 68 | 120 | ||
DC-KD-HP10-JT4-19 | $44 | $0 | 1.0-19 (1/32-3/4) | JT4 | 68 | 120 | ||
DC-KD-HP10-JT3-19 | $44 | $0 | 1.0-19 (1/32-3/4) | JT3 | 68 | 120 | ||
DC-KD-HP10-24UNF-6-D32 | $14 | $0 | 0.6-6 (1/64-1/4) | 3/8-24UNF | 32 | 50 | ||
DC-KD-HP10-24UNF-6-D30 | $14 | $0 | 0.6-6 (1/64-1/4) | 3/8-24UNF | 30 | 50 | ||
DC-KD-HP10-24UNF-10-D42 | $19 | $0 | 1.0-10 (1/32-3/8) | 3/8-24UNF | 42 | 67 | ||
DC-KD-HP10-20UNF-10-D42 | $19 | $0 | 1.0-10 (1/32-3/8) | 1/2-20UNF | 42 | 67 | ||
DC-KD-HP10-24UNF-10-D35 | $19 | $0 | 1.0-10 (1/32-3/8) | 3/8-24UNF | 35 | 58 | ||
DC-KD-HP10-20UNF-10-D35 | $19 | $0 | 1.0-10 (1/32-3/8) | 1/2-20UNF | 35 | 58 | ||
DC-KD-HP10-20UNF-13-D53 | $23 | $0 | 1.0-13 (1/32-1/2) | 1/2-20UNF | 53 | 86 | ||
DC-KD-HP10-24UNF-13 | $23 | $0 | 1.0-13 (1/32-1/2) | 3/8-24UNF | 53 | 86 | ||
DC-KD-HP10-M12-13 | $23 | $0 | 1.0-13 (1/32-1/2) | M12x1.25 | 53 | 86 | ||
DC-KD-HP10-20UNF-13-D46 | $23 | $0 | 1.0-13 (1/32-1/2) | 1/2-20UNF | 46 | 75 | ||
DC-KD-HP10-16UNF-16-D53 | $27 | $0 | 3.0-16 (1/8-5/8) | 5/8-16UNF | 53 | 86 | ||
DC-KD-HP10-M12-16 | $27 | $0 | 3.0-16 (1/8-5/8) | M12x1.25 | 53 | 86 | ||
DC-KD-HP10-20UNF-16 | $27 | $0 | 1.0-16 (1/32-5/8) | 1/2-20UNF | 57 | 93 | ||
DC-KD-HP10-16UNF-16-D57 | $27 | $0 | 1.0-16 (1/32-5/8) | 5/8-16UNF | 57 | 93 |
Características
Características y especificaciones clave de este producto.
Descentramiento de 0,1 mm
Componentes mecanizados con precisión
Acero con tratamiento térmico al vacío
Apto para servicio pesado de precisión
Compatible con CNC, tornos y fresadoras
Mantiene la precisión en corte a alta velocidad

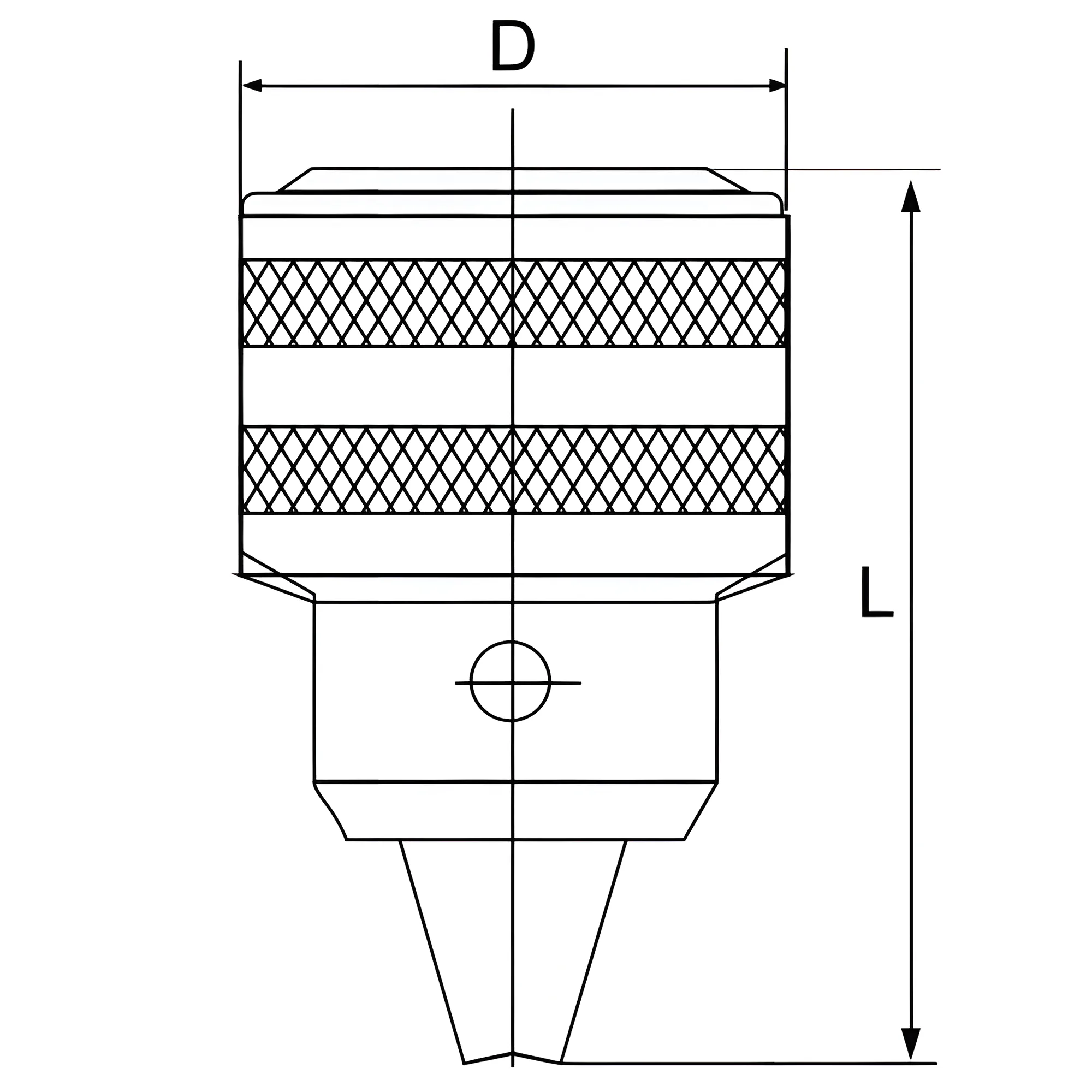

Dibujo técnico
Especificaciones técnicas detalladas y dimensiones para referencia profesional.
Fig.1
Fig.1
