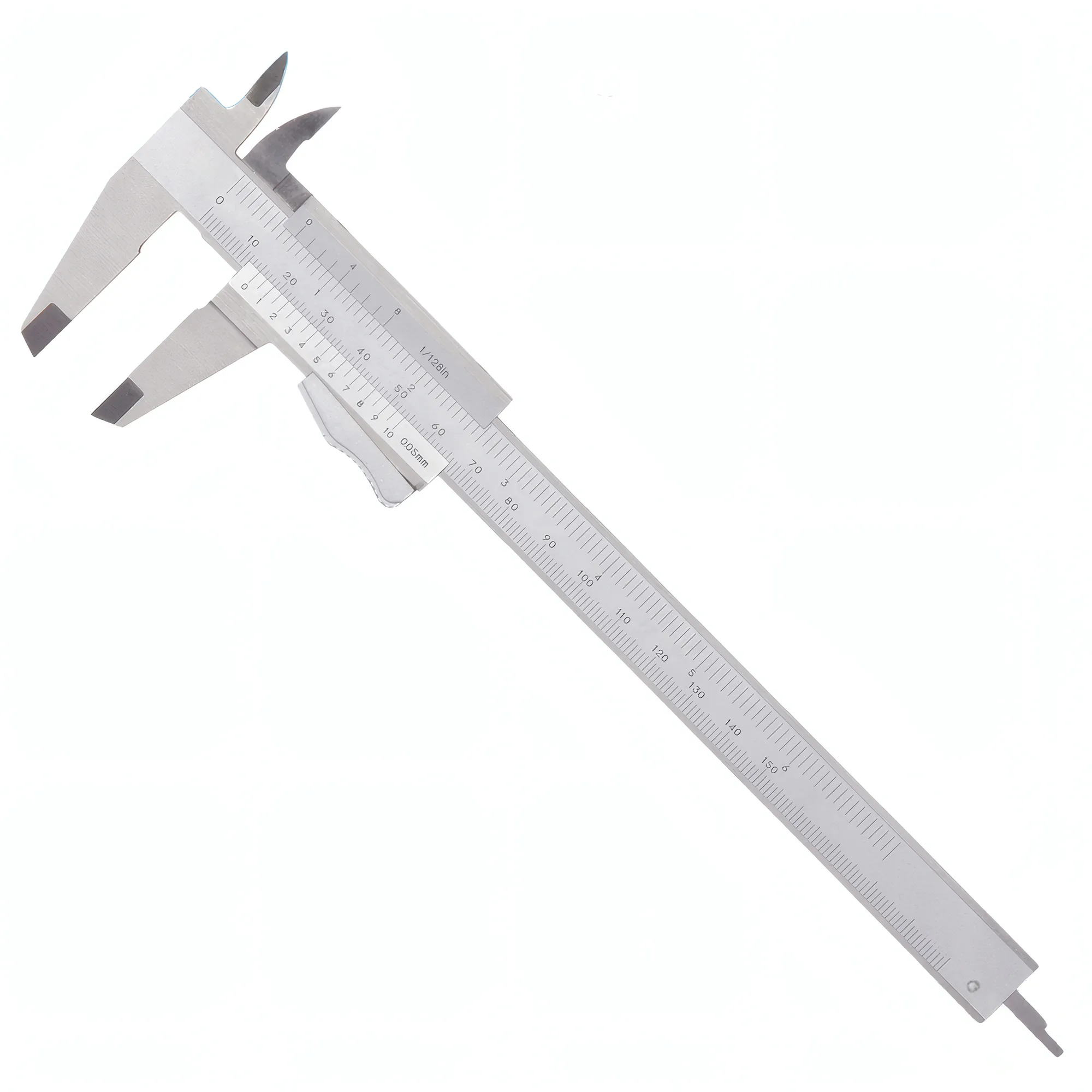

Thumb-Clamp Vernier Caliper
The TCVC series solves a problem every machinist knows: you find your measurement, then lose it the moment you lift the caliper. The auto self-locking thumb clamp secures the jaw position the instant you release pressure — no separate locking screw to fumble with. Mono-block closed frame construction keeps the instrument rigid under load. Full stainless steel throughout. Covers all four fundamental measurements: OD, ID, depth, and step.
Unit Price:
30.99 USDVolume Discount
Order Value
1000 + USD
Discount
3% off
Order Value
3000 + USD
Discount
5% off
Order Value
8000 + USD
Discount
8% off
Order Value
15000 + USD
Discount
12% off
Order Value
30000 + USD
Discount
15% off
Order Value
50000 + USD
Discount
18% off
Discounts are automatically applied at checkout based on order value.
Available Warehouse
China Factory
Stock & Production Available
Accepted Payment
Specifications
| Cart+ | SKU | Price | Quantity | Total | Range | Verier | A | B | C |
|---|---|---|---|---|---|---|---|---|---|
TCVC-D02-150 | $30.99 | $0 | 0-150mm/0-6" | 0.02mm/0.001" | 21mm | 40mm | 16mm | ||
TCVC-D02-200 | $45.99 | $0 | 0-200mm/0-8" | 0.02mm/0.001" | 24mm | 50mm | 16mm | ||
TCVC-D02-250 | $51.99 | $0 | 0-250mm/0-10" | 0.02mm/0.001" | 26mm | 64mm | 16mm | ||
TCVC-D02-300 | $56.99 | $0 | 0-300mm/0-12" | 0.02mm/0.001" | 26mm | 64mm | 16mm |
Features
Key product features and specifications that make this product stand out.
Auto self-locking thumb clamp — holds position on release
No separate locking screw required for jaw retention
Mono-block closed frame for rigid, consistent structure
Measures OD, ID, depth, and step in one instrument
Full stainless steel construction throughout
Available in four ranges up to 300mm(12")
Technical Drawing
Detailed technical specifications and dimensions for professional reference.
Fig.1
Fig.1
