HSK-Werkzeughalter mit Aufsteckfräserdorn

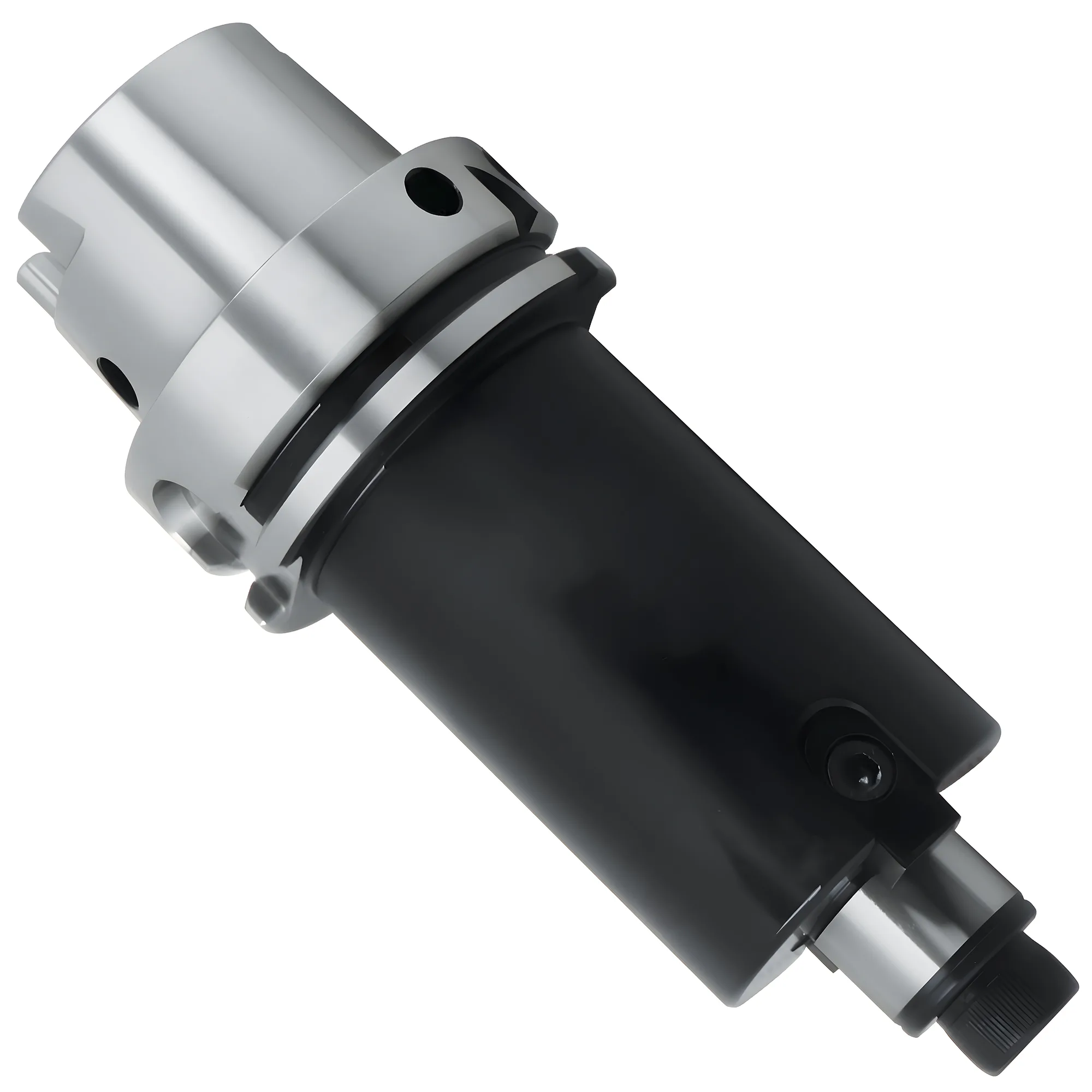

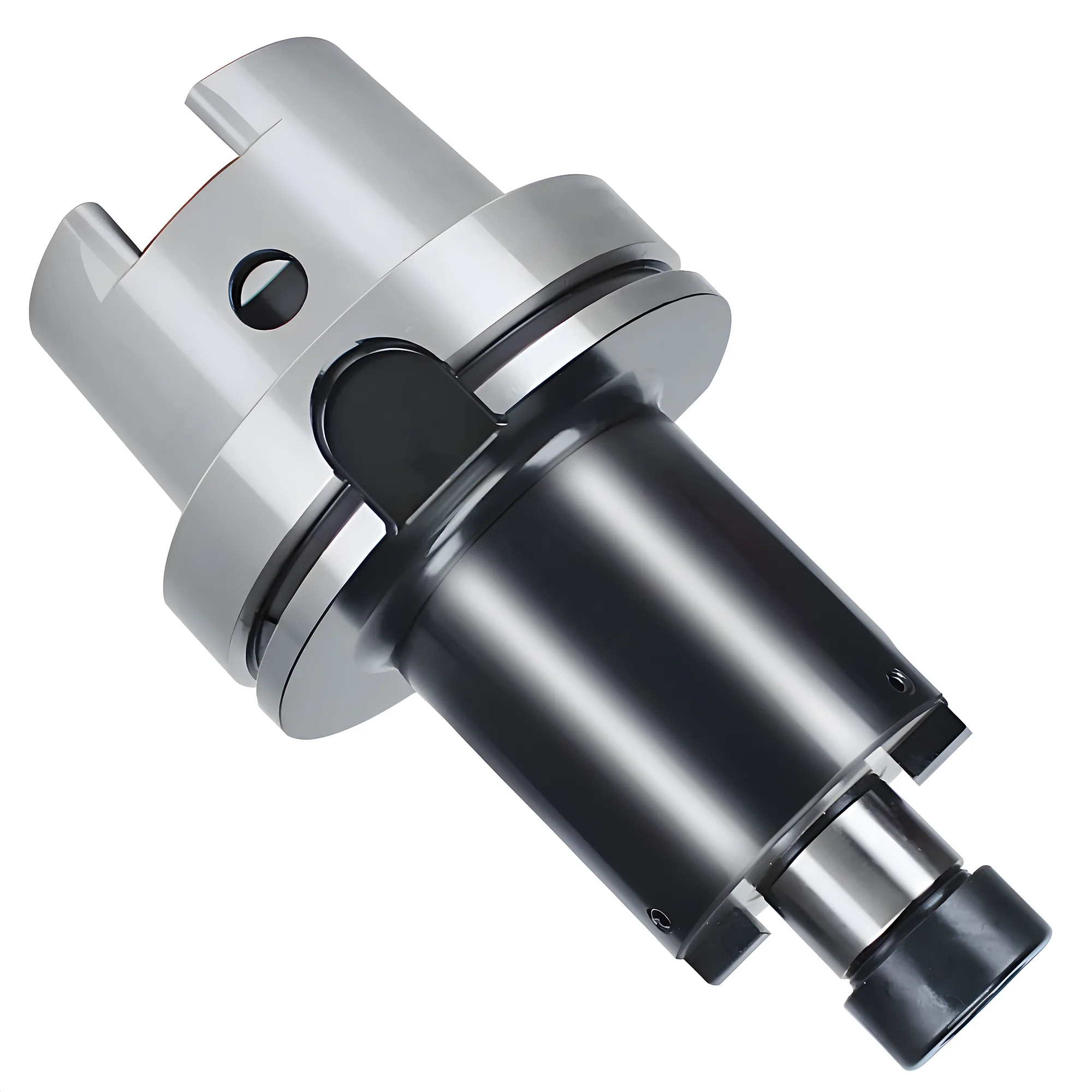

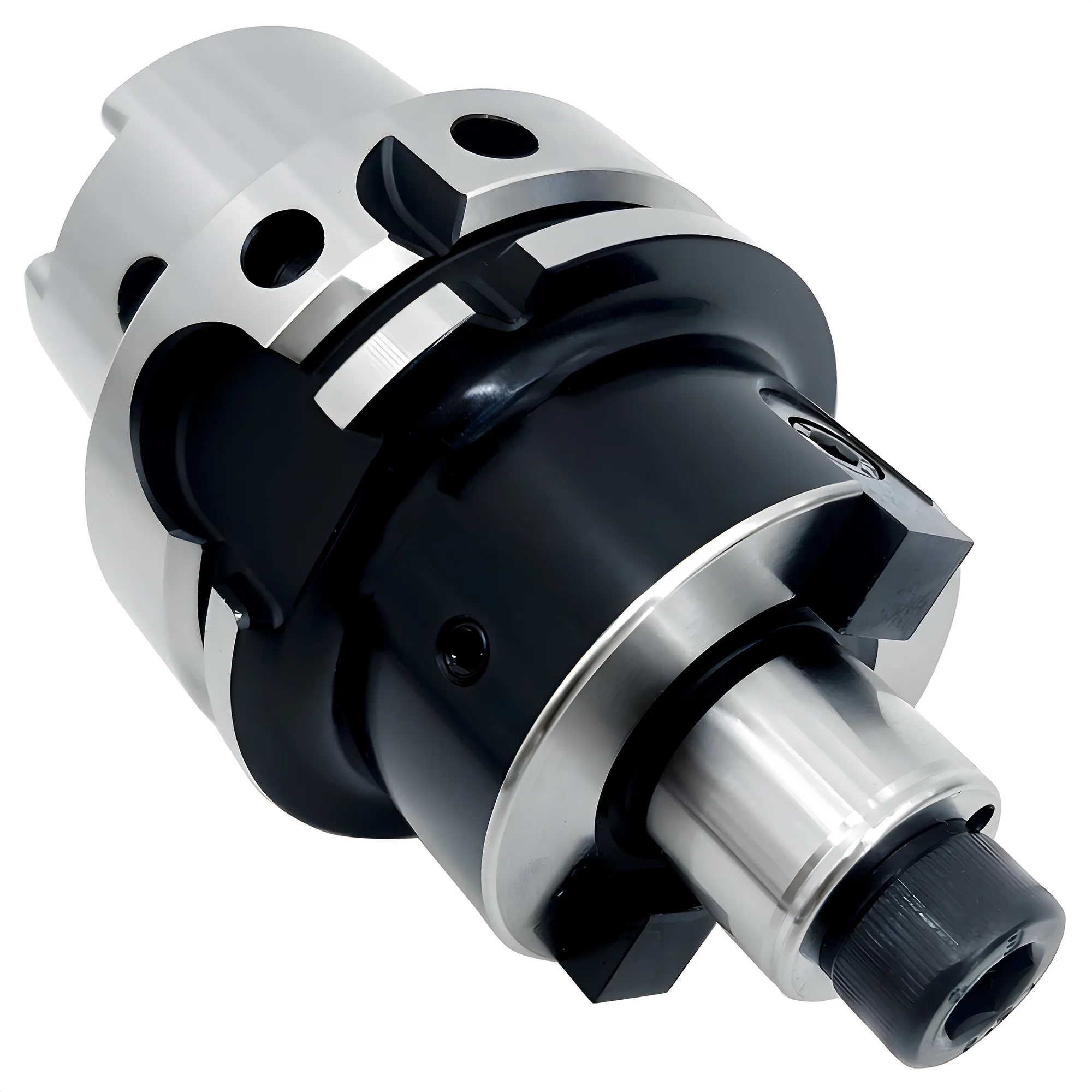

Name: HSK-Werkzeughalter mit Aufsteckfräserdorn
Brand: MACHALLY
Availability: OutOfStock

HSK-Werkzeughalter mit Aufsteckfräserdorn für Planfräsoperationen. HSK-Hohlschaftkegel. Geeignet für HSK50A, HSK63A und HSK100A Spindeln. FMB- und FMA-Ausführungen verfügbar. Präzisionsgefertigt für CNC-Bearbeitungszentren.

Variante wählen

Menge

Stückpreis:

60.00 USD

Versand aus China-Lager

Mengenrabatt

Bestellwert

1000 + USD

Rabatt

3% Rabatt

Bestellwert

3000 + USD

Rabatt

5% Rabatt

Bestellwert

8000 + USD

Rabatt

8% Rabatt

Bestellwert

15000 + USD

Rabatt

12% Rabatt

Bestellwert

30000 + USD

Rabatt

15% Rabatt

Bestellwert

50000 + USD

Rabatt

18% Rabatt

Rabatte werden beim Checkout automatisch basierend auf dem Bestellwert angewendet.

Verfügbare Lager

🇨🇳

Fertigung in China

Lagerbestand & Produktion verfügbar

Akzeptierte Zahlungen

Visa

MasterCard

American Express

Discover

Apple Pay

Google Pay

PayPal

Bank Transfer (TT)

Spezifikationen

SKU	Price	Total	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	d1 (mm)	d2 (mm)	K1 (mm)	K2 (mm)	T	D (mm)	L4 (mm)	FIG
HSK50A-FMB16-50	$60	$0	92	50	24	17	16	37	3.2	8	M8*1.25P	-	-	Fig.1
HSK50A-FMB22-60	$60	$0	103	60	34	18	22	47	4.8	10	M10*1.5P	-	-	Fig.1
HSK50A-FMB27-60	$60	$0	105	60	34	20	27	60	5.8	12	M12*1.75P	-	-	Fig.2
HSK50A-FMB32-60	$60	$0	107	60	34	22	32	63	6.3	14	M16*2.0P	-	-	Fig.2
HSK63A-FMB16-50-D37	$60	$0	99	50	24	26	16	37	3.2	8	M8*1.25P	63	17	Fig.3
HSK63A-FMB16-100-D37	$72	$0	149	100	74	26	16	37	3.2	8	M8*1.25P	63	17	Fig.3
HSK63A-FMB16-150-D37	$83	$0	199	150	134	26	16	37	3.2	8	M8*1.25P	63	17	Fig.3
HSK63A-FMB22-50-D47	$60	$0	100	50	24	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB22-100-D47	$83	$0	150	100	74	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB22-150-D47	$105	$0	200	150	124	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB22-200-D47	$115	$0	250	200	174	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB22-250-D47	$124	$0	300	250	224	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB22-300-D47	$150	$0	350	300	274	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB27-60-D60	$60	$0	112	60	34	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB27-100-D60	$80	$0	152	100	74	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB27-150-D60	$103	$0	202	150	124	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB27-200-D60	$114	$0	252	200	174	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB27-250-D60	$125	$0	302	250	224	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB27-300-D60	$155	$0	352	300	274	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB32-60-D63	$71	$0	114	60	34	26	32	63	6.3	14	M16*2.0P	63	22	Fig.4
HSK63A-FMB32-100-D63	$87	$0	154	100	74	26	32	63	6.3	14	M16*2.0P	63	22	Fig.4
HSK63A-FMB32-150-D63	$106	$0	204	150	124	26	32	63	6.3	14	M16*2.0P	63	22	Fig.4
HSK63A-FMB32-200-D63	$126	$0	254	200	174	26	32	63	6.3	14	M16*2.0P	63	22	Fig.4
HSK63A-FMB32-250-D63	$129	$0	304	250	224	26	32	63	6.3	14	M16*2.0P	63	22	Fig.4
HSK63A-FMB40-60-D78	$80	$0	117	60	34	26	40	78	8.3	16	M16*2.0P	63	25	Fig.4
HSK63A-FMB40-100-D78	$93	$0	157	100	74	26	40	78	8.3	16	M16*2.0P	63	25	Fig.4
HSK63A-FMB40-150-D78	$110	$0	207	150	124	26	40	78	8.3	16	M16*2.0P	63	25	Fig.4
HSK63A-FMB40-200-D78	$126	$0	257	200	174	26	40	78	8.3	16	M16*2.0P	63	25	Fig.4
HSK63A-FMB40-250-D78	$129	$0	307	250	224	26	40	78	8.3	16	M16*2.0P	63	25	Fig.4
HSK100A-FMB16-50-D37	$122	$0	117	50	21	29	16	37	3.2	8	M8*1.25P	100	17	Fig.5
HSK100A-FMB16-100-D37	$134	$0	167	100	71	29	16	37	3.2	8	M8*1.25P	100	17	Fig.5
HSK100A-FMB16-150-D37	$137	$0	217	150	121	29	16	37	3.2	8	M8*1.25P	100	17	Fig.5
HSK100A-FMB16-200-D37	$157	$0	267	200	171	29	16	37	3.2	8	M8*1.25P	100	17	Fig.5
HSK100A-FMB22-50-D47	$122	$0	118	50	21	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-100-D47	$158	$0	168	100	71	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-150-D47	$166	$0	218	150	121	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-200-D47	$189	$0	268	200	171	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-250-D47	$210	$0	318	250	221	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-300-D47	$232	$0	368	300	271	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-350-D47	$285	$0	418	350	321	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-400-D47	$337	$0	468	400	371	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-450-D47	$390	$0	518	450	421	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-500-D47	$442	$0	568	500	471	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-50-D60	$122	$0	118	50	21	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-100-D60	$158	$0	168	100	71	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-150-D60	$166	$0	218	150	121	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-200-D60	$189	$0	268	200	171	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-250-D60	$210	$0	318	250	221	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-300-D60	$232	$0	368	300	271	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-350-D60	$285	$0	418	350	321	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-400-D60	$337	$0	468	400	371	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-450-D60	$390	$0	518	450	421	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-500-D60	$442	$0	568	500	471	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB27-50-D60	$120	$0	120	50	21	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-100-D60	$160	$0	170	100	71	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-150-D60	$200	$0	220	150	121	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-200-D60	$202	$0	270	200	171	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-250-D60	$204	$0	320	250	221	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-300-D60	$244	$0	370	300	271	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-350-D60	$285	$0	420	350	321	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-400-D60	$337	$0	470	400	371	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-450-D60	$390	$0	520	450	421	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-500-D60	$442	$0	570	500	471	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-50-D76	$120	$0	122	50	21	29	27	76	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-100-D76	$142	$0	172	100	71	29	27	76	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-150-D76	$164	$0	222	150	121	29	27	76	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-200-D76	$185	$0	272	200	171	29	27	76	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB32-50-D80	$120	$0	122	50	21	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-100-D80	$151	$0	172	100	71	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-150-D80	$182	$0	222	150	121	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-200-D80	$193	$0	272	200	171	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-250-D80	$204	$0	322	250	221	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-300-D80	$244	$0	372	300	271	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-50-D96	$120	$0	122	50	21	29	32	96	6.8	14	M16*2.0P	100	22	Fig.8
HSK100A-FMB32-100-D96	$142	$0	172	100	71	29	32	96	6.8	14	M16*2.0P	100	22	Fig.8
HSK100A-FMB32-150-D96	$164	$0	222	150	121	29	32	96	6.8	14	M16*2.0P	100	22	Fig.8
HSK100A-FMB32-200-D96	$185	$0	272	200	171	29	32	96	6.8	14	M16*2.0P	100	22	Fig.8
HSK100A-FMB40-60-D88	$137	$0	135	60	31	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-100-D88	$162	$0	175	100	71	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-150-D88	$194	$0	225	150	121	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-200-D88	$204	$0	275	200	171	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-250-D88	$228	$0	325	250	221	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-300-D88	$264	$0	375	300	271	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-60-D100	$137	$0	135	60	31	29	40	100	8.3	16	M16*2.0P	100	25	Fig.8
HSK100A-FMB40-100-D100	$158	$0	175	100	71	29	40	100	8.3	16	M16*2.0P	100	25	Fig.8
HSK100A-FMB40-150-D100	$184	$0	225	150	121	29	40	100	8.3	16	M16*2.0P	100	25	Fig.8
HSK50A-FMA25.4-60	$60	$0	105	60	34	26	25.4	50	4.52	9.52	M12*1.75P	50	20	Fig.1
HSK50A-FMA31.75-60	$60	$0	107	60	34	26	31.75	60	6.7	12.7	M16*2.0P	50	22	Fig.2
HSK50A-FMA38.1-60	$60	$0	110	60	34	26	38.1	73	8.87	15.87	M16*2.0P	50	25	Fig.2
HSK63A-FMA25.4-60-D50	$60	$0	112	60	34	26	25.4	50	4.52	9.52	M12*1.75P	63	20	Fig.3
HSK63A-FMA25.4-100-D50	$74	$0	152	100	74	26	25.4	50	4.52	9.52	M12*1.75P	63	20	Fig.3
HSK63A-FMA25.4-150-D50	$92	$0	202	150	124	26	25.4	50	4.52	9.52	M12*1.75P	63	20	Fig.3
HSK63A-FMA25.4-200-D50	$110	$0	252	200	174	26	25.4	50	4.52	9.52	M12*1.75P	63	20	Fig.3
HSK63A-FMA31.75-60-D60	$60	$0	114	60	34	26	31.75	60	6.7	12.7	M16*2.0P	63	22	Fig.4
HSK63A-FMA31.75-100-D60	$74	$0	154	100	74	26	31.75	60	6.7	12.7	M16*2.0P	63	22	Fig.4
HSK63A-FMA31.75-150-D60	$92	$0	204	150	124	26	31.75	60	6.7	12.7	M16*2.0P	63	22	Fig.4
HSK63A-FMA31.75-200-D60	$110	$0	254	200	174	26	31.75	60	6.7	12.7	M16*2.0P	63	22	Fig.4
HSK63A-FMA38.1-60-D73	$71	$0	117	60	34	26	38.1	73	8.87	15.87	M16*2.0P	63	25	Fig.4
HSK63A-FMA38.1-100-D73	$84	$0	157	100	74	26	38.1	73	8.87	15.87	M16*2.0P	63	25	Fig.4
HSK63A-FMA38.1-150-D73	$100	$0	207	150	124	26	38.1	73	8.87	15.87	M16*2.0P	63	25	Fig.4
HSK63A-FMA38.1-200-D73	$116	$0	257	200	174	26	38.1	73	8.87	15.87	M16*2.0P	63	25	Fig.4
HSK100A-FMA25.4-50-D50	$122	$0	120	50	21	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA25.4-100-D50	$144	$0	170	100	71	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA25.4-150-D50	$157	$0	220	150	121	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA25.4-200-D50	$175	$0	270	200	171	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA25.4-250-D50	$192	$0	320	250	221	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA25.4-300-D50	$232	$0	370	300	271	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA31.75-50-D60	$120	$0	122	50	21	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA31.75-100-D60	$151	$0	172	100	71	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA31.75-150-D60	$182	$0	222	150	121	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA31.75-200-D60	$193	$0	272	200	171	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA31.75-250-D60	$204	$0	322	250	221	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA31.75-300-D60	$244	$0	372	300	271	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA38.1-60-D75	$120	$0	135	60	31	29	38.1	75	8.87	15.87	M16*2.0P	100	25	Fig.7
HSK100A-FMA38.1-100-D75	$142	$0	175	100	71	29	38.1	75	8.87	15.87	M16*2.0P	100	25	Fig.7
HSK100A-FMA38.1-150-D75	$170	$0	225	150	121	29	38.1	75	8.87	15.87	M16*2.0P	100	25	Fig.7
HSK100A-FMA38.1-200-D75	$198	$0	275	200	171	29	38.1	75	8.87	15.87	M16*2.0P	100	25	Fig.7
HSK100A-FMA38.1-250-D75	$204	$0	325	250	221	29	38.1	75	8.87	15.87	M16*2.0P	100	25	Fig.7
HSK100A-FMA50.8-70-D98	$137	$0	156	70	41	29	50.8	98	9.75	19.05	M24*3.0P	100	36	Fig.8
HSK100A-FMA50.8-100-D98	$154	$0	186	100	71	29	50.8	98	9.75	19.05	M24*3.0P	100	36	Fig.8

Ausgewählte Artikel0 × $0

Zwischensumme$0

Gesamtbetrag$0

Ausgewählt: 0 Artikel

Merkmale

Wichtige Produktmerkmale und Spezifikationen.

Hochpräzise Bearbeitung für hervorragende Oberflächengüte

Geeignet für HSK-Spindeln (50A, 63A, 100A)

Verschiedene Ausführungen: FMB- und FMA-Serien verfügbar

Hochwertige Materialien gewährleisten stabile Leistung

Stabile und zuverlässige Spannung für anspruchsvolle Aufgaben

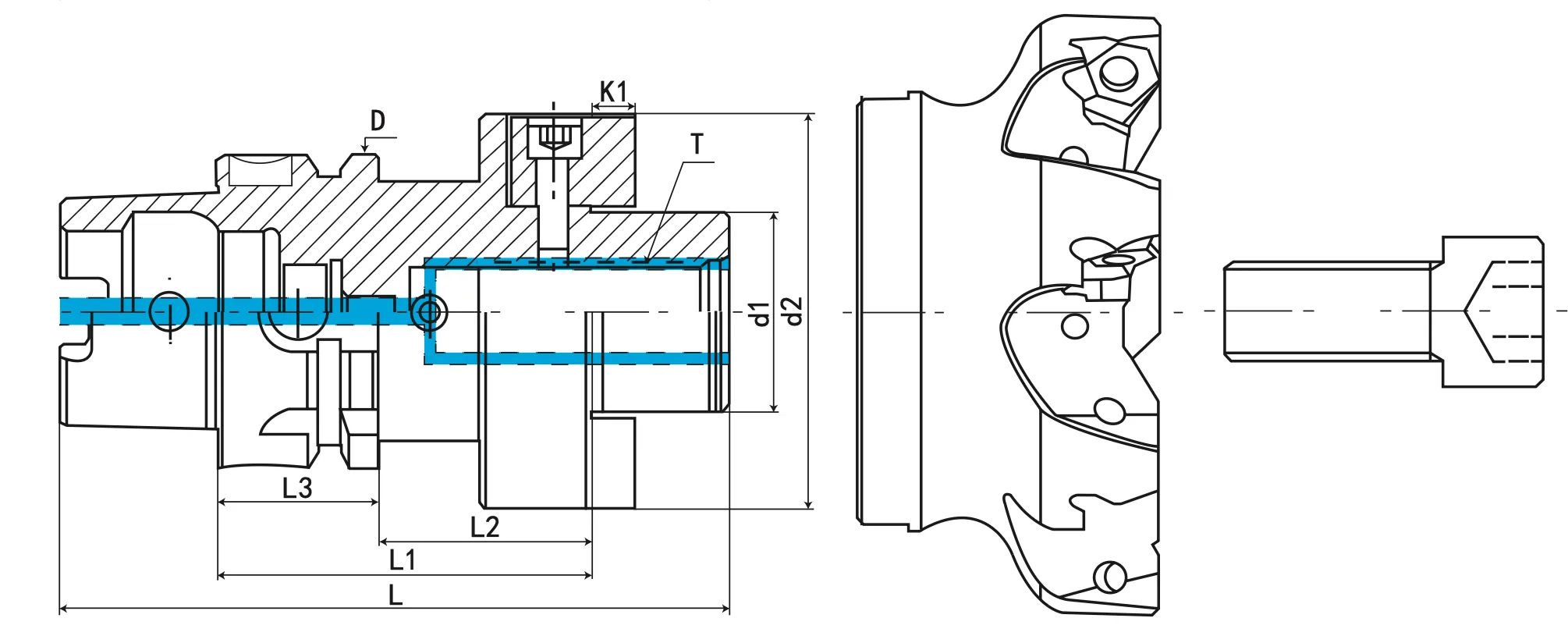

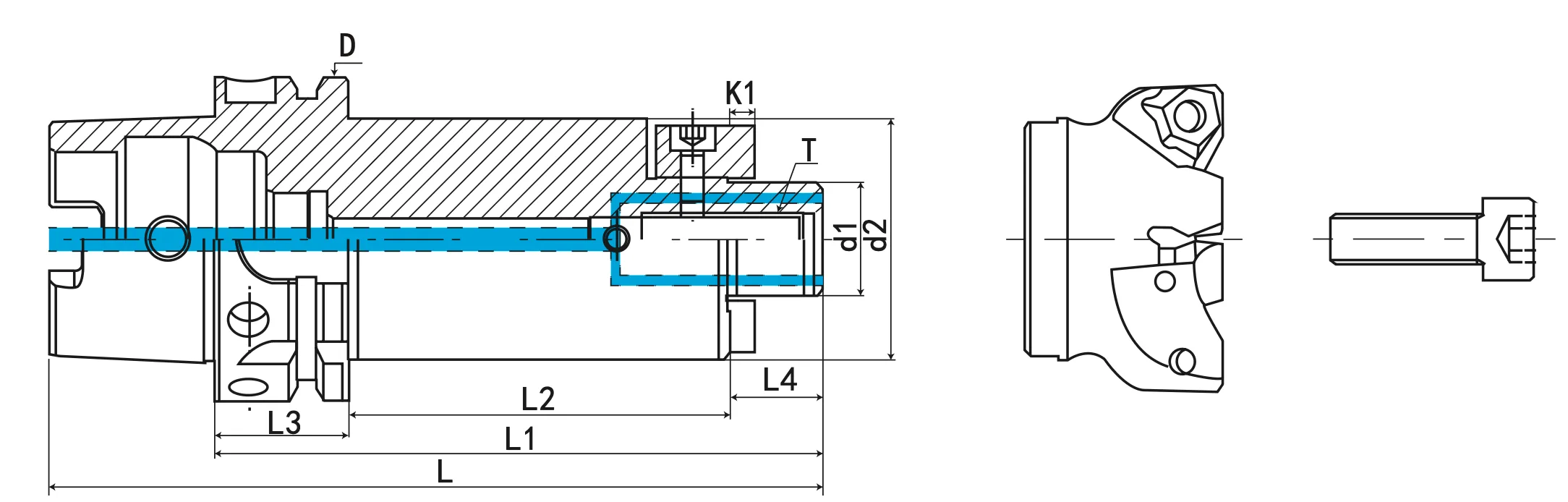

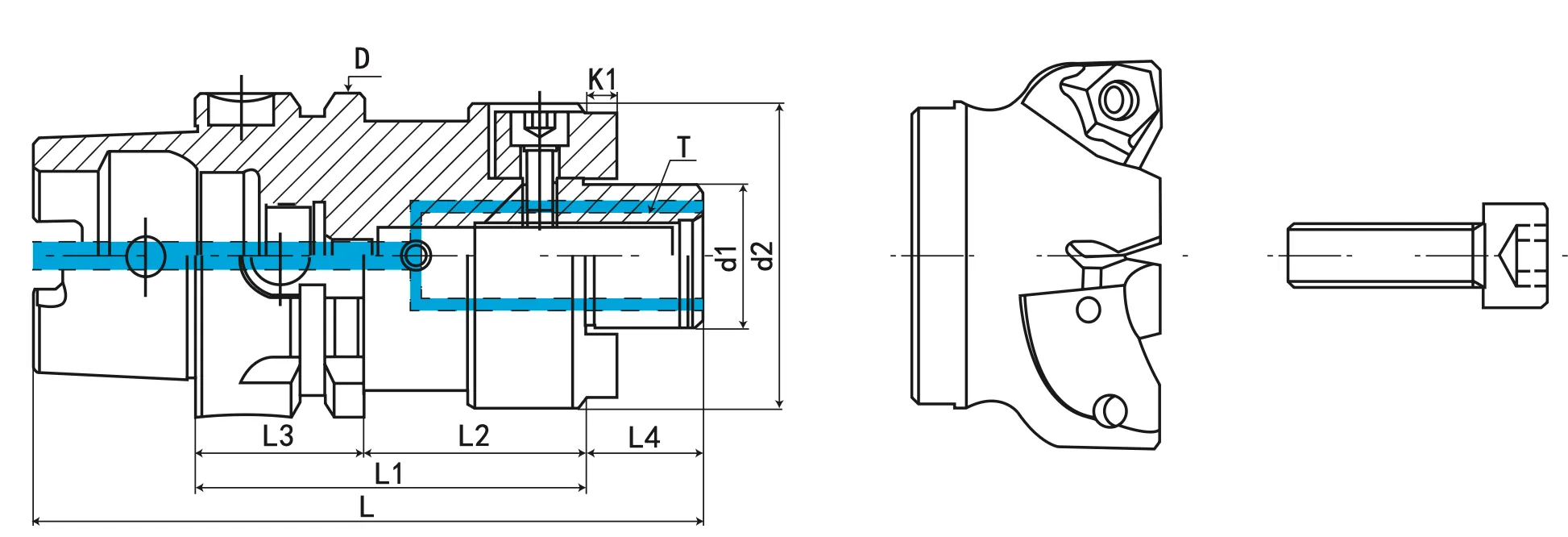

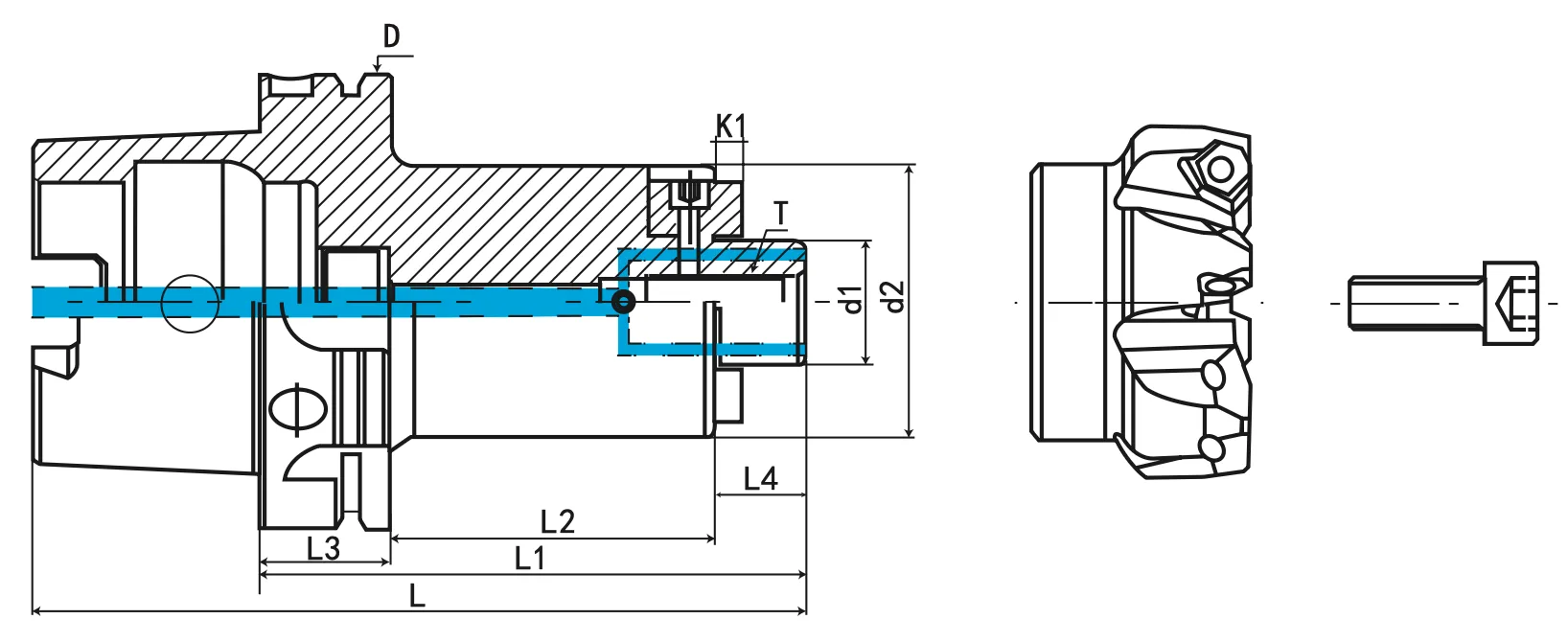

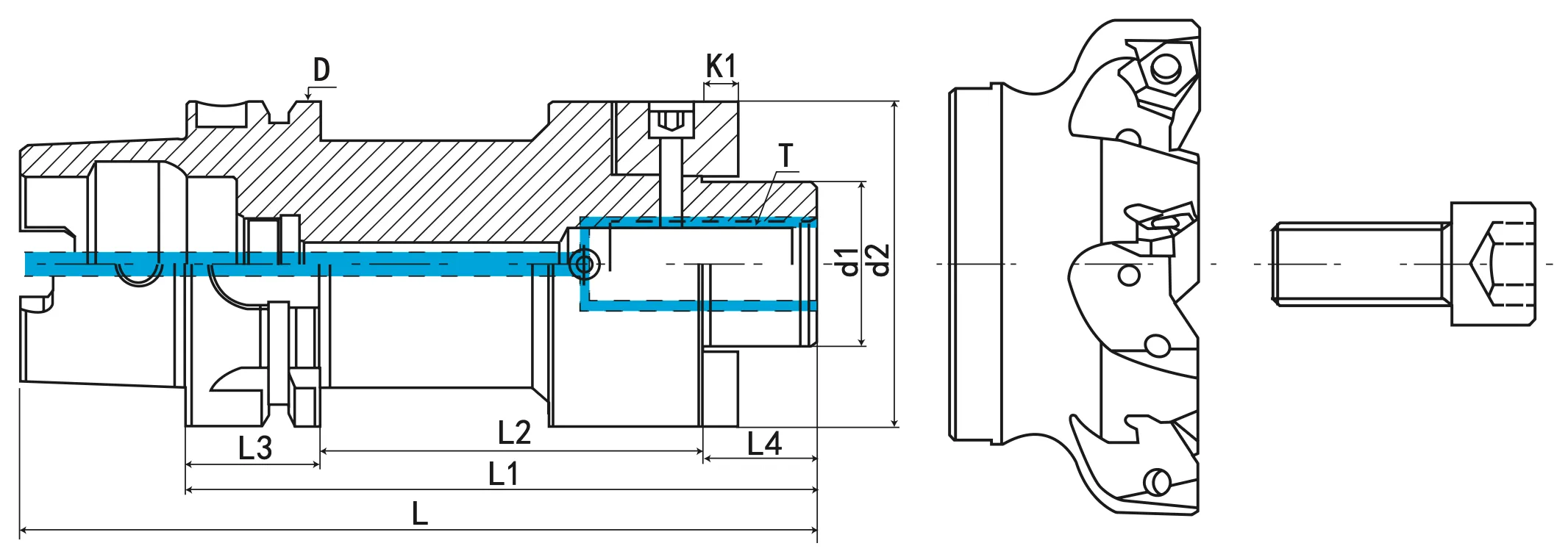

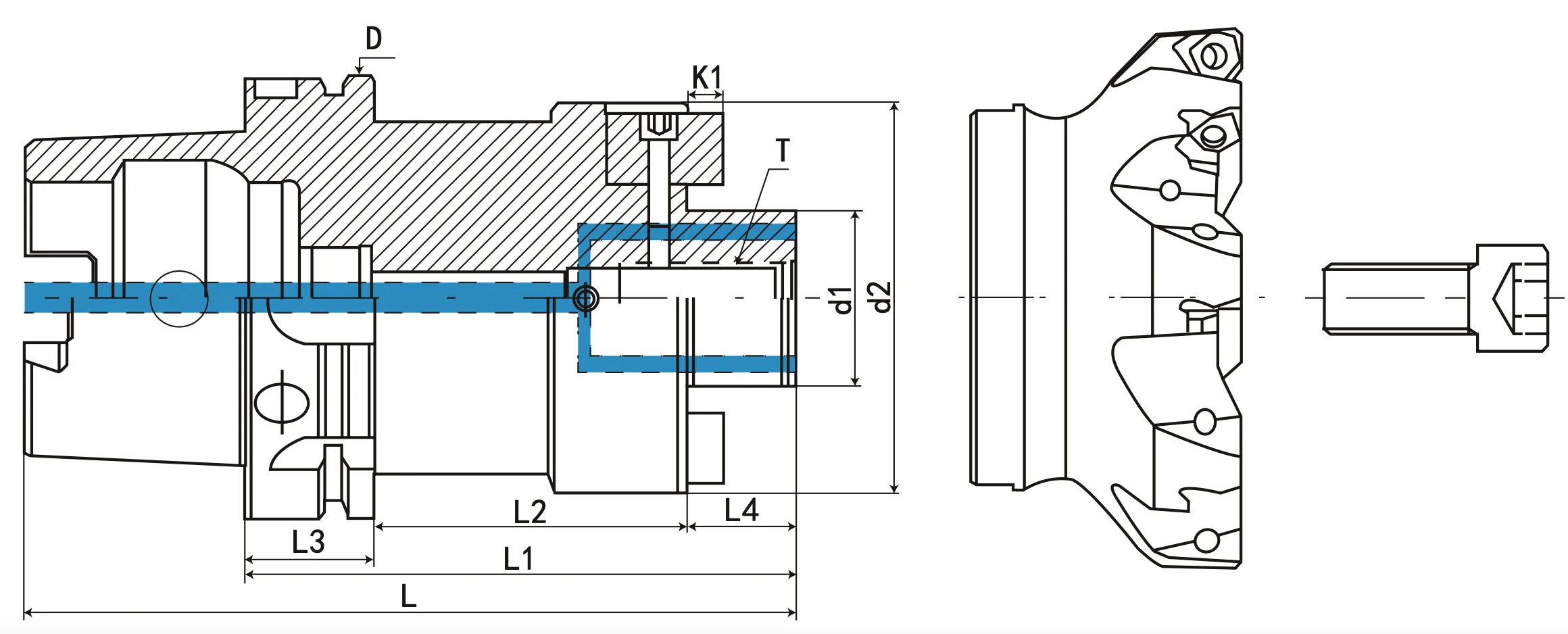

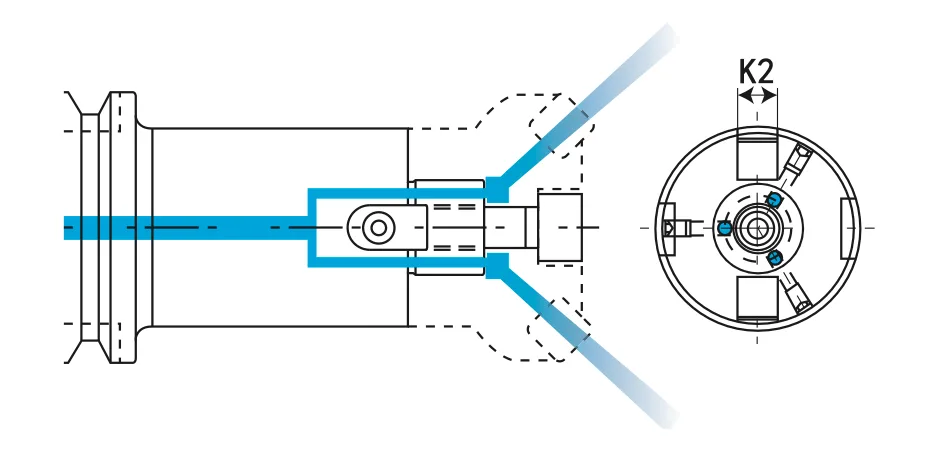

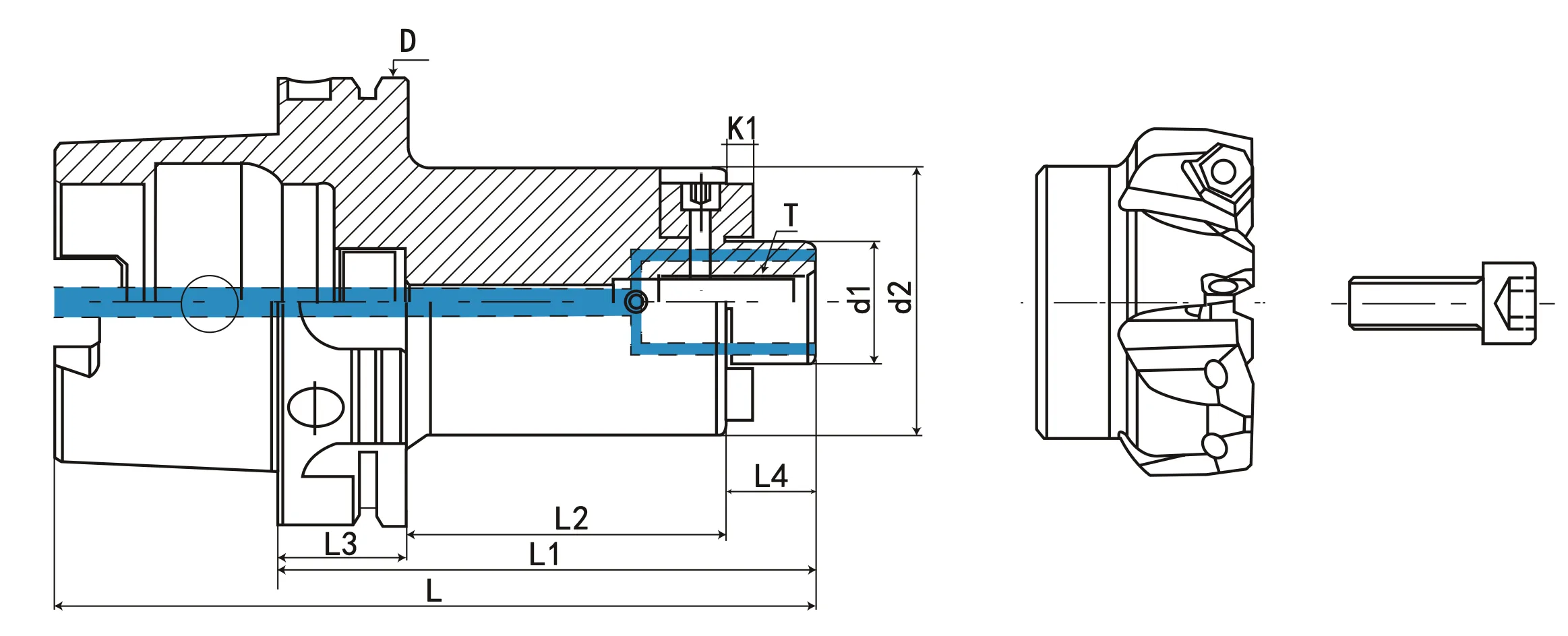

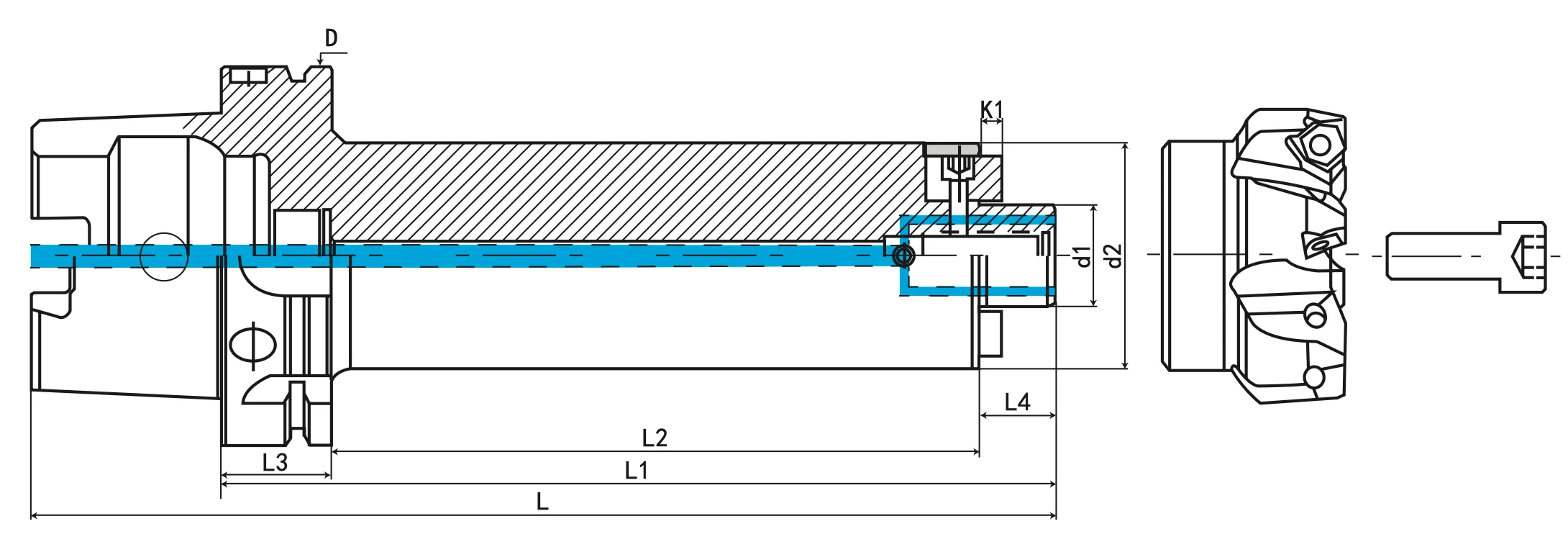

Technische Zeichnung

Detaillierte technische Spezifikationen und Maße als Referenz.

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

HSK-Werkzeughalter mit Aufsteckfräserdorn

Variante wählen

Menge

Stückpreis:

60.00 USD

Versand aus China-Lager

Mengenrabatt

Bestellwert

1000 + USD

Rabatt

3% Rabatt

Bestellwert

3000 + USD

Rabatt

5% Rabatt

Bestellwert

8000 + USD

Rabatt

8% Rabatt

Bestellwert

15000 + USD

Rabatt

12% Rabatt

Bestellwert

30000 + USD

Rabatt

15% Rabatt

Bestellwert

50000 + USD

Rabatt

18% Rabatt

Rabatte werden beim Checkout automatisch basierend auf dem Bestellwert angewendet.

Verfügbare Lager

🇨🇳

Fertigung in China

Lagerbestand & Produktion verfügbar

Akzeptierte Zahlungen

Visa

MasterCard

American Express

Discover

Apple Pay

Google Pay

PayPal

Bank Transfer (TT)

Spezifikationen

SKU	Price	Total	L (mm)	L1 (mm)	L2 (mm)	L3 (mm)	d1 (mm)	d2 (mm)	K1 (mm)	K2 (mm)	T	D (mm)	L4 (mm)	FIG
HSK50A-FMB16-50	$60	$0	92	50	24	17	16	37	3.2	8	M8*1.25P	-	-	Fig.1
HSK50A-FMB22-60	$60	$0	103	60	34	18	22	47	4.8	10	M10*1.5P	-	-	Fig.1
HSK50A-FMB27-60	$60	$0	105	60	34	20	27	60	5.8	12	M12*1.75P	-	-	Fig.2
HSK50A-FMB32-60	$60	$0	107	60	34	22	32	63	6.3	14	M16*2.0P	-	-	Fig.2
HSK63A-FMB16-50-D37	$60	$0	99	50	24	26	16	37	3.2	8	M8*1.25P	63	17	Fig.3
HSK63A-FMB16-100-D37	$72	$0	149	100	74	26	16	37	3.2	8	M8*1.25P	63	17	Fig.3
HSK63A-FMB16-150-D37	$83	$0	199	150	134	26	16	37	3.2	8	M8*1.25P	63	17	Fig.3
HSK63A-FMB22-50-D47	$60	$0	100	50	24	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB22-100-D47	$83	$0	150	100	74	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB22-150-D47	$105	$0	200	150	124	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB22-200-D47	$115	$0	250	200	174	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB22-250-D47	$124	$0	300	250	224	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB22-300-D47	$150	$0	350	300	274	26	22	47	4.8	10	M10*1.5P	63	18	Fig.3
HSK63A-FMB27-60-D60	$60	$0	112	60	34	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB27-100-D60	$80	$0	152	100	74	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB27-150-D60	$103	$0	202	150	124	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB27-200-D60	$114	$0	252	200	174	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB27-250-D60	$125	$0	302	250	224	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB27-300-D60	$155	$0	352	300	274	26	27	60	5.8	12	M12*1.75P	63	20	Fig.3
HSK63A-FMB32-60-D63	$71	$0	114	60	34	26	32	63	6.3	14	M16*2.0P	63	22	Fig.4
HSK63A-FMB32-100-D63	$87	$0	154	100	74	26	32	63	6.3	14	M16*2.0P	63	22	Fig.4
HSK63A-FMB32-150-D63	$106	$0	204	150	124	26	32	63	6.3	14	M16*2.0P	63	22	Fig.4
HSK63A-FMB32-200-D63	$126	$0	254	200	174	26	32	63	6.3	14	M16*2.0P	63	22	Fig.4
HSK63A-FMB32-250-D63	$129	$0	304	250	224	26	32	63	6.3	14	M16*2.0P	63	22	Fig.4
HSK63A-FMB40-60-D78	$80	$0	117	60	34	26	40	78	8.3	16	M16*2.0P	63	25	Fig.4
HSK63A-FMB40-100-D78	$93	$0	157	100	74	26	40	78	8.3	16	M16*2.0P	63	25	Fig.4
HSK63A-FMB40-150-D78	$110	$0	207	150	124	26	40	78	8.3	16	M16*2.0P	63	25	Fig.4
HSK63A-FMB40-200-D78	$126	$0	257	200	174	26	40	78	8.3	16	M16*2.0P	63	25	Fig.4
HSK63A-FMB40-250-D78	$129	$0	307	250	224	26	40	78	8.3	16	M16*2.0P	63	25	Fig.4
HSK100A-FMB16-50-D37	$122	$0	117	50	21	29	16	37	3.2	8	M8*1.25P	100	17	Fig.5
HSK100A-FMB16-100-D37	$134	$0	167	100	71	29	16	37	3.2	8	M8*1.25P	100	17	Fig.5
HSK100A-FMB16-150-D37	$137	$0	217	150	121	29	16	37	3.2	8	M8*1.25P	100	17	Fig.5
HSK100A-FMB16-200-D37	$157	$0	267	200	171	29	16	37	3.2	8	M8*1.25P	100	17	Fig.5
HSK100A-FMB22-50-D47	$122	$0	118	50	21	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-100-D47	$158	$0	168	100	71	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-150-D47	$166	$0	218	150	121	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-200-D47	$189	$0	268	200	171	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-250-D47	$210	$0	318	250	221	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-300-D47	$232	$0	368	300	271	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-350-D47	$285	$0	418	350	321	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-400-D47	$337	$0	468	400	371	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-450-D47	$390	$0	518	450	421	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-500-D47	$442	$0	568	500	471	29	22	47	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-50-D60	$122	$0	118	50	21	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-100-D60	$158	$0	168	100	71	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-150-D60	$166	$0	218	150	121	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-200-D60	$189	$0	268	200	171	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-250-D60	$210	$0	318	250	221	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-300-D60	$232	$0	368	300	271	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-350-D60	$285	$0	418	350	321	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-400-D60	$337	$0	468	400	371	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-450-D60	$390	$0	518	450	421	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB22-500-D60	$442	$0	568	500	471	29	22	60	4.8	10	M10*1.5P	100	18	Fig.5
HSK100A-FMB27-50-D60	$120	$0	120	50	21	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-100-D60	$160	$0	170	100	71	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-150-D60	$200	$0	220	150	121	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-200-D60	$202	$0	270	200	171	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-250-D60	$204	$0	320	250	221	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-300-D60	$244	$0	370	300	271	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-350-D60	$285	$0	420	350	321	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-400-D60	$337	$0	470	400	371	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-450-D60	$390	$0	520	450	421	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-500-D60	$442	$0	570	500	471	29	27	60	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-50-D76	$120	$0	122	50	21	29	27	76	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-100-D76	$142	$0	172	100	71	29	27	76	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-150-D76	$164	$0	222	150	121	29	27	76	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB27-200-D76	$185	$0	272	200	171	29	27	76	5.8	12	M12*1.75P	100	20	Fig.7
HSK100A-FMB32-50-D80	$120	$0	122	50	21	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-100-D80	$151	$0	172	100	71	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-150-D80	$182	$0	222	150	121	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-200-D80	$193	$0	272	200	171	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-250-D80	$204	$0	322	250	221	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-300-D80	$244	$0	372	300	271	29	32	80	6.8	14	M16*2.0P	100	22	Fig.7
HSK100A-FMB32-50-D96	$120	$0	122	50	21	29	32	96	6.8	14	M16*2.0P	100	22	Fig.8
HSK100A-FMB32-100-D96	$142	$0	172	100	71	29	32	96	6.8	14	M16*2.0P	100	22	Fig.8
HSK100A-FMB32-150-D96	$164	$0	222	150	121	29	32	96	6.8	14	M16*2.0P	100	22	Fig.8
HSK100A-FMB32-200-D96	$185	$0	272	200	171	29	32	96	6.8	14	M16*2.0P	100	22	Fig.8
HSK100A-FMB40-60-D88	$137	$0	135	60	31	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-100-D88	$162	$0	175	100	71	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-150-D88	$194	$0	225	150	121	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-200-D88	$204	$0	275	200	171	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-250-D88	$228	$0	325	250	221	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-300-D88	$264	$0	375	300	271	29	40	88	8.3	16	M16*2.0P	100	25	Fig.7
HSK100A-FMB40-60-D100	$137	$0	135	60	31	29	40	100	8.3	16	M16*2.0P	100	25	Fig.8
HSK100A-FMB40-100-D100	$158	$0	175	100	71	29	40	100	8.3	16	M16*2.0P	100	25	Fig.8
HSK100A-FMB40-150-D100	$184	$0	225	150	121	29	40	100	8.3	16	M16*2.0P	100	25	Fig.8
HSK50A-FMA25.4-60	$60	$0	105	60	34	26	25.4	50	4.52	9.52	M12*1.75P	50	20	Fig.1
HSK50A-FMA31.75-60	$60	$0	107	60	34	26	31.75	60	6.7	12.7	M16*2.0P	50	22	Fig.2
HSK50A-FMA38.1-60	$60	$0	110	60	34	26	38.1	73	8.87	15.87	M16*2.0P	50	25	Fig.2
HSK63A-FMA25.4-60-D50	$60	$0	112	60	34	26	25.4	50	4.52	9.52	M12*1.75P	63	20	Fig.3
HSK63A-FMA25.4-100-D50	$74	$0	152	100	74	26	25.4	50	4.52	9.52	M12*1.75P	63	20	Fig.3
HSK63A-FMA25.4-150-D50	$92	$0	202	150	124	26	25.4	50	4.52	9.52	M12*1.75P	63	20	Fig.3
HSK63A-FMA25.4-200-D50	$110	$0	252	200	174	26	25.4	50	4.52	9.52	M12*1.75P	63	20	Fig.3
HSK63A-FMA31.75-60-D60	$60	$0	114	60	34	26	31.75	60	6.7	12.7	M16*2.0P	63	22	Fig.4
HSK63A-FMA31.75-100-D60	$74	$0	154	100	74	26	31.75	60	6.7	12.7	M16*2.0P	63	22	Fig.4
HSK63A-FMA31.75-150-D60	$92	$0	204	150	124	26	31.75	60	6.7	12.7	M16*2.0P	63	22	Fig.4
HSK63A-FMA31.75-200-D60	$110	$0	254	200	174	26	31.75	60	6.7	12.7	M16*2.0P	63	22	Fig.4
HSK63A-FMA38.1-60-D73	$71	$0	117	60	34	26	38.1	73	8.87	15.87	M16*2.0P	63	25	Fig.4
HSK63A-FMA38.1-100-D73	$84	$0	157	100	74	26	38.1	73	8.87	15.87	M16*2.0P	63	25	Fig.4
HSK63A-FMA38.1-150-D73	$100	$0	207	150	124	26	38.1	73	8.87	15.87	M16*2.0P	63	25	Fig.4
HSK63A-FMA38.1-200-D73	$116	$0	257	200	174	26	38.1	73	8.87	15.87	M16*2.0P	63	25	Fig.4
HSK100A-FMA25.4-50-D50	$122	$0	120	50	21	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA25.4-100-D50	$144	$0	170	100	71	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA25.4-150-D50	$157	$0	220	150	121	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA25.4-200-D50	$175	$0	270	200	171	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA25.4-250-D50	$192	$0	320	250	221	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA25.4-300-D50	$232	$0	370	300	271	29	25.4	50	4.52	9.52	M12*1.75P	100	20	Fig.7
HSK100A-FMA31.75-50-D60	$120	$0	122	50	21	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA31.75-100-D60	$151	$0	172	100	71	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA31.75-150-D60	$182	$0	222	150	121	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA31.75-200-D60	$193	$0	272	200	171	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA31.75-250-D60	$204	$0	322	250	221	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA31.75-300-D60	$244	$0	372	300	271	29	31.75	60	6.7	12.7	M16*2.0P	100	22	Fig.7
HSK100A-FMA38.1-60-D75	$120	$0	135	60	31	29	38.1	75	8.87	15.87	M16*2.0P	100	25	Fig.7
HSK100A-FMA38.1-100-D75	$142	$0	175	100	71	29	38.1	75	8.87	15.87	M16*2.0P	100	25	Fig.7
HSK100A-FMA38.1-150-D75	$170	$0	225	150	121	29	38.1	75	8.87	15.87	M16*2.0P	100	25	Fig.7
HSK100A-FMA38.1-200-D75	$198	$0	275	200	171	29	38.1	75	8.87	15.87	M16*2.0P	100	25	Fig.7
HSK100A-FMA38.1-250-D75	$204	$0	325	250	221	29	38.1	75	8.87	15.87	M16*2.0P	100	25	Fig.7
HSK100A-FMA50.8-70-D98	$137	$0	156	70	41	29	50.8	98	9.75	19.05	M24*3.0P	100	36	Fig.8
HSK100A-FMA50.8-100-D98	$154	$0	186	100	71	29	50.8	98	9.75	19.05	M24*3.0P	100	36	Fig.8
