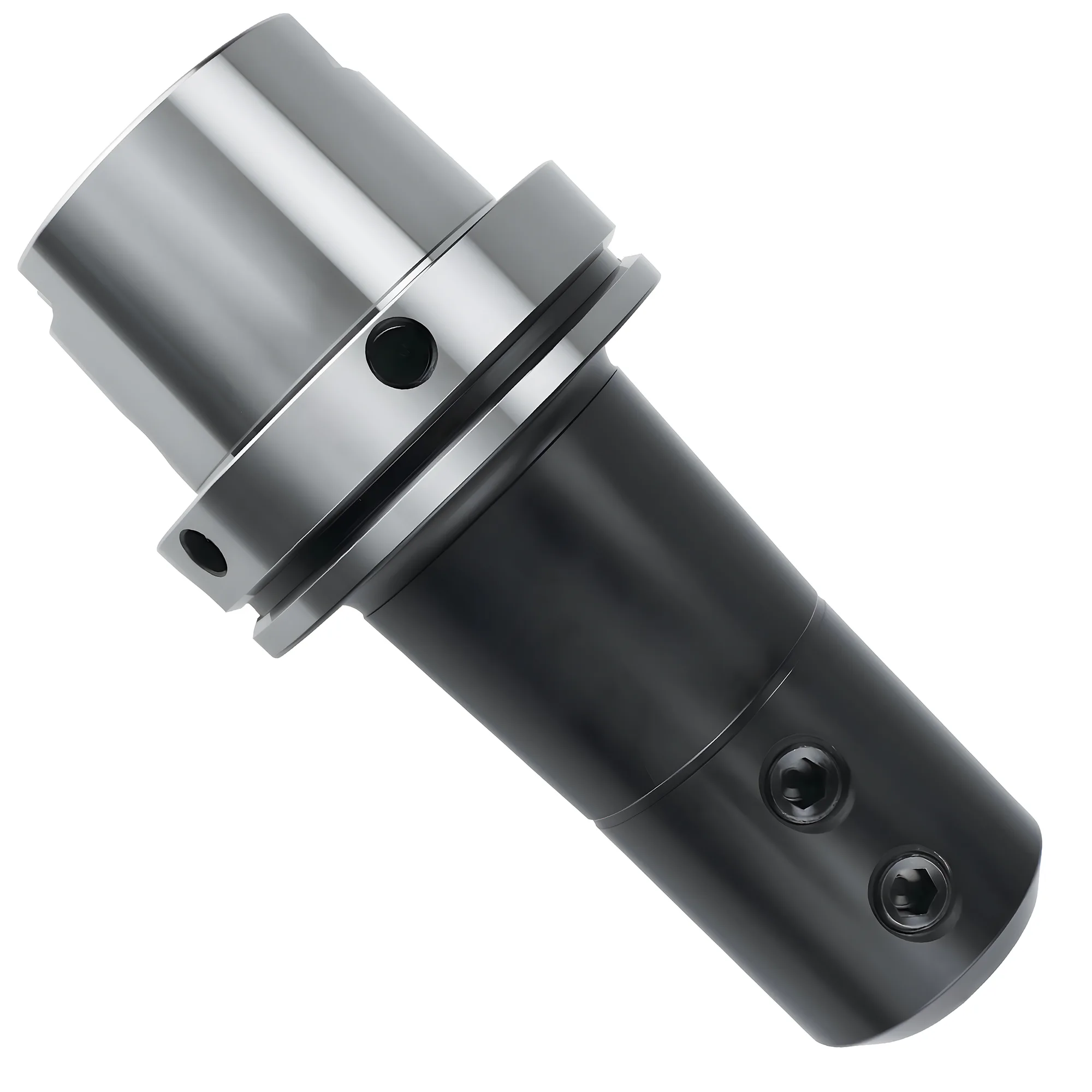

HSK SLN 사이드록 엔드밀 홀더

HSK50A, HSK63A, HSK100A 주축용 HSK-SLN 사이드록 엔드밀 홀더로, 보어 6-50.8 mm, 게이지 길이 65-300 mm입니다. 세트 스크류가 스트레이트 샹크의 웰던 플랫을 눌러 고정하므로 중절삭 시에도 공구가 빠지지 않습니다. 보어는 14종이며 6-50.8 mm 범위에서 20 mm까지는 2 mm 간격, 그 이상은 간격이 넓어집니다. 50.8 mm는 2인치로 이 시리즈의 유일한 인치 사이즈입니다. 세 가지 테이퍼의 대응 범위는 서로 다릅니다. HSK100A는 40종으로 50.8 mm까지 지원하는 유일한 테이퍼이고, HSK63A는 35종으로 40 mm까지, HSK50A는 10종으로 32 mm까지입니다. 노즈 직경은 20-88 mm이며 간섭 확인 시 참조하는 치수입니다. 테이퍼는 ISO 12164 HSK 규격입니다.

SKU 선택

수량

수량 할인맞춤 견적 요청 →

$1k+

$3k+

$8k+

12%

$15k+

15%

$30k+

18%

$50k+

결제 시 자동 적용

결제 수단

Visa

MasterCard

American Express

Discover

Apple Pay

Google Pay

PayPal

Bank Transfer (TT)

HSK SLN 사이드록 엔드밀 홀더 사양 SKU 85개 제공

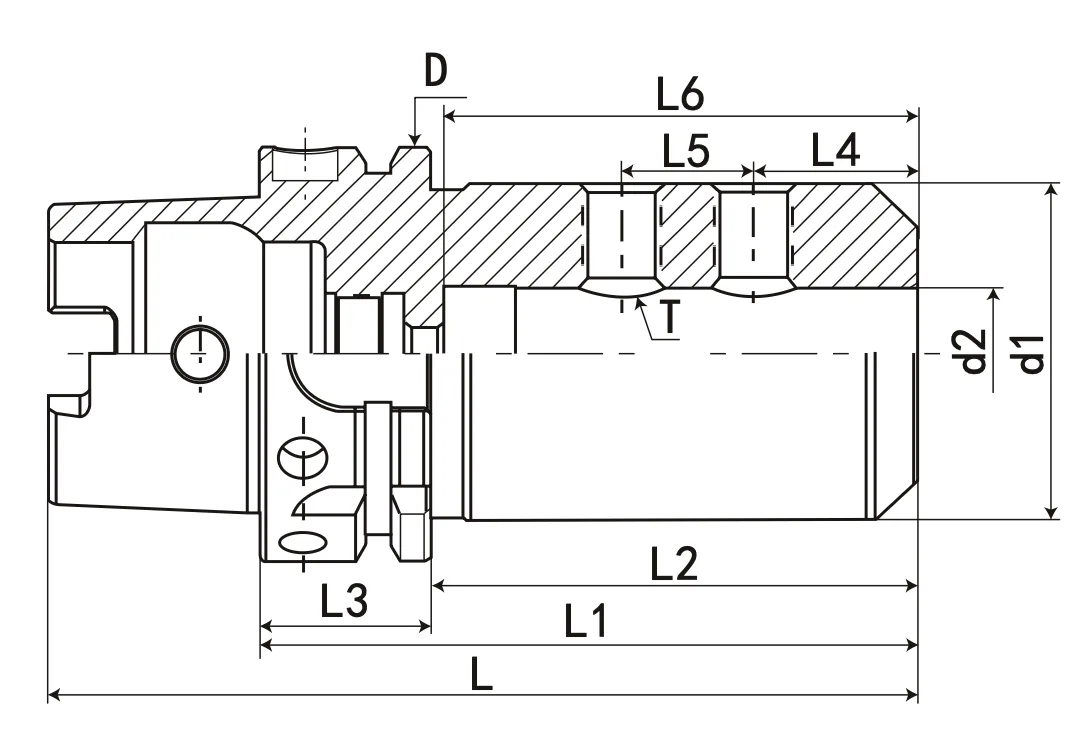

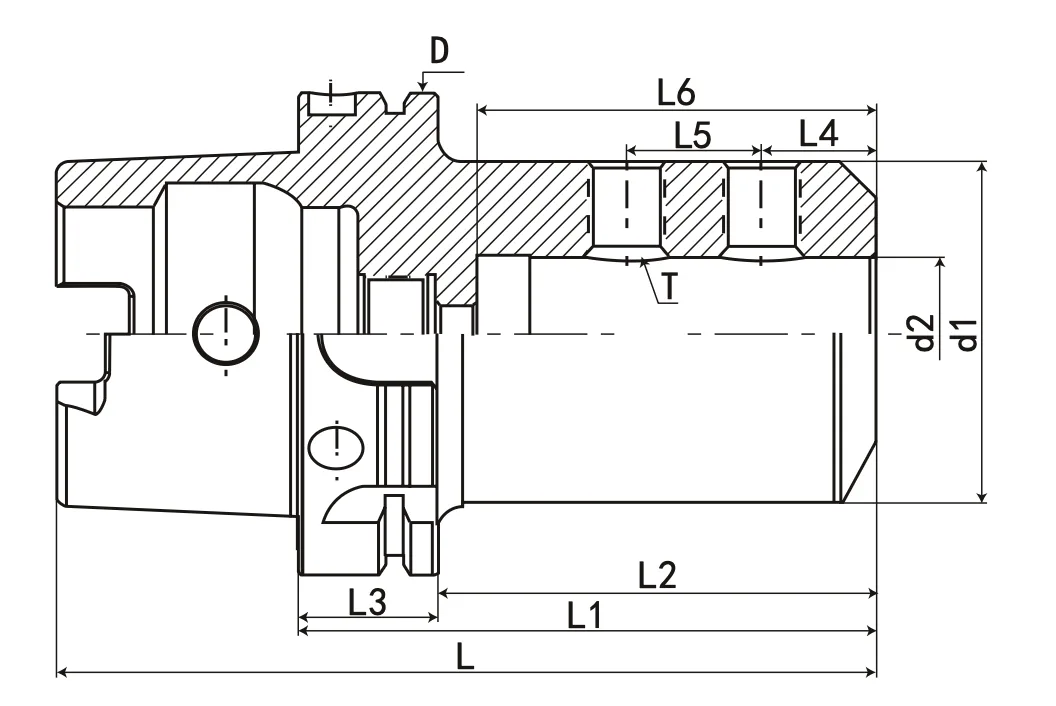

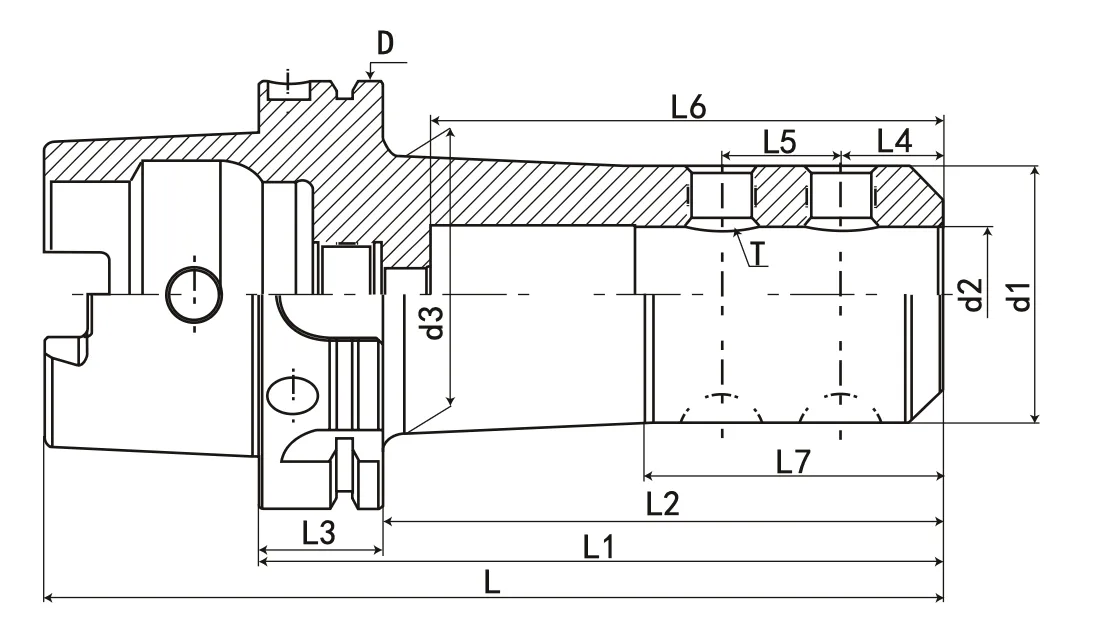

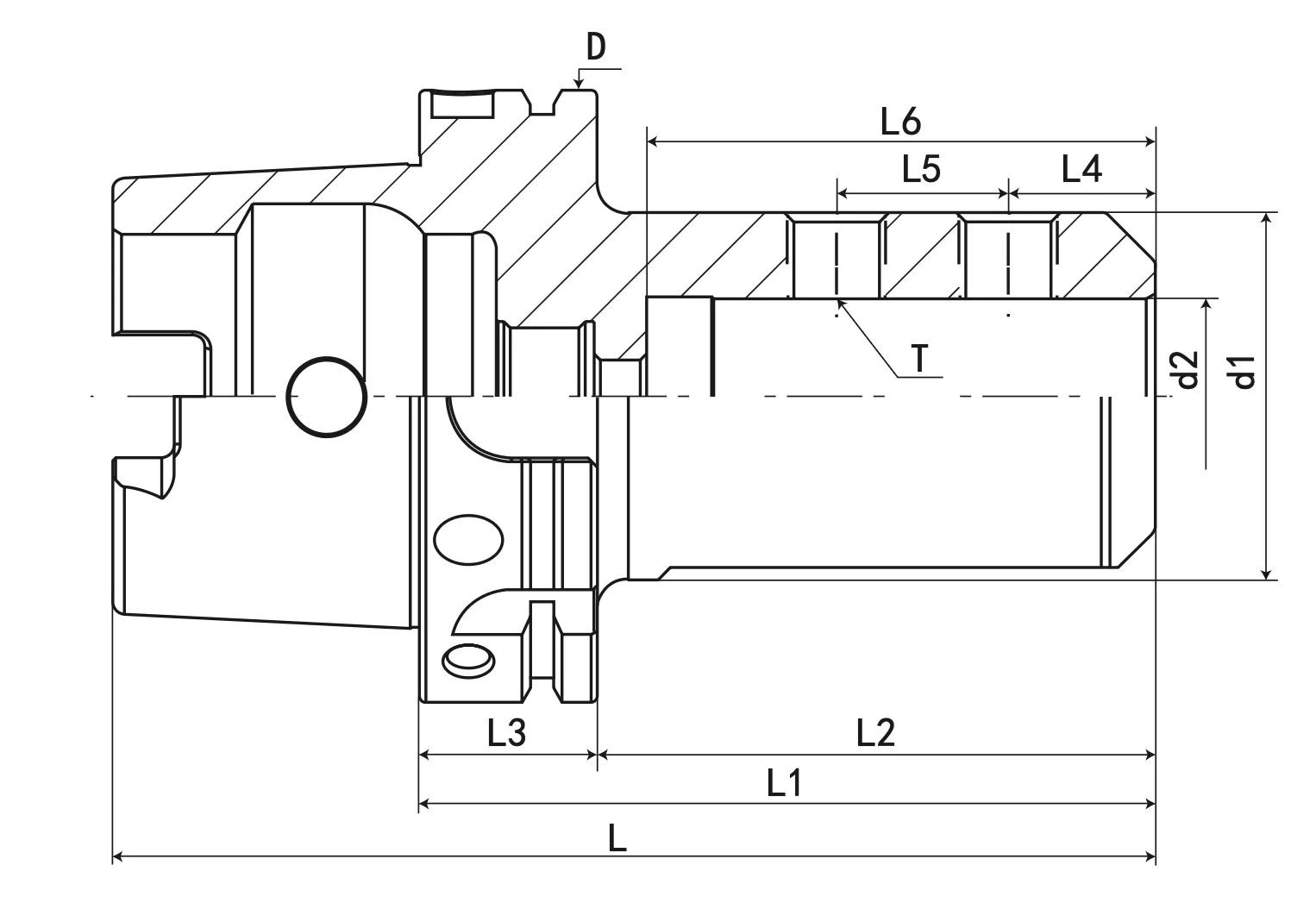

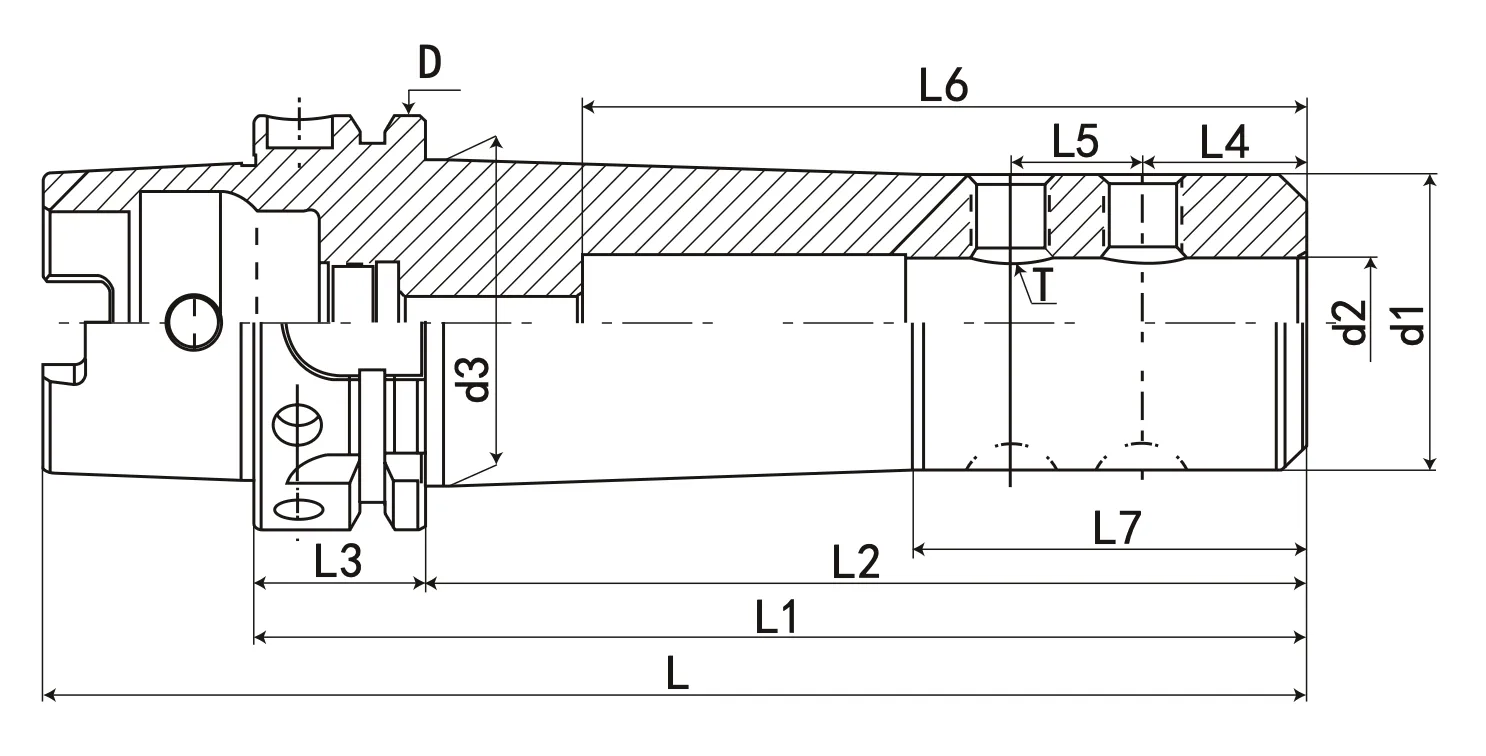

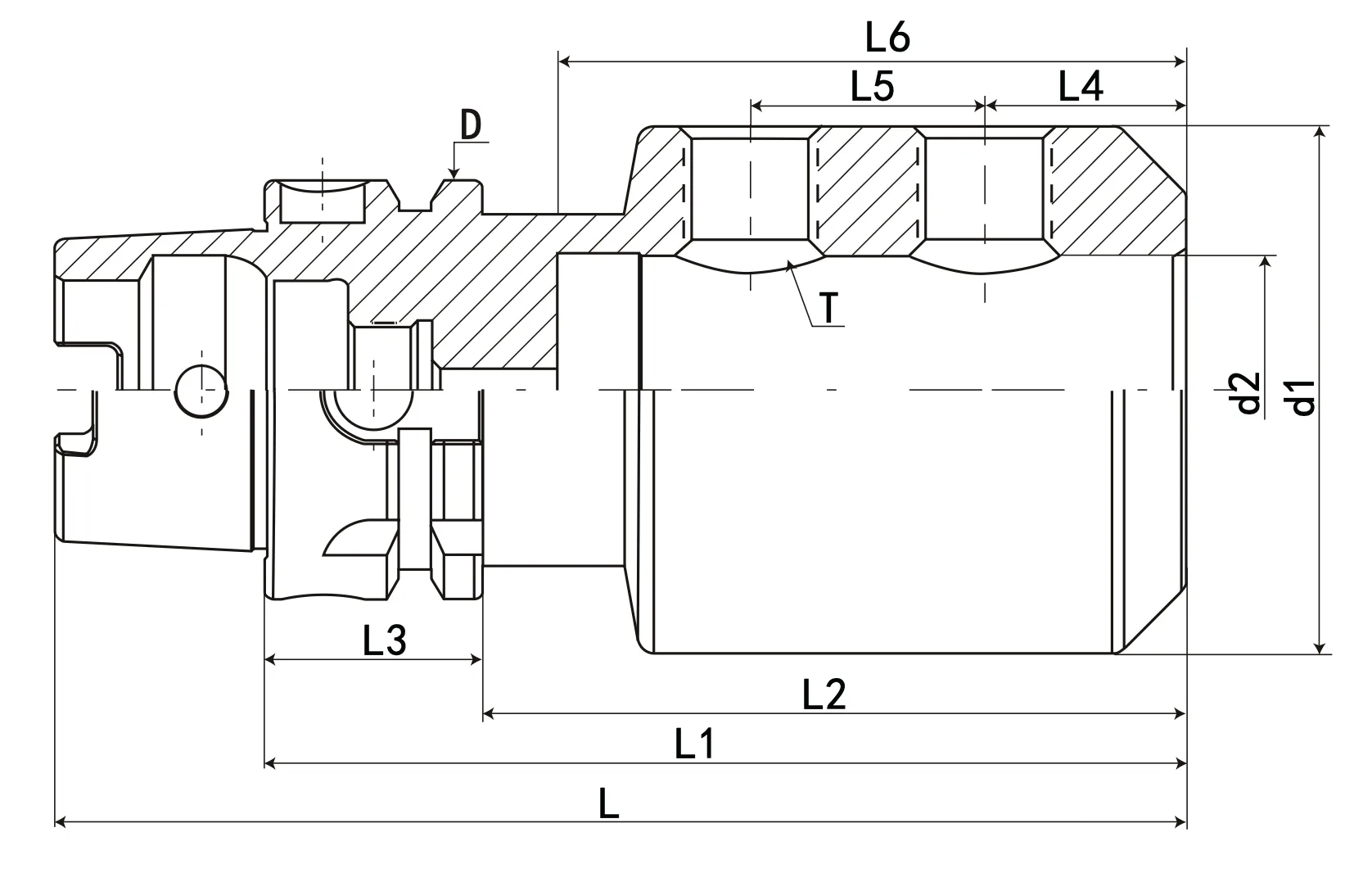

SKU	Price	Total	L	L1	L2	L3	L4	L5	L6	D	d1	d2	T	L7	d3	FIG
HSK50A-SLN6-65	$52	$0	90	65	39	26	12	10	41	50	25	6	M6	-	-	Fig.1
HSK50A-SLN8-65	$52	$0	90	65	39	26	14	12	41	50	28	8	M8	-	-	Fig.1
HSK50A-SLN10-65	$52	$0	90	65	39	26	15	14	41	50	35	10	M10	-	-	Fig.1
HSK50A-SLN12-80	$56	$0	105	80	54	26	20	16	55	50	40	12	M10	-	-	Fig.1
HSK50A-SLN14-80	$56	$0	105	80	54	26	22	18	55	50	40	14	M10	-	-	Fig.1
HSK50A-SLN16-80	$56	$0	105	80	54	26	22	18	55	50	40	16	M10	-	-	Fig.1
HSK50A-SLN18-90	$60	$0	115	90	64	26	24	20	65	50	42	18	M12	-	-	Fig.1
HSK50A-SLN20-90	$60	$0	115	90	64	26	25	20	65	50	52	20	M12	-	-	Fig.2
HSK50A-SLN25-110	$60	$0	135	110	84	26	24	25	68	50	52	25	M12	-	-	Fig.2
HSK50A-SLN32-110	$60	$0	135	110	84	26	24	28	75	50	63	32	M16	-	-	Fig.2
HSK63A-SLN6-100	$60	$0	122	100	74	26	12	10	50	63	25	6	M6	-	-	Fig.3
HSK63A-SLN6-120	$67	$0	152	120	94	26	12	10	50	63	25	6	M6	-	-	Fig.3
HSK63A-SLN6-160	$74	$0	192	160	134	26	12	10	50	63	20	6	M6	45	25	Fig.4
HSK63A-SLN8-100	$60	$0	122	100	74	26	14	12	50	63	28	8	M8	-	-	Fig.3
HSK63A-SLN8-120	$67	$0	152	120	94	26	14	12	50	63	28	8	M8	-	-	Fig.3
HSK63A-SLN8-160	$74	$0	192	160	134	26	14	12	50	63	23	8	M8	45	28	Fig.4
HSK63A-SLN10-100	$60	$0	122	100	74	26	15	14	55	63	35	10	M10	-	-	Fig.3
HSK63A-SLN10-120	$67	$0	152	120	94	26	15	14	55	63	35	10	M10	-	-	Fig.3
HSK63A-SLN10-160	$74	$0	192	160	134	26	15	14	55	63	30	10	M10	50	35	Fig.4
HSK63A-SLN12-100	$60	$0	122	100	74	26	20	16	57	63	40	12	M10	-	-	Fig.3
HSK63A-SLN12-120	$67	$0	152	120	94	26	20	16	60	63	40	12	M10	-	-	Fig.3
HSK63A-SLN12-160	$74	$0	192	160	134	26	20	16	60	63	35	12	M10	50	40	Fig.4
HSK63A-SLN14-100	$60	$0	122	100	74	26	22	18	57	63	46	14	M10	-	-	Fig.3
HSK63A-SLN14-120	$67	$0	152	120	94	26	22	18	60	63	46	14	M10	-	-	Fig.3
HSK63A-SLN14-160	$74	$0	192	160	134	26	22	18	60	63	40	14	M10	55	45	Fig.4
HSK63A-SLN16-100	$60	$0	122	100	74	26	22	18	57	63	48	16	M10	-	-	Fig.3
HSK63A-SLN16-120	$67	$0	152	120	94	26	22	18	87	63	48	16	M10	-	-	Fig.3
HSK63A-SLN16-160	$74	$0	192	160	134	26	22	18	100	63	40	16	M10	55	45	Fig.4
HSK63A-SLN16-200	$91	$0	232	200	174	26	22	18	100	63	40	16	M10	55	45	Fig.4
HSK63A-SLN18-100	$60	$0	132	100	74	26	24	20	68	63	50	18	M12	-	-	Fig.3
HSK63A-SLN18-120	$67	$0	152	120	94	26	24	20	88	63	50	18	M12	-	-	Fig.3
HSK63A-SLN18-160	$74	$0	192	160	134	26	24	20	100	63	45	18	M12	60	50	Fig.4
HSK63A-SLN20-100	$60	$0	132	100	74	26	25	20	68	63	52	20	M12	-	-	Fig.3
HSK63A-SLN20-120	$67	$0	152	120	94	26	25	20	88	63	52	20	M12	-	-	Fig.3
HSK63A-SLN20-160	$74	$0	192	160	134	26	25	20	110	63	45	20	M12	60	50	Fig.4
HSK63A-SLN20-200	$91	$0	232	200	174	26	25	20	110	63	45	20	M12	60	50	Fig.4
HSK63A-SLN25-110	$65	$0	142	110	84	26	24	25	68	63	65	25	M12	-	-	Fig.3
HSK63A-SLN25-160	$74	$0	192	160	134	26	24	25	120	63	50	25	M12	65	55	Fig.4
HSK63A-SLN25-200	$91	$0	232	200	174	26	24	25	120	63	50	25	M12	65	55	Fig.4
HSK63A-SLN32-110	$65	$0	142	110	84	26	24	28	73	63	72	32	M16	-	-	Fig.3
HSK63A-SLN32-160	$74	$0	192	160	134	26	24	28	120	63	60	32	M16	70	65	Fig.4
HSK63A-SLN32-200	$93	$0	232	200	174	26	24	28	120	63	60	32	M16	70	65	Fig.4
HSK63A-SLN40-125	$71	$0	157	125	99	26	30	32	87	63	80	40	M20	-	-	Fig.3
HSK63A-SLN40-160	$74	$0	192	160	134	26	30	32	120	63	70	40	M16	80	75	Fig.4
HSK63A-SLN40-200	$93	$0	232	200	174	26	30	32	120	63	70	40	M16	80	75	Fig.4
HSK100A-SLN6-80	$106	$0	130	80	51	29	12	10	50	100	25	6	M6	-	-	Fig.5
HSK100A-SLN6-160	$137	$0	210	160	131	29	12	10	50	100	20	6	M6	45	25	Fig.6
HSK100A-SLN8-80	$106	$0	130	80	51	29	14	12	50	100	28	8	M8	-	-	Fig.5
HSK100A-SLN8-160	$137	$0	210	160	131	29	14	12	50	100	23	8	M8	45	28	Fig.6
HSK100A-SLN10-80	$106	$0	130	80	51	29	15	14	55	100	35	10	M10	-	-	Fig.5
HSK100A-SLN10-160	$137	$0	210	160	131	29	15	14	55	100	30	10	M10	50	35	Fig.6
HSK100A-SLN12-80	$106	$0	130	80	51	29	20	16	60	100	40	12	M10	-	-	Fig.5
HSK100A-SLN12-160	$137	$0	210	160	131	29	20	16	60	100	35	12	M10	50	40	Fig.6
HSK100A-SLN14-80	$106	$0	130	80	51	29	22	18	60	100	46	14	M10	-	-	Fig.5
HSK100A-SLN14-160	$137	$0	210	160	131	29	22	18	60	100	40	14	M10	55	45	Fig.6
HSK100A-SLN16-100	$122	$0	150	100	71	29	22	18	62	100	48	16	M10	-	-	Fig.5
HSK100A-SLN16-160	$137	$0	210	160	131	29	22	18	100	100	40	16	M10	55	45	Fig.6
HSK100A-SLN16-200	$163	$0	250	200	171	29	22	18	100	100	40	16	M10	55	45	Fig.6
HSK100A-SLN18-100	$122	$0	150	100	71	29	24	20	62	100	50	18	M10	-	-	Fig.5
HSK100A-SLN18-160	$137	$0	210	160	131	29	24	20	100	100	45	18	M10	60	50	Fig.6
HSK100A-SLN20-100	$122	$0	150	100	71	29	25	20	63	100	52	20	M12	-	-	Fig.5
HSK100A-SLN20-160	$137	$0	210	160	131	29	25	20	110	100	45	20	M12	60	50	Fig.6
HSK100A-SLN20-200	$163	$0	250	200	171	29	25	20	110	100	45	20	M12	60	50	Fig.6
HSK100A-SLN20-250	$196	$0	300	250	221	29	25	20	110	100	45	20	M12	60	50	Fig.6
HSK100A-SLN25-100	$122	$0	150	100	71	29	24	25	63	100	65	25	M12	-	-	Fig.5
HSK100A-SLN25-160	$137	$0	210	160	131	29	24	25	110	100	50	25	M12	65	55	Fig.6
HSK100A-SLN25-200	$163	$0	250	200	171	29	24	25	110	100	50	25	M12	65	55	Fig.6
HSK100A-SLN25-250	$196	$0	300	250	221	29	24	25	110	100	50	25	M12	65	55	Fig.6
HSK100A-SLN32-120	$122	$0	170	120	91	29	24	28	73	100	72	32	M16	-	-	Fig.5
HSK100A-SLN32-160	$137	$0	210	160	131	29	24	28	120	100	60	32	M16	70	65	Fig.6
HSK100A-SLN32-200	$163	$0	250	200	171	29	24	28	120	100	60	32	M16	70	65	Fig.6
HSK100A-SLN32-250	$196	$0	300	250	221	29	24	28	120	100	60	32	M16	70	65	Fig.6
HSK100A-SLN32-300	$229	$0	350	300	271	29	24	28	120	100	60	32	M16	70	65	Fig.6
HSK100A-SLN40-120	$131	$0	170	120	91	29	30	32	87	100	80	40	M20	-	-	Fig.5
HSK100A-SLN40-160	$137	$0	210	160	131	29	30	32	120	100	70	40	M16	80	75	Fig.6
HSK100A-SLN40-200	$163	$0	250	200	171	29	30	32	120	100	70	40	M16	80	75	Fig.6
HSK100A-SLN40-250	$196	$0	300	250	221	29	30	32	120	100	70	40	M16	80	75	Fig.6
HSK100A-SLN40-300	$229	$0	350	300	271	29	30	32	120	100	70	40	M16	80	75	Fig.6
HSK100A-SLN42-120	$144	$0	170	120	91	29	30	32	87	100	80	42	M20	-	-	Fig.5
HSK100A-SLN42-160	$161	$0	210	160	131	29	30	32	120	100	75	42	M16	80	80	Fig.6
HSK100A-SLN42-200	$178	$0	250	200	171	29	30	32	120	100	75	42	M16	80	80	Fig.6
HSK100A-SLN50-120	$175	$0	170	120	91	29	35	35	87	100	88	50	M20	-	-	Fig.5
HSK100A-SLN50-160	$232	$0	210	160	131	29	35	35	120	100	83	50	M20	-	88	Fig.5
HSK100A-SLN50.8-120	$175	$0	170	120	91	29	35	35	87	100	88	50.8	M20	-	-	Fig.5
HSK100A-SLN50.8-160	$232	$0	210	160	131	29	35	35	120	100	83	50.8	M20	-	88	Fig.5
