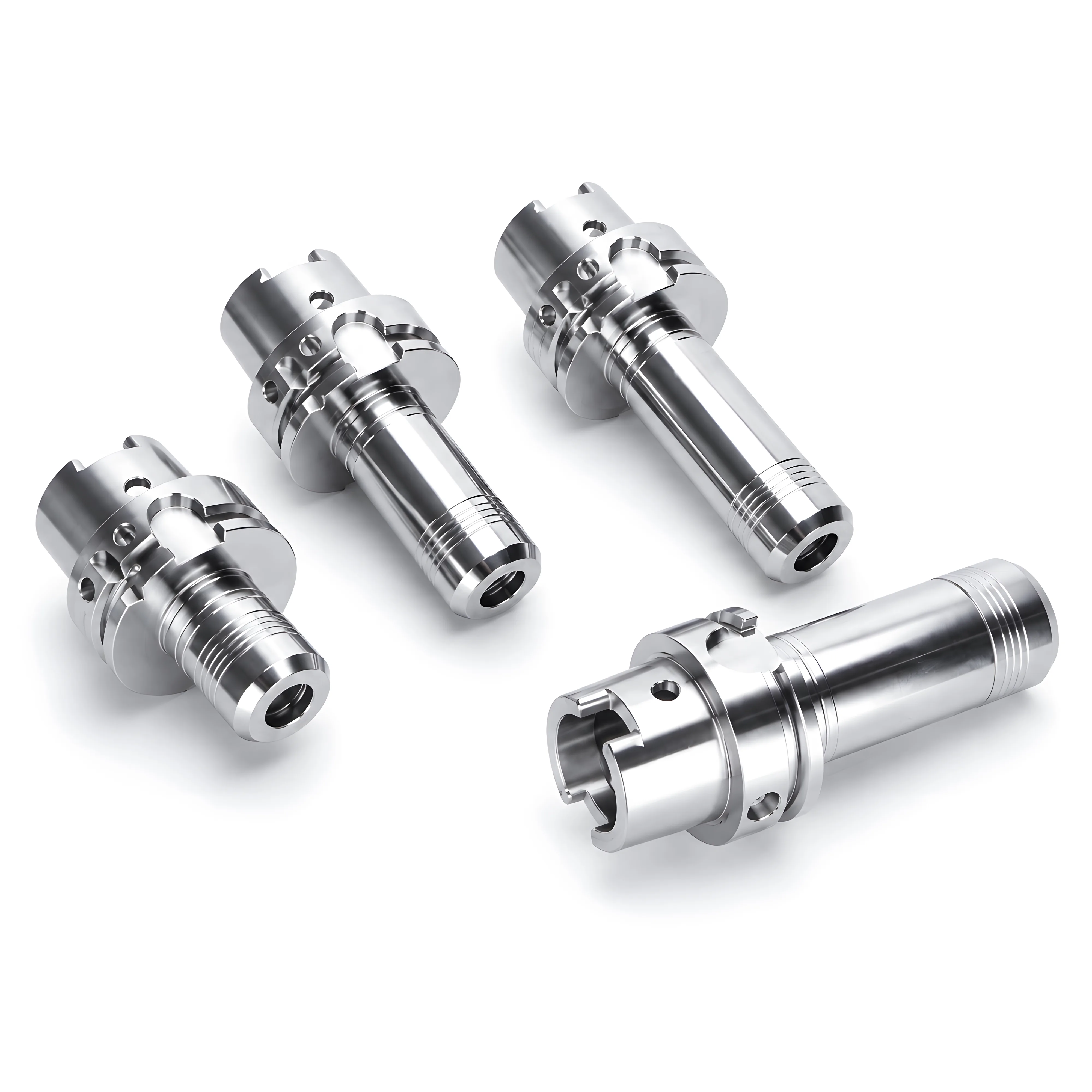

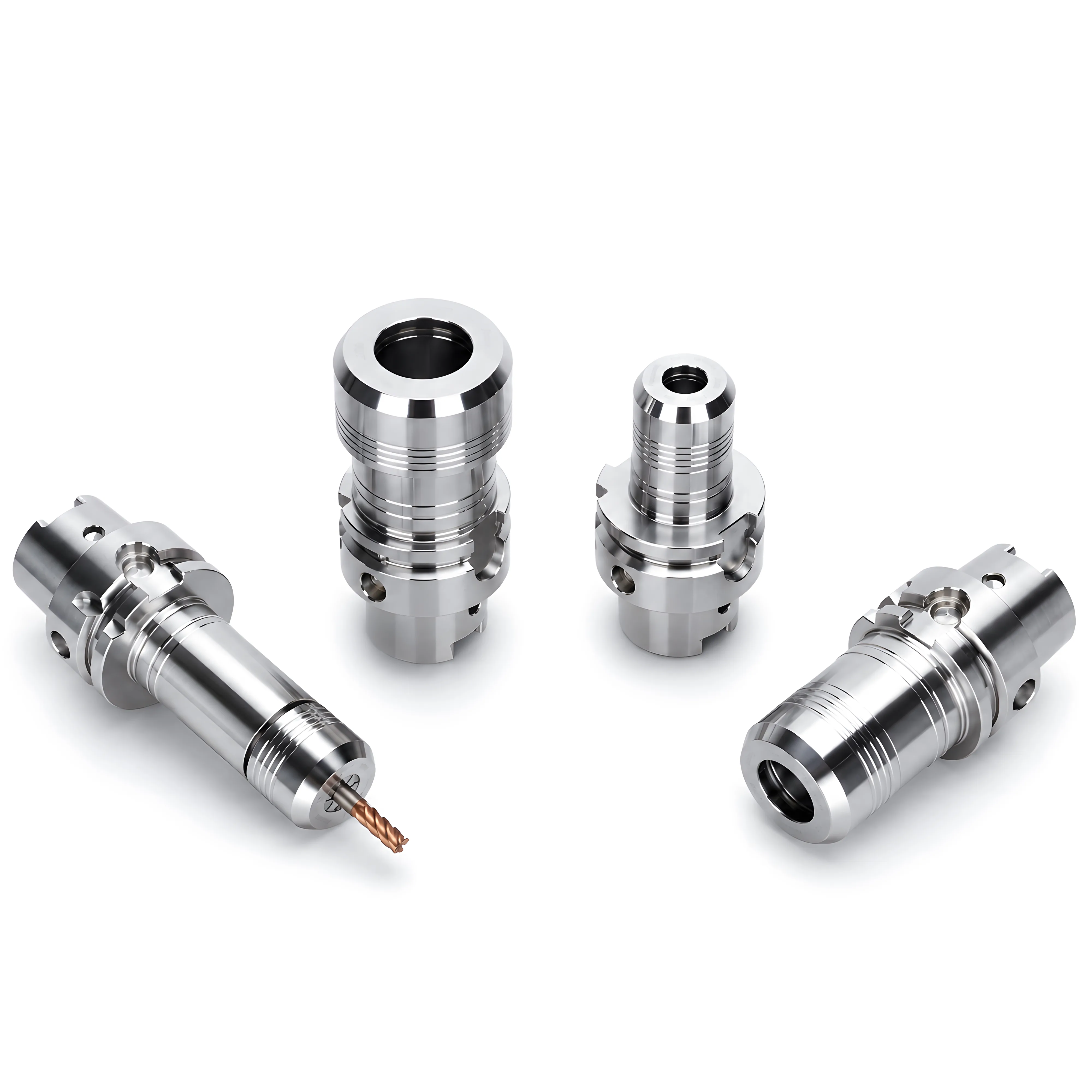

HSK PGER コレットチャックホルダーは振れ ≤0.003mm で、標準 ER コレットチャックの 2 倍の把持力があります。把持力を生むのはナットであり、専用コレットではありません。PGER16、PGER20、PGER25、PGER32 はいずれも一般的な ER コレットで使用できるため、手持ちのコレットが無駄になりません。ナットはスリットのないフルラウンド形状で風損を抑え、30,000 rpm までのバランス取りを可能にし、研削仕上げの 30 度台形ねじが均等に締め込みます。本体は高性能合金鋼を -195°C で深冷処理しています。シャンクは DIN 69893 準拠の HSK40 / HSK50 / HSK63 / HSK100 の A、E、F 形式で、把持範囲は 3〜20mm です。58 通りの組み合わせは下表のとおりです。
| Cart+ | SKU | Price | Quantity | Total | L (mm) | L1 (mm) | L2 (mm) | D (mm) | Gripping Range (mm) |
|---|---|---|---|---|---|---|---|---|---|
HSK40A-PGER16-70 | $79 | $0 | 90 | 70 | 50 | 30 | 3-10 | ||
HSK40A-PGER20-70 | $79 | $0 | 90 | 70 | 50 | 32 | 3-13 | ||
HSK40A-PGER25-70 | $79 | $0 | 90 | 70 | 50 | 40 | 3-16 | ||
HSK40A-PGER32-70 | $79 | $0 | 90 | 70 | 50 | 50 | 3-20 | ||
HSK40E-PGER16-70 | $79 | $0 | 90 | 70 | 50 | 30 | 3-10 | ||
HSK40E-PGER20-70 | $79 | $0 | 90 | 70 | 50 | 32 | 3-13 | ||
HSK40E-PGER25-70 | $79 | $0 | 90 | 70 | 50 | 40 | 3-16 | ||
HSK40E-PGER32-70 | $79 | $0 | 90 | 70 | 50 | 50 | 3-20 | ||
HSK50A-PGER16-70 | $96 | $0 | 95 | 70 | 44 | 30 | 3-10 | ||
HSK50A-PGER16-100 | $96 | $0 | 125 | 100 | 74 | 30 | 3-10 | ||
HSK50A-PGER20-70 | $96 | $0 | 95 | 70 | 44 | 32 | 3-13 | ||
HSK50A-PGER20-100 | $96 | $0 | 125 | 100 | 74 | 32 | 3-13 | ||
HSK50A-PGER25-80 | $96 | $0 | 105 | 80 | 54 | 40 | 3-16 | ||
HSK50A-PGER32-80 | $96 | $0 | 105 | 80 | 54 | 50 | 3-20 | ||
HSK50E-PGER16-70 | $96 | $0 | 95 | 70 | 44 | 30 | 3-10 | ||
HSK50E-PGER20-70 | $96 | $0 | 95 | 70 | 44 | 32 | 3-13 | ||
HSK50E-PGER25-80 | $96 | $0 | 105 | 80 | 54 | 40 | 3-16 | ||
HSK50E-PGER32-80 | $96 | $0 | 105 | 80 | 54 | 50 | 3-20 | ||
HSK63A-PGER16-70 | $96 | $0 | 102 | 70 | 44 | 30 | 3-10 | ||
HSK63A-PGER16-100 | $96 | $0 | 132 | 100 | 74 | 30 | 3-10 | ||
HSK63A-PGER16-120 | $106 | $0 | 152 | 120 | 94 | 30 | 3-10 | ||
HSK63A-PGER16-150 | $106 | $0 | 182 | 150 | 124 | 30 | 3-10 | ||
HSK63A-PGER20-70 | $96 | $0 | 102 | 70 | 44 | 32 | 3-13 | ||
HSK63A-PGER20-100 | $96 | $0 | 132 | 100 | 74 | 32 | 3-13 | ||
HSK63A-PGER20-120 | $106 | $0 | 152 | 120 | 94 | 32 | 3-13 | ||
HSK63A-PGER20-150 | $106 | $0 | 182 | 150 | 124 | 32 | 3-13 | ||
HSK63A-PGER25-70 | $96 | $0 | 102 | 70 | 44 | 40 | 3-16 | ||
HSK63A-PGER25-100 | $96 | $0 | 132 | 100 | 74 | 40 | 3-16 | ||
HSK63A-PGER25-120 | $106 | $0 | 152 | 120 | 94 | 40 | 3-16 | ||
HSK63A-PGER25-150 | $106 | $0 | 182 | 150 | 124 | 40 | 3-16 | ||
HSK63A-PGER32-70 | $96 | $0 | 102 | 70 | 44 | 50 | 3-20 | ||
HSK63A-PGER32-100 | $96 | $0 | 132 | 100 | 74 | 50 | 3-20 | ||
HSK63A-PGER32-120 | $106 | $0 | 152 | 120 | 94 | 50 | 3-20 | ||
HSK63A-PGER32-150 | $106 | $0 | 182 | 150 | 124 | 50 | 3-20 | ||
HSK63F-PGER16-70 | $96 | $0 | 95 | 70 | 44 | 30 | 3-10 | ||
HSK63F-PGER16-100 | $96 | $0 | 125 | 100 | 74 | 30 | 3-10 | ||
HSK63F-PGER20-70 | $96 | $0 | 95 | 70 | 44 | 32 | 3-13 | ||
HSK63F-PGER20-100 | $96 | $0 | 125 | 100 | 74 | 32 | 3-13 | ||
HSK63F-PGER25-70 | $96 | $0 | 95 | 70 | 44 | 40 | 3-16 | ||
HSK63F-PGER25-100 | $96 | $0 | 125 | 100 | 74 | 40 | 3-16 | ||
HSK63F-PGER32-70 | $96 | $0 | 95 | 70 | 44 | 50 | 3-20 | ||
HSK63F-PGER32-100 | $96 | $0 | 125 | 100 | 74 | 50 | 3-20 | ||
HSK100A-PGER16-100 | $208 | $0 | 150 | 100 | 71 | 30 | 3-10 | ||
HSK100A-PGER16-120 | $218 | $0 | 170 | 120 | 91 | 30 | 3-10 | ||
HSK100A-PGER16-150 | $233 | $0 | 200 | 150 | 121 | 30 | 3-10 | ||
HSK100A-PGER16-200 | $254 | $0 | 250 | 200 | 171 | 30 | 3-10 | ||
HSK100A-PGER20-100 | $208 | $0 | 150 | 100 | 71 | 32 | 3-13 | ||
HSK100A-PGER20-120 | $218 | $0 | 170 | 120 | 91 | 32 | 3-13 | ||
HSK100A-PGER20-150 | $233 | $0 | 200 | 150 | 121 | 32 | 3-13 | ||
HSK100A-PGER20-200 | $254 | $0 | 250 | 200 | 171 | 32 | 3-13 | ||
HSK100A-PGER25-100 | $208 | $0 | 150 | 100 | 71 | 40 | 3-16 | ||
HSK100A-PGER25-120 | $218 | $0 | 170 | 120 | 91 | 40 | 3-16 | ||
HSK100A-PGER25-150 | $233 | $0 | 200 | 150 | 121 | 40 | 3-16 | ||
HSK100A-PGER25-200 | $254 | $0 | 250 | 200 | 171 | 40 | 3-16 | ||
HSK100A-PGER32-100 | $208 | $0 | 150 | 100 | 71 | 50 | 3-20 | ||
HSK100A-PGER32-120 | $218 | $0 | 170 | 120 | 91 | 50 | 3-20 | ||
HSK100A-PGER32-150 | $233 | $0 | 200 | 150 | 121 | 50 | 3-20 | ||
HSK100A-PGER32-200 | $254 | $0 | 250 | 200 | 171 | 50 | 3-20 |
標準 ER コレットチャックの 2 倍の把持力
把持精度（振れ）≤0.003mm（≤0.0001 in）
標準 ER コレットが使用可能、専用工具は不要。ナット付属、コレットは別売り
フルラウンドナット: 風損が少なく制振性があり、主軸寿命を延ばす
PGER16〜PGER32、把持範囲 3〜20mm
30,000 rpm までの動バランス
研削仕上げの 30 度台形ねじで滑らかかつ確実に締結
高性能合金鋼、-195°C ガス方式による深冷処理
耐摩耗性と耐食性が 3 倍、寸法安定性も向上

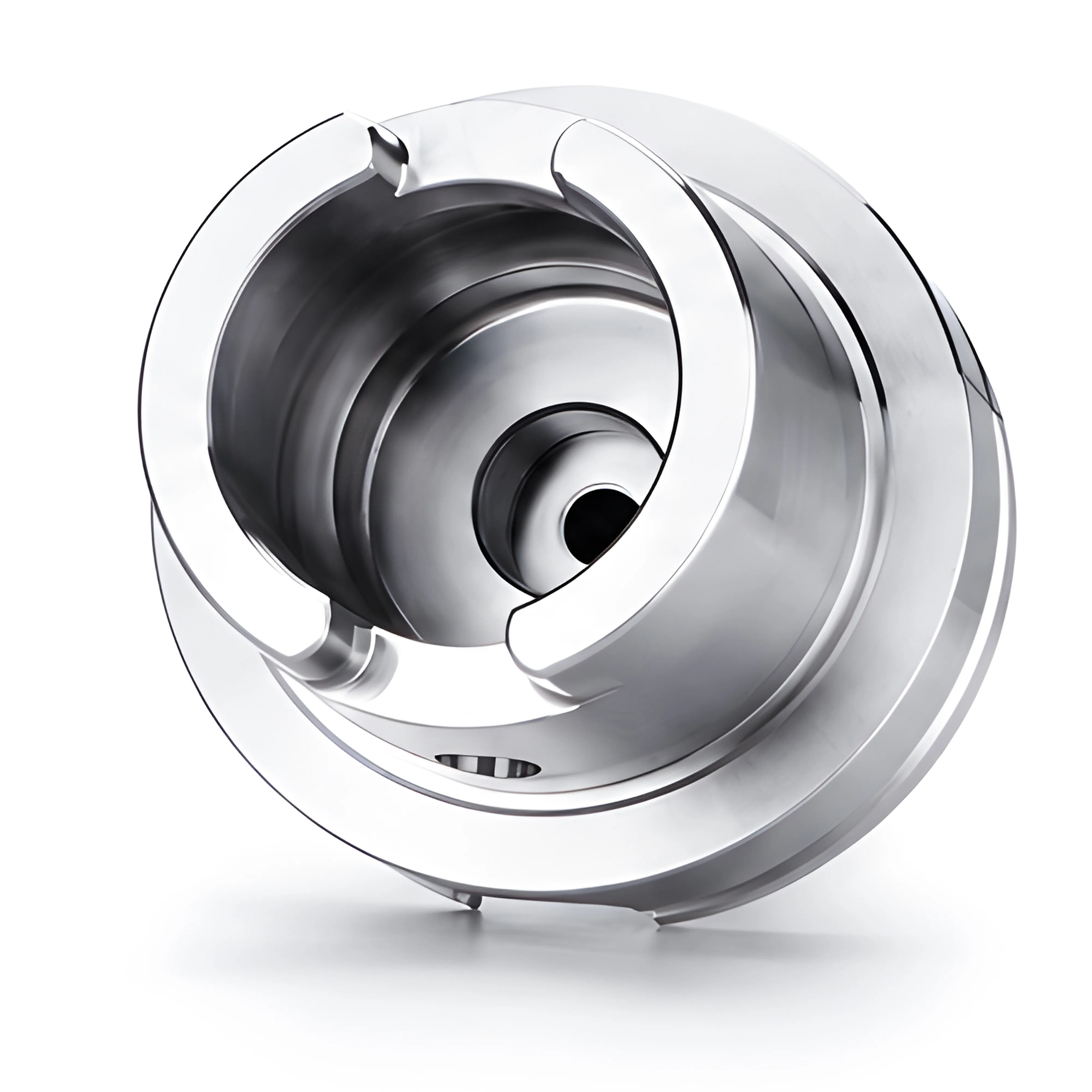

DIN 69893 準拠のツールホルダーシャンク HSK40A/E、HSK50A/E、HSK63A/F、HSK100A
