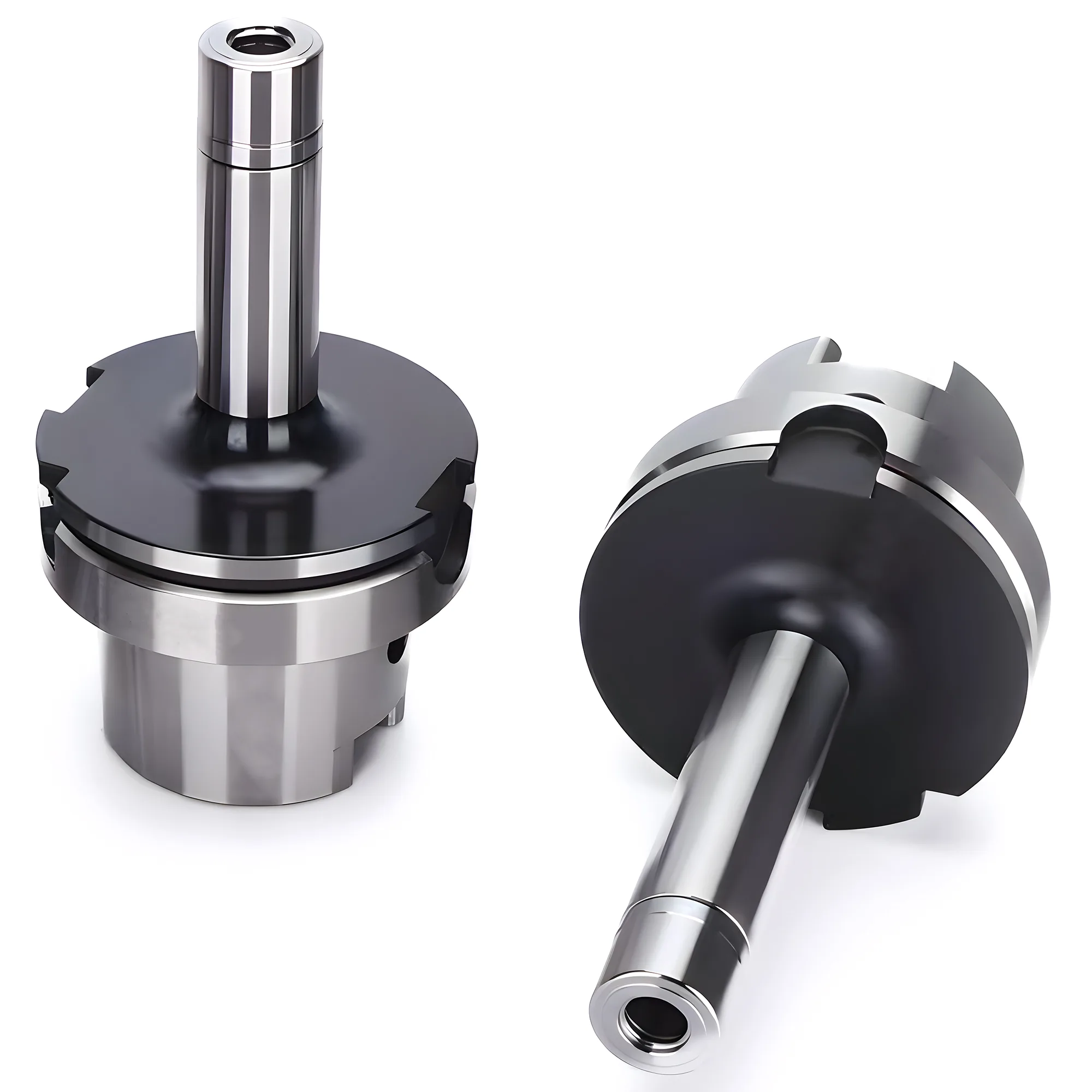

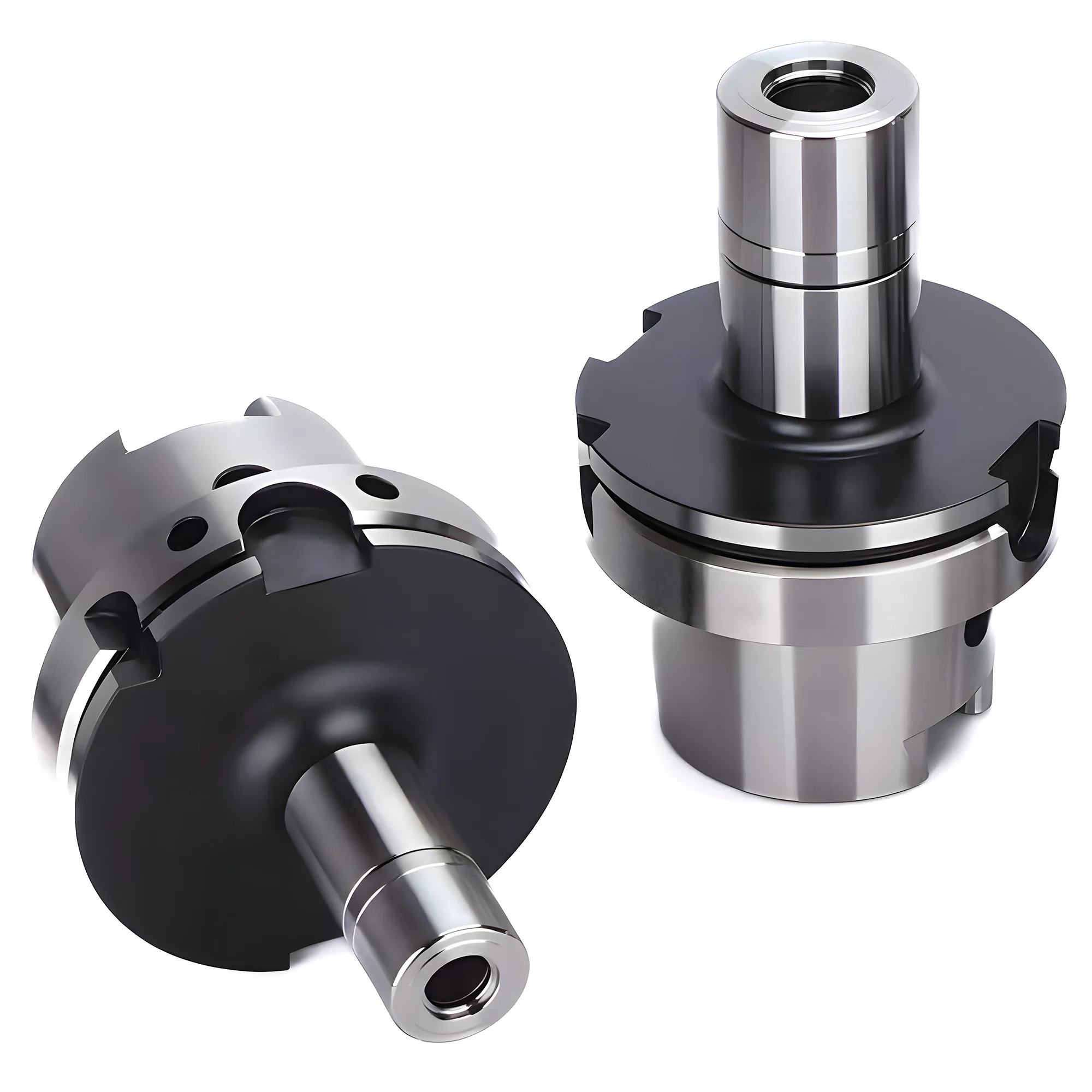

Porta-ferramentas HSK com fixação lateral GSK

Porta-ferramentas HSK com sistema de fixação lateral GSK para centros de usinagem de alta velocidade. Interface cone oco HSK conforme norma DIN 69893. Disponível em HSK-A, HSK-E e HSK-F. Sistema de pinça GSK com faixas de fixação de 1 mm a 25 mm. Mecanismo de trava lateral para fresas de topo e hastes planas.

Selecionar SKU

Quantidade

Desconto por volumeSolicitar orçamento →

$1k+

$3k+

$8k+

$15k+

12%

$30k+

15%

$50k+

18%

Aplicado automaticamente no checkout

Pagamentos aceitos

Visa

MasterCard

American Express

Discover

Apple Pay

Google Pay

PayPal

Bank Transfer (TT)

Especificações

78 SKUs

SKU	Price	Total	L (mm)	L1 (mm)	L2 (mm)	D (mm)	D1 (mm)	Range (mm)	FIG
HSK40A-GSK06-60	$45	$0	80	60	38	19.5	20	1~6	Fig.1
HSK40A-GSK10-75	$49	$0	95	75	53	27	27.5	1~10	Fig.1
HSK40A-GSK13-75	$50	$0	95	75	55	35	35.5	1~13	Fig.1
HSK40A-GSK16-80	$52	$0	100	80	60	40	40.5	1~16	Fig.1
HSK50A-GSK06-80	$57	$0	105	80	50	19.5	20	1~6	Fig.1
HSK50A-GSK10-80	$58	$0	105	80	51	27	27.5	1~10	Fig.1
HSK50A-GSK10-120	$65	$0	145	120	91	27	27.5	1~10	Fig.1
HSK50A-GSK13-80	$59	$0	105	80	53	35	35.5	1~13	Fig.1
HSK50A-GSK13-120	$67	$0	145	120	93	35	35.5	1~13	Fig.1
HSK50A-GSK16-80	$60	$0	105	80	53	40	40.5	1~16	Fig.1
HSK50A-GSK16-120	$68	$0	145	120	93	40	40.5	1~16	Fig.1
HSK63A-GSK06-70	$60	$0	102	70	39	19.5	20	1~6	Fig.1
HSK63A-GSK06-100	$67	$0	132	100	69	19.5	20	1~6	Fig.1
HSK63A-GSK06-130	$74	$0	162	130	99	19.5	20	1~6	Fig.1
HSK63A-GSK06-160	$80	$0	192	160	129	19.5	20	1~6	Fig.1
HSK63A-GSK10-70	$62	$0	102	70	40	27	27.5	1~10	Fig.1
HSK63A-GSK10-100	$69	$0	132	100	70	27	27.5	1~10	Fig.1
HSK63A-GSK10-130	$75	$0	162	130	100	27	27.5	1~10	Fig.1
HSK63A-GSK10-160	$82	$0	192	160	130	27	27.5	1~10	Fig.1
HSK63A-GSK10-200	$90	$0	232	200	170	27	27.5	1~10	Fig.1
HSK63A-GSK13-70	$63	$0	102	70	41	35	35.5	1~13	Fig.1
HSK63A-GSK13-100	$70	$0	132	100	71	35	35.5	1~13	Fig.1
HSK63A-GSK13-130	$77	$0	162	130	101	35	35.5	1~13	Fig.1
HSK63A-GSK13-160	$83	$0	192	160	131	35	35.5	1~13	Fig.1
HSK63A-GSK16-75	$66	$0	107	75	46	40	40.5	1~16	Fig.1
HSK63A-GSK16-100	$71	$0	132	100	71	40	40.5	1~16	Fig.1
HSK63A-GSK16-130	$78	$0	162	130	101	40	40.5	1~16	Fig.1
HSK63A-GSK16-160	$84	$0	192	160	131	40	40.5	1~16	Fig.1
HSK63A-GSK16-200	$93	$0	232	200	171	40	40.5	1~16	Fig.1
HSK63A-GSK20-90	$70	$0	122	90	62.5	48	48.5	3~20	Fig.1
HSK63A-GSK20-120	$77	$0	152	120	92.5	48	48.5	3~20	Fig.1
HSK63A-GSK20-160	$86	$0	192	160	132.5	48	48.5	3~20	Fig.1
HSK63A-GSK25-90	$72	$0	122	90	64	55	55.5	5~25	Fig.1
HSK63A-GSK25-120	$78	$0	152	120	94	55	55.5	5~25	Fig.1
HSK63A-GSK25-160	$87	$0	192	160	134	55	55.5	5~25	Fig.1
HSK100A-GSK06-100	$93	$0	150	100	59	19.5	20	1~6	Fig.1
HSK100A-GSK10-100	$95	$0	150	100	59	27	27.5	1~10	Fig.1
HSK100A-GSK10-130	$103	$0	180	130	89	27	27.5	1~10	Fig.1
HSK100A-GSK10-160	$110	$0	210	160	119	27	27.5	1~10	Fig.1
HSK100A-GSK10-200	$120	$0	250	200	159	27	27.5	1~10	Fig.1
HSK100A-GSK13-100	$97	$0	150	100	66	35	35.5	1~13	Fig.1
HSK100A-GSK13-130	$104	$0	180	130	96	35	35.5	1~13	Fig.1
HSK100A-GSK13-160	$112	$0	210	160	126	35	35.5	1~13	Fig.1
HSK100A-GSK16-100	$98	$0	150	100	66	40	40.5	1~16	Fig.1
HSK100A-GSK16-130	$105	$0	180	130	96	40	40.5	1~16	Fig.1
HSK100A-GSK16-160	$113	$0	210	160	126	40	40.5	1~16	Fig.1
HSK100A-GSK16-200	$123	$0	250	200	166	40	40.5	1~16	Fig.1
HSK100A-GSK20-130	$107	$0	180	130	96	48	48.5	3~20	Fig.1
HSK100A-GSK20-160	$115	$0	210	160	126	48	48.5	3~20	Fig.1
HSK100A-GSK20-200	$125	$0	250	200	166	48	48.5	3~20	Fig.1
HSK100A-GSK25-100	$101	$0	150	100	66	55	55.5	5~25	Fig.1
HSK100A-GSK25-130	$109	$0	180	130	96	55	55.5	5~25	Fig.1
HSK100A-GSK25-160	$116	$0	210	160	126	55	55.5	5~25	Fig.1
HSK100A-GSK25-200	$126	$0	250	200	166	55	55.5	5~25	Fig.1
HSK32E-GSK06-50	$36	$0	66	50	27	19.5	-	1~6	Fig.2
HSK32E-GSK10-60	$39	$0	76	60	37	27	-	1~10	Fig.2
HSK40E-GSK06-65	$43	$0	85	65	42	19.5	-	1~6	Fig.2
HSK40E-GSK10-65	$44	$0	85	65	42	27	-	1~10	Fig.2
HSK40E-GSK10-90	$48	$0	110	90	68	27	-	1~10	Fig.2
HSK40E-GSK16-80	$48	$0	100	80	60	40	-	1~16	Fig.2
HSK50E-GSK06-70	$51	$0	95	70	41	19.5	-	1~6	Fig.2
HSK50E-GSK10-70	$52	$0	95	70	41	27	-	1~10	Fig.2
HSK50E-GSK10-80	$54	$0	105	80	51	27	-	1~10	Fig.2
HSK50E-GSK10-100	$58	$0	125	100	71	27	-	1~10	Fig.2
HSK50E-GSK16-70	$55	$0	95	70	41	40	-	1~16	Fig.2
HSK50E-GSK16-80	$56	$0	105	80	51	40	-	1~16	Fig.2
HSK50E-GSK16-100	$60	$0	125	100	71	40	-	1~16	Fig.2
HSK63F-GSK10-70	$58	$0	95	70	40	27	-	1~10	Fig.3
HSK63F-GSK10-100	$63	$0	125	100	70	27	-	1~10	Fig.3
HSK63F-GSK10-150	$74	$0	175	150	120	27	-	1~10	Fig.3
HSK63F-GSK13-70	$59	$0	95	70	41	35	-	1~13	Fig.3
HSK63F-GSK13-100	$65	$0	125	100	71	35	-	1~13	Fig.3
HSK63F-GSK13-150	$75	$0	175	150	121	35	-	1~13	Fig.3
HSK63F-GSK16-70	$60	$0	95	70	41	40	-	1~16	Fig.3
HSK63F-GSK16-100	$66	$0	125	100	71	40	-	1~16	Fig.3
HSK63F-GSK16-150	$76	$0	175	150	121	40	-	1~16	Fig.3
HSK63F-GSK20-80	$63	$0	105	80	52.5	48	-	3~20	Fig.3
HSK63F-GSK20-100	$67	$0	125	100	72.5	48	-	3~20	Fig.3

Itens selecionados

0 × $0

Subtotal

Valor total

$0 USD

Características

Principais características e especificações deste produto.

Interface cone oco HSK conforme DIN 69893

Disponível em HSK-A, HSK-E e HSK-F

Sistema de pinça GSK: faixa de fixação de 1 mm a 25 mm

Alta rigidez e precisão para operações de usinagem exigentes

Mecanismo de trava lateral para fresas de topo e hastes planas

Projetado para centros de usinagem CNC de alta velocidade

Desenho técnico

Especificações técnicas detalhadas e dimensões para referência profissional.

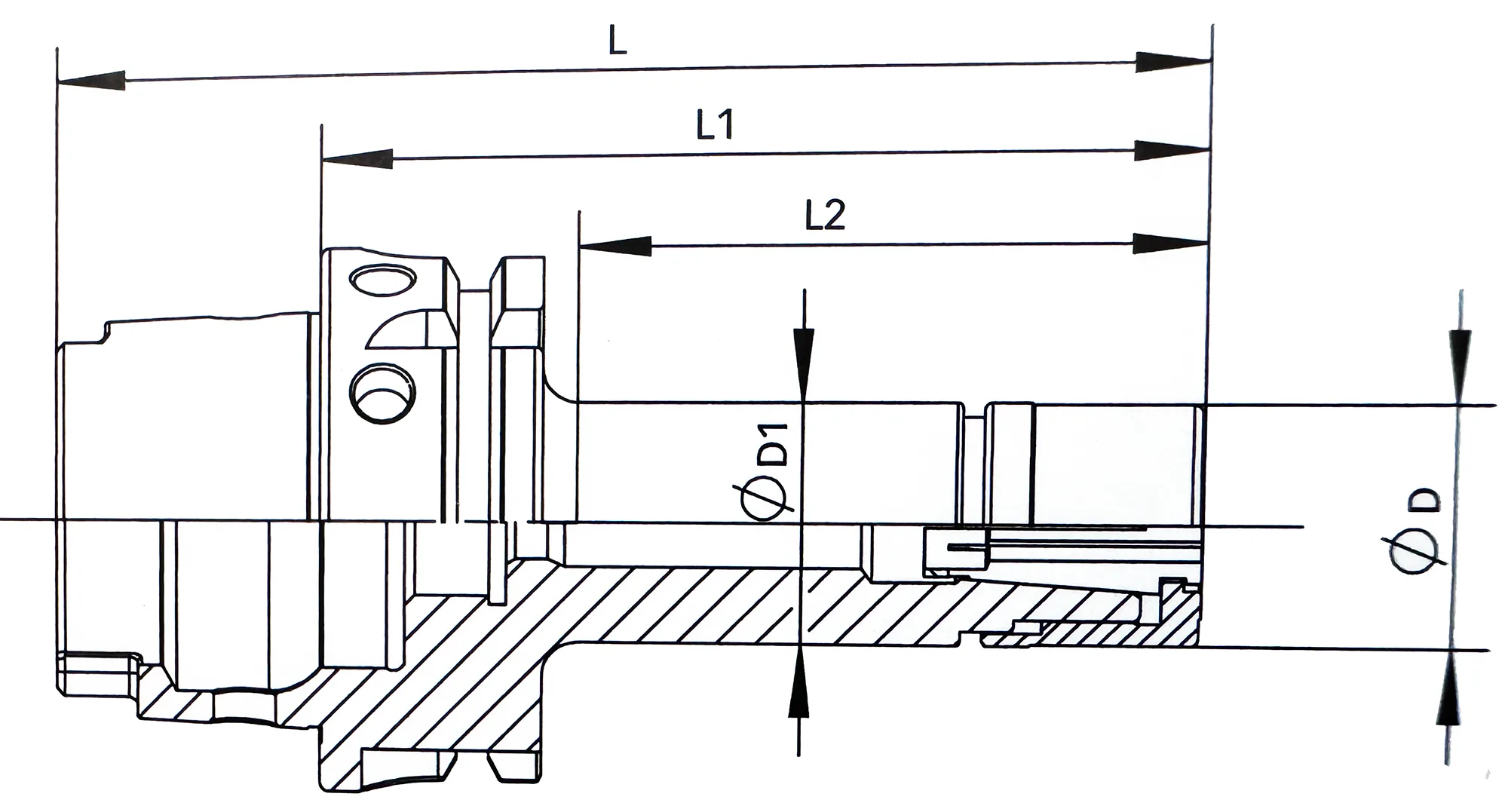

Fig.1

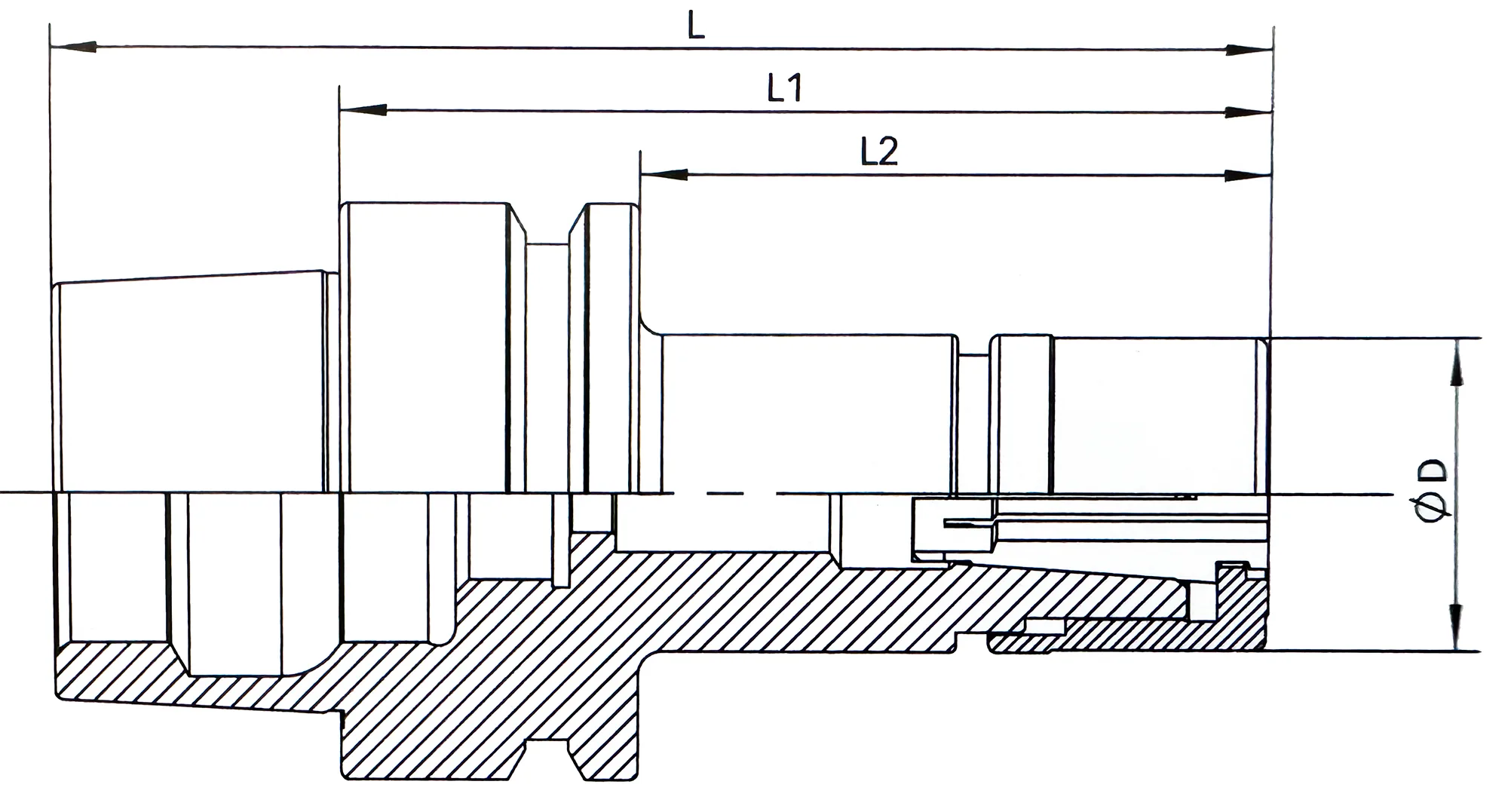

Fig.2

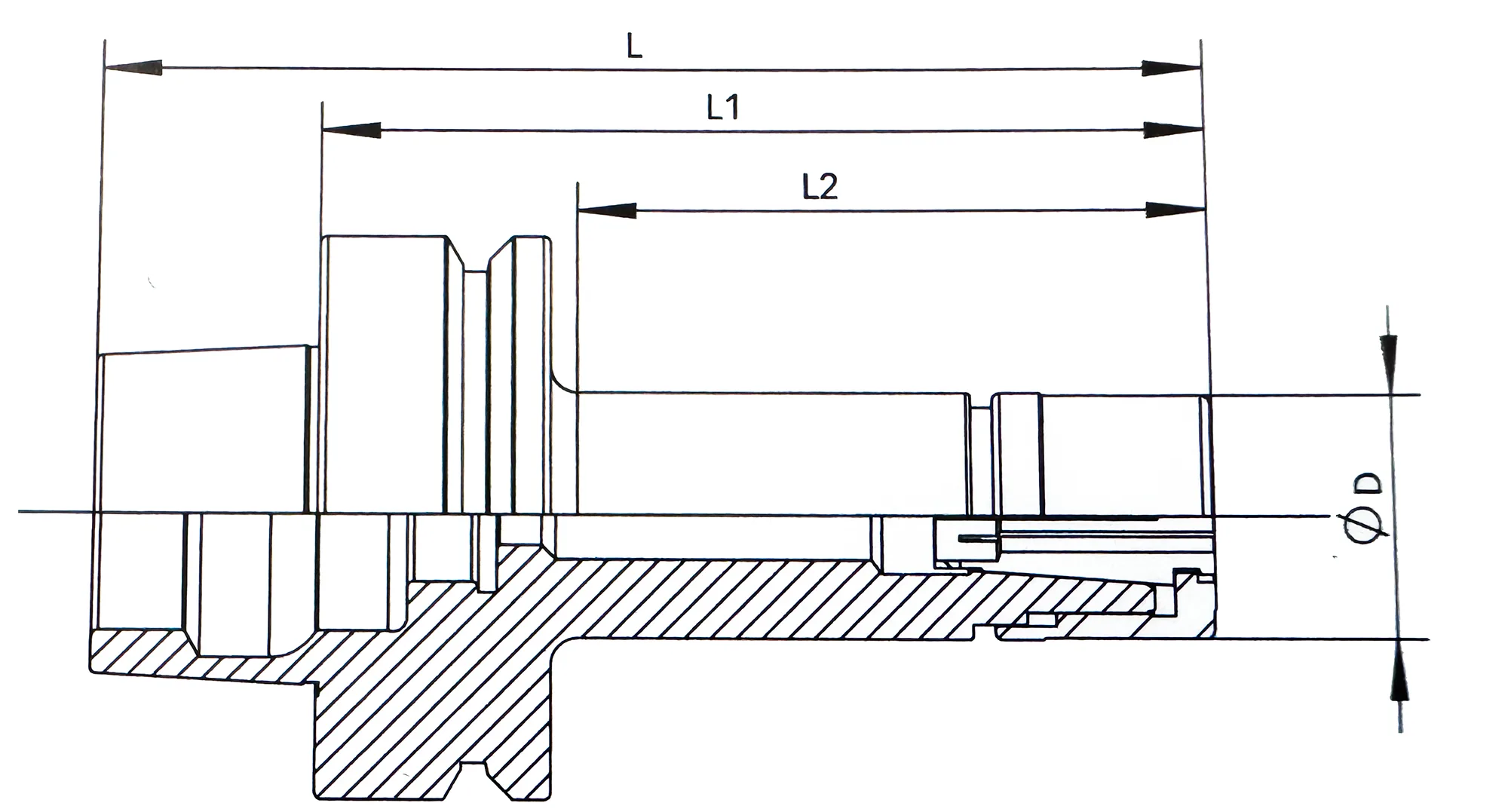

Fig.3

Fig.1

Fig.2

Fig.3
